DS1692J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> DS1692J

DS1692J: DescriptionLine Driver, 2 Func, 1 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size132KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

DS1692J Overview

Line Driver, 2 Func, 1 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16

DS1692J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99

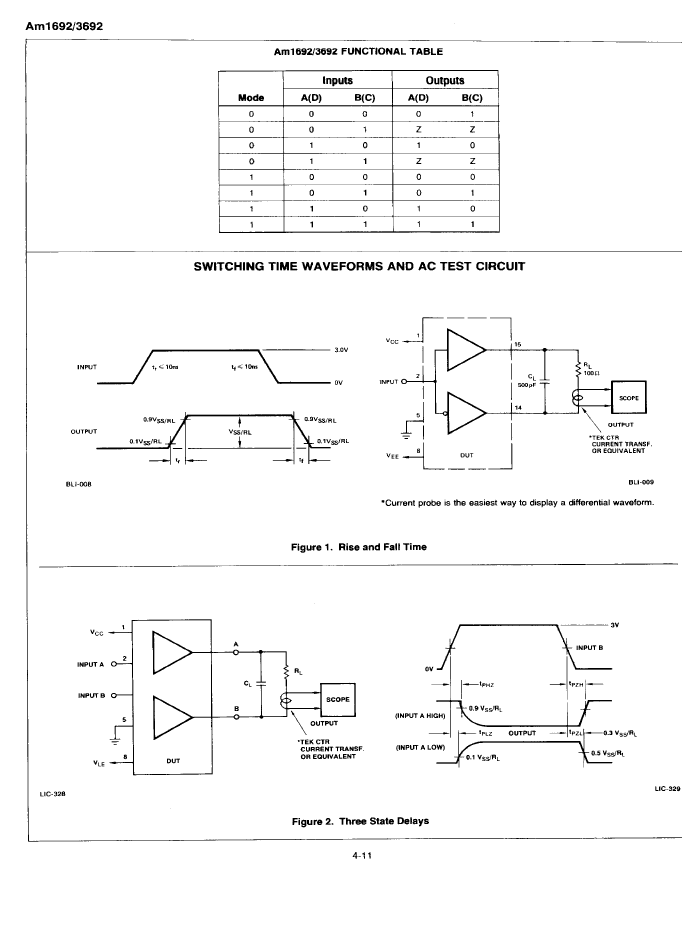

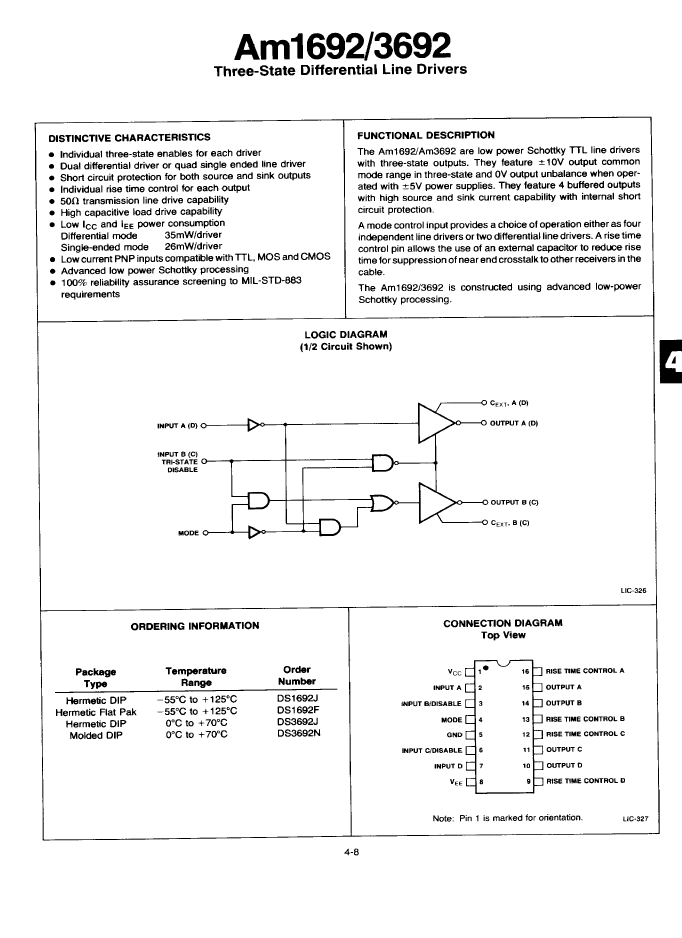

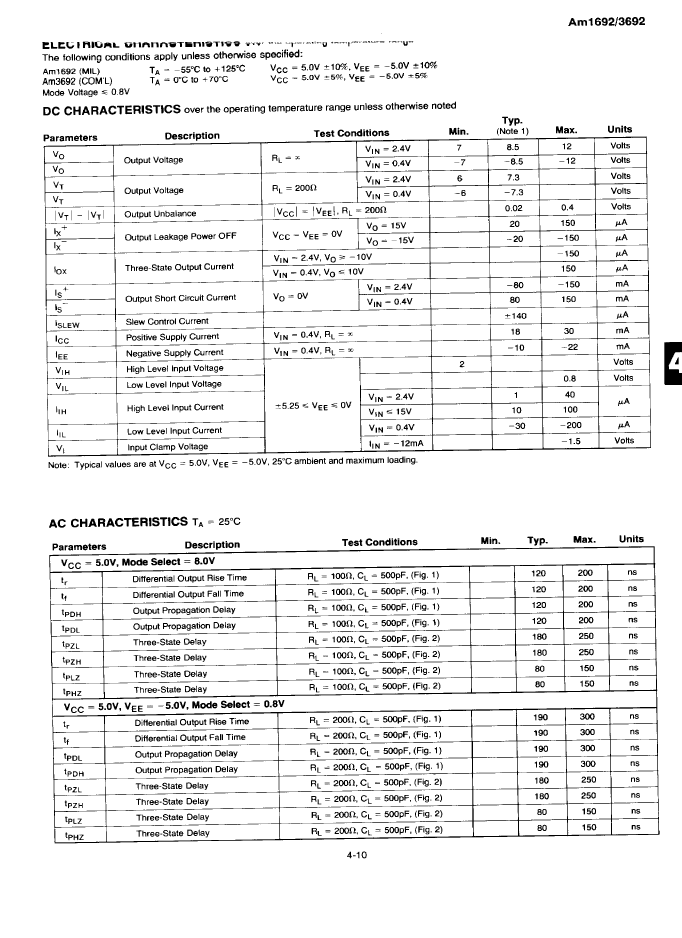

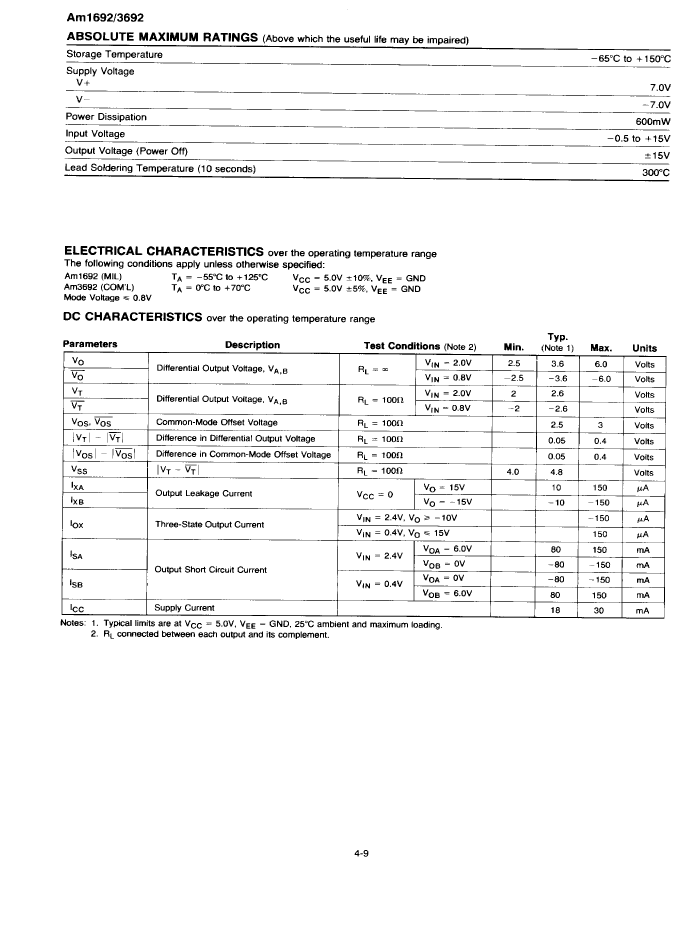

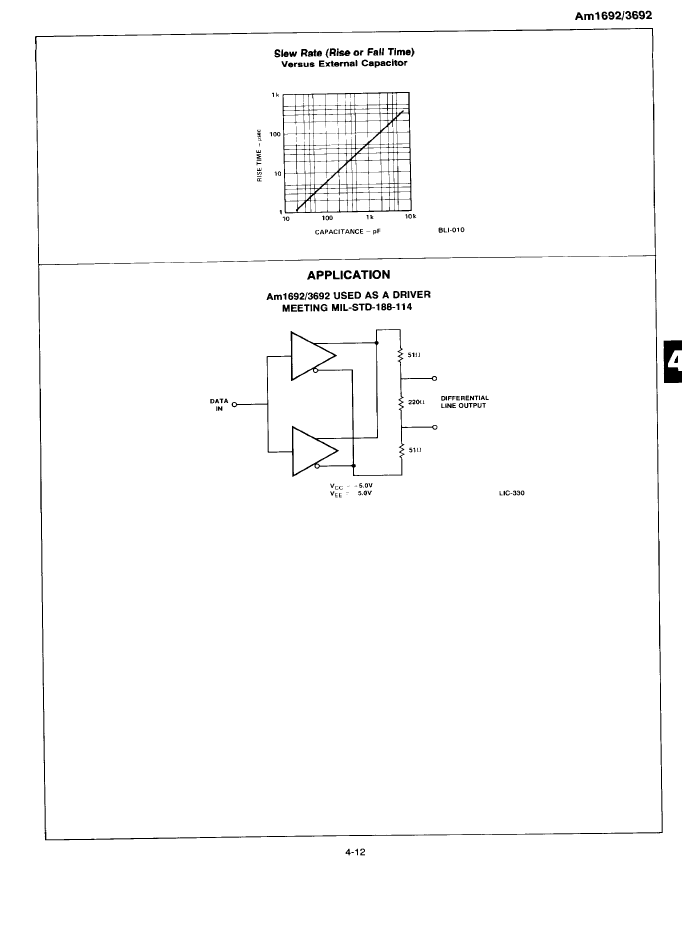

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DS1692J Related Products

	DS1692J	DS3692N	DS3692J	DS1692F
Description	Line Driver, 2 Func, 1 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Driver, 2 Func, 1 Driver, BIPolar, PDIP16, PLASTIC, DIP-16	Line Driver, 2 Func, 1 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Driver, 2 Func, 1 Driver, BIPolar, CDFP16, HERMETIC SEALED, CERPACK-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD
Parts packaging code	DIP	DIP	DIP	DFP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3
Contacts	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Differential output	-	YES	YES	YES
Number of drives	-	1	1	1
High level input current maximum value	-	0.00004 A	0.00004 A	0.00004 A
Input properties	-	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	-	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	-	R-PDIP-T16	R-CDIP-T16	R-CDFP-F16
JESD-609 code	-	e0	e0	e0
length	-	19.304 mm	19.431 mm	10.0965 mm
Nominal negative supply voltage	-	-5 V	-5 V	-5 V
Number of functions	-	2	2	2
Number of terminals	-	16	16	16
Maximum operating temperature	-	70 °C	70 °C	125 °C
Minimum output swing	-	2 V	2 V	2 V
Output characteristics	-	3-STATE	3-STATE	3-STATE
Output polarity	-	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	-	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	-	DIP	DIP	DFP
Encapsulate equivalent code	-	DIP16,.3	DIP16,.3	FL16,.3
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-	+-5 V	+-5 V	+-5 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	5.08 mm	5.08 mm	2.159 mm
Maximum slew rate	-	30 mA	30 mA	30 mA
Maximum supply voltage	-	5.25 V	5.25 V	5.5 V
Minimum supply voltage	-	4.75 V	4.75 V	4.5 V
Nominal supply voltage	-	5 V	5 V	5 V
surface mount	-	NO	NO	YES
technology	-	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	-	2.54 mm	2.54 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
maximum transmission delay	-	200 ns	200 ns	200 ns
width	-	7.62 mm	7.62 mm	6.731 mm
