IDT7M4084L55N Overview

SRAM Module, 2MX8, 55ns, CMOS

IDT7M4084L55N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.A
Maximum access time	55 ns
I/O type	COMMON
JESD-30 code	R-XDMA-T36
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	36
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP36,.6
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00025 A
Minimum standby current	2 V
Maximum slew rate	0.11 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

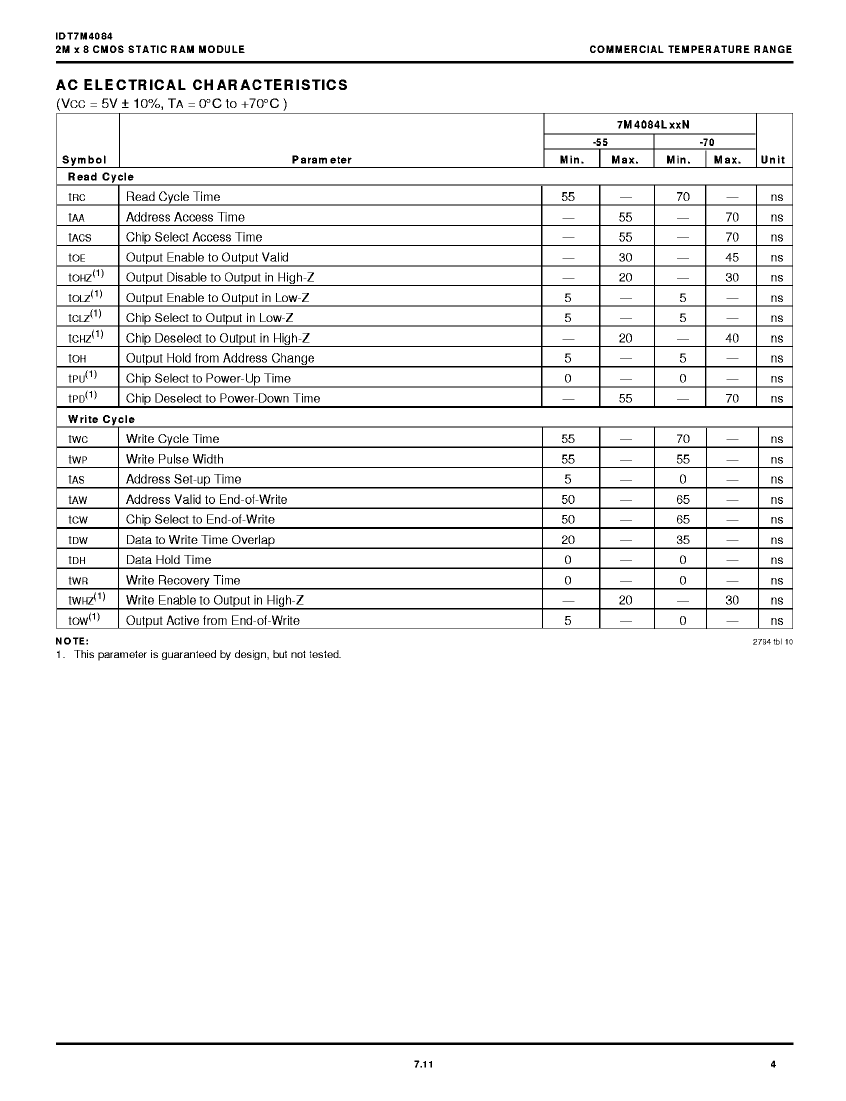

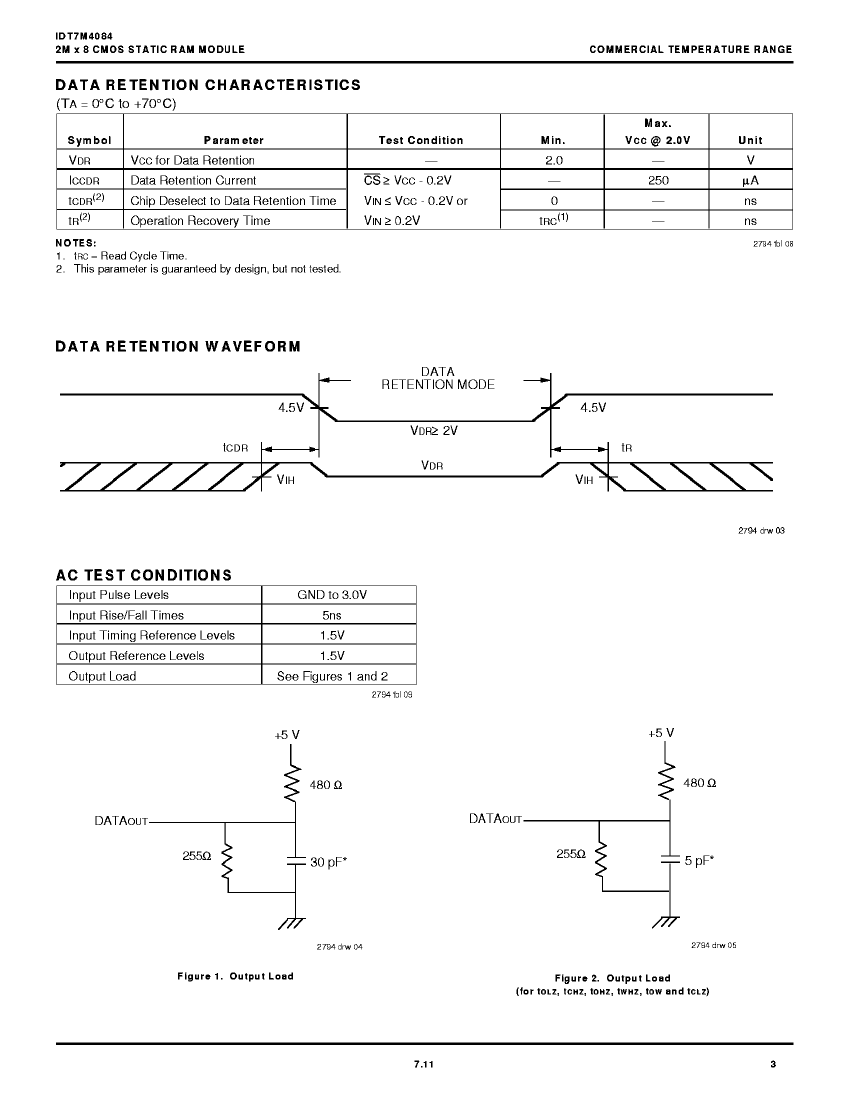

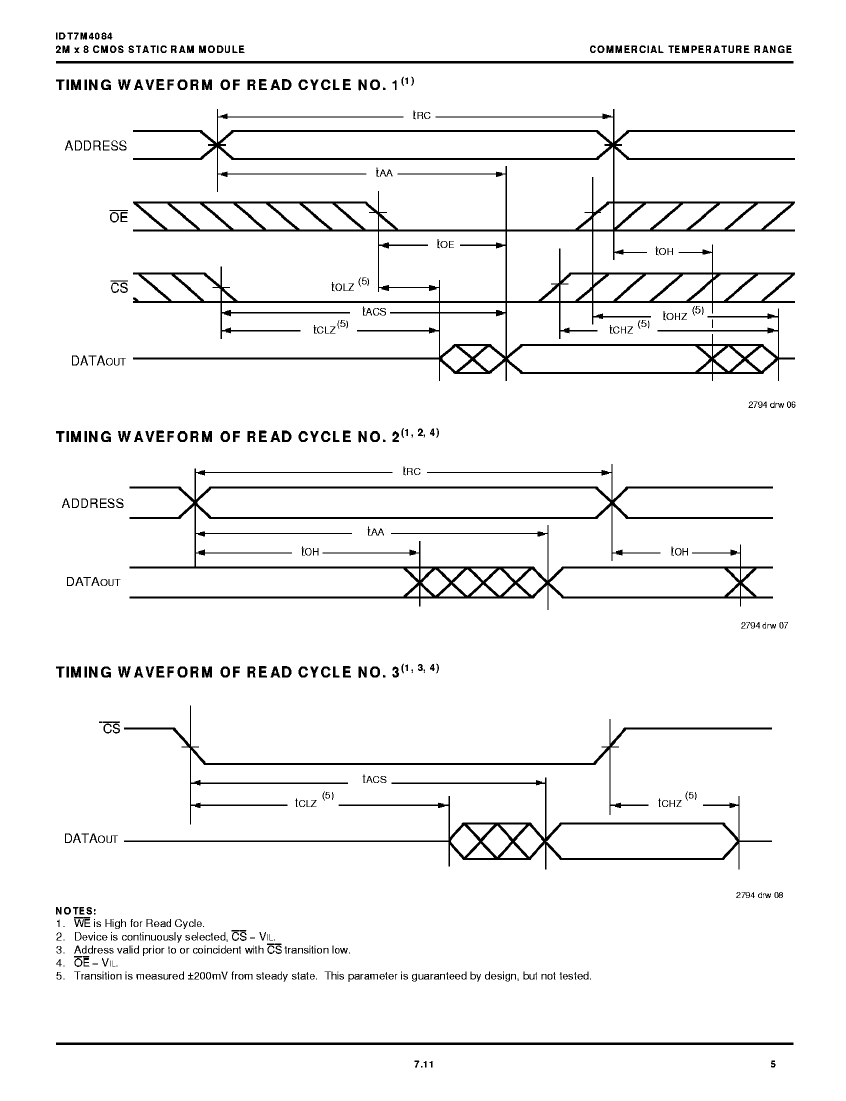

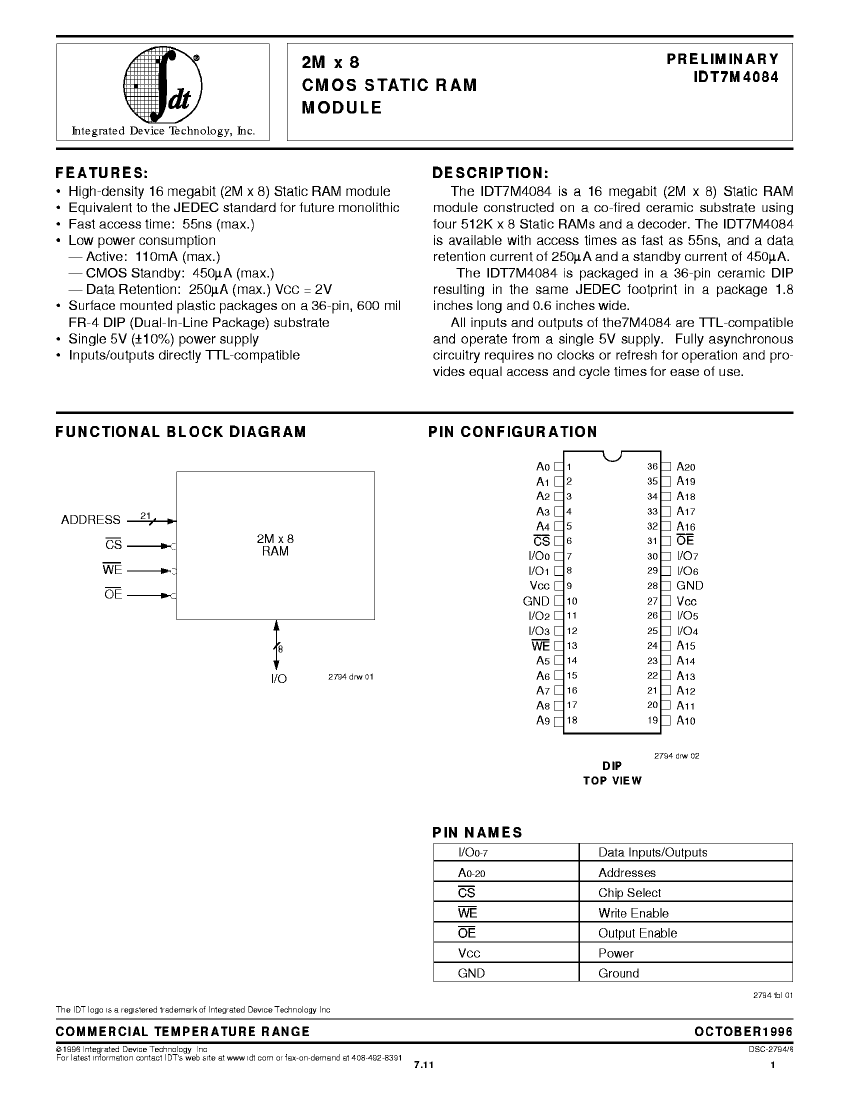

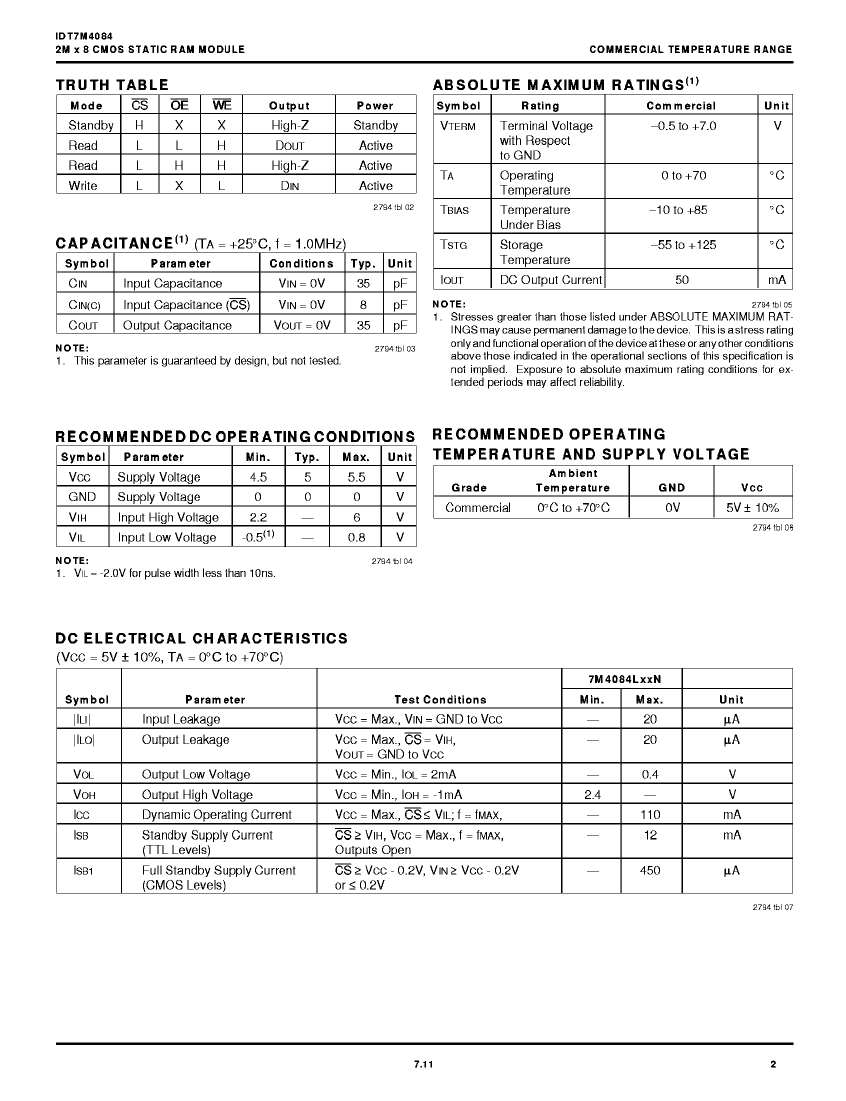

Preview

Download Datasheet

View All

IDT7M4084L55N Related Products

	IDT7M4084L55N	IDT7M4084L70N
Description	SRAM Module, 2MX8, 55ns, CMOS	SRAM Module, 2MX8, 70ns, CMOS
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant
ECCN code	3A991.B.2.A	3A991.B.2.A
Maximum access time	55 ns	70 ns
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-T36	R-XDMA-T36
JESD-609 code	e0	e0
memory density	16777216 bit	16777216 bit
Memory IC Type	SRAM MODULE	SRAM MODULE
memory width	8	8
Number of functions	1	1
Number of ports	1	1
Number of terminals	36	36
word count	2097152 words	2097152 words
character code	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	2MX8	2MX8
Output characteristics	3-STATE	3-STATE
Exportable	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP36,.6	DIP36,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.00025 A	0.00025 A
Minimum standby current	2 V	2 V
Maximum slew rate	0.11 mA	0.11 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED
