SAW Filter 60 MHz
MODEL NO.: TB0636A
A. MAXIMUM RATING:
1.
2.
3.
4.
SMD 13.3mmX6.5mm
REV.1.0
RoHS Compliant
Lead free
Lead-free soldering
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Input Power Level: 10 dBm
Maximum DC Voltage: 10V
B. ELECTRICAL CHARACTERISTICS:
1. Ambient Temperature: 25
°C
Item
Center frequency, Fc
Insertion Loss, IL
1 dB Bandwidth
3 dB Bandwidth
25 dB Bandwidth
40 dB Bandwidth
Pass band Ripple Fc±10.0MHz
VSWR Fc±10.0MHz
Triple Transit Suppression
Power Handling
Temp Coefficient
Unit
MHz
dB
MHz
MHz
MHz
MHz
P-P dB
P-P dB
dB
dBm
ppm/K
40
10
-
-23
-
-
Min.
-
-
20.0
-
Type.
60.0
15.0
21.7
22.5
25.5
26.8
0.6
6.5
30
43
Max.
-
18.5
-
-
30.0
31.0
1.2
7.0
100
Group delay Variation Fc±10MHz P-P nsec
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
2

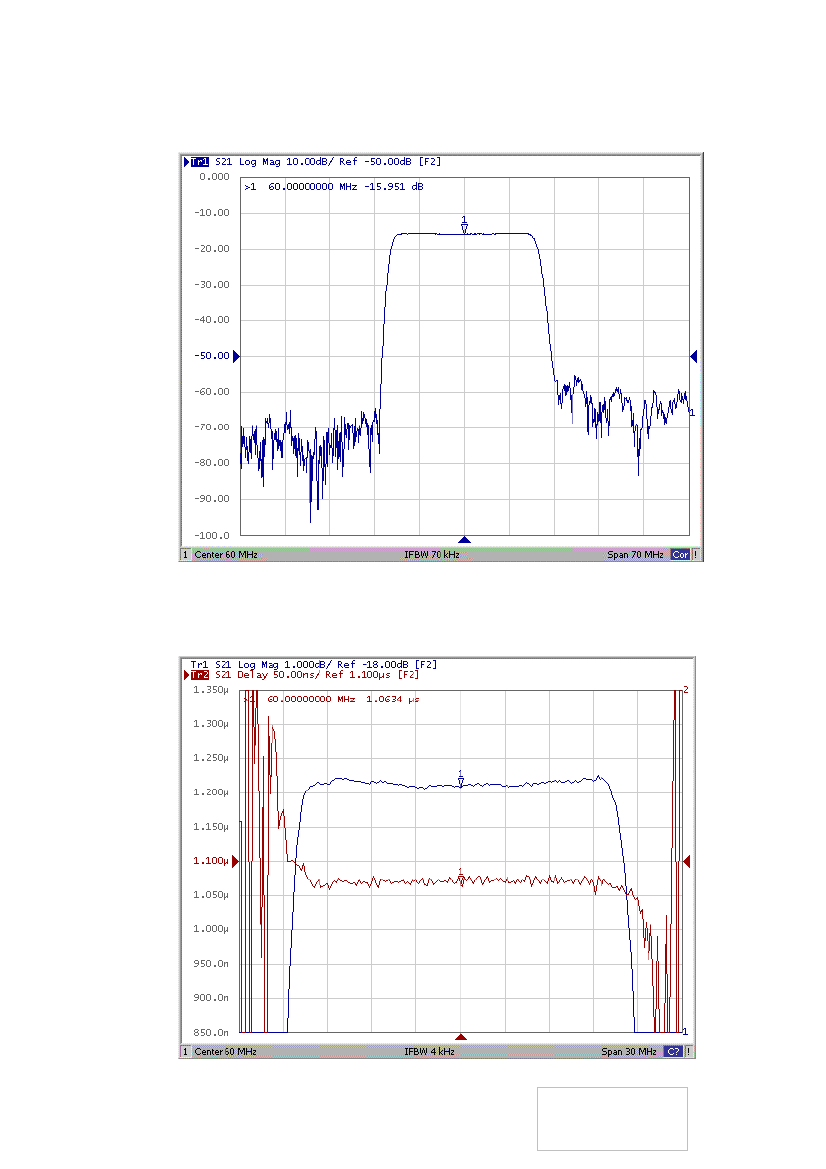

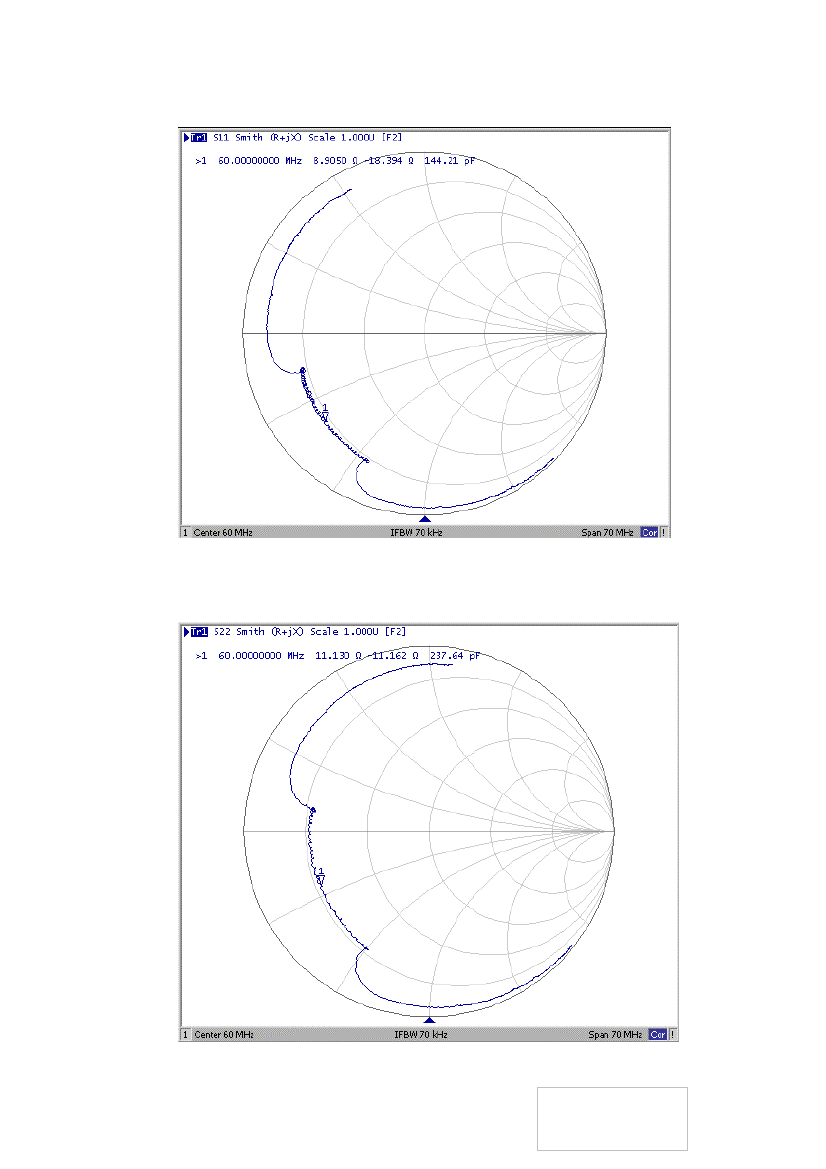

3. S11 Smith Chart: (span : 70MHz)
3. S22 Smith Chart (span : 70MHz)
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
4

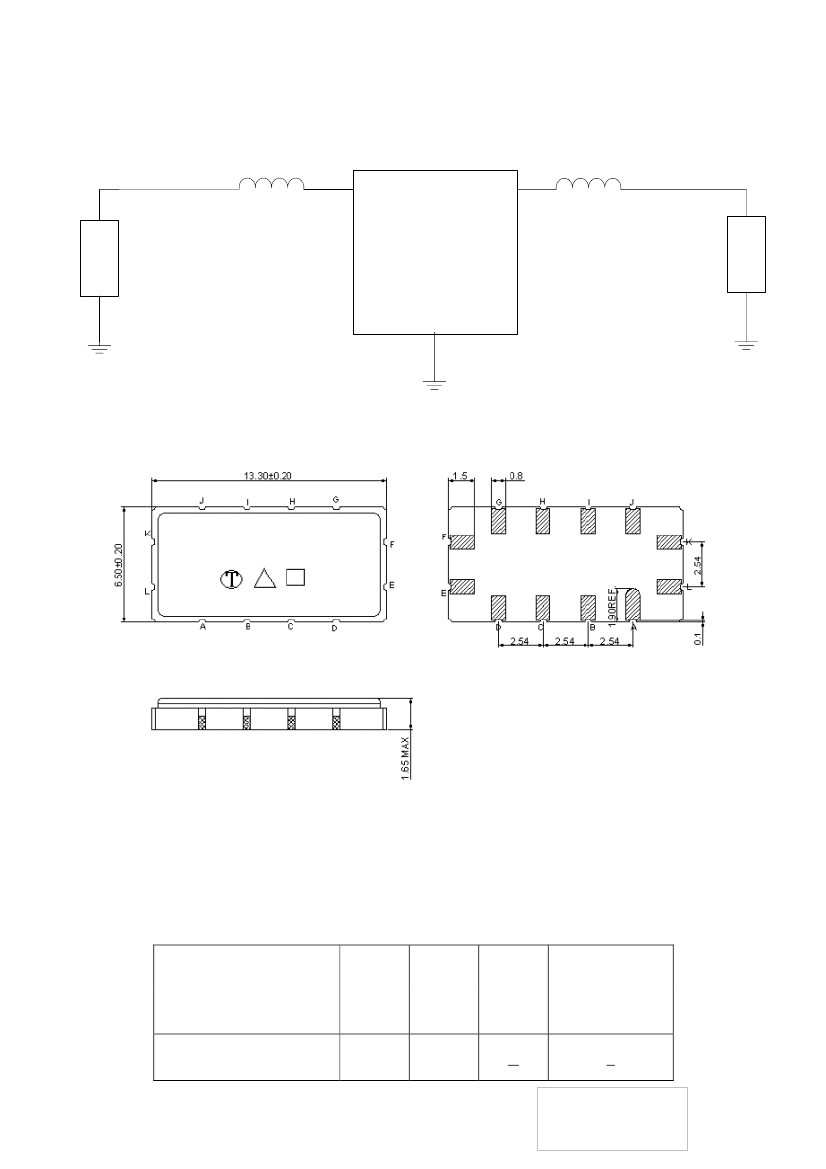

E. MEASUREMENT CIRCUIT
Zin= Zout= 50 ohm
L1
K
E
L2
Zin
SAW
Filter
Zout
L1=100nH,L2=150nH.
F.OUTLINE DRAWING:
636
Pin K: RF input
Pin E: RF output
Pin A, B, C, D, G, H, I, L, F J: To be Ground
□
: Week Code (Follow the table from planner each year)
Unit : mm
△
: Product / Year Code
Year
2005
2009
B
2006
2010
b
2007
2011
B
2008
2012
b
TST DCC
Release document
5
Product Code
