IF SAW Filter 110MHz(BW=200KHz)
MODEL NO.: TB0681A
A. MAXIMUM RATING:
SMD 9.1X7.1mm
REV. NO.3
RoHS Compliant
Lead free
Lead-free soldering
1.Operating Temperature: -10
°C
~ 50
o
C
2. Storage Temperature: -40
o
C ~ +85
o
C
3. Input Power Level : 10 dBm
4.Maximum DC Voltage : 10V
B. Characteristics :
1. Ambient Temperature:
25
o
C
Value
Typ.
110
7.7
297
450
70
33
53
-0.036
Characteristics
Min.
Center frequency
FC
Minimum Insertion loss I.L.
1 dB Bandwidth
3 dB Bandwidth
MHz
dB
KHz
KHz
-
-
-
200
Max.
-
12
-
-
400
-
-
-
Note
-
-
-
-
-
-
-
-
Group Delay Ripple (F
C
±
100KHz)
nsec
-
Relative Rejection (Reference to Minimum Insertion loss)
1) Fc
±
1.0MHz
dB
15
2) Fc
±
4.0MHz
dB
35
2
Temp Coefficient
ppm/K
-
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
- 2 -

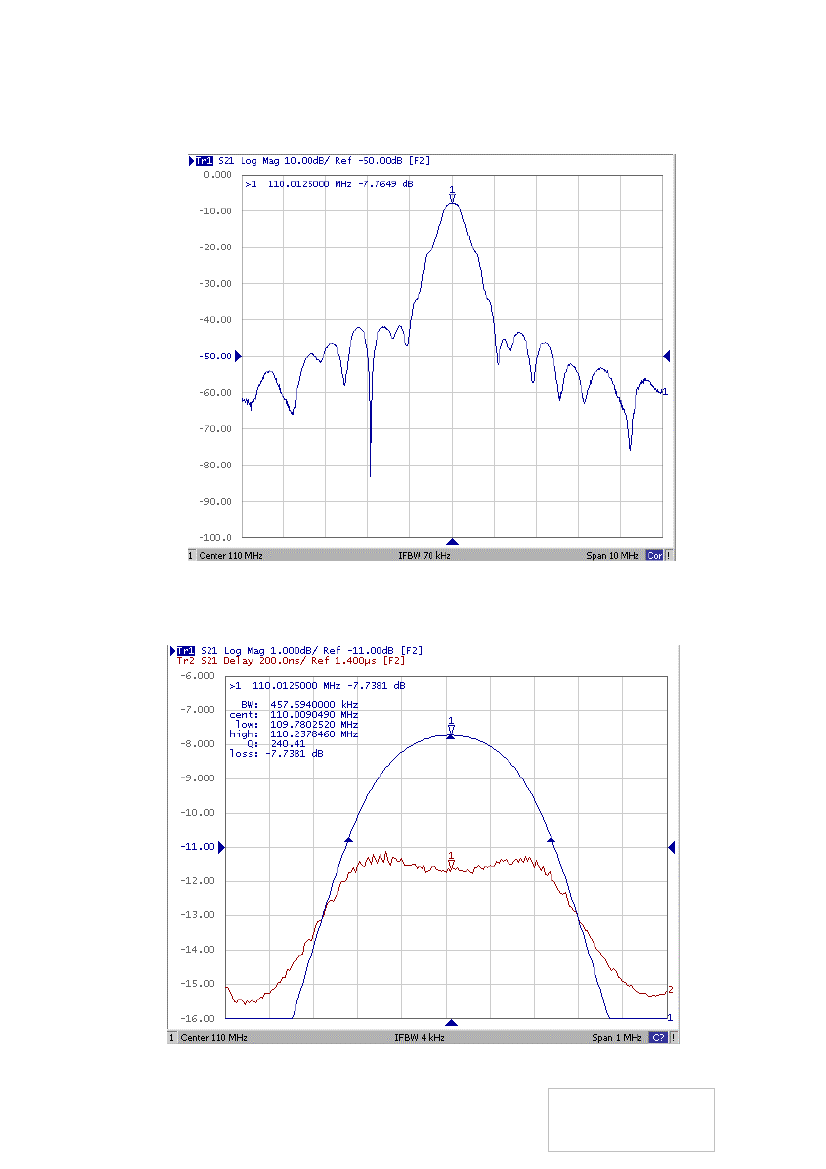

C. Frequency Characteristics :
1. S21 Response
Fig1.
Horizontal: 1MHz/Div
Vertical: 10dB/Div
2. Passband Response and Group Delay Response
Fig2.
Horizontal: 0.1MHz/Div Vertical 1: 1dB/Div
Vertical 2: 200nS/Div
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
- 3 -
D. Outline Drawing:
6 8 1
Pin h: RF Input
Pin c: RF Output
Pin a, b, d, e, f, g, j, k : To be ground
Unit : mm
□
: Week Code (Follow the table from planner each year)
△
: Product / Year Code
Year
2005
2009
B
2006
2010
b
2007
2011
B
2008
2012
b
Product Code
E. Matching Circuit:
L1=82nH, C1=8pF, L2=100nH, C2=8pF
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
- 4 -

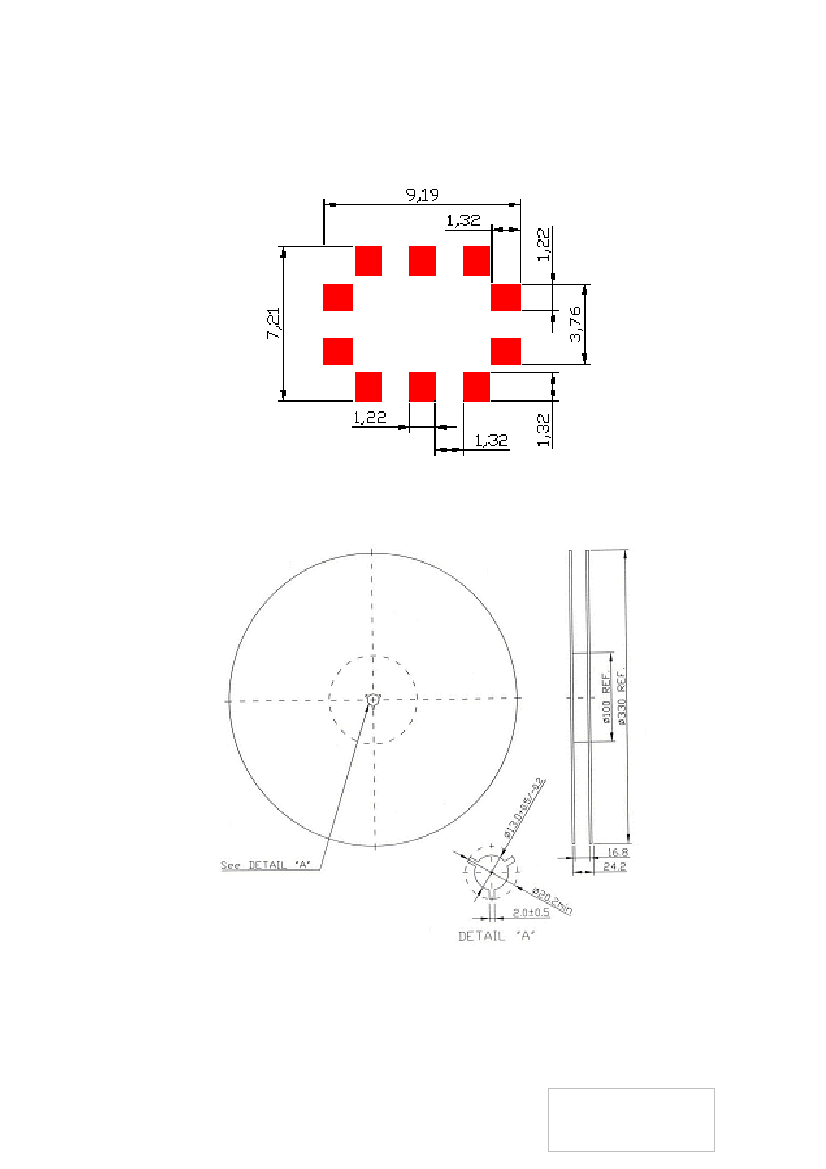

F. PCB Footprint:
