BCR569-E6433

Description
Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
CategoryDiscrete semiconductor    The transistor
File Size107KB,4 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

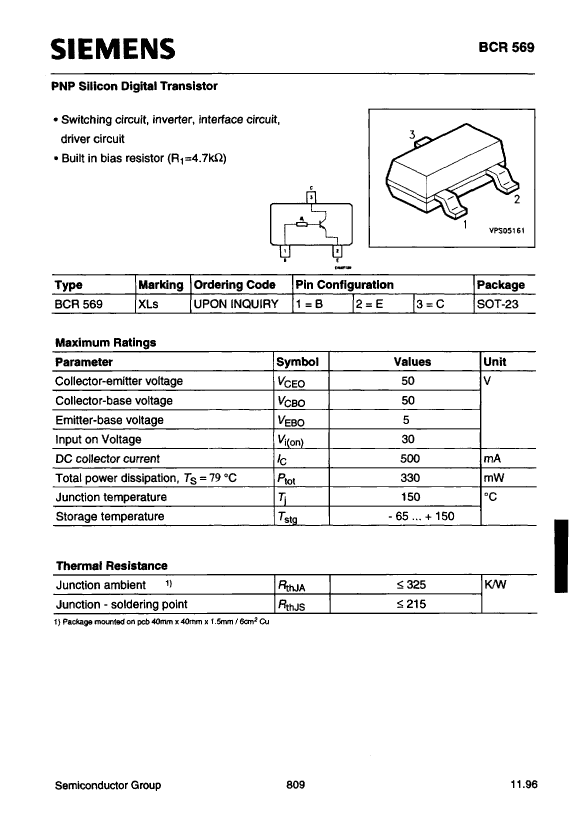

BCR569-E6433 Overview

Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon

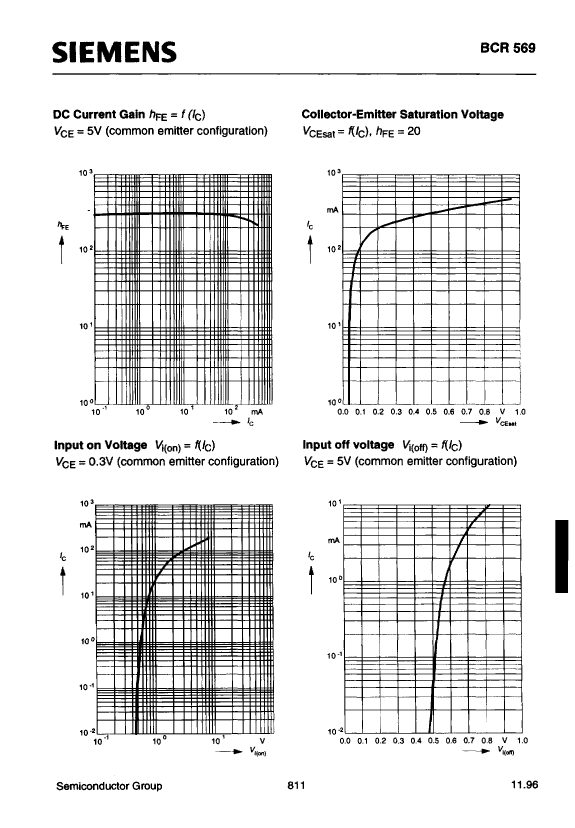

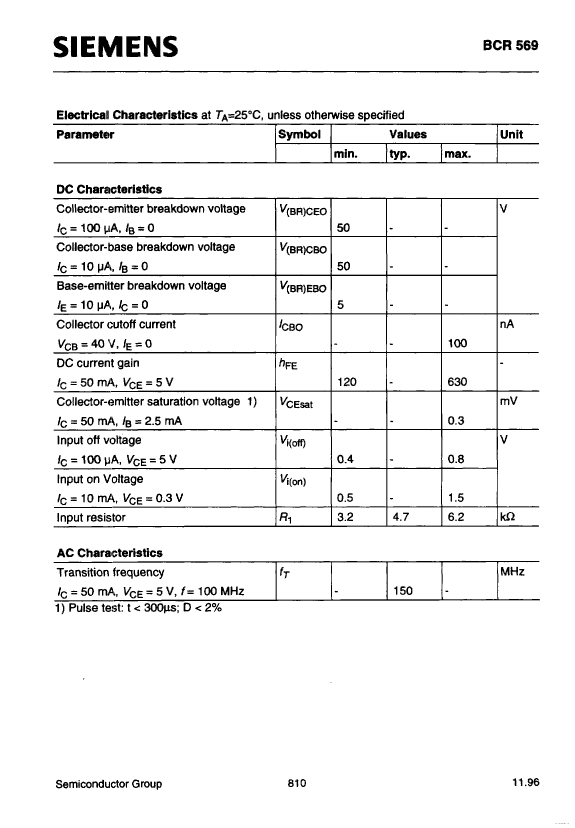

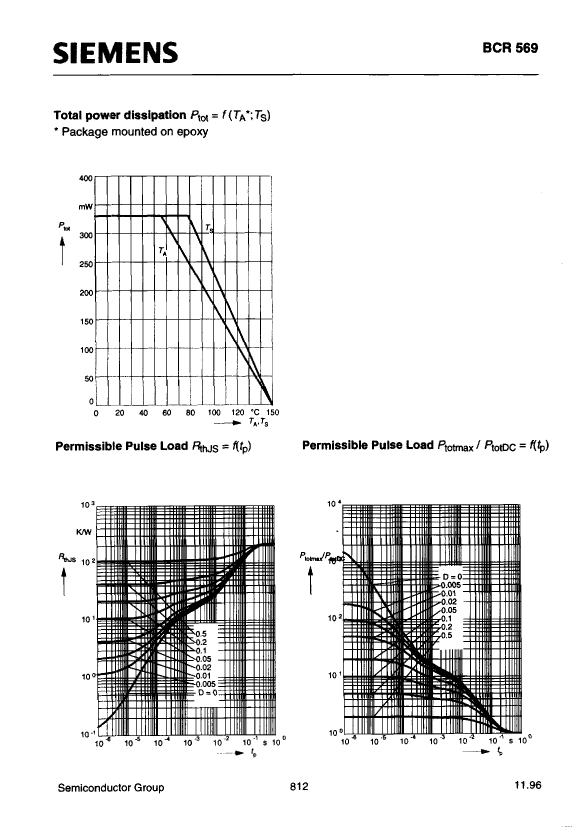

BCR569-E6433 Parametric

Parameter NameAttribute value
MakerSIEMENS
package instructionSMALL OUTLINE, R-PDSO-G3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)0.5 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)120
JESD-30 codeR-PDSO-G3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Maximum power consumption environment0.33 W
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)150 MHz
VCEsat-Max0.3 V

BCR569-E6433 Related Products

BCR569-E6433 BCR569-E6327
Description Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
Maker SIEMENS SIEMENS
package instruction SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Maximum collector current (IC) 0.5 A 0.5 A
Collector-emitter maximum voltage 50 V 50 V
Configuration SINGLE WITH BUILT-IN RESISTOR SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE) 120 120
JESD-30 code R-PDSO-G3 R-PDSO-G3
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Polarity/channel type PNP PNP
Maximum power consumption environment 0.33 W 0.33 W
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 150 MHz 150 MHz
VCEsat-Max 0.3 V 0.3 V
