Datasheet> All Categories > Power/power management> The power supply circuit> KA79M12

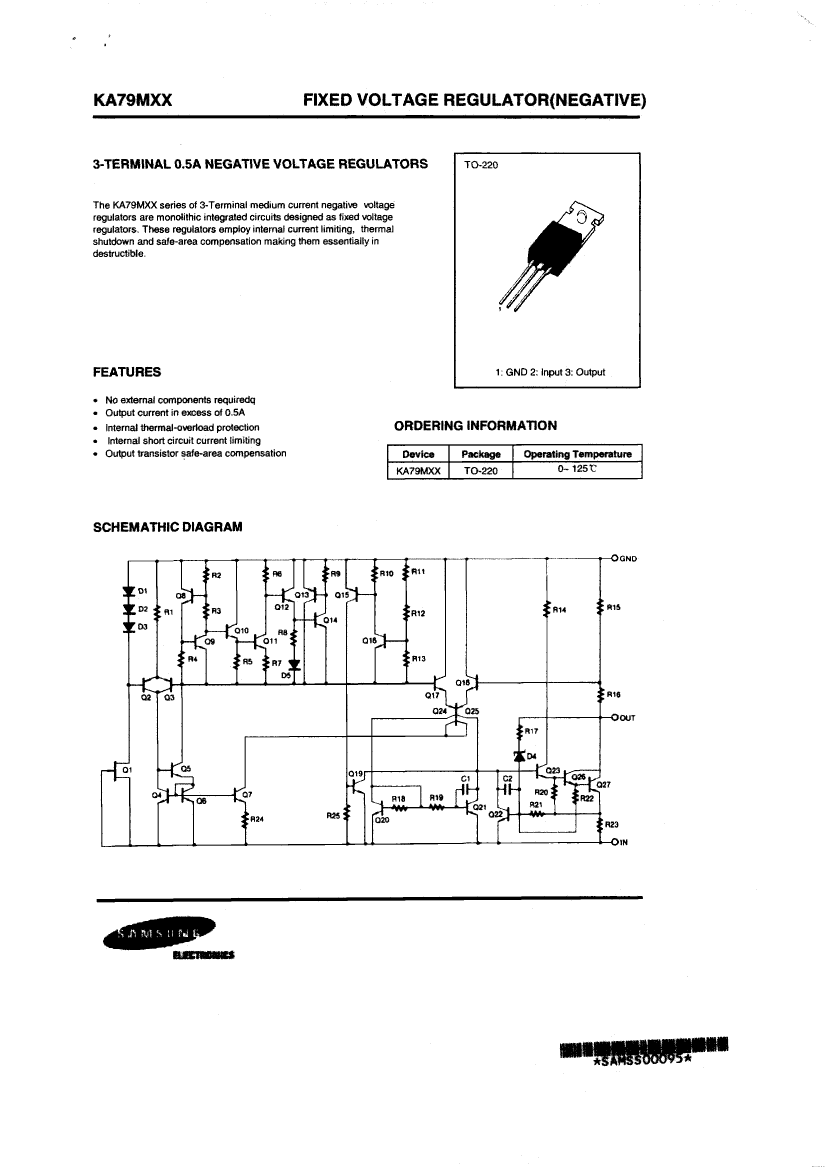

Preview

KA79M12: DescriptionFixed Negative Standard Regulator, 12V, BIPolar, PSFM3,; CategoryPower/power management The power supply circuit; File Size232KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KA79M12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KA79M12	-	-	View	Buy Now

KA79M12 Overview

Fixed Negative Standard Regulator, 12V, BIPolar, PSFM3,

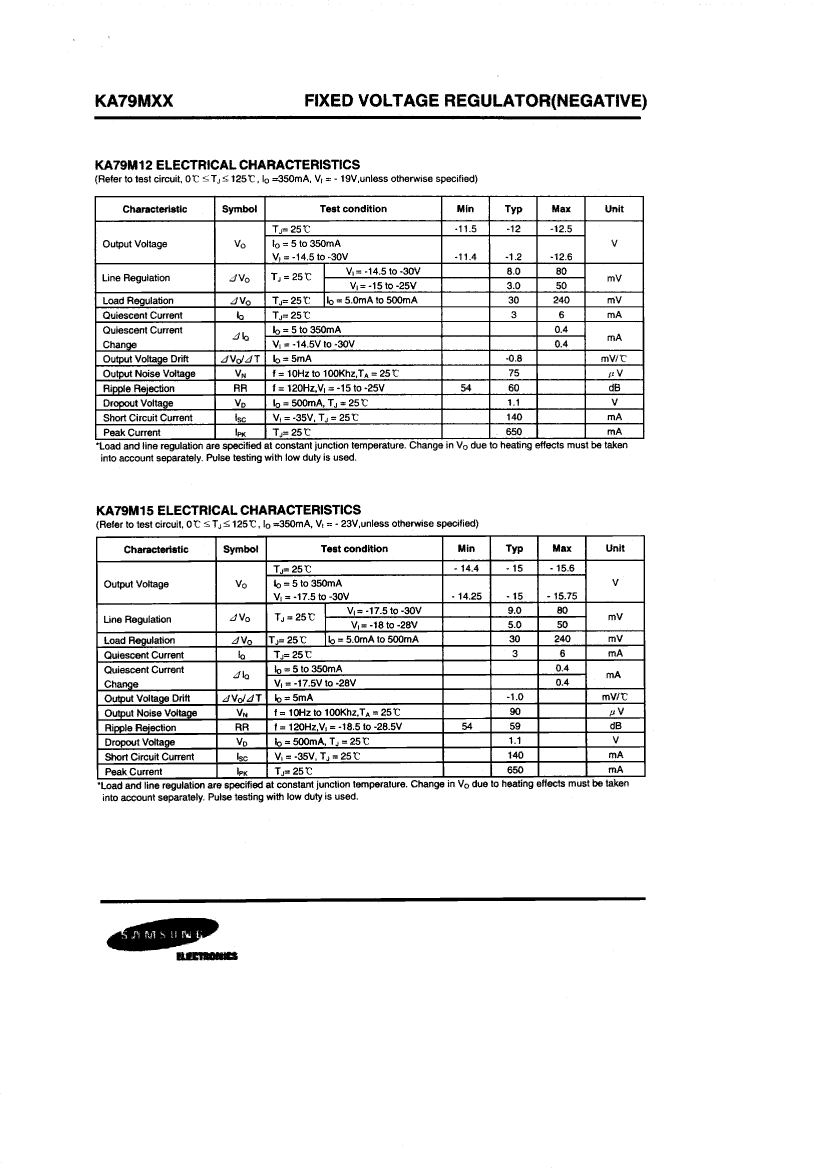

KA79M12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	, SIP3,.1TB
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	1.7 V
Maximum absolute input voltage	35 V
Maximum input voltage	30 V
Minimum input voltage	14.5 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum grid adjustment rate	0.08%
Maximum load regulation	0.24%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.5 A
Maximum output voltage 1	12.6 V
Minimum output voltage 1	11.4 V
Nominal output voltage 1	12 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	5%

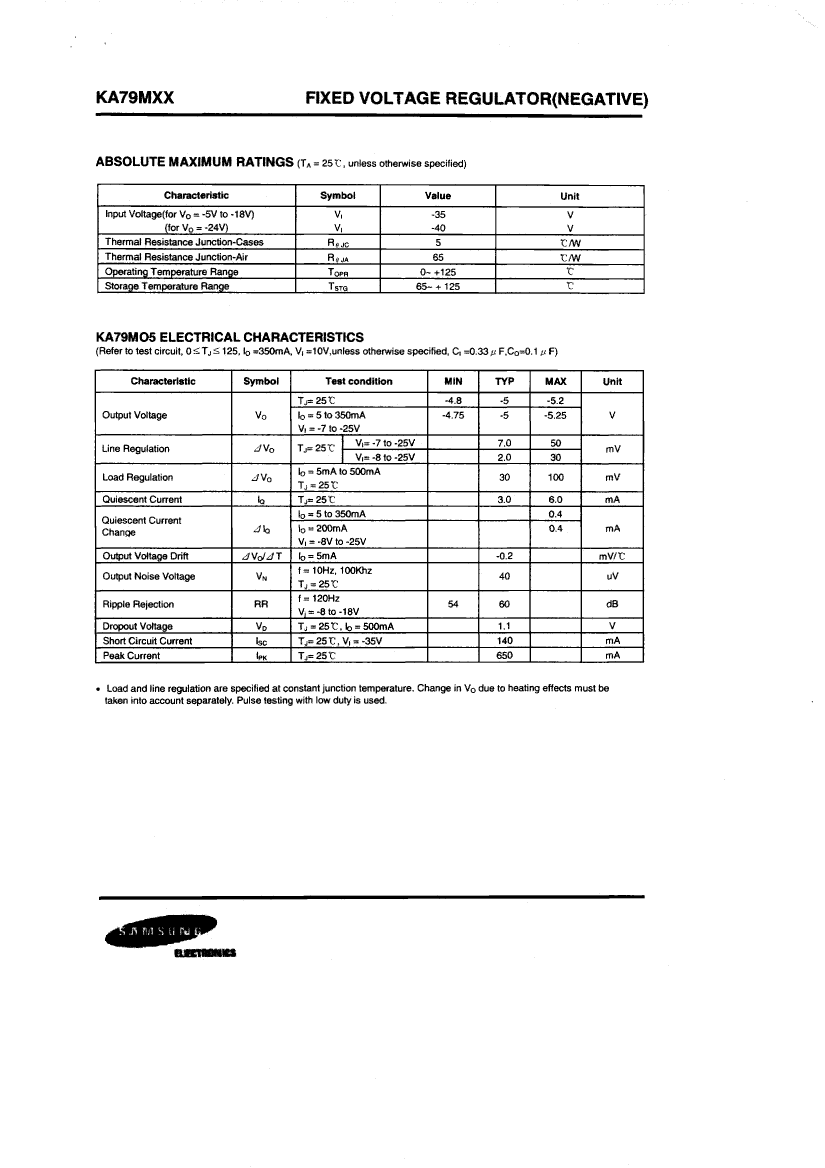

Preview

Download Datasheet

View All

KA79M12 Related Products

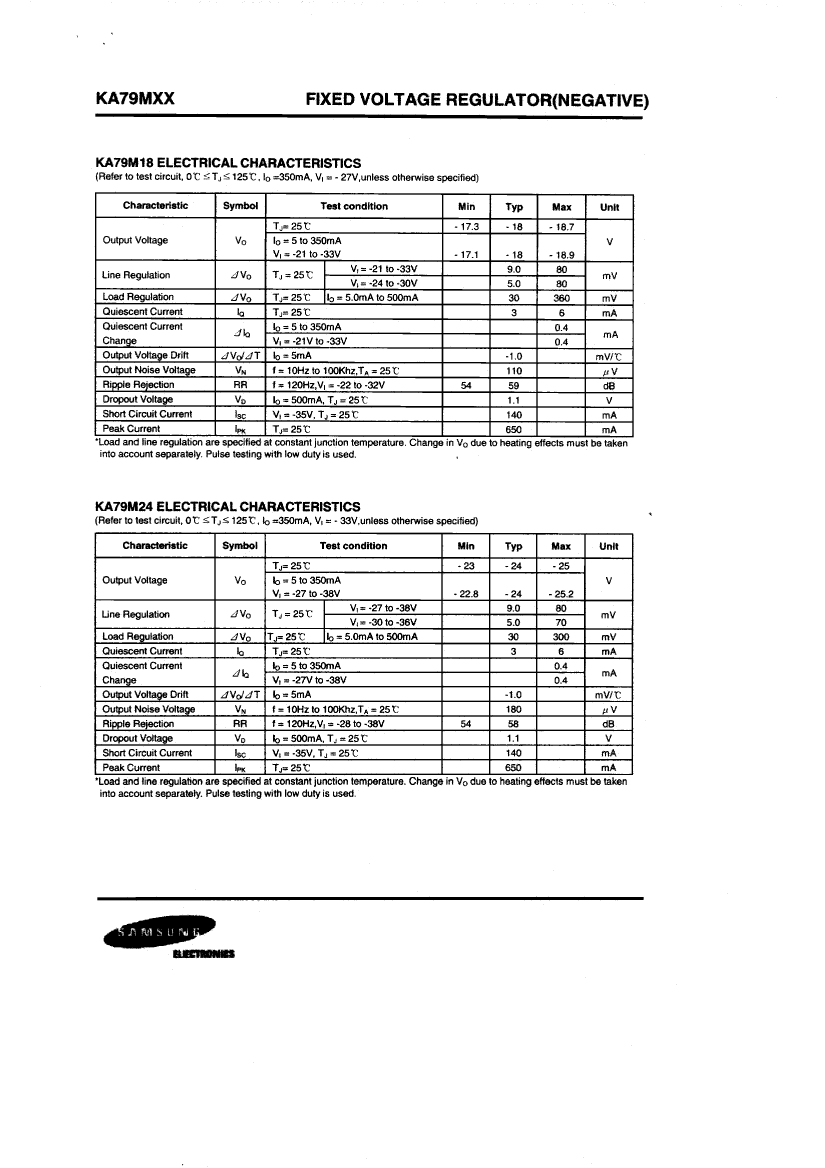

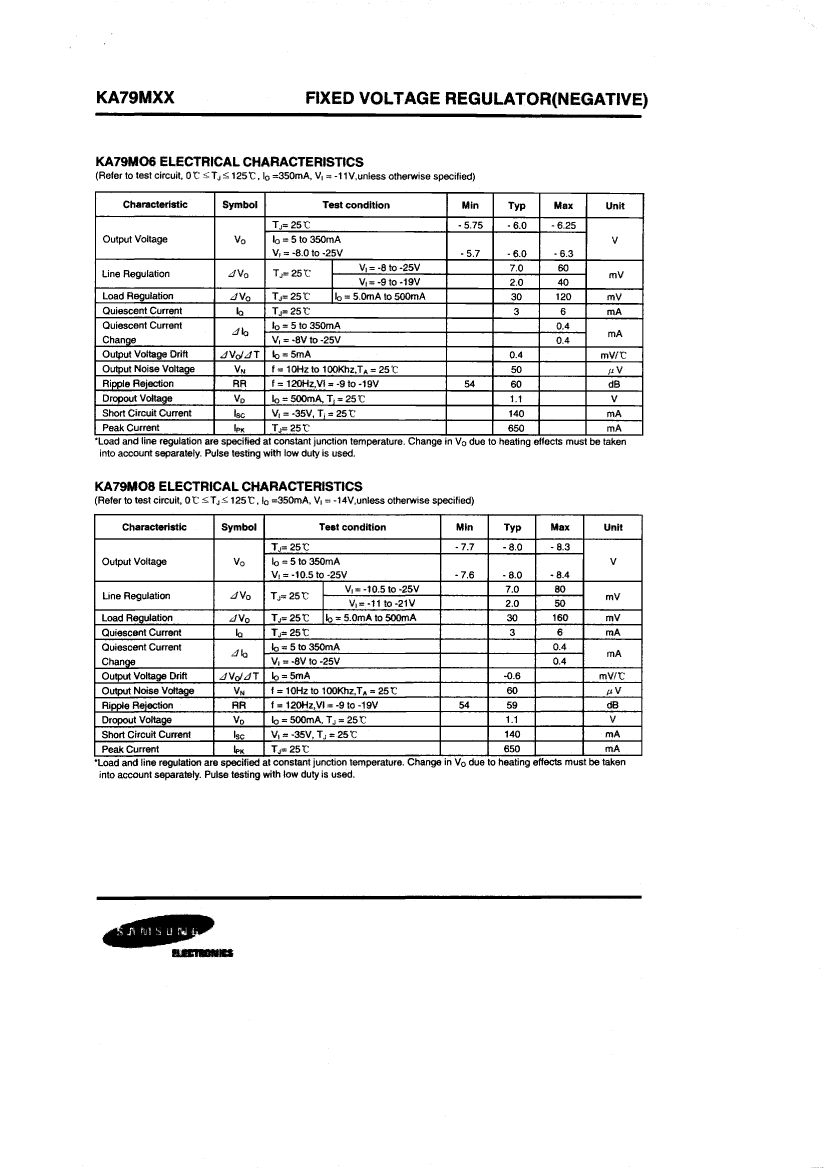

	KA79M12	KA79M05	KA79M24	KA79M18	KA79M06	KA79M15	KA79M08
Description	Fixed Negative Standard Regulator, 12V, BIPolar, PSFM3,	Fixed Negative Standard Regulator, 5V, BIPolar, PSFM3,	Fixed Negative Standard Regulator, 24V, BIPolar, PSFM3,	Fixed Negative Standard Regulator, 18V, BIPolar, PSFM3,	Fixed Negative Standard Regulator, 6V, BIPolar, PSFM3,	Fixed Negative Standard Regulator, 15V, BIPolar, PSFM3,	Fixed Negative Standard Regulator, 8V, BIPolar, PSFM3,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	1.7 V	1.1 V	1.1 V	1.1 V	1.7 V	1.1 V	1.7 V
Maximum absolute input voltage	35 V	35 V	40 V	35 V	35 V	35 V	35 V
Maximum input voltage	30 V	25 V	38 V	33 V	25 V	30 V	25 V
Minimum input voltage	14.5 V	7 V	27 V	21 V	8 V	17.5 V	10.5 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum grid adjustment rate	0.08%	0.05%	0.08%	0.08%	0.06%	0.08%	0.08%
Maximum load regulation	0.24%	0.1%	0.3%	0.36%	0.12%	0.24%	0.16%
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Maximum output voltage 1	12.6 V	5.25 V	25.2 V	18.9 V	6.3 V	15.75 V	8.4 V
Minimum output voltage 1	11.4 V	4.75 V	22.8 V	17.1 V	5.7 V	14.25 V	7.6 V
Nominal output voltage 1	12 V	5 V	24 V	18 V	6 V	15 V	8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%
JESD-609 code	e0	-	e0	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Base Number Matches	-	1	1	1	1	-	-
