HN62318BF-15 datasheet, PDF - EEWORLD Datasheet

HN62318BF-15: DescriptionMASK ROM, 1MX8, 150ns, CMOS, PDSO32, PLASTIC, SOP-32; Categorystorage storage; File Size82KB，3 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

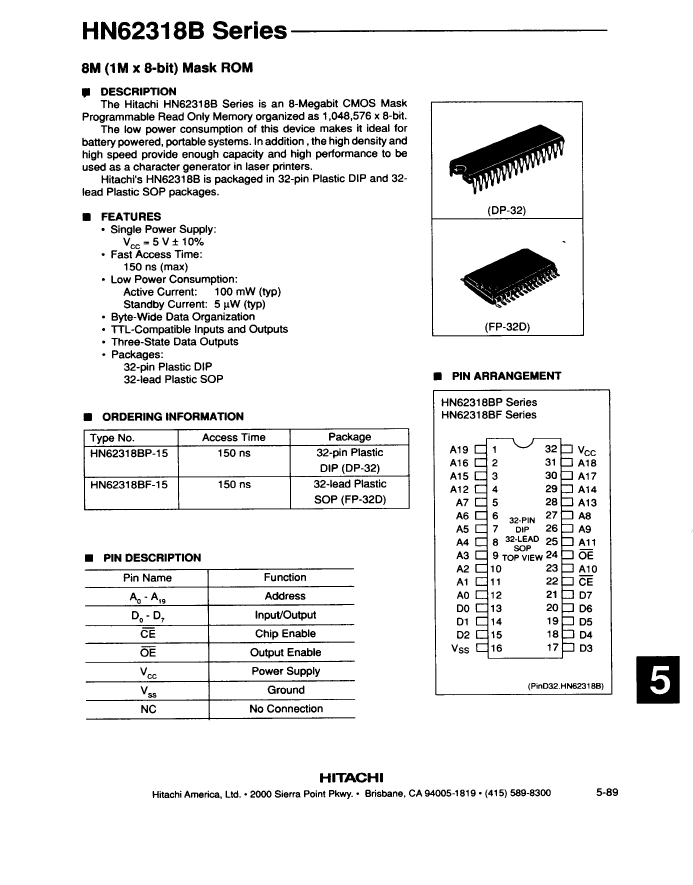

HN62318BF-15 Overview

MASK ROM, 1MX8, 150ns, CMOS, PDSO32, PLASTIC, SOP-32

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP32,.56
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99

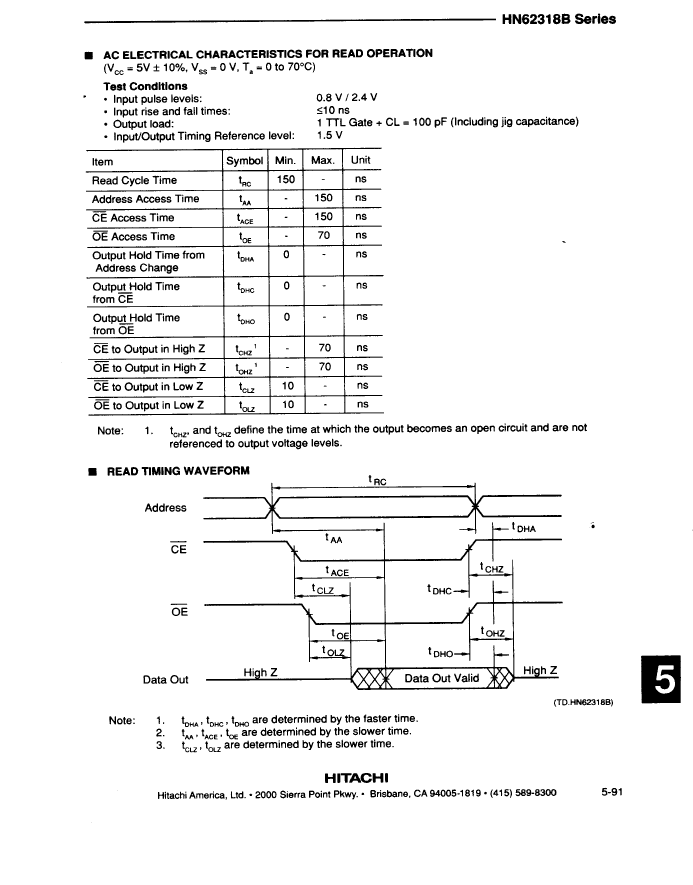

Maximum access time	150 ns
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	20.45 mm
memory density	8388608 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	32
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP32,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL

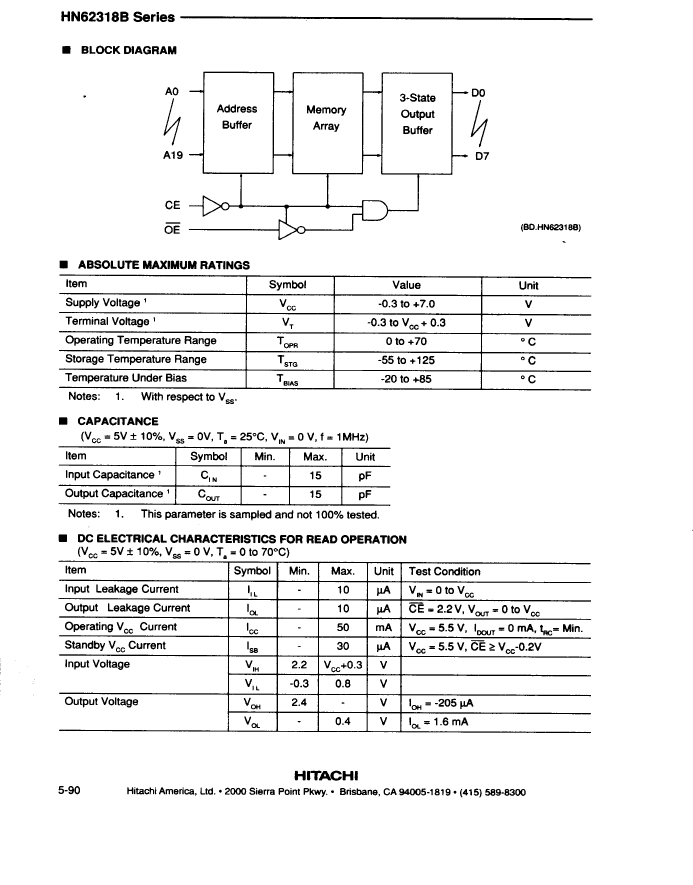

power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum standby current	0.00003 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

This Material Copyrighted By Its Respective Manufacturer

	HN62318BF-15	HN62318BP-15
Description	MASK ROM, 1MX8, 150ns, CMOS, PDSO32, PLASTIC, SOP-32	MASK ROM, 1MX8, 150ns, CMOS, PDIP32, PLASTIC, DIP-32
Is it Rohs certified?	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP32,.56	DIP, DIP32,.6
Contacts	32	32
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum access time	150 ns	150 ns
JESD-30 code	R-PDSO-G32	R-PDIP-T32
JESD-609 code	e0	e0
length	20.45 mm	41.9 mm
memory density	8388608 bit	8388608 bit
Memory IC Type	MASK ROM	MASK ROM
memory width	8	8
Number of functions	1	1
Number of terminals	32	32
word count	1048576 words	1048576 words
character code	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	1MX8	1MX8
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP32,.56	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.05 mm	5.08 mm
Maximum standby current	0.00003 A	0.00003 A
Maximum slew rate	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
