MCT2SR2 datasheet, PDF - EEWORLD Datasheet

MCT2SR2: DescriptionTransistor Output Optocoupler, 1-Element, 7500V Isolation, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size134KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

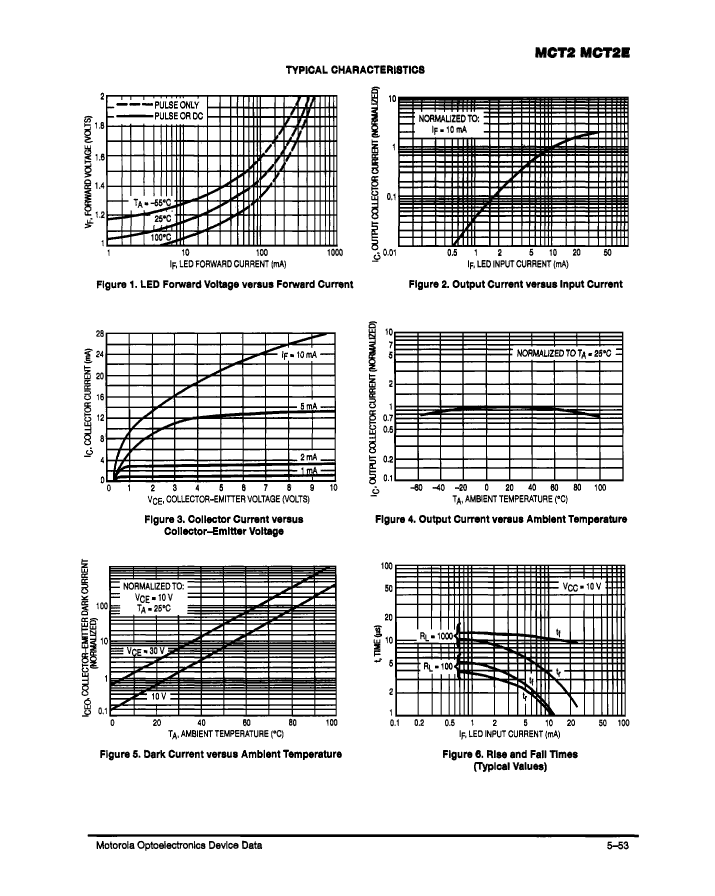

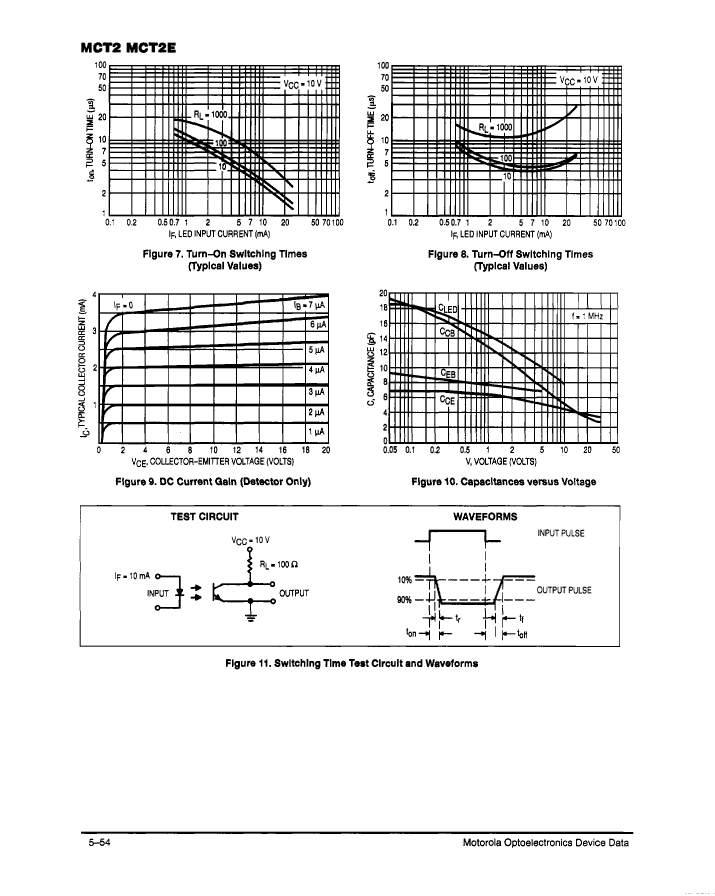

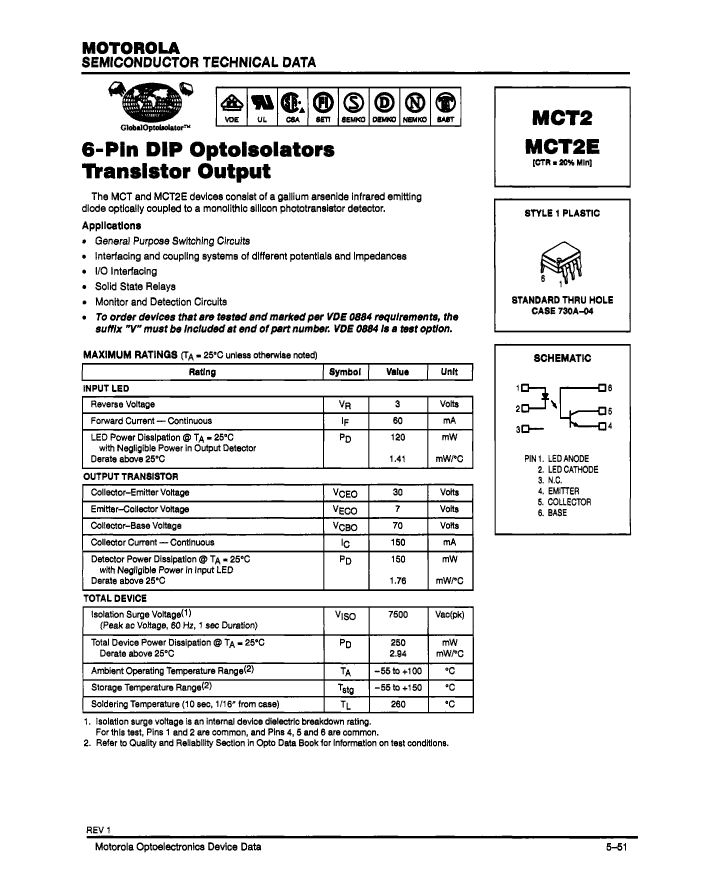

MCT2SR2 Overview

Transistor Output Optocoupler, 1-Element, 7500V Isolation, PLASTIC, DIP-6

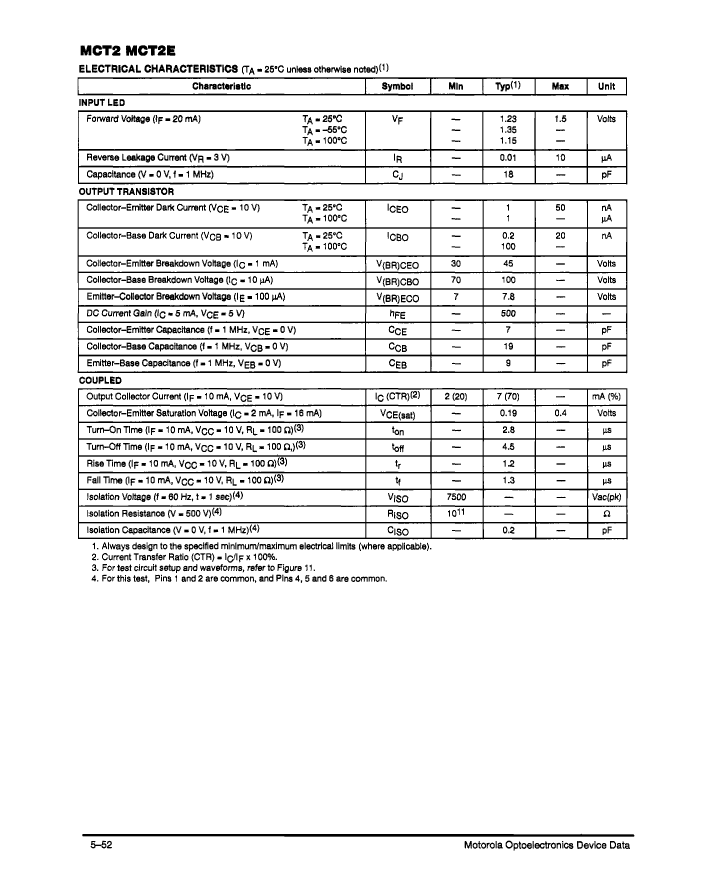

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	30 V
Configuration	SINGLE
Nominal current transfer ratio	70%
Maximum dark power	50 nA
Maximum forward current	0.06 A
Maximum insulation voltage	7500 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

	MCT2SR2	MCT2SR2V	MCT2ESR2
Description	Transistor Output Optocoupler, 1-Element, 7500V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 7500V Isolation, PLASTIC, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6
Reach Compliance Code	unknown	unknown	unknow
Other features	UL RECOGNIZED	VDE APPROVED	UL RECOGNIZED
Configuration	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	70%	70%	70%
Maximum dark power	50 nA	50 nA	50 nA
Maximum forward current	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	7500 V	7500 V	7500 V
Number of components	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Coll-Emtr Bkdn Voltage-Min	30 V	30 V	-
