ZL37S010200: DescriptionToggle Switch, (on)-off-(on), Momentary, 0.5A, 48VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size67KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

ZL37S010200 Overview

Toggle Switch, (on)-off-(on), Momentary, 0.5A, 48VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount

ZL37S010200 Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
Actuator angle	24 deg
Executor completed	NICKEL
Actuator length	0.216 inch
Actuator material	BRASS
Actuator type	TOGGLE
body width	4.9784 mm
body height	8.5852 mm
Body length or diameter	8.0772 mm
Casing diameter	0.19 inch
Nozzle length	0.22 inch
Casing type	10-48
center contact material	BRASS
Center contact plating	SILVER
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@48VDC
Contact function	(ON)-OFF-(ON)
Contact resistance	0.02 mΩ
Maximum contact voltage (DC)	48 V
Dielectric withstand voltage	1000VRMS V
End contact material	BRASS
End contact plating	SILVER
Shell material	THERMOPLASTIC
Insulation resistance	1000000000 Ω
Manufacturer's serial number	ZL
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
Switch type	TOGGLE SWITCH
Terminal length	0.11 inch
Terminal material	BRASS
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

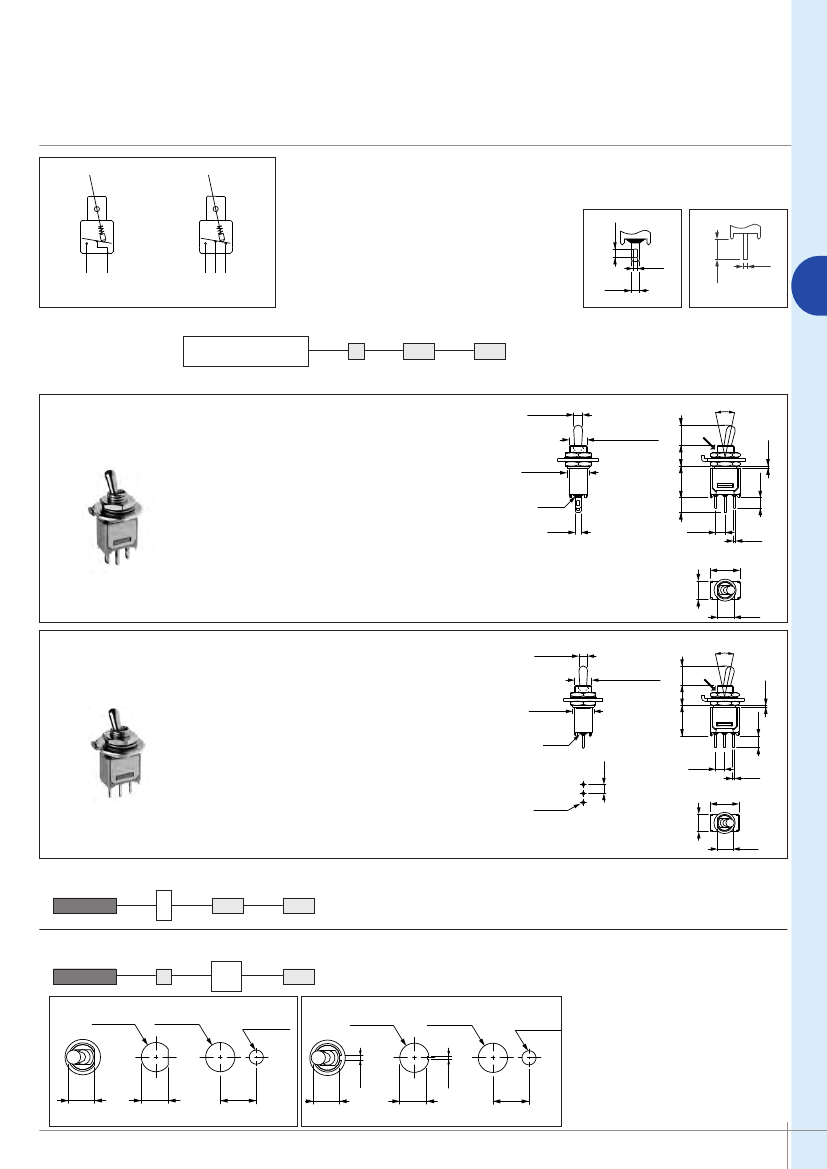

ZL series

Tiny toggle switches - metal bushing

Distinctive features - Specifications - Overview

UG1410A

Ø 4,83 mm threaded bushing

Solder lug and straight PC terminals

ELECTRICAL SPECIFICATIONS

MATERIALS

• Max. current/voltage rating with resistive load :

- gold plated contacts : 0,4VA 20V max. AC or DC

- silver plated contacts : 0,5A 48V max. AC or DC

• Minimum load : 10mA 50mV - 10µA 5VDC

• Contact resistance : 20 mΩ max.

• Insulation resistance : 1.000 MΩ min. at 500VDC

• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals and frame

500 Vrms 50 Hz min. between terminals

• Electrical life at full load :

Contacts

Gold plated

Silver plated

Number of cycles

2 positions

60.000

20.000

3 positions

30.000

10.000

• Case : thermoplastic UL94-V0

• Actuator : brass, nickel plated

• Bushing : zamac, tin plated

• Contacts and terminals :

: brass, gold plated (standard)

: brass, silver plated

: brass, gold plated

(1,27 micron gold)

• Terminal seal : epoxy

SOLDERING

GENERAL SPECIFICATIONS

• Hand soldering : 280°C max. for

5 seconds max.

• Wave soldering : 260°C max. for

5 seconds max.

• Strength of terminals : pull-out force 10N max.

• Torque : 1 Nm max. applied between the 2 nuts

• Max. panel thickness : 1,5 mm (.059) with 2 nuts

• Operating temperature : -30°C to +85°C

• Moisture : 21 days 95 % (NFC 20-603 - IEC 8-2-3)

SERIES

Number of

poles

Single

pole

Electrical functions

MOM

OFF

MOM

Terminals

Solder lug

Straight PC

Contact and

terminal materials

Brass, gold plated

Brass, silver plated

Brass, gold plated

(1,27 micron gold)

Bushings

Threaded,

with flat

Threaded,

with keyway

Models

Standard

model

Dimensions

: First dimensions are in mm while inches are shown as bracketed numbers.

Packaging unit

: 100 pieces

Mounting accessories

: Standard hardware supplied with all models : 2 hex nuts 7 mm (.275) across flats P/N U5731,

1 locking ring P/N U5821 (with keyway) or U5831 (with flat) and 1 lockwasher P/N U5841.

The company reserves the right to change specifications without notice.

A-2

www.apem.com

APEM
