MERP12-24117.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MERP12-24117.5

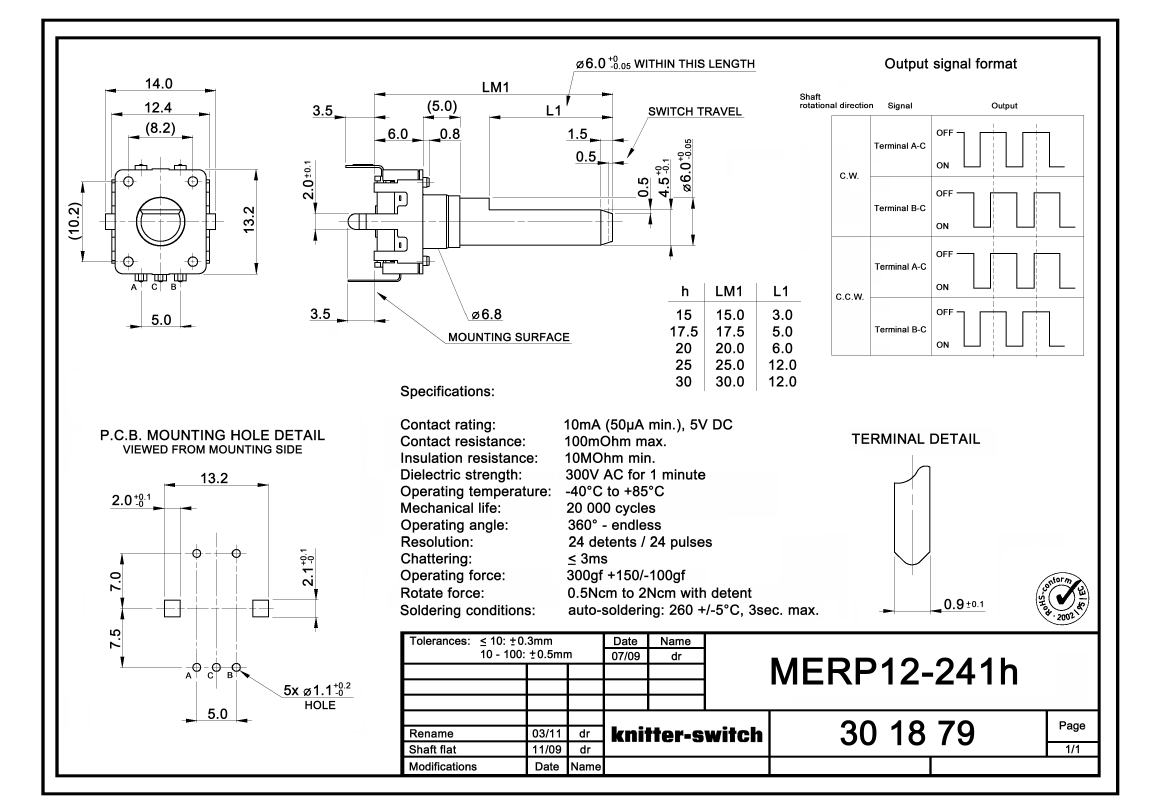

MERP12-24117.5: DescriptionRotary Coded Switch, Binary Coded, Binary Coded, Circular, 0.01A, 5VDC, 3 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size200KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

MERP12-24117.5 Overview

Rotary Coded Switch, Binary Coded, Binary Coded, Circular, 0.01A, 5VDC, 3 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight

MERP12-24117.5 Parametric

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	compliant
Actuator length	0.256 inch
Actuator type	ROTARY SHAFT
body width	13.208 mm
body height	5.9944 mm
Body length or diameter	13.9954 mm
Casing diameter	0.268 inch
Nozzle length	0.197 inch
Center contact plating	SILVER
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC
Contact function	BINARY CODED
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	300VAC V
End contact plating	SILVER
Insulation resistance	100000000 Ω
Manufacturer's serial number	MERP12
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	3
surface mount	NO
Switch action	CIRCULAR
switch function	BINARY CODED
Switch type	ROTARY CODED SWITCH
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

MERP12-24117.5 Related Products

	MERP12-24117.5	MERP12-24130	MERP12-24115
Description	Rotary Coded Switch, Binary Coded, Binary Coded, Circular, 0.01A, 5VDC, 3 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight	Rotary Coded Switch, Binary Coded, Binary Coded, Circular, 0.01A, 5VDC, 3 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight	Rotary Coded Switch, Binary Coded, Binary Coded, Circular, 0.01A, 5VDC, 3 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant
Actuator length	0.256 inch	0.748 inch	0.157 inch
Actuator type	ROTARY SHAFT	ROTARY SHAFT	ROTARY SHAFT
body width	13.208 mm	13.208 mm	13.208 mm
body height	5.9944 mm	5.9944 mm	5.9944 mm
Body length or diameter	13.9954 mm	13.9954 mm	13.9954 mm
Casing diameter	0.268 inch	0.268 inch	0.268 inch
Nozzle length	0.197 inch	0.197 inch	0.197 inch
Center contact plating	SILVER	SILVER	SILVER
Maximum contact current (DC)	0.01 A	0.01 A	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC	0.01A@5VDC	0.01A@5VDC
Contact function	BINARY CODED	BINARY CODED	BINARY CODED
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (DC)	5 V	5 V	5 V
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V
End contact plating	SILVER	SILVER	SILVER
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	MERP12	MERP12	MERP12
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB hole count	3	3	3
surface mount	NO	NO	NO
Switch action	CIRCULAR	CIRCULAR	CIRCULAR
switch function	BINARY CODED	BINARY CODED	BINARY CODED
Switch type	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH
Terminal length	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER	SOLDER
Maker	Knitter-switch	-	Knitter-switch
