P74FCT3244CD datasheet, PDF - EEWORLD Datasheet

P74FCT3244CD: DescriptionBus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24; Categorylogic logic; File Size175KB，6 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric View All

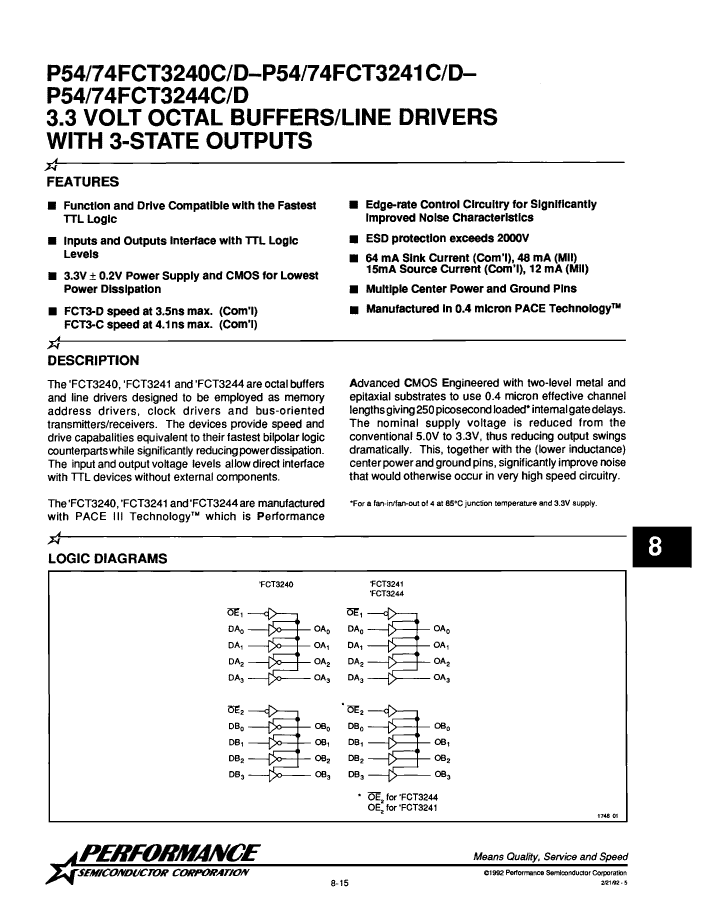

P74FCT3244CD Overview

Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	DIP
package instruction	DIP, DIP24,.3

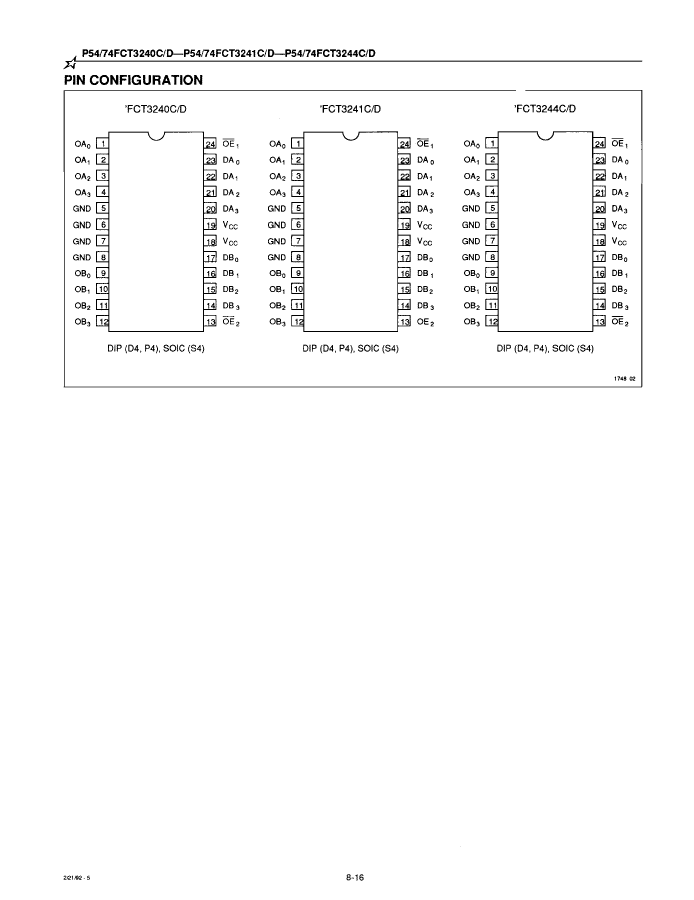

Contacts	24
Reach Compliance Code	unknown
Other features	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V
Control type	ENABLE LOW
series	FCT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	31.75 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

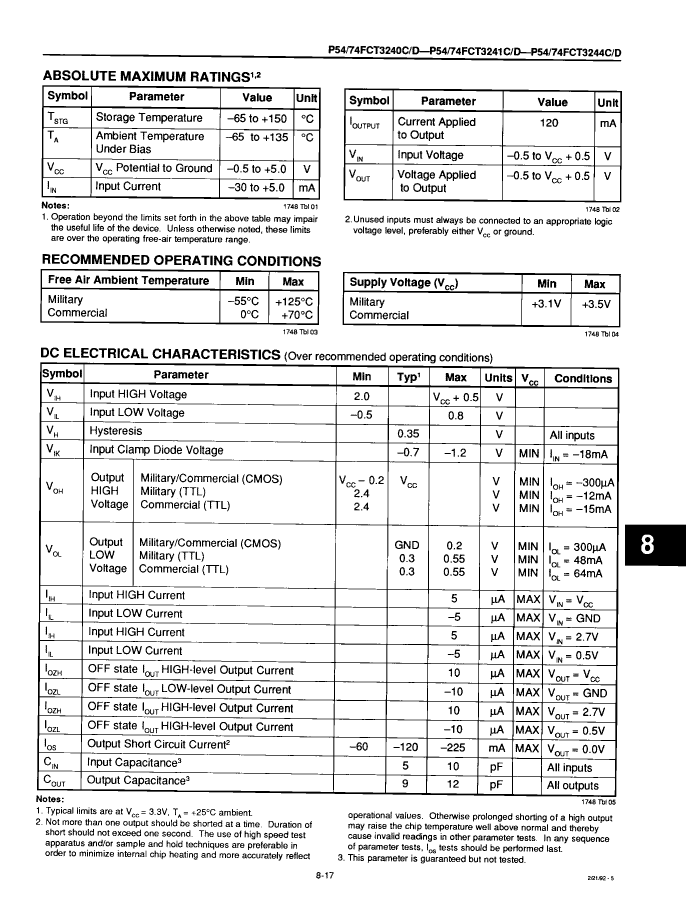

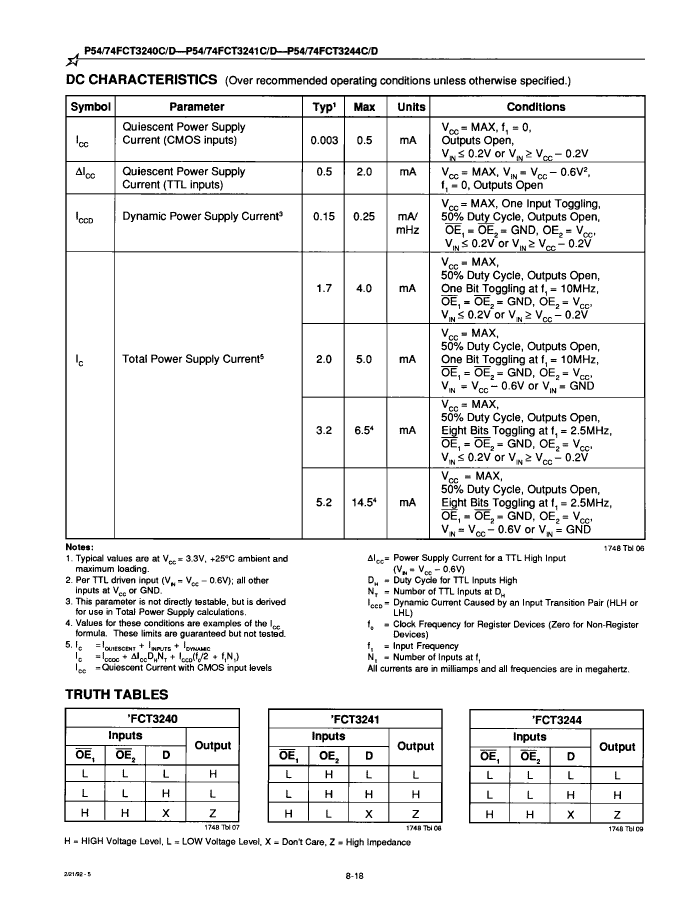

power supply	3.3 V

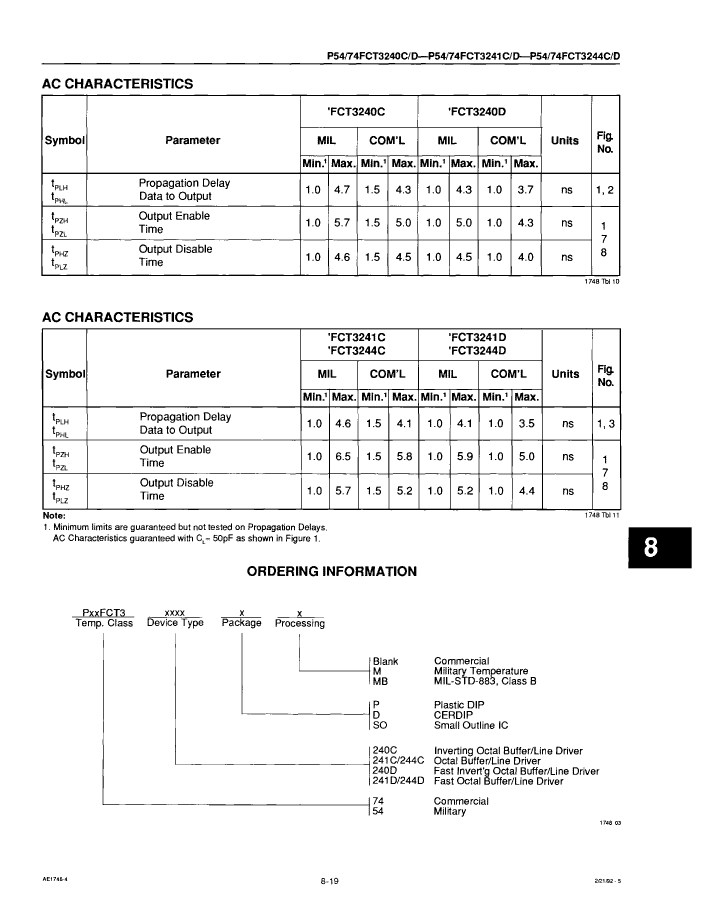

Prop。Delay @ Nom-Sup	4.1 ns
propagation delay (tpd)	4.1 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
