BHXXRB1WGUT_09 datasheet, PDF - EEWORLD Datasheet

BHXXRB1WGUT_09: Description3 V FIXED POSITIVE REGULATOR, PBGA4; Categorysemiconductor Power management; File Size3MB，10 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BHXXRB1WGUT_09 Overview

3 V FIXED POSITIVE REGULATOR, PBGA4

Parameter Name	Attribute value
Number of functions	1
Number of terminals	4
Maximum output current	0.1500 A
Maximum output voltage	3.09 V
Minimum output voltage	2.91 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
Processing package description	1 X 1.04 MM, 0.60 MM HEIGHT,ROHS COMPLIANT, CSP-4
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
surface mount	Yes
Terminal form	BALL
Terminal spacing	0.5000 mm
Terminal location	BOTTOM
Packaging Materials	PLASTIC/EPOXY
Adjustment type	FIXED POSITIVE REGULATOR
Rated output voltage	3 V

Package Information : VCSP60N1 BH30RB1WGUT

Package Information

Package Name

Outline Dimension Drowing No.

Package Weight

MSL Level

(Note 1)

[mg]

VCSP60N1

EX910-5005

MSL1

Note 1 : The MSL Level are determined based on the JEDEC J-STD-020D.

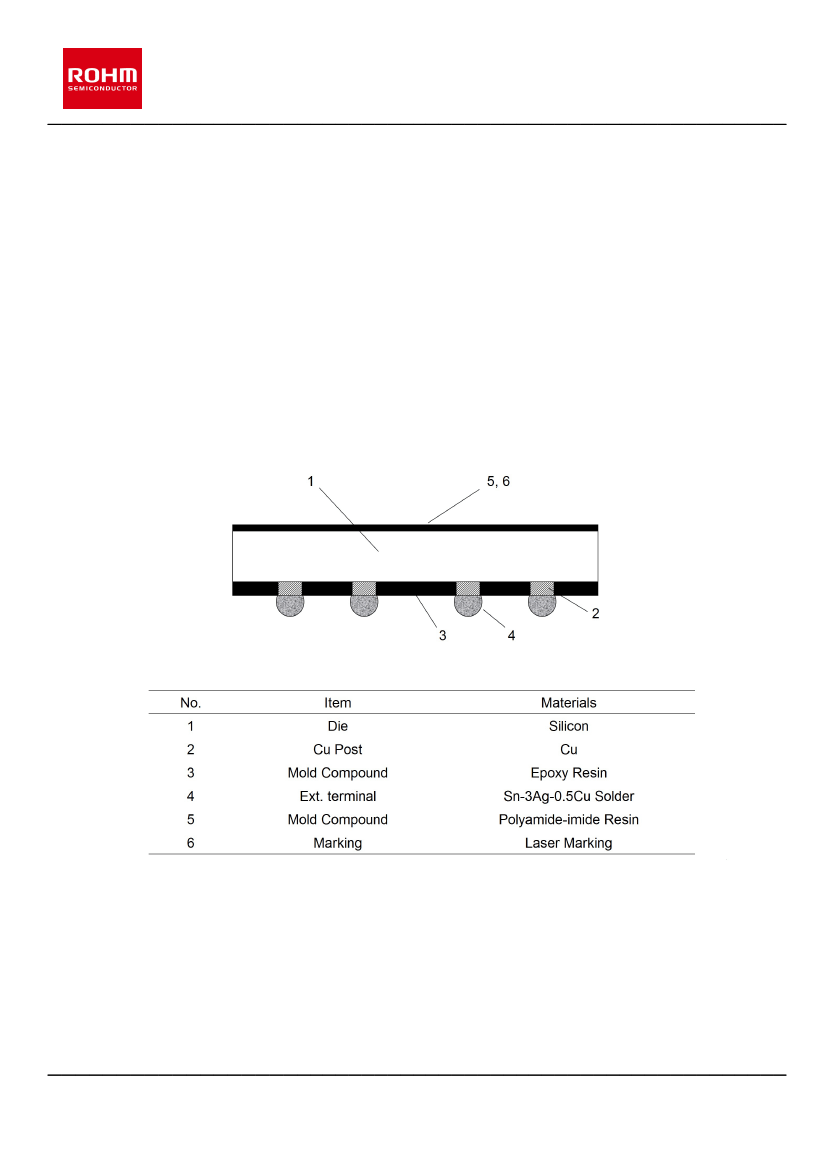

Pacakage Structure

www.rohm.com

1/9

TSZ02201-BH30RB1WGUT-2 -2

2016/9/16

- Rev.001

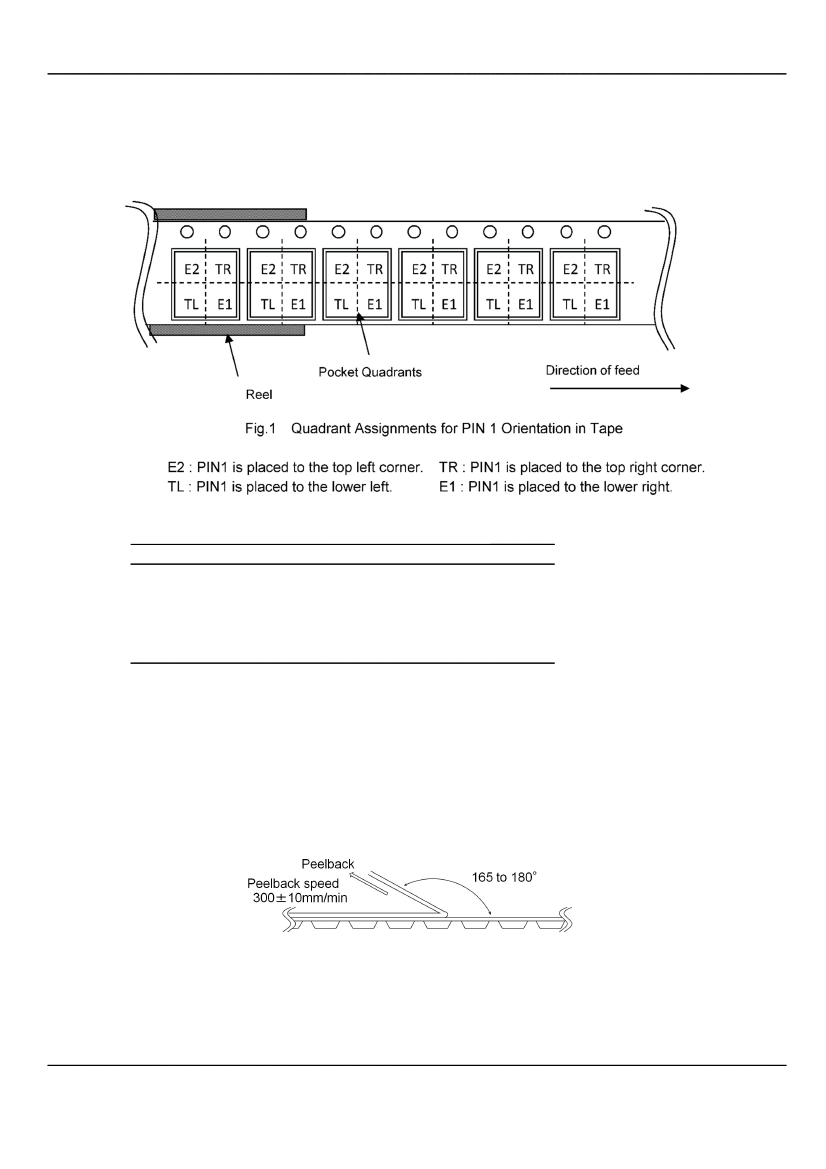

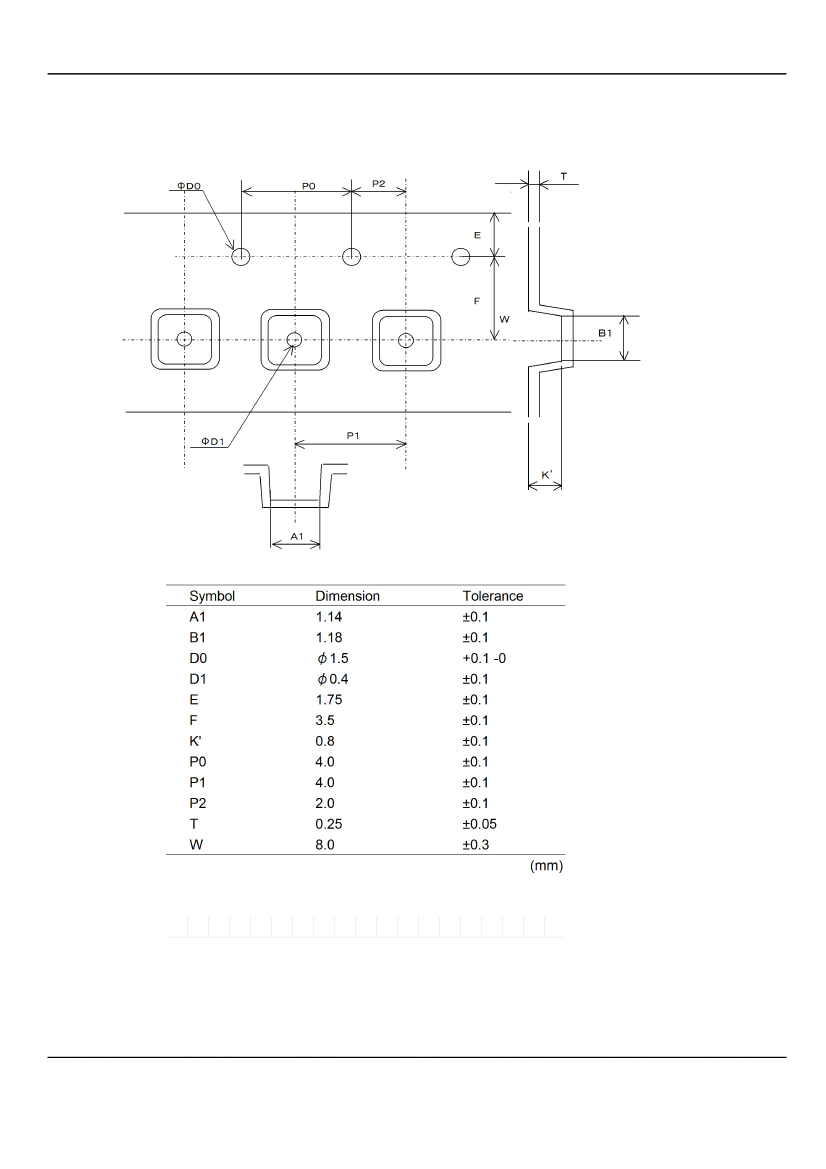

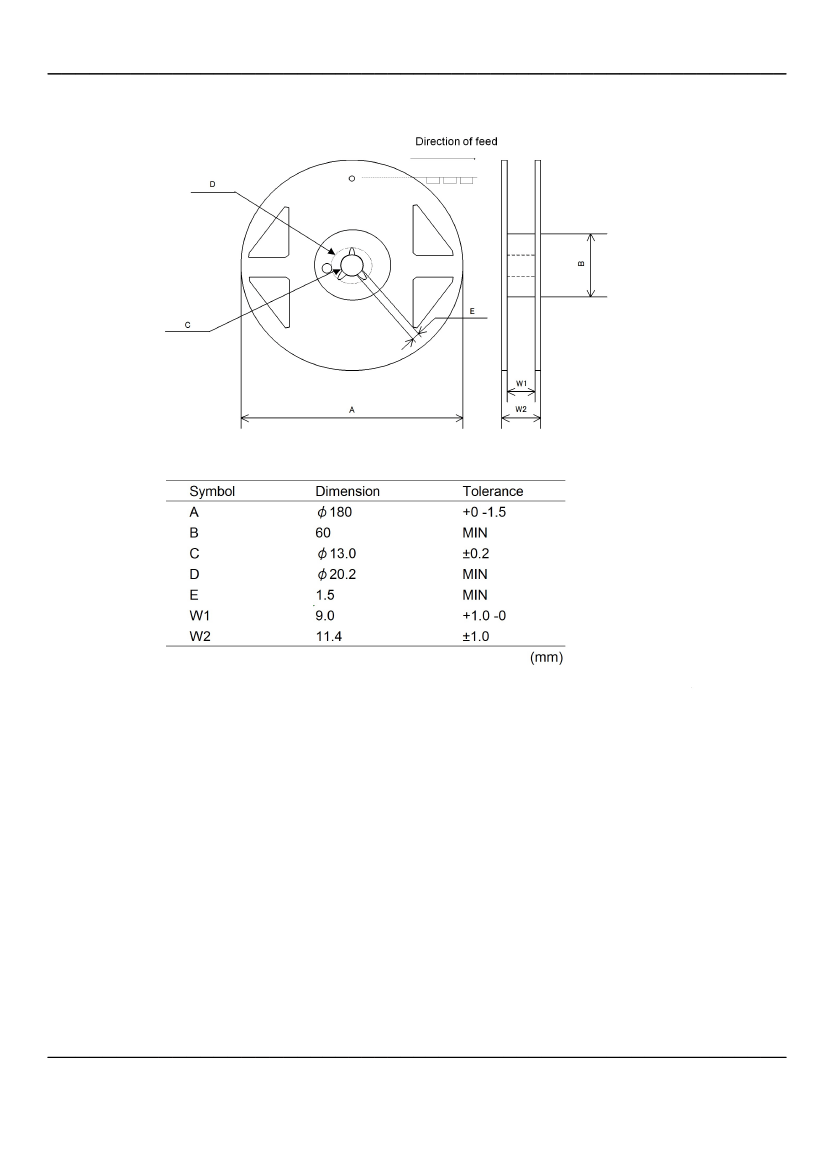

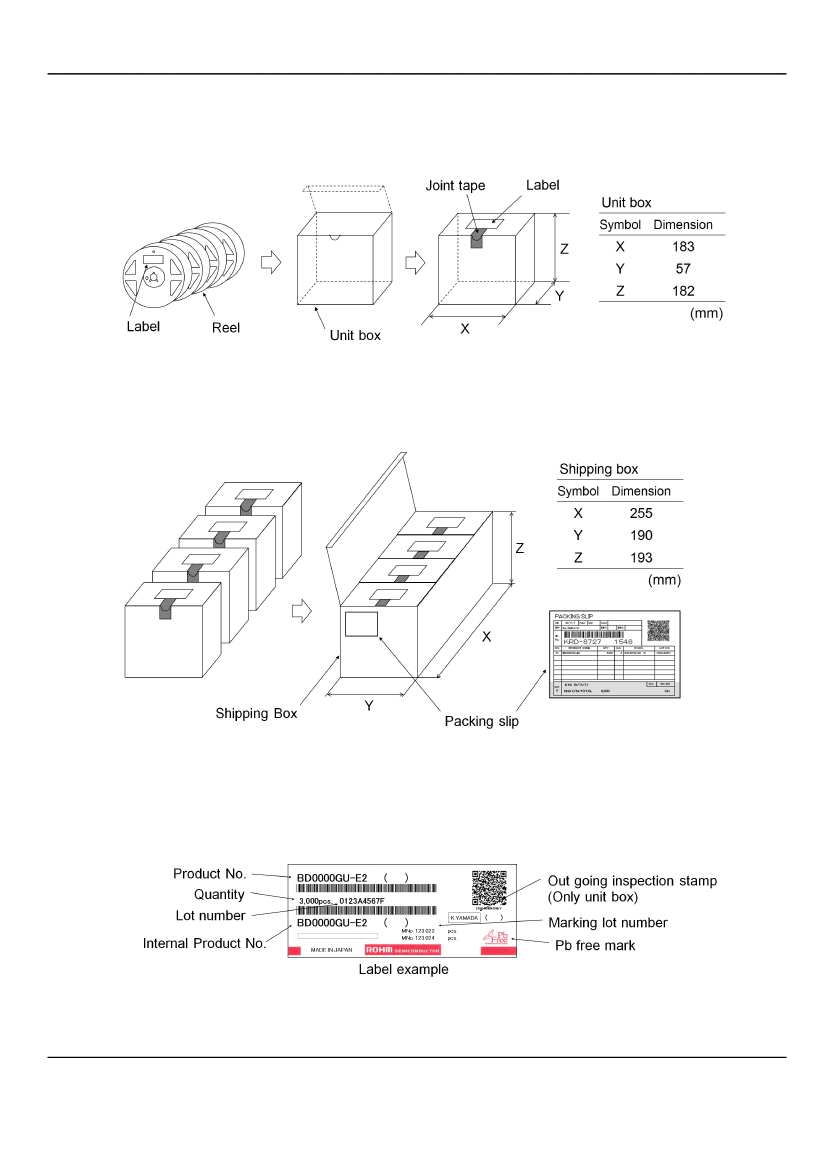

	BHXXRB1WGUT_09	BHXXRB1WGUT
Description	3 V FIXED POSITIVE REGULATOR, PBGA4	3 V FIXED POSITIVE REGULATOR, PBGA4
Number of functions	1	1
Number of terminals	4	4
Maximum output current	0.1500 A	0.1500 A
Maximum output voltage	3.09 V	3.09 V
Minimum output voltage	2.91 V	2.91 V
Maximum input voltage	5.5 V	5.5 V
Minimum input voltage	2.5 V	2.5 V
Processing package description	1 X 1.04 MM, 0.60 MM HEIGHT,ROHS COMPLIANT, CSP-4	1 X 1.04 MM, 0.60 MM HEIGHT,ROHS COMPLIANT, CSP-4
state	ACTIVE	ACTIVE
Craftsmanship	CMOS	CMOS
packaging shape	RECTANGULAR	RECTANGULAR
Package Size	GRID ARRAY, VERY THIN PROFILE, FINE PITCH	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
surface mount	Yes	Yes
Terminal form	BALL	BALL
Terminal spacing	0.5000 mm	0.5000 mm
Terminal location	BOTTOM	BOTTOM
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY
Adjustment type	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR
Rated output voltage	3 V	3 V
