851858 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 851858

Preview

851858: DescriptionSAW Filter, 1 Function(s), 70MHz,; CategoryAnalog mixed-signal IC filter; File Size30KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric Compare View All

851858 Overview

SAW Filter, 1 Function(s), 70MHz,

851858 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Qorvo
Reach Compliance Code	compliant
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	5.33 mm
input resistance	50 OHM
Maximum insertion loss	26 dB
JESD-609 code	e0
length	22.1 mm
Manufacturer's serial number	851858
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
width	12.65 mm

Preview

Download Datasheet

View All

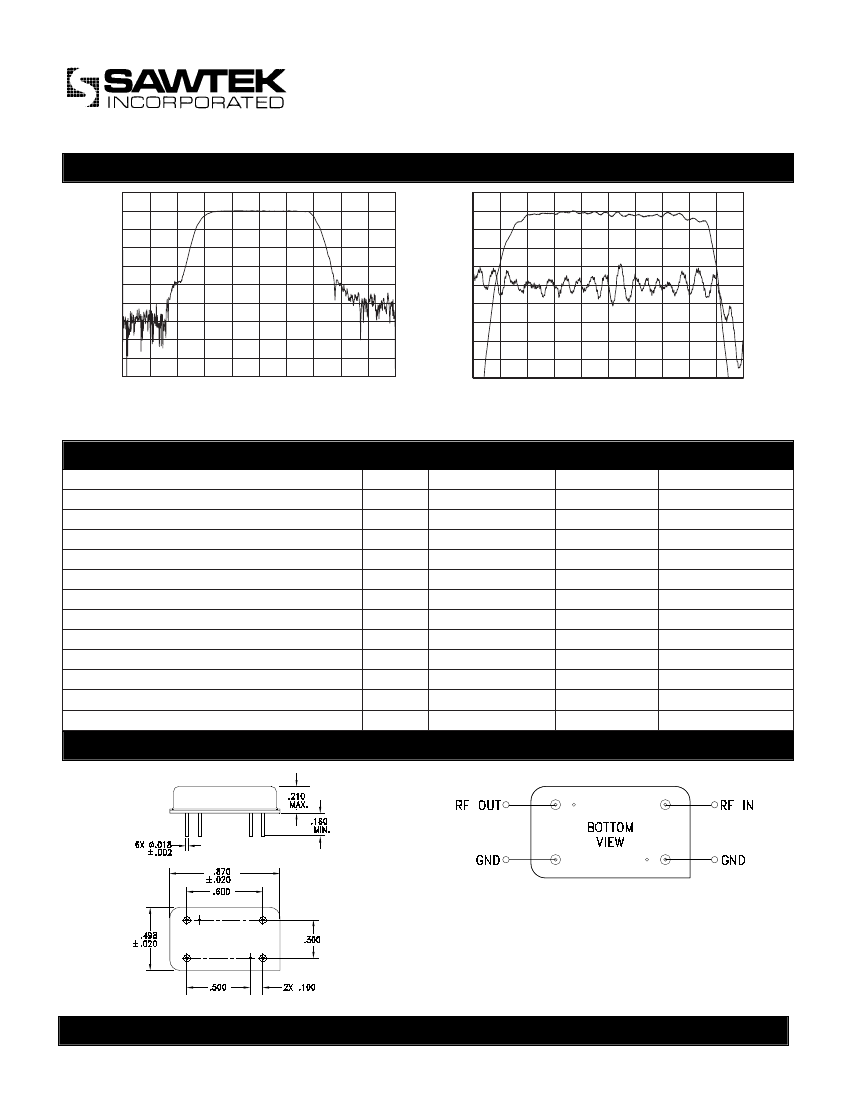

70 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

20 30 40

Horizontal: 10

80 90 100 110 120

50 60 70

MHz/Div

Vertical: 10 dB/Div

1

25

0

20

-1

15

-2

10

-3

5

-4

0

-5

-6

-10

-7

-15

-8

-20

-9

-25

45 50 55

Horizontal: 5 MHz/Div

85 90 95

60 65 70 75 80

Vertical: 1 dB/Div

Vertical: 5 nsec/Div

40 MHz Bandwidth

Part Number 851858

Parameter

Center Frequency

Insertion Loss

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Variation

Phase Linearity

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

dB

-

°C

69.5

-

36.6

40

-

40

-

Typical

70

25.3

37.1

40.4

58.6

0.36

5

10

2.07

45

128 LiNbO

3

25

Maximum

70.5

26

-

59.6

0.7

8

30

-

Package Outline

Matching Configuration

No Matching Required

Nominal Source/Load Impedance = 50Ω

Package Style I

11/17/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061

851858 Related Products

	851858
Description	SAW Filter, 1 Function(s), 70MHz,
Is it Rohs certified?	incompatible
Maker	Qorvo
Reach Compliance Code	compliant
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	5.33 mm
input resistance	50 OHM
Maximum insertion loss	26 dB
JESD-609 code	e0
length	22.1 mm
Manufacturer's serial number	851858
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
width	12.65 mm
