855983: DescriptionSAW Filter, 1 Function(s), 44.035MHz; CategoryAnalog mixed-signal IC filter; File Size41KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com; Environmental Compliance

Download Datasheet Parametric View All

855983 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	855983	-	-	View	Buy Now

855983 Overview

SAW Filter, 1 Function(s), 44.035MHz

855983 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Qorvo
Reach Compliance Code	compliant
Maximum attenuation frequency (+/- delta f)	3870 kHz
Attenuation at maximum frequency	38 dB
Center frequency or cutoff frequency (fo/fc)	44.035 MHz
filter type	SAW FILTER
high	5.145 mm
input resistance	50 OHM
Maximum insertion loss	22 dB
length	26.215 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L1.07XB0.498XH0.21 (inch)
width	12.201 mm

Preview

Download Datasheet

View All

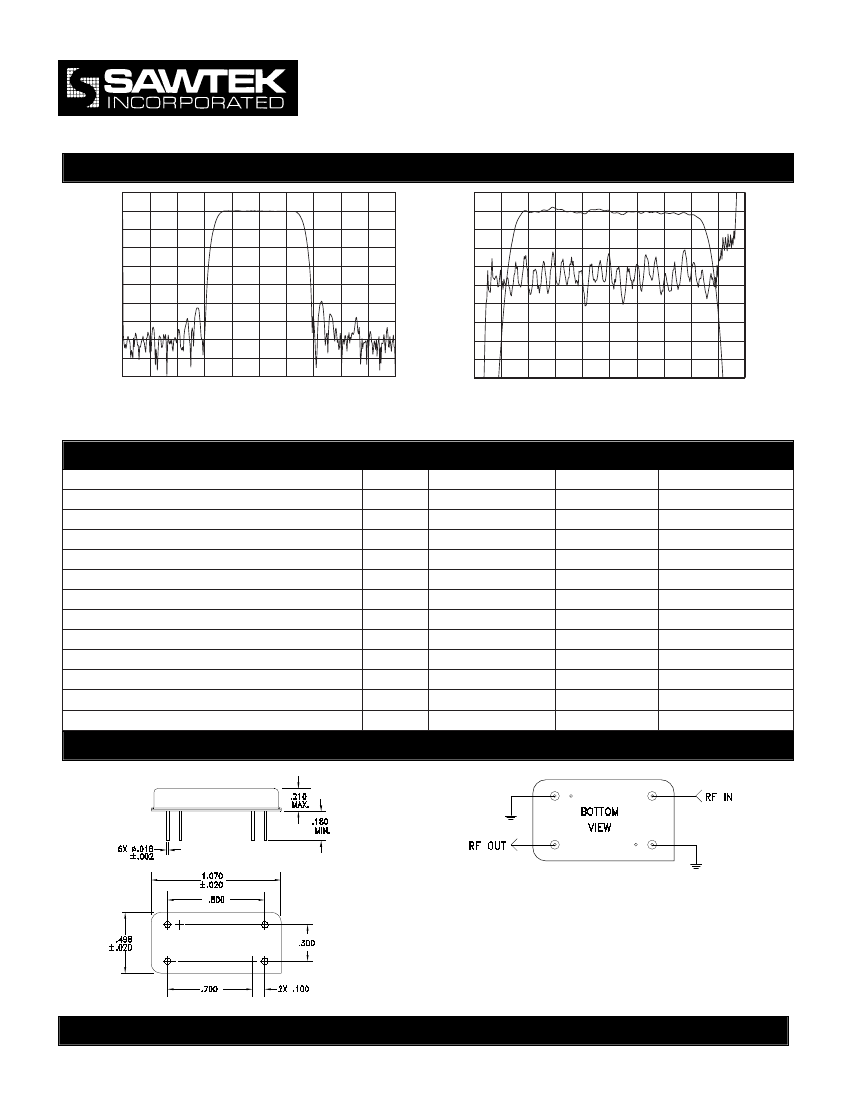

44 MHz VSB Filter

Data Sheet

Typical Performance

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal:

46 48

34 36 38 40 42 44

2 MHz/Div

50 52 54

Vertical: 10 dB/Div

1.9

-1

-2

-3

-4

-5

-6

-7

-8

-9

1.7

40 40.8 41.6

Horizontal: 800 kHz/Div

42.4 43.2 44 44.8 45.6 46.4 47.2 48

Vertical: 1 dB/Div

Vertical: 20 nsec/Div

6.000 MHz Bandwidth

Part Number 855983

Parameter

Center Frequency

Insertion Loss

Lower 3 dB Bandedge

Upper 3 dB Bandedge

Lower 38 dB Bandedge

Upper 38 dB Bandedge

Passband Variation

Phase Ripple

Group Delay Ripple

Triple Transit Level

Substrate Material

Temperature Coefficient

Specifications

Unit

Minimum

MHz

dB p-p

deg p-p

nsec

ppm/°C

46.975

40.165

Typical

44.035

20.21

41.01

47.06

40.235

47.81

0.45

2.2

54.1

128 LiNbO

-72

Maximum

41.025

47.835

1.25

4.5

100

Package Outline

Matching Configuration

No Matching Required

Nominal Source/Load Impedance = 50Ω

Package Style O

02/07/01

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
