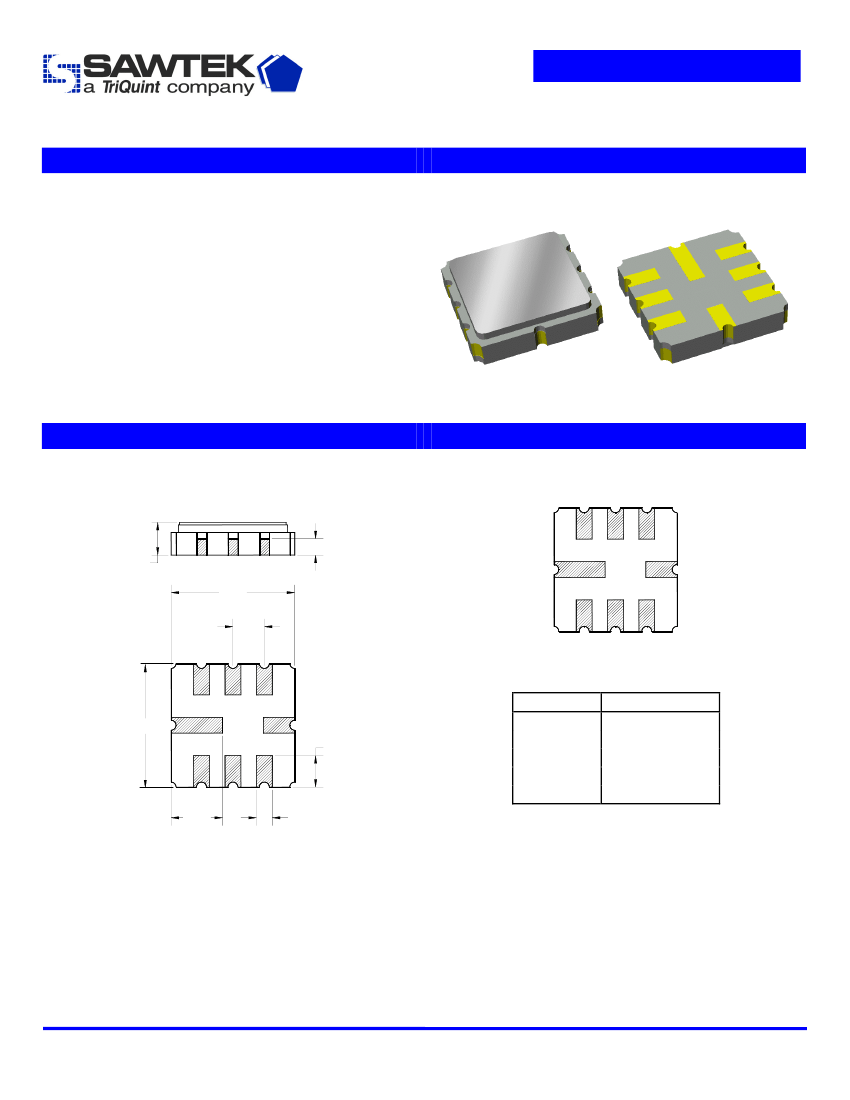

All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Relative to minimum insertion loss
Sawtek’s production specifications reflect the typical performance in a 50 Ohm single-ended system. This filter can be used in
both single-ended and/or differential modes at each port. In addition, similar performance can be achieved in source and load
impedances of 200 Ohms.
Minimum
-
-
-
473.3
45
40
40
40
-
-
-
-
-
-
Typical
465
11.9
454.5
475.9
55
50
47
55
1.4:1
1.5:1
0.5
35
50
50
Maximum
-
14
456.7
-
-
-
-
-
2.0:1
2.0:1
1.0
70
-
-
Unit
MHz
dB
MHz
dB
dB
dB
dB
-
-
dB
nsec
Ω
Ω
Test Circuit:
10pF
3
7
22nH
1,2,4,5,6,8
50Ω
12nH
10Ω
50
Ω
Single-ended
50Ω
15pF
Subject to change or obsolescence without notice
Rev -
13-May-2002
Page 2 of 5
Preliminary Data Sheet
Part Number 855991
465 MHz SAW Filter

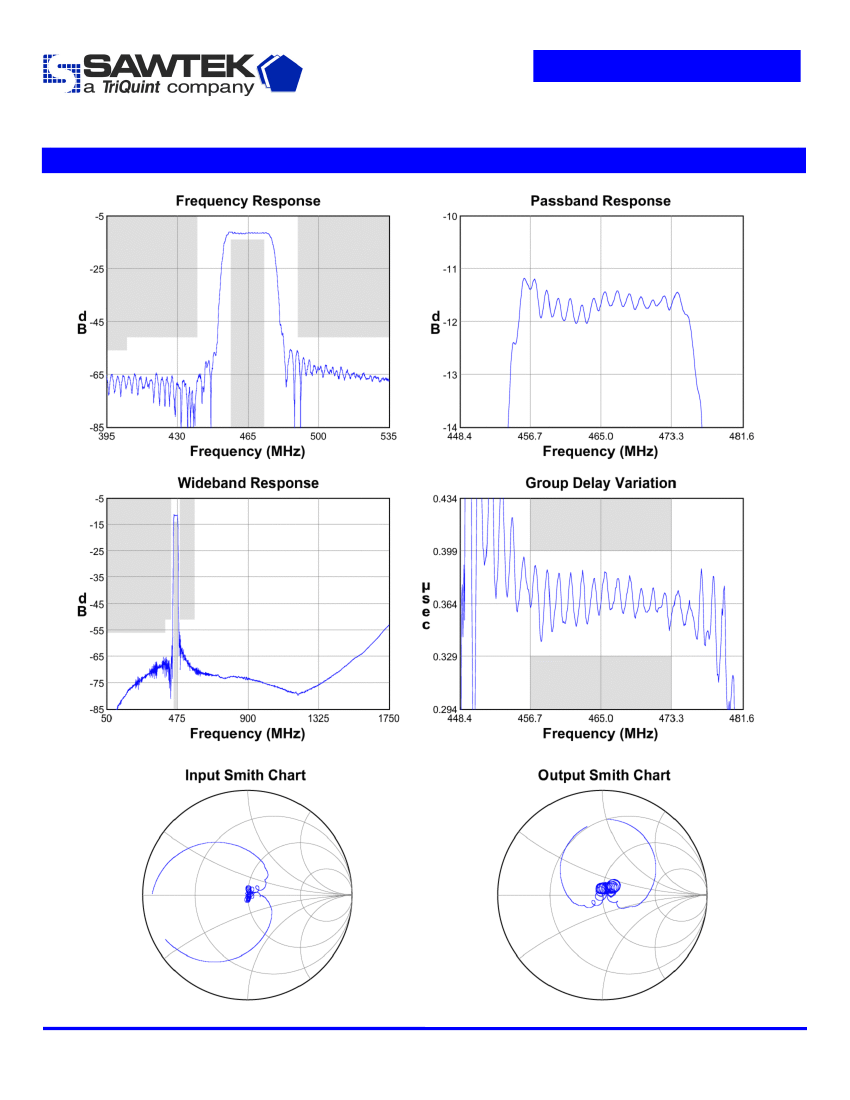

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
13-May-2002
Page 3 of 5
Preliminary Data Sheet
Part Number 855991
465 MHz SAW Filter

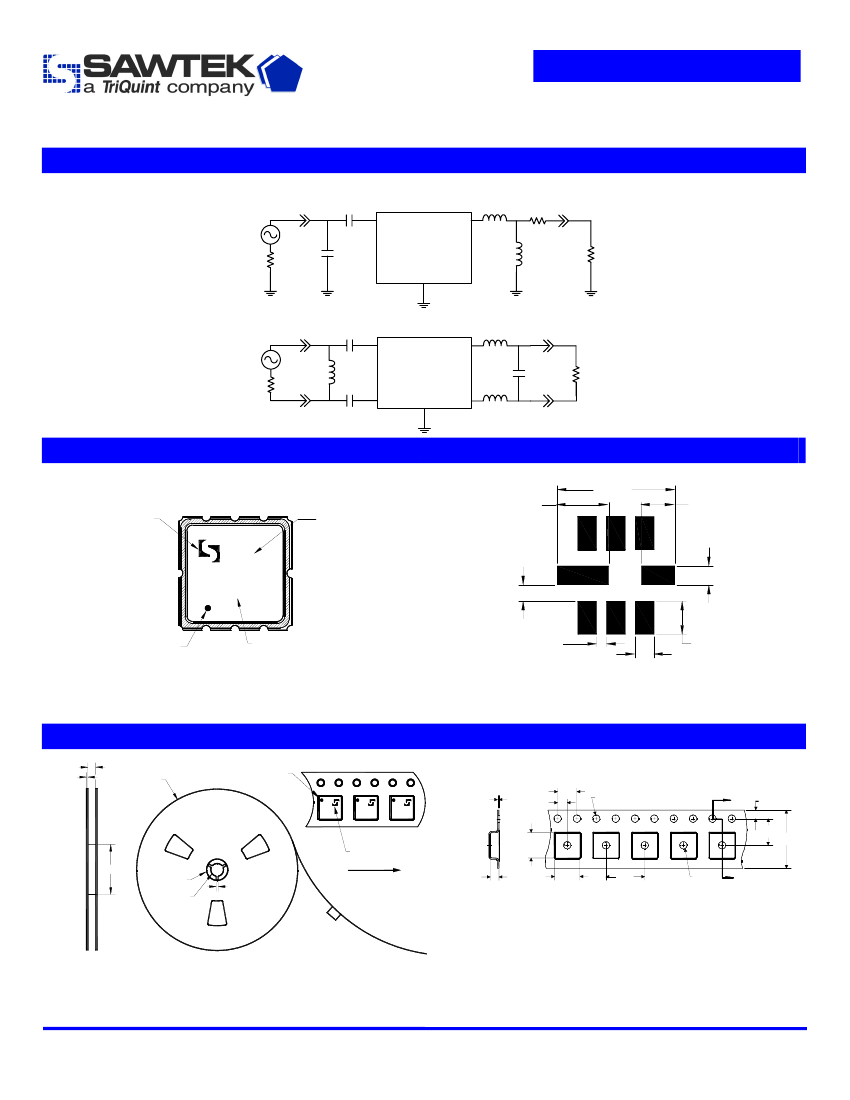

Matching Schematics
10pF
3
7
22nH
1,2,4,5,6,8
50Ω
12nH
10Ω
50Ω
Single-ended
50Ω
15pF
8pF
3
6
2.8nH
200
Ω
Balanced
18nH
200Ω
2
8pF
1,4,5,8
7
2.8nH
10pF
200Ω
Marking
2.28
Sawtek
logo
Marking
code
PCB Footprint
5.20
1.47
U
JJJYM
.84
.71
ID dot
Date code
.43
.84
1.47
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
Sawtek
logo
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
5.25
1.8
Section A-A
5.25
8.0
Ø1.5
A
12.0
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev -
13-May-2002
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855991
465 MHz SAW Filter
Symbol
T
T
stg
Minimum
-10
-40
Maximum
+70
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Reel and Packaging Label
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
