856097: DescriptionSAW Filter, 1 Function(s), 398MHz, 12 Pin(s), Ceramic,; CategoryAnalog mixed-signal IC filter; File Size468KB，5 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com; Environmental Compliance

Download Datasheet Parametric View All

856097 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	856097	-	-	View	Buy Now

856097 Overview

SAW Filter, 1 Function(s), 398MHz, 12 Pin(s), Ceramic,

856097 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Qorvo
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Center frequency or cutoff frequency (fo/fc)	398 MHz
filter type	SAW FILTER
high	1.78 mm
input resistance	200 OHM
Maximum insertion loss	15 dB
length	7.01 mm
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	200 OHM Ω
Packaging Materials	CERAMIC
physical size	L7.01XB5.51XH1.78 (mm)/L0.276XB0.217XH0.07 (inch)
width	5.51 mm

Preview

Download Datasheet

View All

Data Sheet

Features

•

For WCDMA Multicarrier applications

Usable bandwidth of 35.0 MHz

High attenuation

Single-ended operation at 200Ω

Ceramic Surface Mount Package (SMP)

Small size

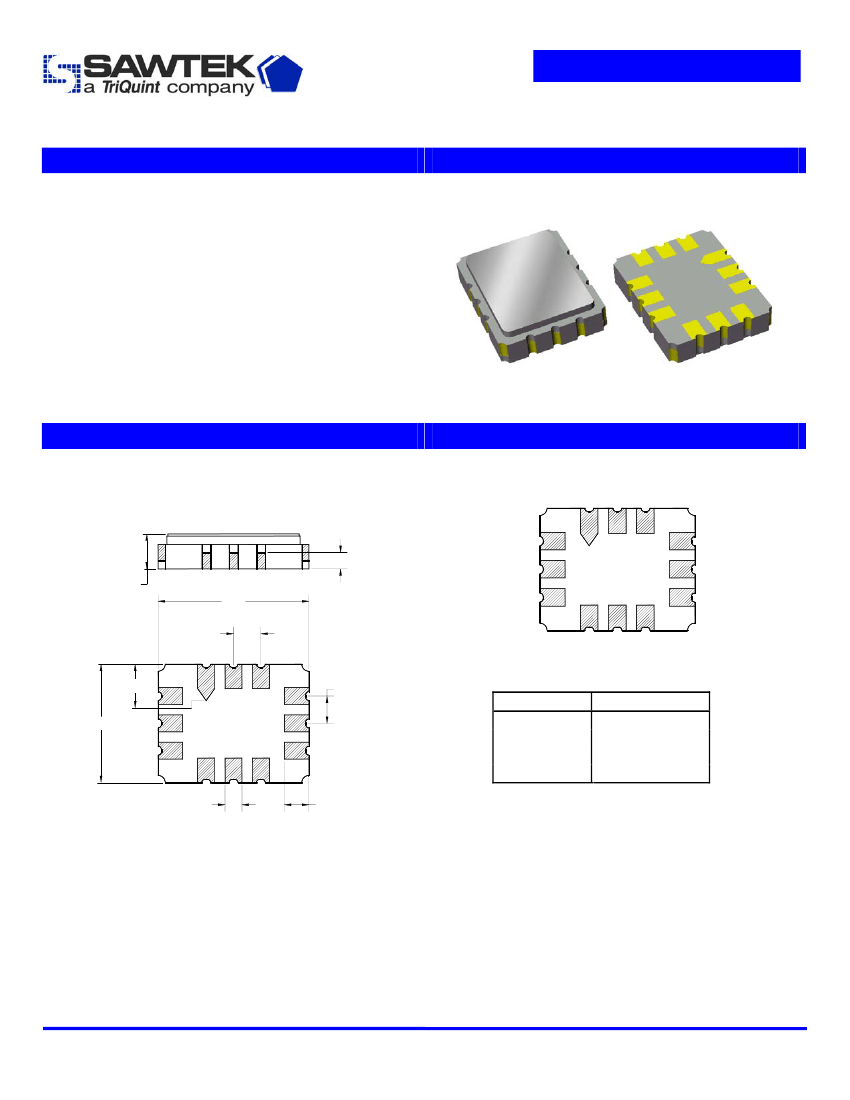

Part Number 856097

398.0 MHz SAW Filter

•

Package

Surface Mount 7.01 x 5.51 x 1.63 mm

Pin Configuration

Bottom View

0.76

1.63 NOM.

1.78 MAX.

7.01

1.27

1.70

5.51

1.27

Pin No.

1,2,3,5,6

7,8,9,11,12

Description

Output

Input

Case Ground

0.79

1.14

Dimensions shown are nominal in millimeters

All tolerances are

±0.15mm

except overall

length and width

±0.13mm

Body:

ceramic

Lid:

Kovar, Ni

plated

Terminations:

plating 0.5 - 1.0µm,

over a 2 - 6µm

plating

Subject to change or obsolescence without notice

Rev -

15-Dec-2003

Page 1 of 5
