BU2362FV Overview

DVD-video Reference Clock Generators for Audio/Video Equipments

BU2362FV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSSOP, TSSOP16,.25
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
JESD-30 code	R-PDSO-G16
JESD-609 code	e2
length	5 mm
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output clock frequency	36.8688 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Master clock/crystal nominal frequency	27 MHz
Certification status	Not Qualified
Maximum seat height	1.35 mm
Maximum slew rate	45 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

TECHNICAL NOTE

High-performance Clock Generator Series

DVD-video Reference

Clock Generators

for Audio/Video Equipments

BU2280FV, BU2288FV, BU2360FV, BU2362FV

●Description

These clock generators are an IC generating three types of clocks - VIDEO, AUIDIO and SYSTEM clocks – necessary for

DVD player systems, with a single chip through making use of the PLL technology. Particularly, the AUDIO clock is a

DVD-Video reference and yet achieves high C/N characteristics to provide a low level of distortion factor.

●Features

1) Connecting a crystal oscillator generates multiple clock signals with a built-in PLL.

2) AUDIO clock of high C/N characteristics providing a low level of distortion factor

3) The AUDIO clock provides switching selection outputs.

4) Single power supply of 3.3 V

●Applications

DVD players

●Lineup

Part name

Power source voltage [V]

Reference frequency [MHz]

DVD VIDEO

1/2

768fs

512fs

DVD AUDIO, CD

(Switching outputs)

384fs

256fs

other

768 (48k type)

768 (44.1k type)

384 (44.1k type)

BU2280FV

3.0

3.6

27.0000

36.8640

/33.8688

24.5760

/22.5792

18.4320

/16.9344

33.8688

8.0

SSOP-B24

BU2288FV

3.0

3.6

27.0000

24.5760

/22.5792

36.8640

/16.9344

33.8688

16.9344

5.0

SSOP-B16

BU2360FV

2.7

3.6

27.0000

24.5760

/22.5792

33.8688

2.5

SSOP-B16

BU2362FV

2.7

3.6

27.0000

24.5760

/22.5792

36.8640

/16.9344

36.8640

33.8688

16.9344

5.0

SSOP-B16

Output

frequency

[MHz]

SYSTEM

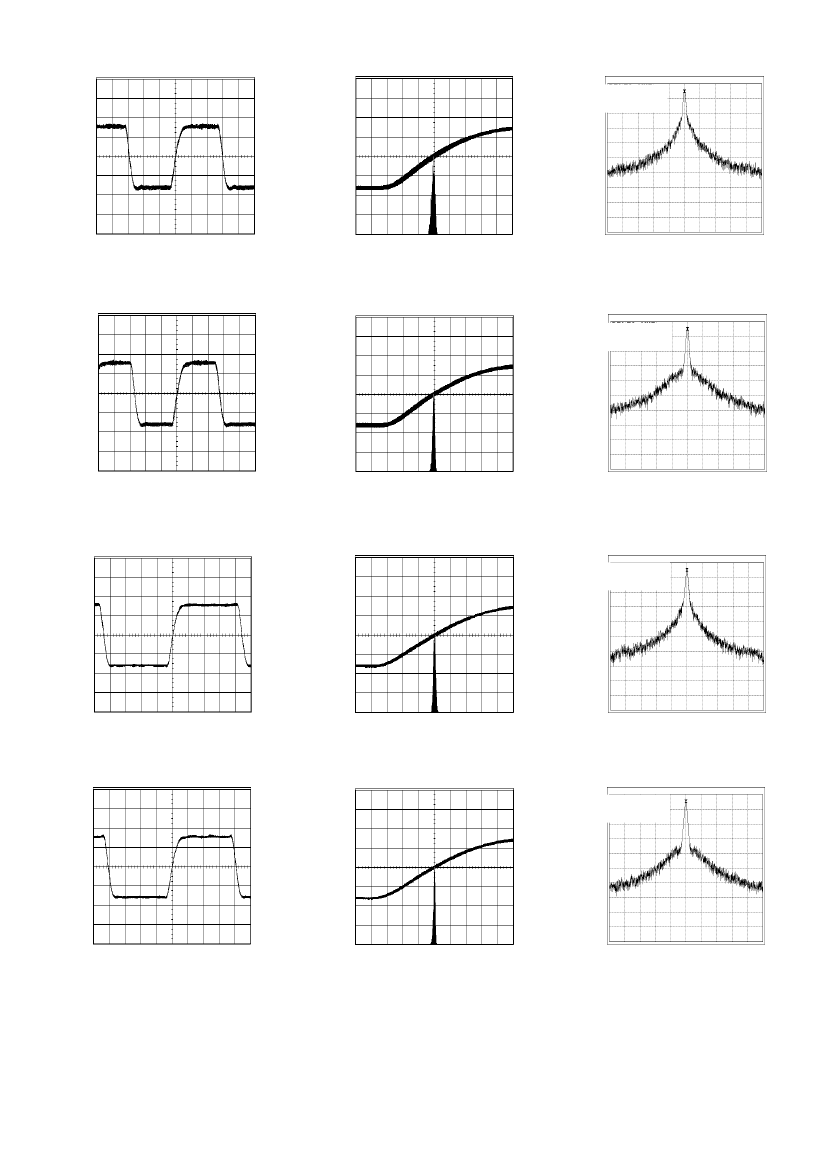

Jitter 1σ [psec]

Long-term-Jitter p-p [nsec]

Package

Sep. 2008
