All specifications are based on the test circuit shown below
This specification is valid for room temperature only
Electrical margin has been built into the design to account for the variations due to manufacturing tolerances
All attenuation measurements are measured relative to minimum insertion loss
This is the optimum impedance in order to achieve the performance shown
Minimum
-
-
-
47.0
40.0
-
-
-
-
38
38
-
-
Typical
44.0
20.8
40.95
47.07
40.35
47.75
0.63
3.35
80
45
45
50
50
Maximum
-
22.0
41.0
-
-
48
0.75
4.25
100
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
deg
µsec
dB
dB
Ω
Ω
Test Circuit:
10
5
50Ω
50
Ω
Single-ended
50Ω
1,2,3,4
6,7,8,9
No impedance matching
required
Subject to change or obsolescence without notice
Rev -
05-Feb-2003
Page 2 of 5
Preliminary Data Sheet
Part Number 856129
44 MHz SAW Filter

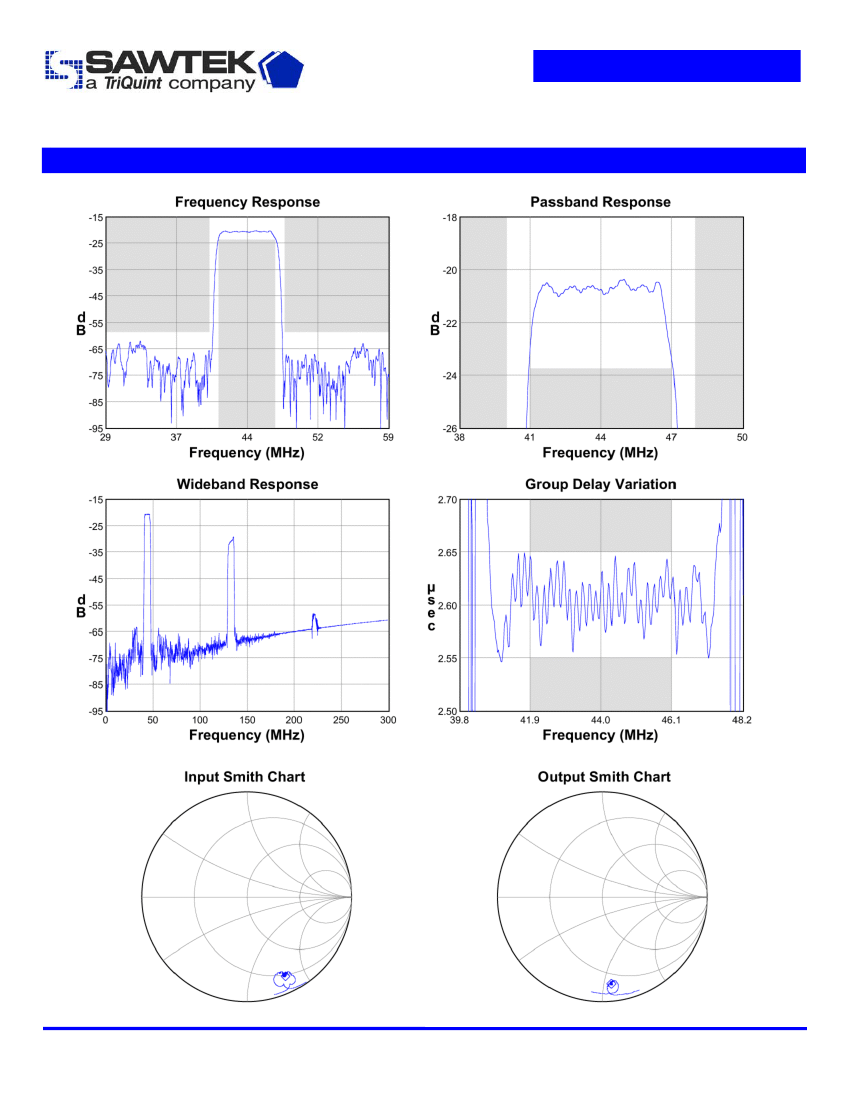

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
05-Feb-2003
Page 3 of 5
Preliminary Data Sheet
Part Number 856129
44 MHz SAW Filter
Matching Schematics
10
5
50Ω
50
Ω
Single-ended
50Ω
1,2,3,4
6,7,8,9
No impedance matching
required
Marking
PCB Footprint
8.84
SAWTEK
856129
XXXXXX
ID dot
Date code
9.19
1.95
1.22
.69
Date code is the day of the current year in Julian format, last digit
of the year, and hour of the day
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
44.8
Ø330
ID dot
0.36
2.0
4.0
Ø1.5
A
1.75
20.2
25.6
Ø102
Ø20.2
Ø13.0
44
2.0
Direction of travel
2.6
Section A-A
9.39
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 1000 units/reel
Subject to change or obsolescence without notice
Rev -
05-Feb-2003
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856129
44 MHz SAW Filter
Symbol
T
T
stg
Minimum
-
-40
Typical
25
-
Maximum
-
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
