Including losses in matching test circuit shown below
Minimum
-
-
-
-
184.230
-
-
33
33
33
33
45
38
33
33
38
45
-
-
Typical
183.6
4.8
9.5
182.886
184.320
0.70
2.4
45
38
40
38
50
42
36
36
42
50
1160Ω||69nH
3395Ω||121nH
Maximum
-
6.4
11.1
182.970
-
1.25
3.2
-
-
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB
MHz
MHz
dB p-p
deg RMS
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
-
-
Lower 5 dB Point
Upper 5 dB Point
Amplitude Variation
183.3 - 183.9 MHz
RMS Phase Variation
182.97 - 184.23 MHz
Attenuation
(4)
f
0
±
0.90 MHz
f
0
±
1.25 MHz
f
0
±
1.70 MHz
f
0
±
2.05 MHz
Rejection
(4)
10.00 - 171.60 MHz
171.60 - 174.60 MHz
174.60 - 182.70 MHz
184.50 - 192.60 MHz
192.60 - 195.60 MHz
195.60 - 367.20 MHz
Optimal Source Impedance
(5)
Optimal Load Impedance
(5)
Notes:
1.
2.
3.
4.
5.
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to manufacturing tolerances
Relative to insertion loss at 183.6 MHz
This is the complex conjugate of the unmatched filter’s impedance resulting in maximum power transfer
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
120pF
10
4
1pF
9
120pF
1,2,3
6,7,8
5
4pF
82nH
500Ω
4pF
1000Ω
Balanced
input
1000Ω
56nH
500Ω
Balanced
output
Subject to change or obsolescence without notice
Rev A
24-Jun-2002
Page 2 of 5
Preliminary Data Sheet
Part Number 856158
183.6 MHz SAW Filter

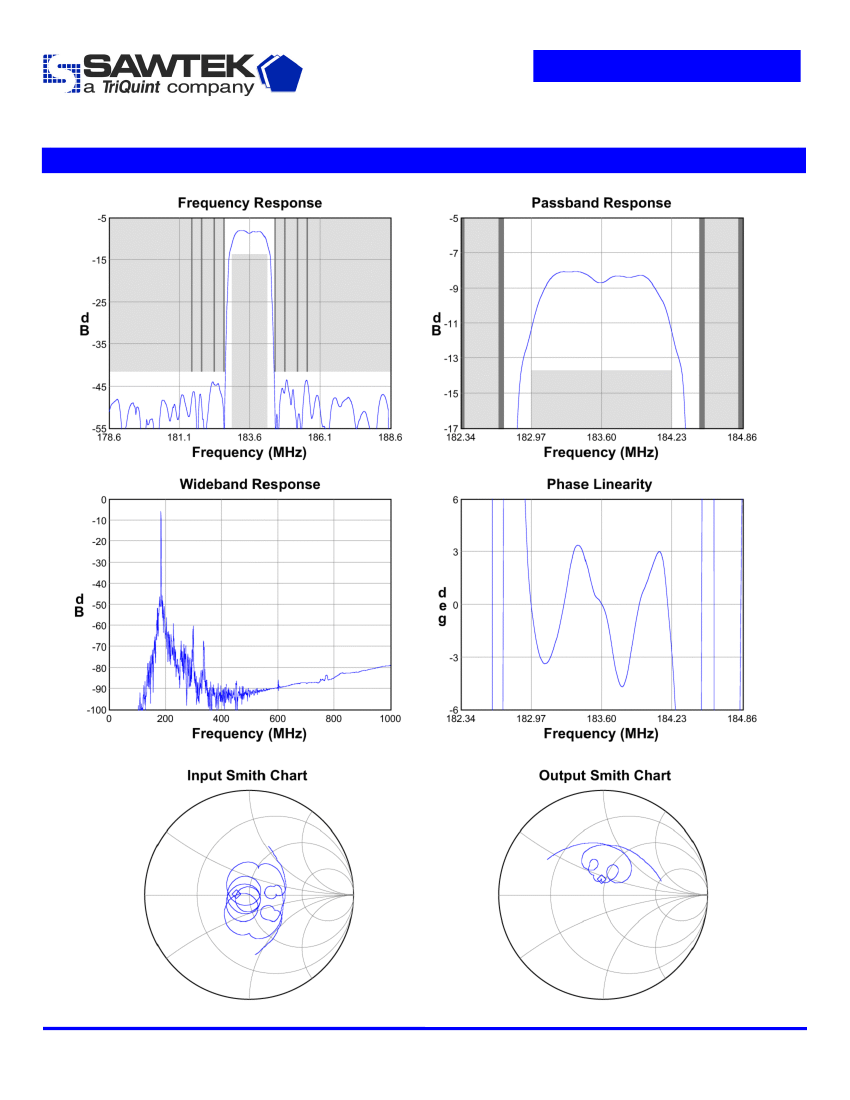

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
24-Jun-2002
Page 3 of 5
Preliminary Data Sheet
Actual matching values may vary due to PCB layout and parasitics
120pF
10
4
1pF
9
120pF
1,2,3
6,7,8
5
Part Number 856158
183.6 MHz SAW Filter
Matching Schematics
4pF
1000Ω
Balanced
input
1000Ω
56nH
82nH
500Ω
500Ω
Balanced
output
4pF
Marking
1.19
PCB Footprint
9.29
1.19
SAWTEK
856158
XXXXXX
ID Dot
Date Code
5.00
1.70
1.53
1.01
3.55
1.01
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
16.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
7.5
9.4
Ø102
Ø20.2
Ø13.0
16.0
2.0
Direction of travel
1.6
Section A-A
5.1
8.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev A
24-Jun-2002
Page 4 of 5
Preliminary Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856158
183.6 MHz SAW Filter
Symbol
T
T
stg
Maximum Ratings
Minimum
-30
-40
Maximum
+85
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
