All specifications are based on the test circuit shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature. The guardbanded specification includes the 3 dB center frequency correlation factor between customer board and
Sawtek test fixture
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
All bandedge and relative attenuation measurements are referenced to the minimum insertion loss
EVM and out-of-band modulation will not be tested in production due to the complexity of test. Compliance guaranteed by design
This is the optimum impedance in order to achieve the performance shown
Minimum
-
210.975
210.969
-
211.05
-
211.08
-
211.10
46
38
25
25
38
46
44
46
-
-
-
10
8
-
-
-
-
Typical
5.2
211
211
210.88
211.12
210.86
211.14
210.83
211.17
50
45
30
33
44
49
48
49
2.4
370
2
15
10
-65
-65
50
50
Maximum
6.5
211.025
211.031
210.95
-
210.92
-
210.90
-
-
-
-
-
-
-
-
-
5
500
-
-
-
-60
-60
-
-
Unit
dB
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
dB
dB
dB
dB
dB
dB
dB
dB
µs
ns
%
dB
dB
dBm
dBm
Ω
Ω
Subject to change or obsolescence without notice
Rev B
13-Jun-2005
Page 2 of 5
Preliminary Data Sheet
Part Number 856378
211 MHz SAW Filter

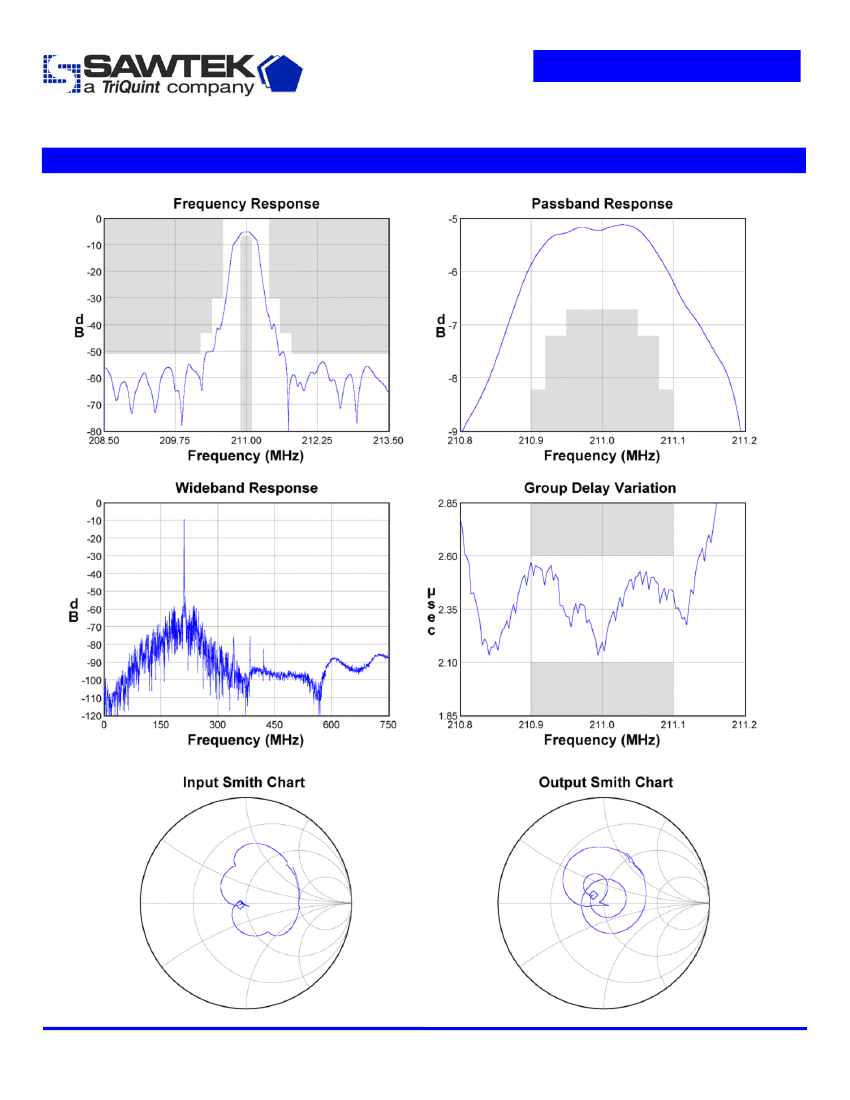

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev B
13-Jun-2005
Page 3 of 5
Preliminary Data Sheet
Test Circuit
33nH
10
5
36nH
Part Number 856378
211 MHz SAW Filter
50
Ω
Single-ended
Input
50Ω
33pF
1,2,3,4
6,7,8,9
33pF
50Ω
50
Ω
Single-ended
Output
Matching Schematics
Actual matching values may vary due to PCB layout and parasitics
43nH
10
5
39pF
50Ω
39nH
50
Ω
Single-ended
Input
50Ω
33pF
1,2,3,4
6,7,8,9
50
Ω
Single-ended
Output
Marking
PCB Footprint
8.86
2.51
SAWTEK
856378
XXXXXX
6.70
2.00
1.22
.69
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity:2000 units/reel
Subject to change or obsolescence without notice
Rev B
13-Jun-2005
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
RF Power
Part Number 856378
211 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
0
-40
-
Maximum
+70
+85
+14.5
Unit
C
C
dBm
o
o
Warnings
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Material Content
Does not contain lead (Pb) or other RoHS restricted materials
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
