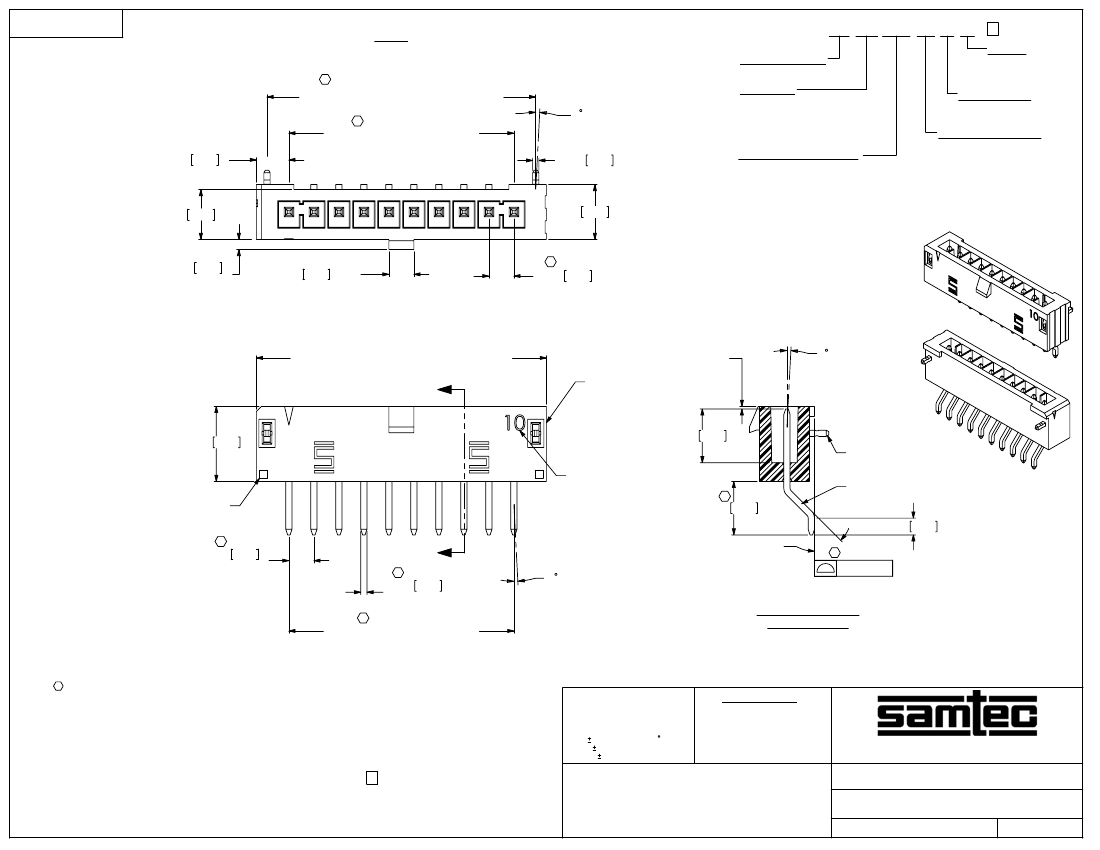

REVISION B
C
(IPL1-110-02-XXX-SH-K SHOWN)
FIG. 1
IPL1-1XX-XX-XXX-SH-K-XX
B
No OF POSITIONS
-02 THRU -25
LEAD STYLE
-02: SINGLE HORIZONTAL .062 BOARD
(USE T-1S64-09-XXX)
-03: SINGLE HORIZONTAL .093 BOARD
(USE T-1S64-09-XXX)
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE T-1S64-09-F)
-L: LIGHT SELECTIVE (USE T-1S64-09-L)
-S: SELECTIVE (USE T-1S64-09-S)
-STL: SELECTIVE TIN/LEAD(USE T-1S64-09-STL)
OPTION
-TR: TAPE & REEL
(SEE NOTE 9)
POLARIZATION
-K: KEYED POLARIZATION
ROW SPECIFICATION
-SH: SINGLE HORIZONTAL
(No. OF POS. X .100[2.54]) + .075[1.91]
(No. OF POS. -1) X .100[2.54]
.130 3.30
01
.200 5.08 REF
02
.220 5.59 REF
C
2 MAX SWAY
(TYP)
.025 0.64 SQ REF
.040 1.02
REF
C
.100 2.54 REF
.100 2.54 (TYP)
(No. OF POS. X .100[2.54]) +.160[4.06] REF
SEE NOTE 7
IPL1-XX-SH
2 MAX TOE
(TYP)
"A"
.300 7.62
SEE NOTE 8
SEE NOTE 10
C
.215 5.46
WT-28-03-T
T-1S64-09-XXX
.067 1.71
.214 5.44
C
.100 2.54
(TYP)
"A"
C
45°
2 MAX SWAY (TYP)
C
.006[0.15]
.025 0.64 SQ
REF (TYP)
C
(No. OF POS. -1) X .100[2.54]
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM TERMINAL / WELD TAB RETENTION: 1.0LB. [4.4N]
3. PARTS TO BE MOLDED TO POSITION.
4. POST MUST BE WITHIN .005[0.13] OF EACH OTHER.
5. ALL PIN TO PIN DIMENSIONS TO BE MEASURED FROM TIP TO TIP.
6. DIMENSION TO BE MEASURED AT BEND.
7. TIP TO BE FLUSH TO .010[0.254] BELOW TOP OF SHROUD.
8. THIS NUMBER REPRESENTS THE NUMBER OF POSITIONS PER ROW ONLY AND IS NOT
INTENDED TO BE USED IN POSITION NUMBERING.
9. PARTS TO BE PACKAGED IN TUBES IF TAPE & REEL IS NOT SPECIFIED.
B
10. INDENTION FROM WELD TAB CARRIER IS ALLOWABLE.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "A"-"A"
SCALE 2.5 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOS BRONZE
.100[2.54] SINGLE ROW TERMINAL ASSEMBLY
DWG. NO.
DESCRIPTION:
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-SH-K-XX-MKT.SLDDRW
BY:
D. SCHMELZ
IPL1-1XX-XX-XXX-SH-K-XX
10/31/2008
SHEET
1
OF
2
REVISION B

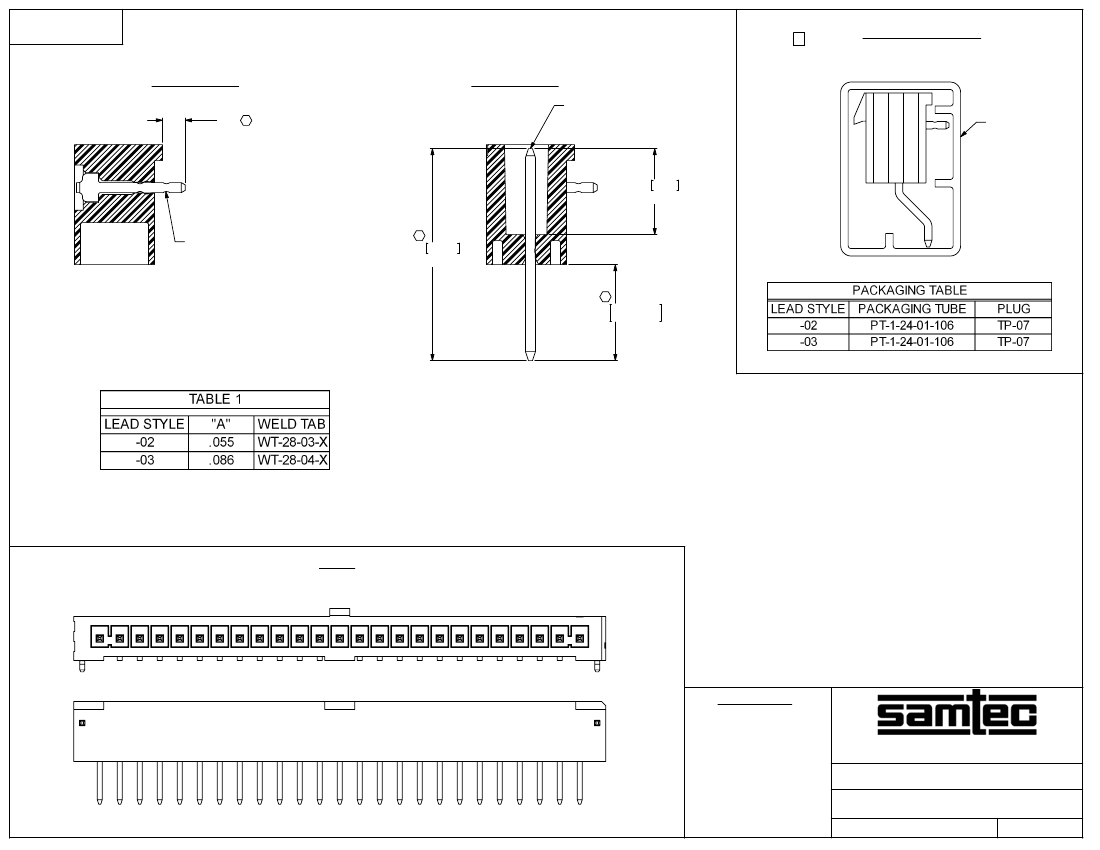

IN-PROCESS 1
FILL WELD TAB
"A"
C
B
IN-PROCESS 2
FILL T-1S64-09-XXX
(PARTS TO HAVE POSITION #1 LOADED
IN SAME DIRECTION AS ARROW ON TUBE)
PACKAGING VIEW
T-1S64-09-XXX
PT-1-24-01-106
.215 5.46
REF
C
WT-28-XX-X
.530 13.46
REF
C
+.000
.240
- .010
6.10
- 0.254
0.000
(IPL1-125-02-XXX-SH-K SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
FIG. 2
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100[2.54] SINGLE ROW TERMINAL ASSEMBLY
DWG. NO.
DESCRIPTION:
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-SH-K-XX-MKT.SLDDRW
BY:
D. SCHMELZ
IPL1-1XX-XX-XXX-SH-K-XX
10/31/2008
SHEET
2
OF
2
