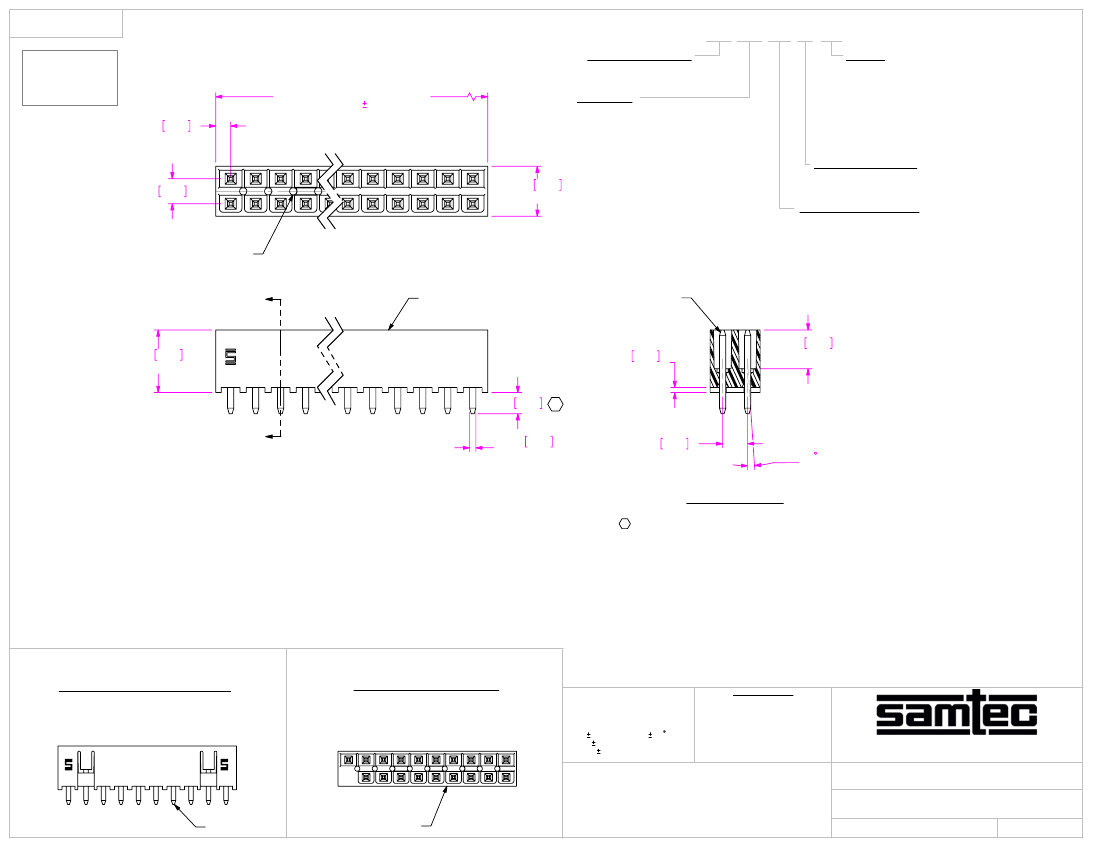

REVISION X
DO NOT
SCALE FROM
THIS PRINT
IPT1-1XX-XX-XX-D-XX
No OF POS PER ROW
-02 THRU -25
((No OF POS x .1000 [2.540])
+ .0200[.508]) .010[.25]
.060 1.52
02
LEAD STYLE
SEE TABLE 1, SHEET 2
OPTION
(SEE NOTE 11)
-PL: POSITION #1 REMOVED
(USE IPT1-XX-D-P)
(SEE NOTE 12)
-FL: FRICTION LOCK [POS -05 THRU -25]
(USE IPT1-XX-D-FL-X & T-1S64-XX-X)
(ONLY AVAILABLE ON -01 & -03
LEAD STYLES)
ROW SPECIFICATION
(SEE NOTE 11)
-D: DOUBLE (USE IPT1-XX-D-XX-X)
PLATING SPECIFICATION
-S: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
.100 2.54 REF
01
C
L
.200 5.08
REF
SEE NOTE 8
"A"
IPT1-50-D
(SEE NOTE 11)
SEE TABLE 1
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
.250 6.35
REF
.085 2.16
C1
.020 0.51
REF
.155 3.94
REF
"A"
.025 0.64 SQ
REF
.100 2.54
2 MAX SWAY
(TYP)
(IPT1-125-01-XX-D-XXX SHOWN)
FIG 1
NOTES:
SECTION "A"-"A"
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM ALLOWABLE CUT FLASH: .010[.25].
3. MINIMUM TERMINAL PUSH OUT FORCE: 2 lbs.
4. MAXIMUM VARIATION BETWEEN PIN ROWS: .005[.13].
5. "END WALLS" AFTER CUTTING SHOULD BE .010+/-.003[.25+/-.08].
6. PARTS TO BE BULK PACKAGED.
7. ALL DIMENSIONS TO BE ABOUT CENTERLINE WITHIN +/-.005[.13].
8. PRESENCE OF VOIDS IS OPTIONAL AND PATTERN TO WHICH THEY
OCCUR IS VARIABLE.
9. -T PLATING OPTION AVAILABLE FOR EXISTING CUSTOMERS ONLY.
10. NOTE DELETED.
11. STANDARD BODIES CAN BE CUT TO POSITION.
FOR -PL & -FL OPTIONS, BODIES MUST BE MOLDED TO POSITION.
12. FOR EXISTING CUSTOMERS ONLY, -POL CAN BE SUBSTITUED FOR -PL.
-FL: FRICTION LOCK OPTION
(IPT1-110-01-X-D-FL SHOWN)
-PL: POLARIZED OPTION
(IPT1-110-01-X-D-PL SHOWN)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
20
02
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
DECIMALS
ANGLES
2
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
01
19
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE, 510, 3/4 HARD
.100 DOUBLE ROW SHROUDED TERMINAL ASSEMBLY
DWG. NO.
IPT1-1XX-XX-XX-D-XX
11-05-2002
SHEET
1
OF
2

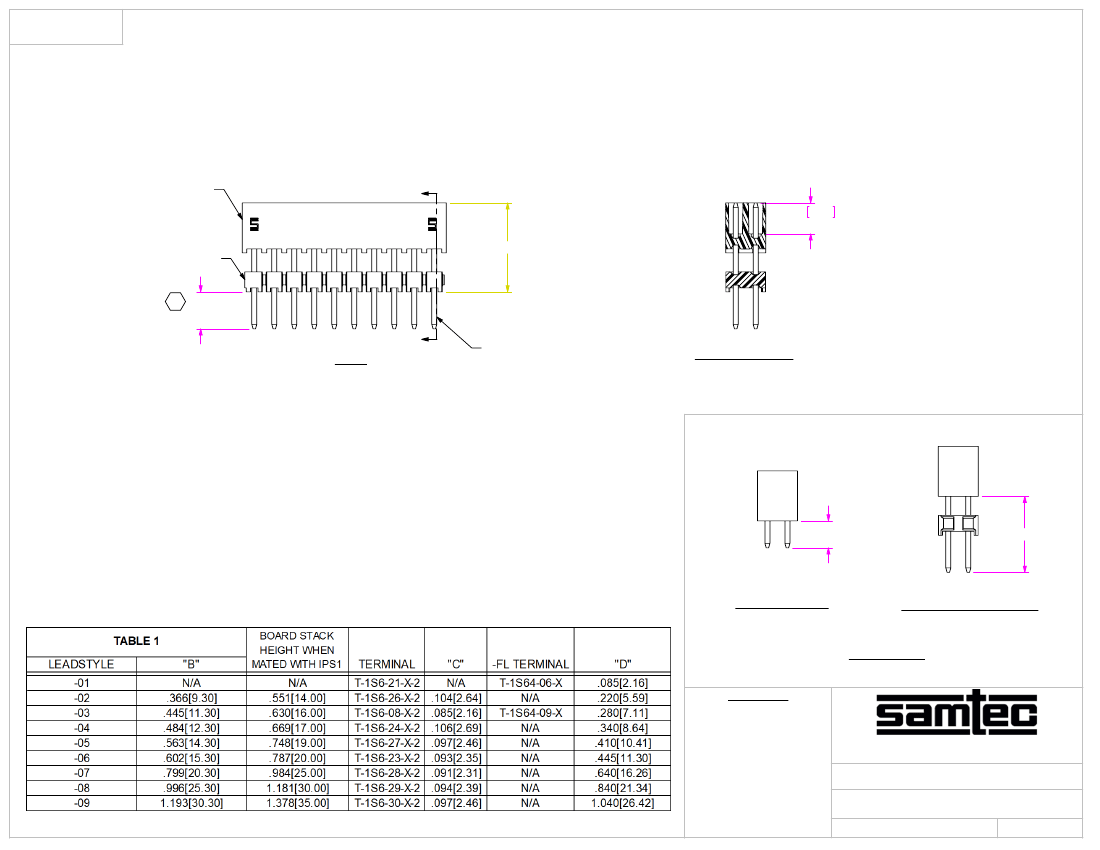

T-1S64-06-X
IPT1-XX-D-P
F:\DWG\MISC\MKTG\IPT1-1XX-XX-XX-D-XX-MKT.SLDDRW
BY:
DEAN P
REVISION X
IPT1-XX-D-XX-X
"B"
.155 3.94
REF
HTSW-50-D-LCP
"B"
C2
"C"
"B"
(IPT1-110-02-XX-D-XXX SHOWN)
FIG 2
SEE TABLE1
SECTION "B"-"B"
"D"
"D"
LEAD STYLE -01
LEAD STYLE -02 TO -09
IN-PROCESS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100 DOUBLE ROW SHROUDED TERMINAL ASSEMBLY
IPT1-1XX-XX-XX-D-XX
11-05-2002
SHEET
2
OF
2
F:\DWG\MISC\MKTG\IPT1-1XX-XX-XX-D-XX-MKT.SLDDRW
BY:
DEAN P
