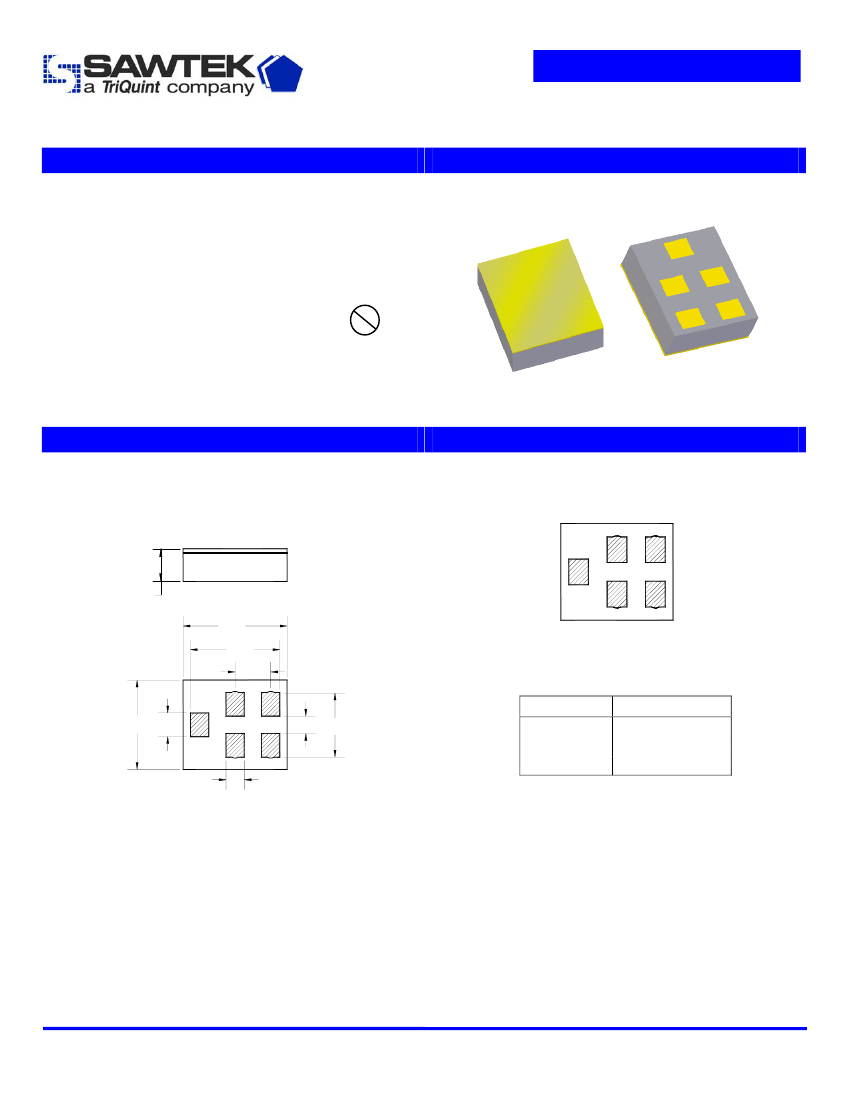

All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Minimum
-
-
30
35
25
10
10
-
-1.8
-13
-
-
-
Typical
2140
2
35
48
35
18
57
0.1
-0.67
-9.4
1.5:1
50
100 19nH
Maximum
-
2.5
-
-
-
-
-
1.5
1.8
13
2.2:1
-
-
Unit
MHz
dB
dB
dB
dB
dB
dB
dB p-p
dB
degree
-
Ω
Ω
Test Circuit:
1
3
19nH
50Ω
2,5
4
100Ω
50
Ω
Single-ended
Input
100
Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev -
04-Apr-2006
Page 2 of 5
Preliminary Data Sheet
Part Number 856562
2140 MHz SAW Filter

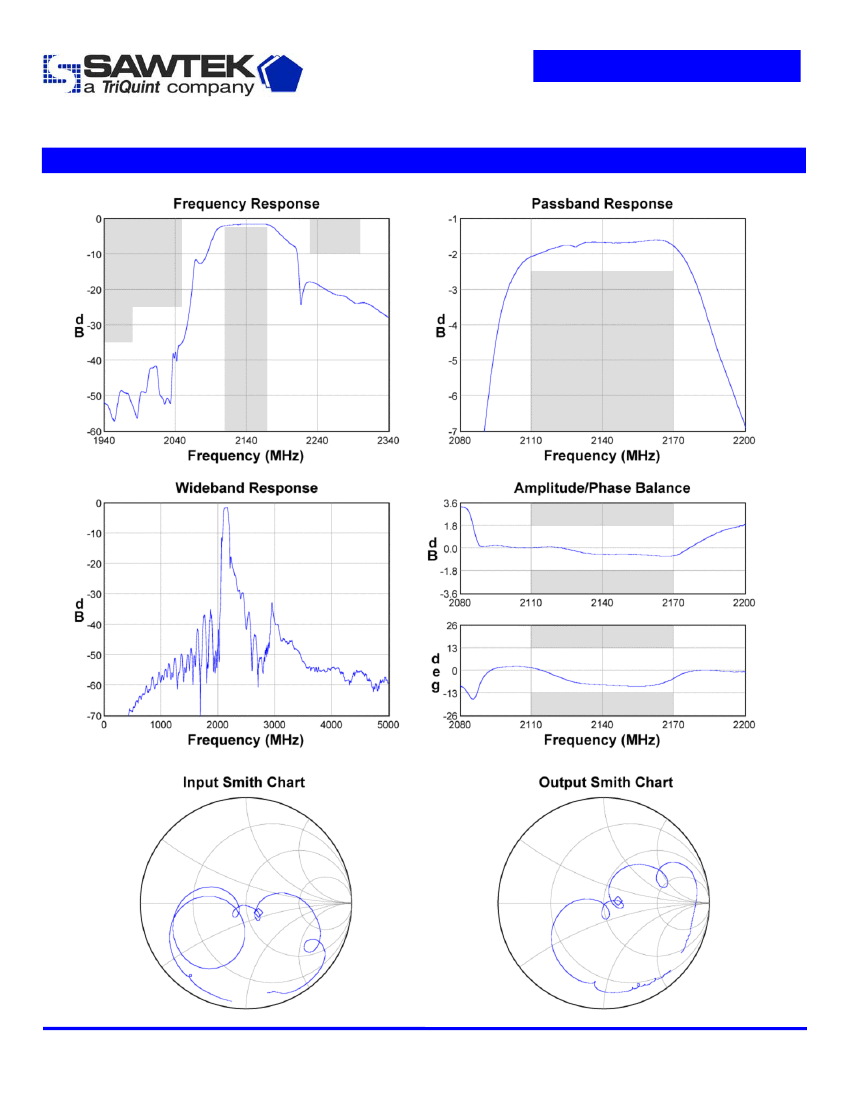

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
04-Apr-2006
Page 3 of 5
Preliminary Data Sheet
Part Number 856562
2140 MHz SAW Filter

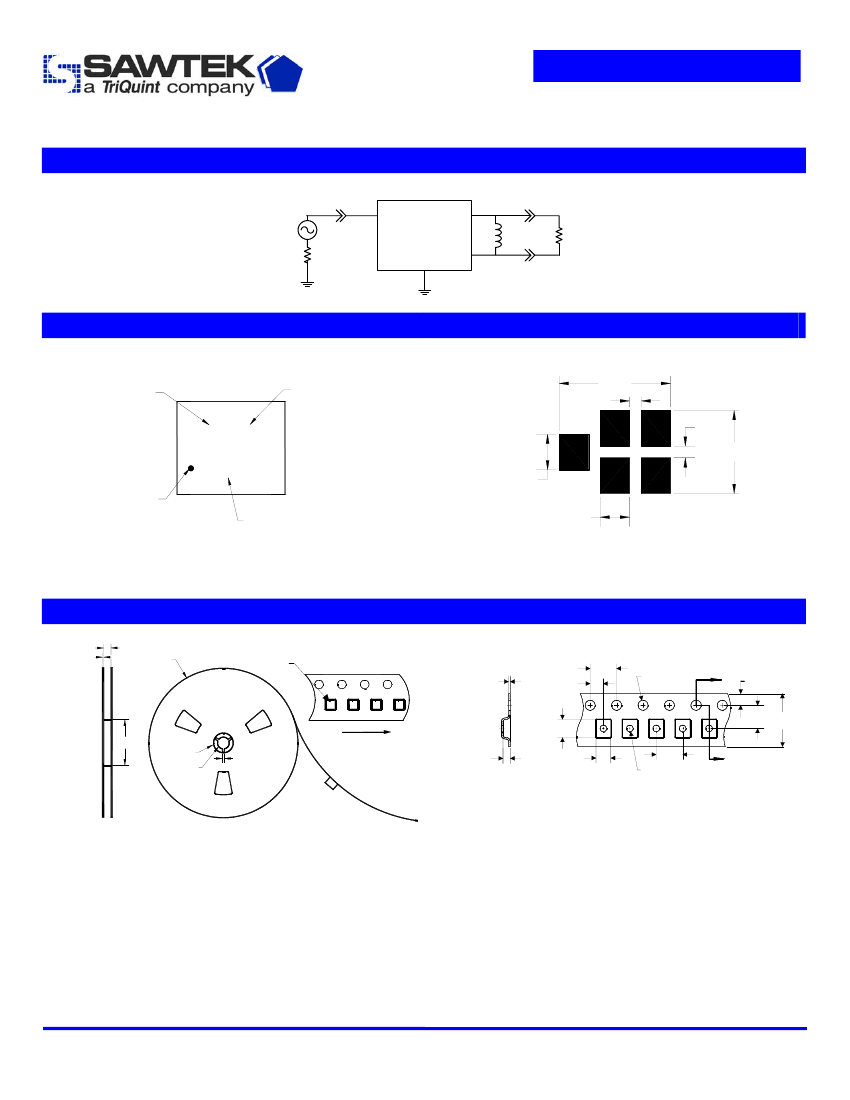

Matching Schematics
1
3
19nH
50Ω
2,5
4
100Ω
50
Ω
Single-ended
Input
100
Ω
Balanced
Output
Marking
Marking
code
MFG site
PCB Footprint
1.35
0.15
E M
WWY
ID dot
Date code
0.15
1.00
0.425
0.35
The date code consists of: WW = 2 digit week,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
8.8
Ø330
ID dot
4.0
0.3
2.0
Ø1.5
A
1.75
1.73
Ø102
Ø20.2
Ø13.0
Direction of travel
2.0
3.5 8.0
4.0
Ø1.0
0.91
Section A-A
1.47
A
Dimensions shown are nominal in millimeters
Packaging quantity: 10000 units/reel
Subject to change or obsolescence without notice
Rev -
04-Apr-2006
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856562
2140 MHz SAW Filter
Symbol
T
T
stg
Minimum
-30
-40
Maximum
+85
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS information
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies, which are implemented using any Sawtek component described in this data sheet.
