All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Minimum
-
-
-
-
40
33
33
40
-
-
6
-
-
Typical
1220
3.9
1.1
1.0
56
42
42
47
26
15
9
200
200
Maximum
-
6.0
2.2
2.0
-
-
-
-
60
24
-
-
-
Unit
MHz
dB
dB
dB
dB
dB
dB
dB
nsec
nsec
dB
Ω
Ω
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
1
5
18nH
2
3,4,7,8
6
200Ω
200Ω
Balanced
Input
200Ω
22nH
200Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev -
03-07 TriQuint Semiconductor, Inc.
Page 2 of 5
Preliminary Data Sheet
Part Number 856598
1220 MHz SAW Filter

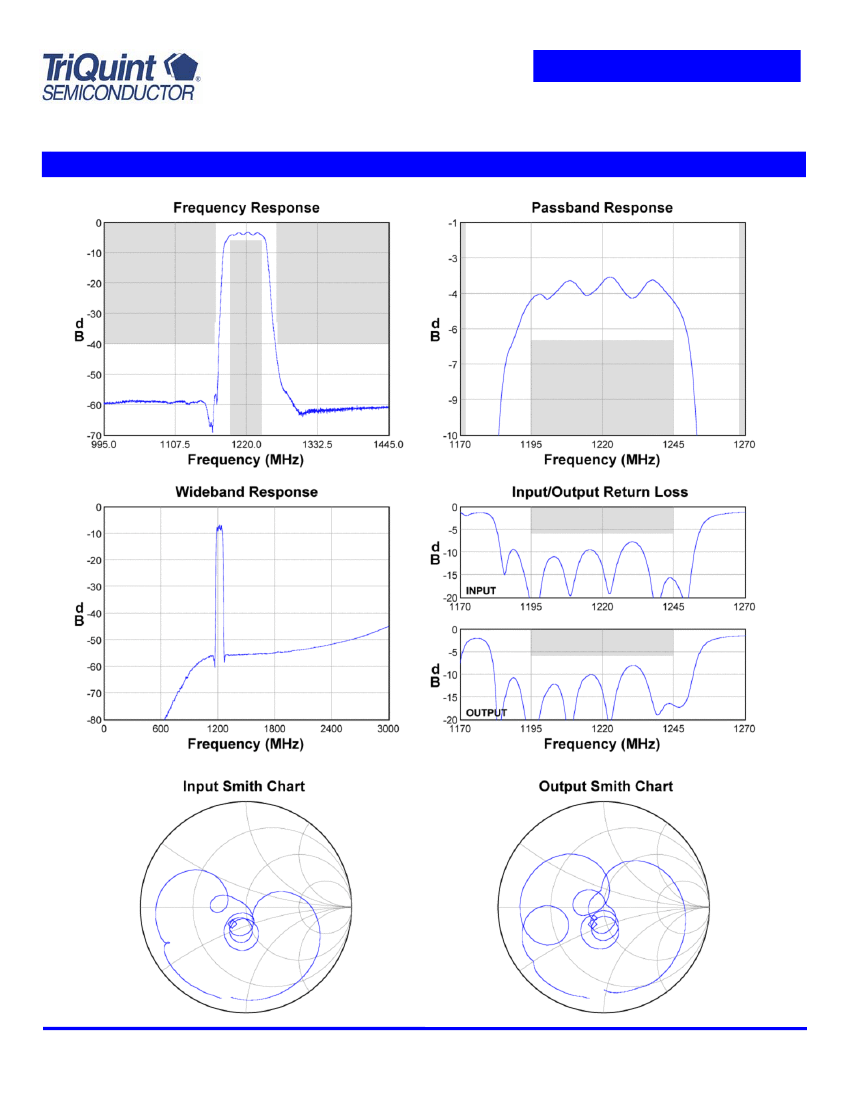

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
03-07 TriQuint Semiconductor, Inc.
Page 3 of 5
Preliminary Data Sheet
Actual matching values may vary due to PCB layout and parasitics
1
5
Part Number 856598
1220 MHz SAW Filter
Matching Schematics
200Ω
Balanced
Input
200Ω
22nH
2
3,4,7,8
6
18nH
200Ω
200Ω
Balanced
Output
Marking
Marking
code
PCB Footprint
1.70
4.01
1.19
Sawtek
logo
.81
8
JJJYM
ID dot
Date code
.41
.46
.81
1.19
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
4.1
1.8
Section A-A
4.1
8.0
Ø1.5
A
Sawtek
logo
Ø102
Ø20.2
Ø13.0
12.0
2.0
Direction of travel
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev -
03-07 TriQuint Semiconductor, Inc.
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856598
1220 MHz SAW Filter
Symbol
T
T
stg
Minimum
0
-40
Maximum
+70
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
