CE100F24-8-CB datasheet, PDF - EEWORLD Datasheet

CE100F24-8-CB: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

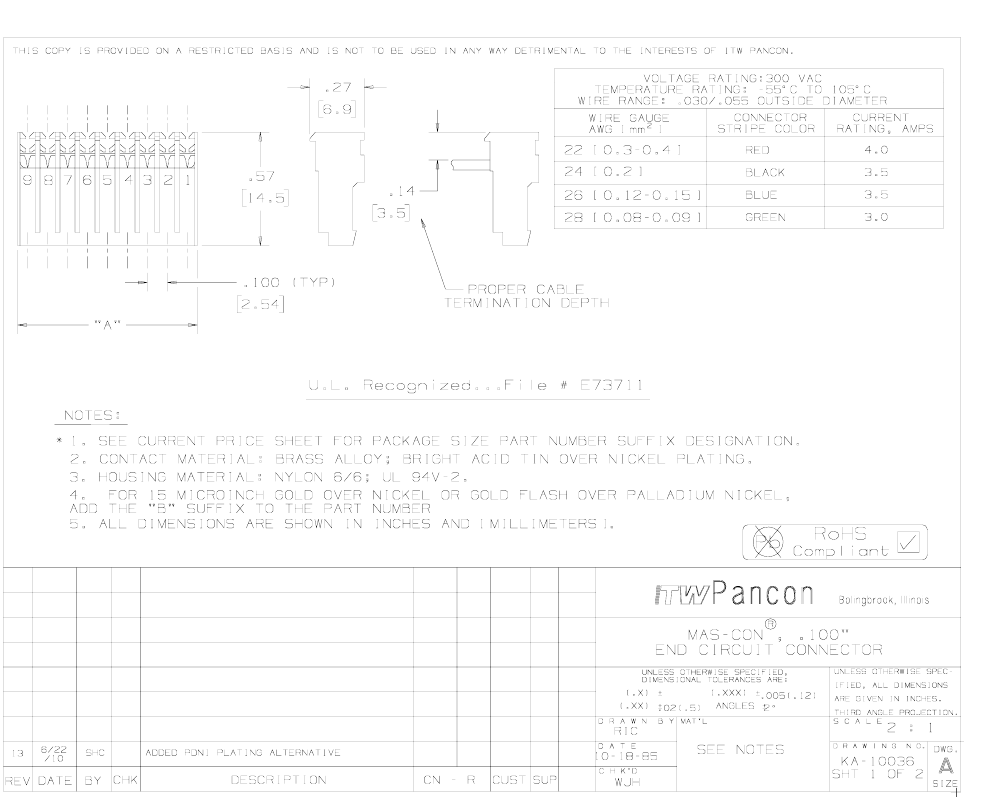

CE100F24-8-CB Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PANCON CONNECTORS
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.27 inch
subject depth	0.57 inch
body length	0.8 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	2000VAC V
maximum insertion force	5.3376 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	NYLON

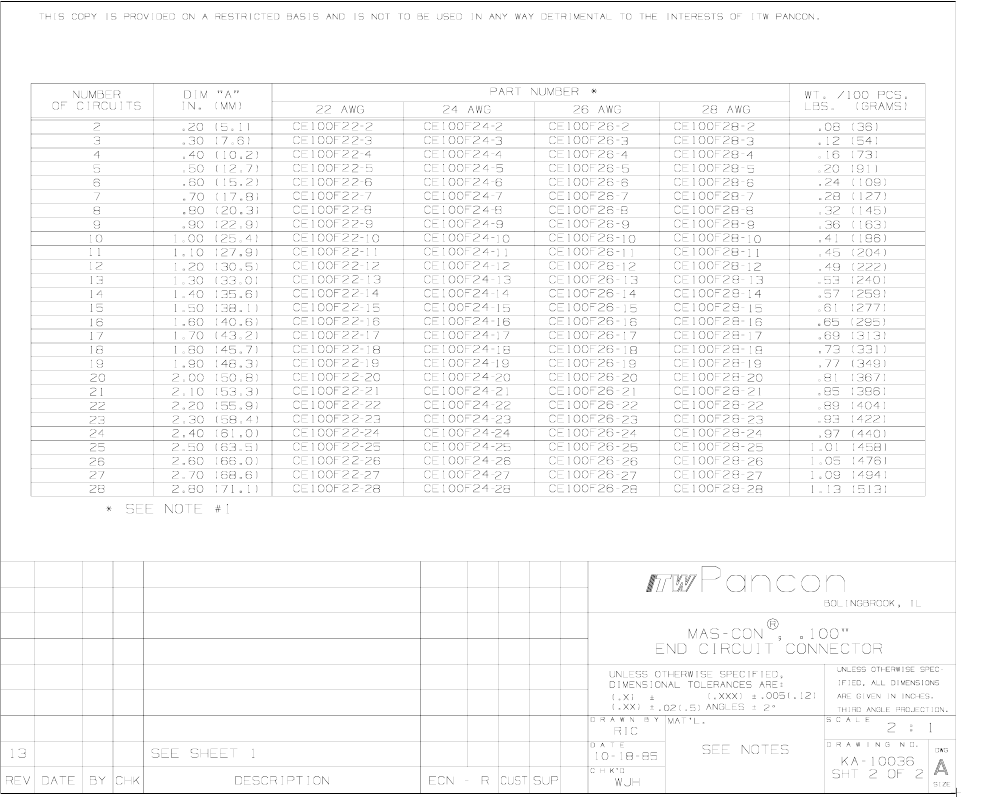

Manufacturer's serial number	CE100F
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
polarization key	ENDS
Rated current (signal)	3.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	8
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	1.3344 N
