856847

Description
SAW Filter, 1 Function(s), 455MHz, ROHS COMPLIANT, HERMETIC, CERAMIC, SMP-15A, 6 PIN
CategoryAnalog mixed-signal IC    filter
File Size404KB,5 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Environmental Compliance
Download Datasheet Parametric View All

856847 Online Shopping

Suppliers Part Number Price MOQ In stock
856847 - - View Buy Now

856847 Overview

SAW Filter, 1 Function(s), 455MHz, ROHS COMPLIANT, HERMETIC, CERAMIC, SMP-15A, 6 PIN

856847 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerQorvo
Reach Compliance Codecompliant
Other featuresTAPE AND REEL
Center frequency or cutoff frequency (fo/fc)455 MHz
filter typeSAW FILTER
high1.45 mm
input resistance50 OHM
Maximum insertion loss2.8 dB
JESD-609 codee4
length3.8 mm
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-10 °C
Output impedance50 OHM Ω
physical sizeL3.8XB3.8XH1.45 (mm)/L0.15XB0.15XH0.057 (inch)
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
width3.8 mm
Preliminary Data Sheet
Features
For CDMA 450 MHz BC5 Block A/B
Usable bandwidth 4.975 MHz
Low Insertion loss
High Attenuation
Single-ended operation
No external matching required for operation at 50
Small size
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856847

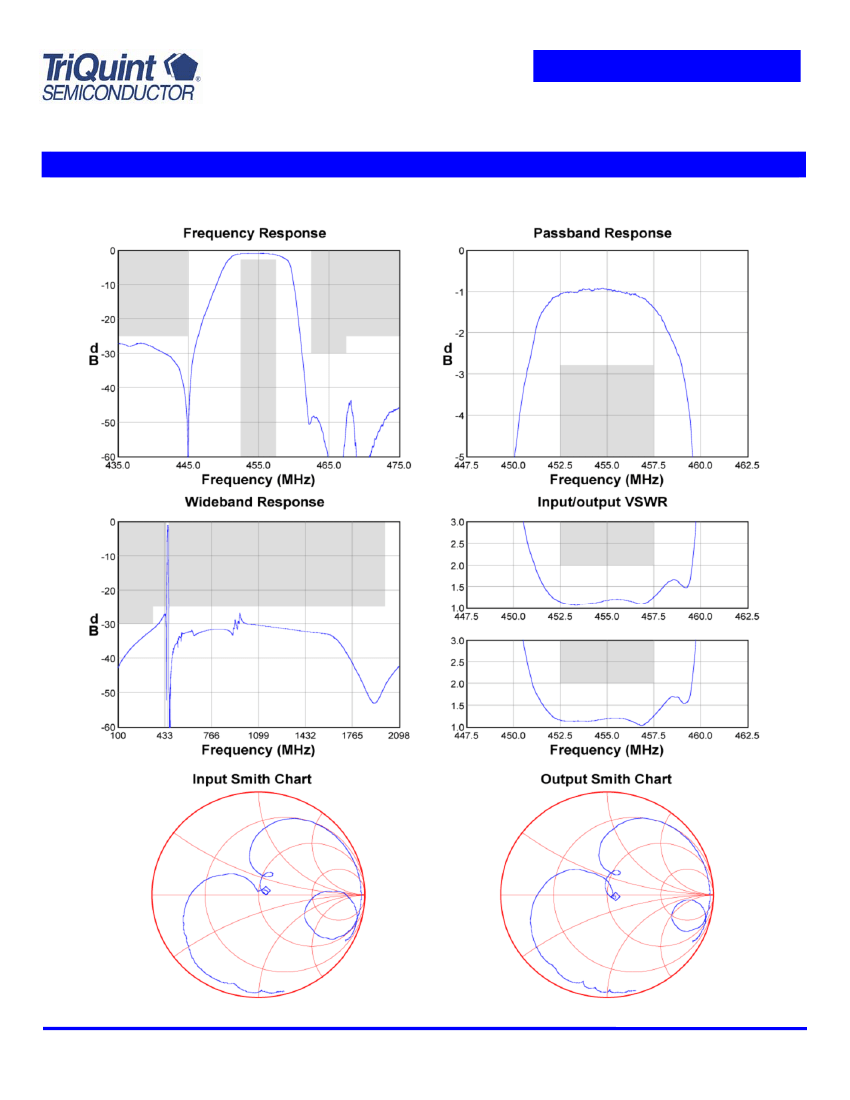

455 MHz SAW Filter

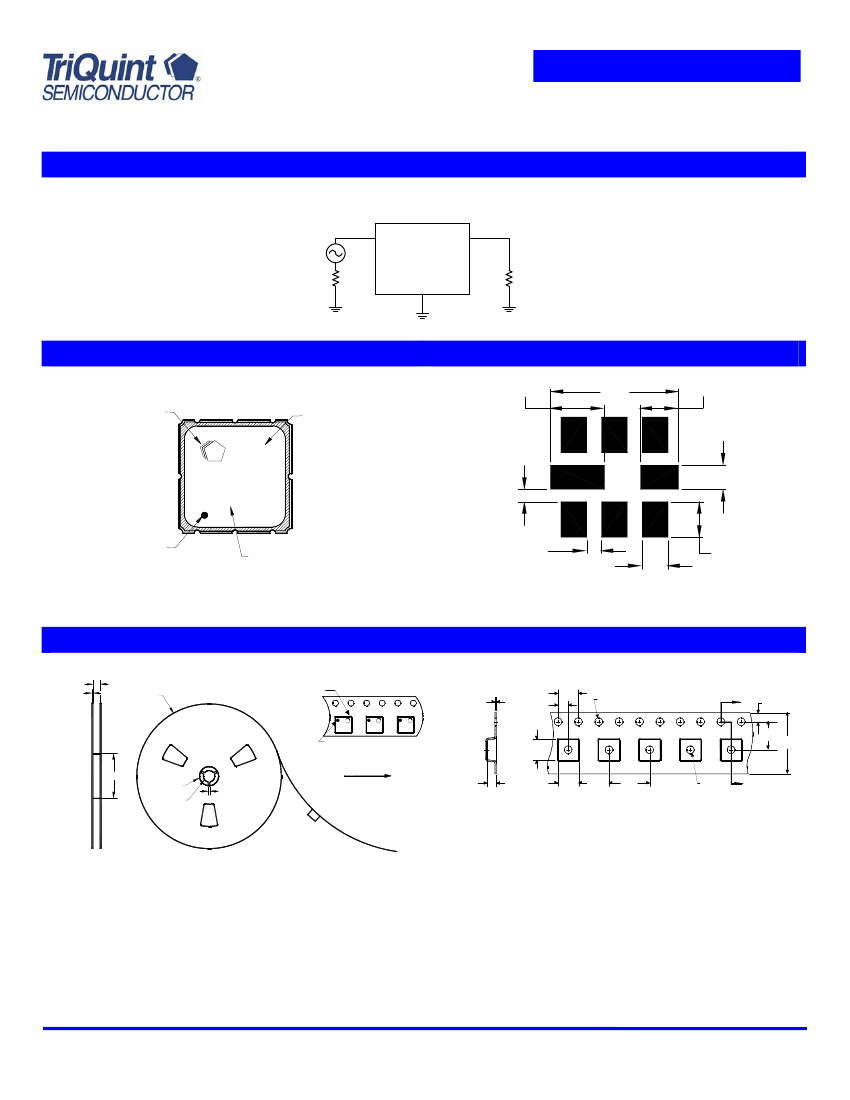

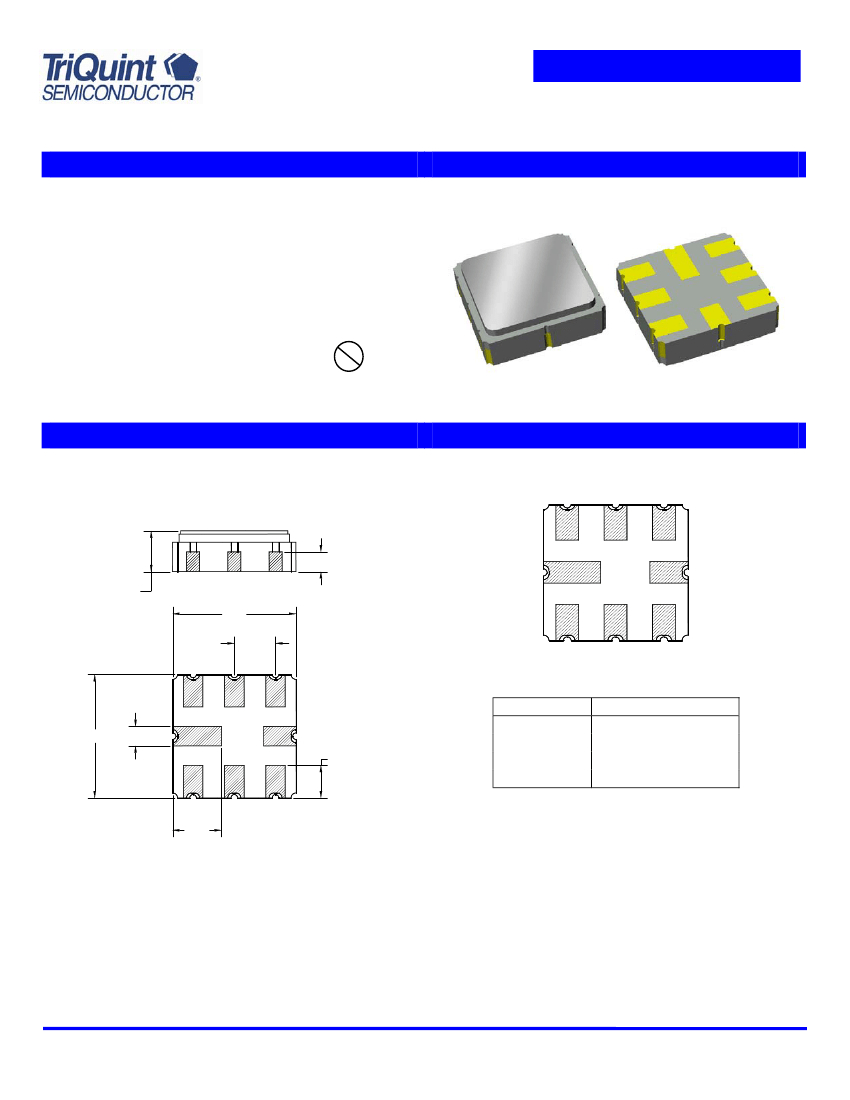

Package
Surface Mount 3.80 x 3.80 x 1.27 mm
SMP-15A
Pin Configuration
Bottom View
1
2
3
0.61
1.27 NOM.
1.45 MAX.
3.80
1.27
8
4
7
6
5
3.80
0.60
1.00
Single-ended Configuration
Pin No.
Description
2
Input
6
Output
1,3,5,7
Ground
4,8
Case Ground
1.50
Dimensions shown are nominal in millimeters
All tolerances are
0.15mm
except overall
length and width
0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
07/09
© TriQuint Semiconductor
Page 1 of 5
