1176 MHz GPS L5 BAW Filter
Applications
For GPS L5 Applications
For high-ultimate rejection applications
Product Features
Usable bandwidth 30 MHz
Low loss
High selectivity
Single-ended operation
Ceramic chip-scale Package (CSP)
Small Size
Hermetic
RoHS
compliant,
Pb-free
Functional Block Diagram
I/O
I/O
GND

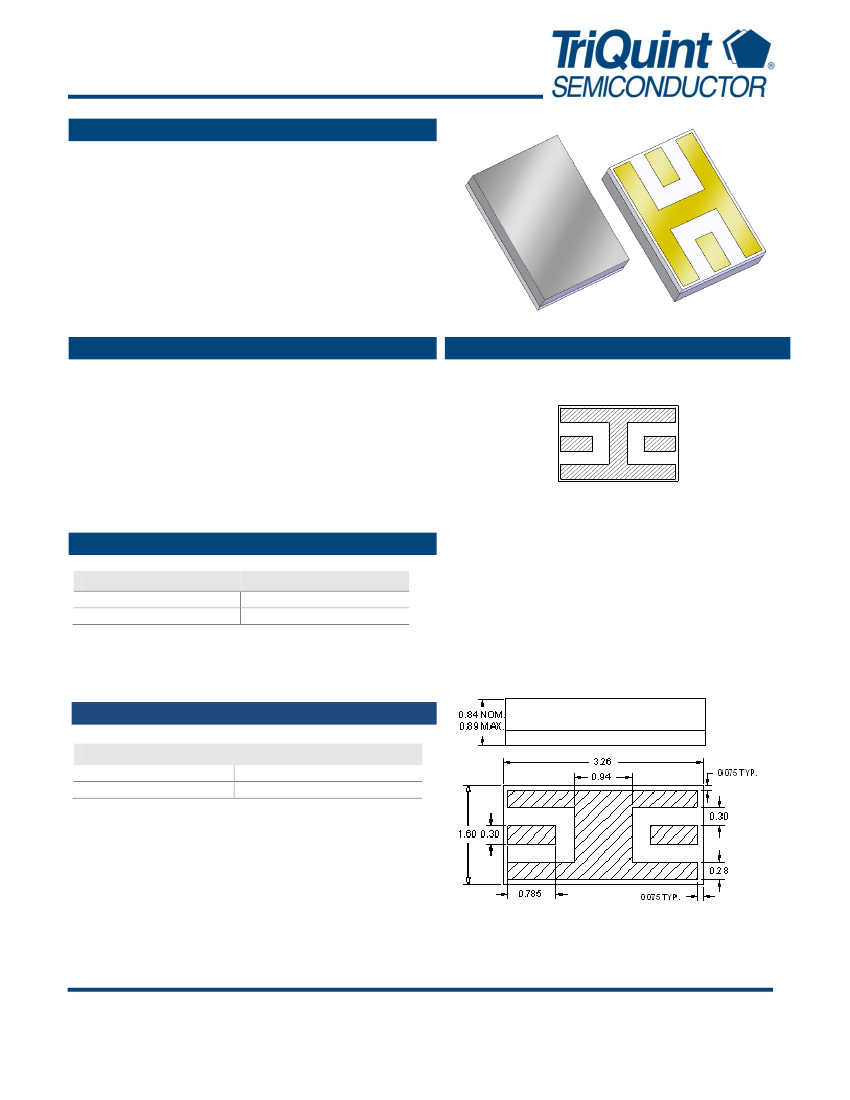

Pin Configuration
Pin # SE-Balanced
I/O
GND
Overall width, length, and thickness are the only critical dimensions.
All other dimensions are for reference only.
Dimensions shown are nominal in millimeters
All tolerances are
0.13mm
except overall
length and width
0.25mm
Body:
Sapphire
Package:
Alumina
Terminations:
Au
plating 0.5 - 2.5m, over a 2.0 – 6.0
m
Ni
plating
Description
Input/Output
Ground
Ordering Information
Part No.
880364
880364 Eval Board
Description
packaged part
evaluation board
Data Sheet: Rev A 12/2011
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
880364
1176 MHz GPS L5 BAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
3dB Bandwidth
40dB Lower Frequency Edge
40dB Upper Frequency Edge
VSWR
Source Impedance (single-ended)
(5)
Load Impedance (single-ended)
(5)
Conditions
@ 1176 MHz
Reference loss at 1176 MHz
Min
-
-
30
1116
-
-
-
-
Typical
(4)
1176
2.5
34
1110
1220
1.8
50
50
Max
-
3.0
-
-
1236
2.25
-
-
Units
MHz
dB
MHz
MHz
MHz
-
@ 1176 MHz
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev A 12/2011
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
880364
1176 MHz GPS L5 BAW Filter

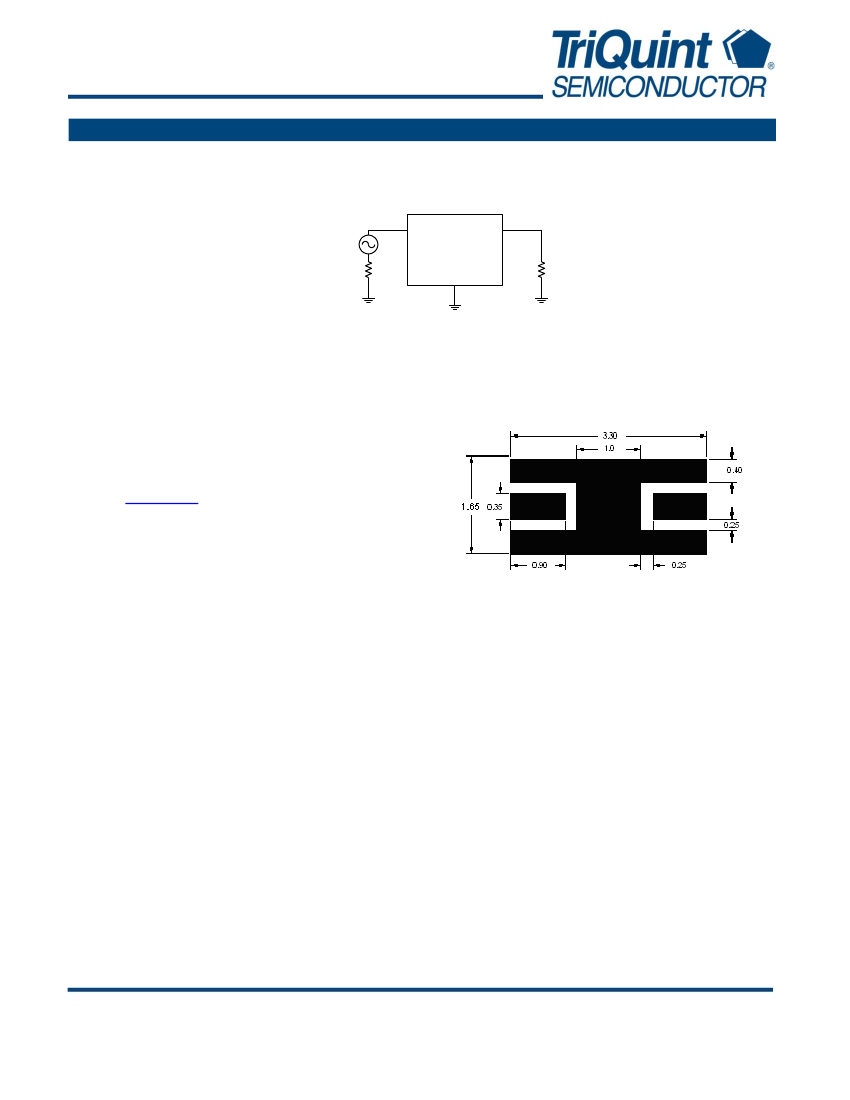

Reference Design
Schematic
I/O
I/O
50
50
Single-ended
Input
50
GND
50
Single-ended
Input
PC Board
Mounting Configuration
Refer to
PCB Layout
for more information.
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Data Sheet: Rev A 12/2011
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
880364
1176 MHz GPS L5 BAW Filter

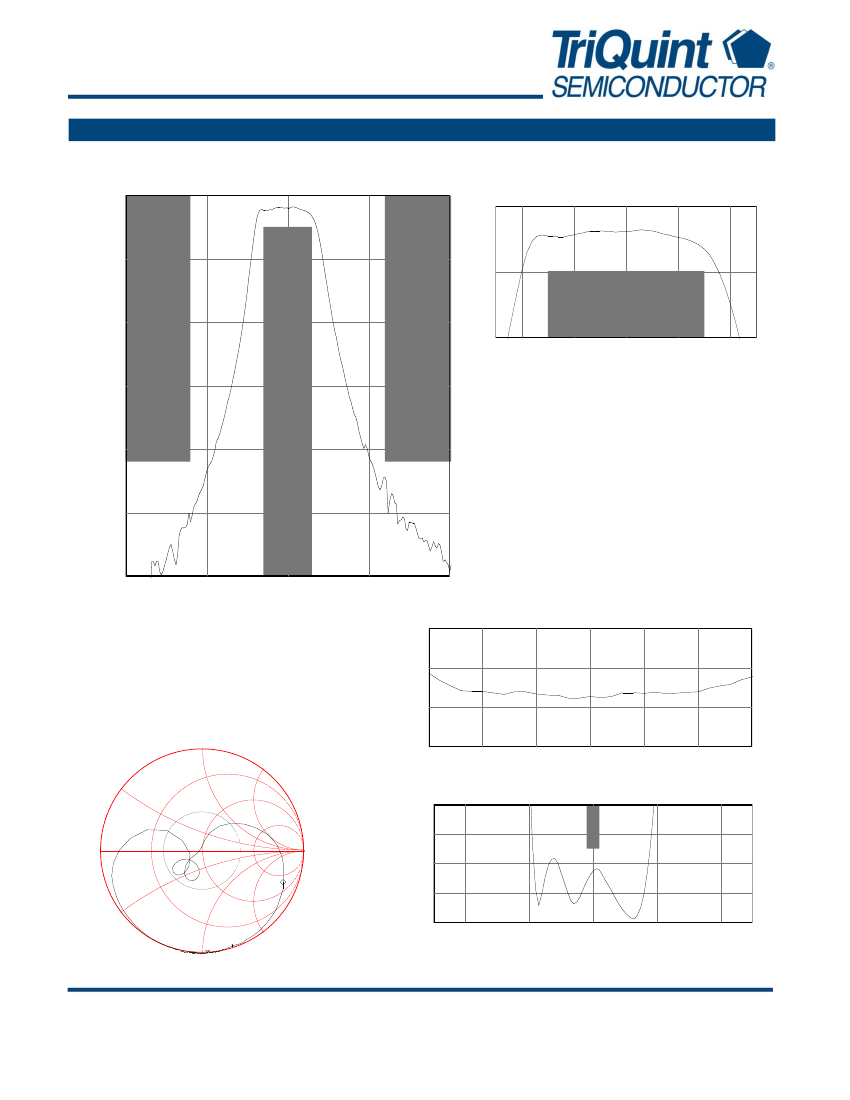

Typical Performance
(at room temperature)
S21 Amplitude Response
0.0
S21 Amplitude Response
0.0
-10.0
d
-5.0
B
-20.0
-10.0
1156.000
1166.000
1176.000
1186.000
1196.000
Frequency (MHz)
d
-30.0
B
-40.0
-50.0
-60.0
1076.000
1126.000
1176.000
1226.000
1276.000
S21 Group Delay Response
0.0600
Frequency (MHz)
µ
0.0400
s
e
c
0.0200
S11 Smith Chart
0.0000
1161.000
1166.000
1171.000
1176.000
1181.000
1186.000
1191.000
Frequency (MHz)
S11 VSWR
3.0
L
i
n
2.5
e
a
2.0
r
m
1.5
a
g
1.0
1136.000
1156.000
1176.000
1196.000
1216.000
Frequency (MHz)
Data Sheet: Rev A 12/2011
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
880364
1176 MHz GPS L5 BAW Filter

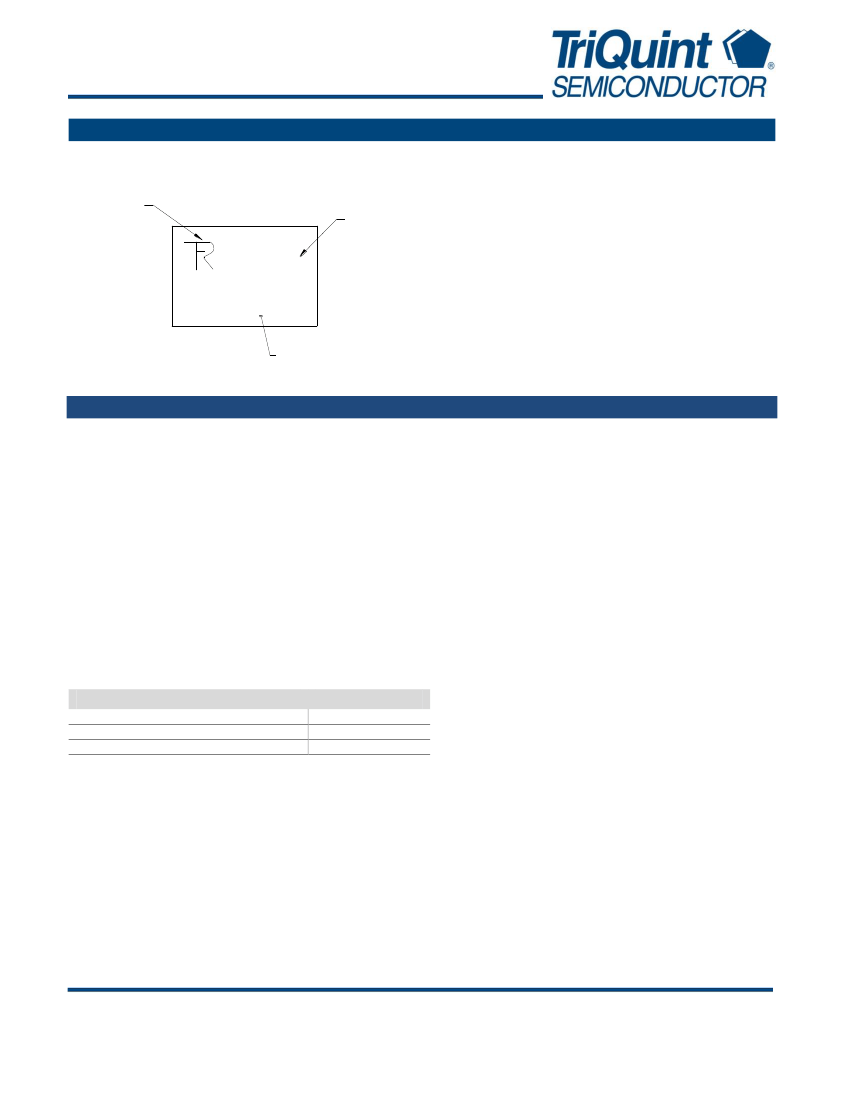

Mechanical Information
Marking
TFR
logo
Date code
YYWW
880098
880364
Part no.
The date code consists of: YY = last digit of year,
WW = 2 digit week
Tape and Reel Information
Tape and Reel available upon request
EIA-481
Tinning available per J-STD-001
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Maximum Input Power
Rating
-40 to +85
o
C
-55 to +100
o
C
+20 dBm
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev A 12/2011
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
