Datasheet
General Purpose CMOS Logic IC
Single Analog Switch
BU4S66G2
General Description
The BU4S66G2 is a single analog switch.
Key Specifications
Operating Supply Voltage Range:
3V to 18V
Input Voltage Range(Control):
V
SS
to V
DD
Input/Output Voltage Range(switch): V
SS
to V
DD
Operating Temperature Range:
-40°C to +85°C
W(Typ) x D(Typ) x H(Max)
2.90mm x 2.80mm x 1.25mm
Features
Low Power Consumption
Wide Operating Supply Voltage Range
Packages
SSOP5
Truth Table
CONT
L
H
SW
OFF
ON
SSOP5
Pin Configuration
(TOP VIEW)
VDD
CONT
5
4
1
I/O
2
O/I
3
VSS
Pin Description
Pin No.
1
2
3
4
5
Symbol
I/O
O/I
VSS
CONT
VDD
I/O
I/O
O/I
-
I
-
Function
Analog Switch Input / Output
Analog Switch Input / Output
Power Supply(-)
Control Input
Power Supply(+)
〇Product
structure : Silicon monolithic integrated circuit
.
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
〇This
product has no designed protection against radioactive rays
1/12
TSZ02201-0RDR0GZ00270-1-2
30.Sep.2015 Rev.002
BU4S66G2
Block Diagram
IN / OUT
OUT / IN
CONT
Absolute Maximum Ratings (T
A
= 25°C)
Parameter
Supply Voltage
Control Input Voltage
Analog Switch Input/Output Voltage
Control Input Current
Operating Temperature
Storage Temperature
Maximum Junction Temperature
Power Dissipation
Symbol
V
DD
V
CIN
V
IN
/ V
OUT
I
CIN
T
opr
T
stg
T
Jmax
P
D
Rating
-0.3 to +18.0
(V
SS
-0.3) to (V
DD
+0.3)
(V
SS
-0.3) to (V
DD
+0.3)
±10
-40 to +85
-55 to +150
+150
0.67
(Note 1)
Unit
V
V
V
mA
°C
°C
°C
W
(Note 1) Derate by 5.4mW/°C when operating above T
A
=25°C (when mounted on ROHM’s standard board)
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins
or an open circuit between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding
a fuse, in case the IC is operated over the absolute maximum ratings.
Recommended Operating Conditions (T
A
= -40°C to +85°C)
Parameter
Supply Voltage
Control Input Voltage
Analog Switch Input/Output Voltage
Symbol
V
DD
V
CIN
V
IN
/ V
OUT
Min
3.0
V
SS
V
SS
Typ
-
-
-
Max
16
V
DD
V
DD
Unit
V
V
V
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
2/12
TSZ02201-0RDR0GZ00270-1-2
30.Sep.2015 Rev.002
BU4S66G2
Electrical Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
V
DD
=5V
V
V
DD
=10V
V
DD
=15V
V
DD
=5V
V
µA
µA
V
DD
=10V
V
DD
=15V
V
DD
=15V
V
DD
=15V
V
DD
=5V
CONT=5V
V
DD
=10V
CONT=10V
V
DD
=15V
CONT=15V
V
DD
=5V
V
DD
=10V
V
DD
=15V
V
DD
=15V
µA
-
-
Static Supply Current
I
DD
-
-
-
-
-
-
-0.3
1.0
2.0
4.0
µA
V
DD
=15V
V
DD
=5V
V
DD
=10V
V
DD
=15V
f=1MHz
f=1MHz
V
IN
=V
DD
or V
EE
V
IH
=15V
V
IL
=0V
V
IN
=2.5V
R
L
=10kΩ
V
IN
=5V
R
L
=10kΩ
V
IN
=7.5V
R
L
=10kΩ
V
IN
=V
DD
/2
R
L
=10kΩ
V
IN
=15V
V
OUT
=0V
V
IN
=0V
V
OUT
=15V
-
-
Conditions
DC Characteristics (Unless otherwise specified V
SS
=0V, T
A
=25°C)
-
-
3.5
Input “H” Voltage
V
IH
7.0
11.0
-
Input “L” Voltage
Input “H” Current
Input “L” Current
V
IL
I
IH
I
IL
-
-
-
-
-
ON Resistance
R
ON
-
-
-
ON Resistance Defluxion
△R
ON
-
-
Channel-OFF
Leakage Current
-
I
OFF
-
-
-
-
-
-
-
500
120
80
25
10
5
-
-
-
1.5
3.0
3.75
0.3
-0.3
600
500
280
-
-
-
0.3
Ω
Ω
Input Capacitance
C
C
-
8
-
pF
-
(Control Input)
Input capacitance
C
S
-
10
-
pF
-
(Switch Input)
Switching Characteristics (Unless otherwise specified V
SS
=0V, V
CIN
=V
DD
/V
SS
, T
A
=25°C, C
L
=50pF)
Propagation Delay Time
IN→OUT
Propagation Delay Time
CONT→OUT
t
PLH
t
PHL
-
-
-
-
t
PHZ
,t
PLZ
-
-
-
t
PZH
,t
PZL
-
-
f
max
(C)
f
max
(I-O)
F
T
D
C
Tc
-
-
-
Frequency Response
Feed Through Attenuation
Sine Wave Distortion
Cross Talk
CONT→OUT
-
-
-
-
-
-
15
8
5
100
70
65
80
35
25
10
12
12
30
0.6
0.05
200
400
600
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MHz
MHz
%
mV
mV
mV
MHz
ns
ns
ns
V
DD
=5V
V
DD
=10V
V
DD
=15V
V
DD
=5V
V
DD
=10V
V
DD
=15V
V
DD
=5V
V
DD
=10V
V
DD
=15V
V
DD
=5V
V
DD
=10V
V
DD
=15V
V
DD
=5V
V
SS
=-5V
V
DD
=5V
V
SS
=-5V
V
DD
=5V
V
SS
=-5V
V
DD
=5V
V
DD
=10V
V
DD
=15V
R
L
=10kΩ
R
L
=10kΩ
Propagation Delay Time
CONT→OUT
R
L
=10kΩ
Maximum CONT
Frequency
R
L
=1kΩ
R
L
=1kΩ, V
IN
=5V
P-P
V
OUT
=-3dB
R
L
=1kΩ, V
IN
=5V
P-P
V
OUT
=-50dB
R
L
=10kΩ
V
IN
=5V
P-P
R
IN
=1kΩ
R
L
=10kΩ
C
L
=15pF
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
3/12
TSZ02201-0RDR0GZ00270-1-2
30.Sep.2015 Rev.002
BU4S66G2
Waveforms of Switching Characteristics
V
DD
IN/OUT
(INPUT)
50%
V
SS
CONT
50%
V
DD
P.G
OUT/IN
(OUTPUT)
50%
50%
IN/OUT
OUT/IN
R
L
C
L
V
SS
V
SS
t
PLH
t
PHL
Figure 1. Propagation Delay Time IN→OUT(t
PHZ
,t
PLZ
)
Input/Output Waveform
V
DD
CONT
(INPUT)
V
SS
50%
50%
Figure 2. Propagation Delay Time IN→OUT(t
PHZ
,t
PLZ
)
Test Circuit
P.G
V
DD
CONT
OUT/IN
(OUTPUT)
90%
50%
IN/OUT
OUT/IN
R
L
t
PZH
t
PHZ
V
SS
V
SS
C
L
Figure 3. Propagation Delay Time CONT→OUT (t
PZH
,t
PHZ
)
Input/Output Waveform
Figure 4.
Propagation Delay Time CONT→OUT (t
PZH
,t
PHZ
)
Test Circuit
V
DD
CONT
(INPUT)
V
SS
R
L
CONT
IN/OUT
OUT/IN
50%
50%
P.G
V
DD
V
DD
C
L
OUT/IN
(OUTPUT)
50%
10%
V
SS
t
PZL
t
PLZ
Figure 5. Propagation Delay Time CONT→OUT (t
PZL
,t
PLZ
)
Input/Output Waveform
V
DD
Figure 6. Propagation Delay Time CONT→OUT (t
PZL
,t
PLZ
)
Test Circuit
CONT
IN/OUT
OUT/IN
V
OUT
R
L
V
IN
= V
DD
/2
R
ON
= R
L
(V
IN
/V
OUT
-1)
V
SS
V
SS
Figure 7. ON Resistance (R
ON
) Test Circuit
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
4/12
TSZ02201-0RDR0GZ00270-1-2
30.Sep.2015 Rev.002
BU4S66G2

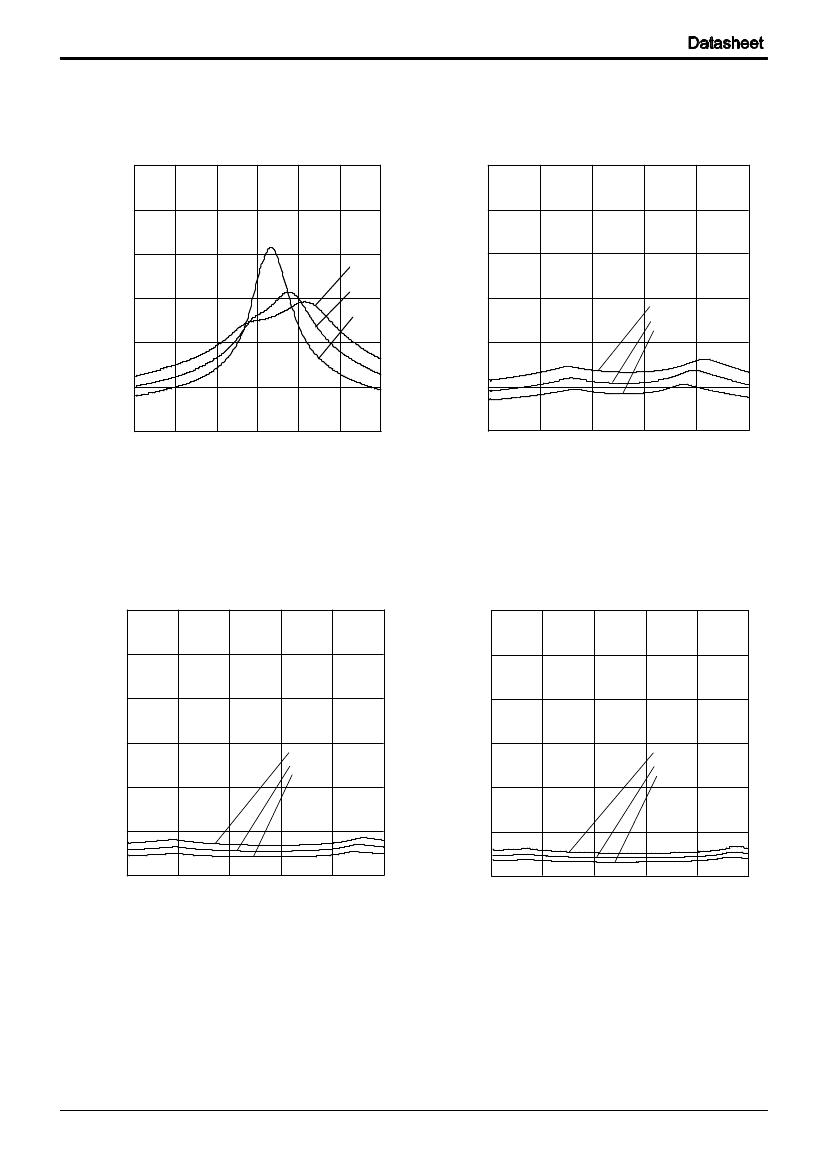

Typical Performance Curves
1200
1000
ON Resistance [Ω]
ON Resistance [Ω]
900
750
600
450
300
150
0
800
+85°C
600
400
200
0
0.0
0.5
1.0
1.5
2.0
Input Voltage [V]
2.5
+25°C
-40°C
+85°C
+25°C
-40°C
3.0
0
1
2
3
Input Voltage [V]
4
5
Figure 8. ON Resistance vs Input Voltage
(V
DD
=3V, V
SS
=0V, CONT=3V)
Figure 9. ON Resistance vs Input Voltage
(V
DD
=5V, V
SS
=0V, CONT=5V)
900
750
900
750
ON Resistance [Ω]
600
450
300
150
0
0
2
4
6
Input Voltage [V]
8
10
ON Resistance [Ω]
600
450
300
150
0
0
3
6
9
Input Voltage [V]
12
15
+85°C
+25°C
-40°C
+85°C
+25°C
-40°C
Figure 10. ON Resistance vs Input Voltage
(V
DD
=10V, V
SS
=0V, CONT=10V)
Figure 11. ON Resistance vs Input Voltage
(V
DD
=15V, V
SS
=0V, CONT=15V)
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
5/12
TSZ02201-0RDR0GZ00270-1-2
30.Sep.2015 Rev.002
