CNY17-x
Phototransistor Optocoupler High Collector-Emitter
Voltage Type
Data Sheet
Description
The CNY17 contains a light emitting diode opti-
cally coupled to a photo-transistor. It is packaged in a
6-pin DIP package and available in wide-lead spacing
option and lead bend SMD option. Collector-emitter
voltage is above 70 V. Response time, t
r
, is typically
5 µs and minimum CTR is 40% at input current of
10 mA.
Applications
•
System appliances, measuring instruments
•
Signal transmission between circuits of different
potentials and impedances
•
Feedback circuit in power supply
Functional Diagram
PIN NO. AND INTERNAL
CONNECTION DIAGRAM
6
5
4
Features
•
High collector-emitter voltage
(V
CEO
= 70 V)
•
High input-output isolation voltage
(V
iso
= 5000 Vrms)
•
Current Transfer Ratio
(CTR: min. 40% at I
F
= 10 mA, V
CE
= 5 V)
•
Response time
(t
r
: typ., 5 µs at V
CC
= 10 V, I
C
= 2 mA, R
L
= 100 Ω)
•
Dual-in-line package
•
UL approved
•
CSA approved
•
IEC/EN/DIN EN 60747-5-2 approved
•
Options available:
– Leads with 0.4" (10.16 mm) spacing (W00)
– Leads bend for surface mounting (300)
– Tape and reel for SMD (500)
– IEC/EN/DIN EN 60747-5-2 approvals (060)
Schematic
ANODE
1
+
I
F
6
BASE
V
F
CATHODE
–
2
I
C
5
COLLECTOR
1
1. ANODE
2. CATHODE
3. NC
2
3
4. EMITTER
5. COLLECTOR
6. BASE
4
EMITTER
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
Ordering Information
CNY17-x is UL Recognized with 5000 Vrms for 1 minute per UL1577 and is approved under CSA Component Accep-
tance Notice #5, File CA 88324.
RoHS Compliant Option
-1
40%
<CTR<
80%
-000E
-300E
-500E
-060E
-360E
-560E
-W00E
-W60E
Part
Number
CNY17
-2
63%
<CTR<
125%
-000E
-300E
-500E
-060E
-360E
-560E
-W00E
-W60E
-3
100%
<CTR<
200%
-000E
-300E
-500E
-060E
-360E
-560E
-W00E
-W60E
-4
160%
<CTR<
320%
-000E
-300E
-500E
-060E
-360E
-560E
-W00E
-W60E
Package
300 mil
DIP-6
300 mil
DIP-6
300 mil
DIP-6
300 mil
DIP-6
300 mil
DIP-6
300 mil
DIP-6
400 mil
DIP-6
400 mil
DIP-6
Surface Gull Tape IEC/EN/DIN
Mount Wing & Reel EN60747-5-2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Quantity
65 pcs
per tube
65 pcs
per tube
1000 pcs
per reel
65 pcs
per tube
65 pcs
per tube
1000 pcs
per reel
65 pcs
per tube
65 pcs
per tube
To order, choose a part number from the part number column and combine with the desired option from the op-
tion column to form an order entry.
Example 1:
CNY17-1-360E to order product of 300 mil DIP-6 DC Gull Wing Surface Mount package in Tube packaging with
40%<CTR<80%, IEC/EN/DIN EN 60767-5-2 Safety Approval and RoHS compliant.
Example 2:
CNY17-2-W00E to order product of 400 mil DIP-6 DC in Tube packaging with 63%<CTR<125% and RoHS compli-
ant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
2

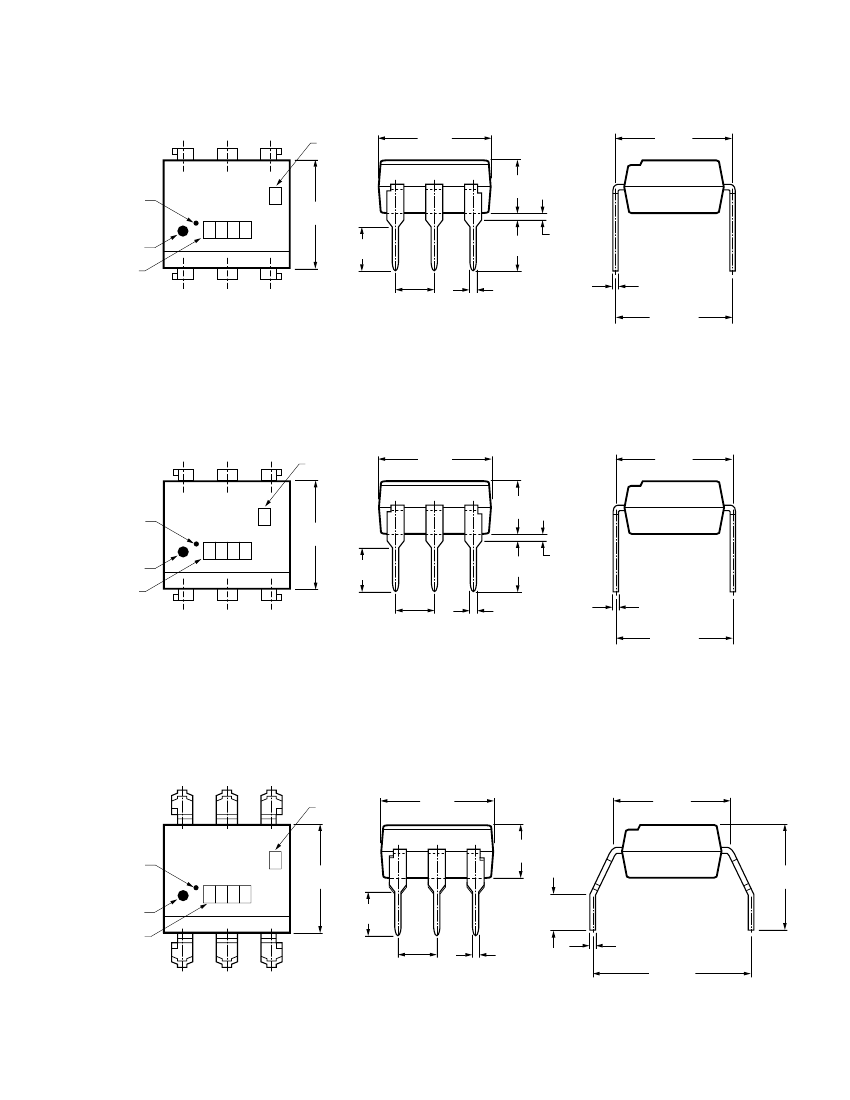

Package Outline Drawings
CNY17-X-000E
MODEL
NO.
7.3 ± 0.5
(0.287)
7.62 ± 0.3
(0.3)
LEAD FREE
A CNY17 -
Y Y WW
3.5 ± 0.5
(0.138)
6.5 ± 0.5
(0.256)
2.8 ± 0.5
(0.110)
3.3 ± 0.5
(0.13)
0.5 ± 0.1
(0.02)
0.5
TYP.
(0.02)
ANODE
DATE
CODE
DIMENSIONS IN MILLIMETERS AND (INCHES)
2.54 ± 0.25
(0.1)
0.26
(0.010)
7.62 ~ 9.98
CNY17-X-060E
MODEL
NO.
7.3 ± 0.5
(0.287)
7.62 ± 0.3
(0.3)
LEAD FREE
A CNY17- V
Y Y WW
3.5 ± 0.5
(0.138)
6.5 ± 0.5
(0.256)
2.8 ± 0.5
(0.110)
3.3 ± 0.5
(0.13)
0.5 ± 0.1
(0.02)
0.5
TYP.
(0.02)
ANODE
DATE
CODE
DIMENSIONS IN MILLIMETERS AND (INCHES)
2.54 ± 0.25
(0.1)
0.26
(0.010)
7.62 ~ 9.98
CNY17-X-W00E
MODEL
NO.
7.3 ± 0.5
(0.287)
7.62 ± 0.3
(0.3)
LEAD FREE
A CNY17 -
Y Y WW
3.5 ± 0.5
(0.138)
6.5 ± 0.5
(0.256)
2.8 ± 0.5
(0.110)
0.5 ± 0.1
(0.02)
2.3 ± 0.5
(0.09)
0.26
(0.010)
10.16 ± 0.5
(0.4)
6.9 ± 0.5
(0.272)
ANODE
DATE
CODE
2.54 ± 0.25
(0.1)
DIMENSIONS IN MILLIMETERS AND (INCHES)
3
CNY17-X-300E
MODEL
NO.
7.3 ± 0.5
(0.287)
7.62 ± 0.3
(0.3)
0.35 +0.15/-0.10
(0.014)
LEAD FREE
A CNY17 -
Y Y WW
3.5 ± 0.5
(0.138)
6.5 ± 0.5
(0.256)
1.2 ± 0.1
(0.047)
2.54 ± 0.25
(0.1)
0.35 ± 0.25
(0.014)
1.0 ± 0.25
(0.039)
10.16 ± 0.3
(0.4)
ANODE
DATE
CODE
DIMENSIONS IN MILLIMETERS AND (INCHES)
2) When using another soldering method such as in-
frared ray lamp, the temperature may rise partially
in the mold of the device. Keep the temperature on
the package of the device within the condition of (1)
above.
Temperature (°C)
Solder Reflow Temperature Profile
1) One-time soldering reflow is recommended within
the condition of temperature and time profile shown
at right.
30 seconds
250°C
217°C
200°C
260°C (Peak Temperature)
150°C
60 sec
25°C
60 ~ 150 sec
90 sec
Time (sec)
60 sec
Note: Non-halide flux should be used.
Absolute Maximum Ratings
Storage Temperature, T
S
Operating Temperature, T
A
Lead Solder Temperature, max.
(1.6 mm below seating plane)
Average Forward Current, I
F
Reverse Input Voltage, V
R
Input Power Dissipation, P
I
Collector Current, I
C
Collector-Emitter Voltage, V
CEO
Emitter-Collector Voltage, V
ECO
Collector-Base Voltage, V
CBO
Collector Power Dissipation
Total Power Dissipation
Isolation Voltage, V
iso
(AC for 1 minute, R.H. = 40 ~ 60%)
–55˚C to +150˚C
–55˚C to +100˚C
260˚C for 10 s
60 mA
6V
100 mW
150 mA
70 V
6V
70 V
150 mW
250 mW
5000 Vrms
4
Electrical Specifications (T
A
= 25˚C)
Parameter
Forward Voltage
Reverse Current
Terminal Capacitance
Collector Dark Current
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
Collector-Base Breakdown Voltage
Collector Current
*Current Transfer Ratio
CNY17-1
CNY17-2
CNY17-3
CNY17-4
Symbol
V
F
I
R
C
t
I
CEO
BV
CEO
BV
ECO
BV
CBO
I
C
CTR
Min.
–
–
–
–
70
6
70
4
40
63
100
160
–
–
–
1 x 10
11
–
Typ.
1.4
–
–
–
–
–
–
–
–
–
–
–
–
5
5
–
–
Max.
1.7
10
100
50
–
–
–
32
80
125
200
320
0.3
10
10
–
2
Units
V
µA
pF
nA
V
V
V
mA
%
Test Conditions
I
F
= 60 mA
V
R
= 6 V
V = 0, f = 1 MHz
V
CE
= 10 V
I
C
= 0.1 mA, I
F
= 0
I
E
= 10 µA, I
F
= 0
I
C
= 0.1 mA, I
F
= 0
I
F
= 10 mA
V
CE
= 5 V
Collector-Emitter Saturation Voltage
Response Time (Rise)
Response Time (Fall)
Isolation Resistance
Floating Capacitance
V
CE(sat)
t
r
t
f
R
iso
C
f
V
µs
µs
Ω
pF
I
F
= 10 mA, I
C
= 2.5 mA
V
CE
= 5 V, I
C
= 10 mA
R
L
= 100
Ω
DC 500 V
40 ~ 60% R.H.
V = 0, f = 1 MHz
* CTR =
I
C
x 100%
I
F
P
C
– COLLECTOR POWER DISSIPATION – mW
80
I
F
– FORWARD CURRENT – mA
200
160
150
2
0
-2
-4
-6
-8
-10
0.5 1
R
L
= 200
Ω
R
L
= 150
Ω
R
L
= 75
Ω
60
40
100
20
50
0
-55
-25
0
25
50
75
100 125
0
-55
VOLTAGE GAIN AV – dB
I
F
= 10 mA
V
CC
= 5 V
T
A
= 25°C
-25
0
25
50
75
100 125
2
5 10 20
50 100 200 500
T
A
– AMBIENT TEMPERATURE – °C
T
A
– AMBIENT TEMPERATURE – °C
f – FREQUENCY – kHz
Figure 1. Forward current vs. temperature.
CNY17-1 fig 1
Figure 2. Collector power dissipation vs. tempera-
CNY17-1 fig 2
ture.
Figure 3. Frequency response.
CNY17-1 fig 3
