PC3-096P-(714) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PC3-096P-(714)

PC3-096P-(714): DescriptionBoard Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size133KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PC3-096P-(714) Overview

Board Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal,

PC3-096P-(714) Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-55302, POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	PC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

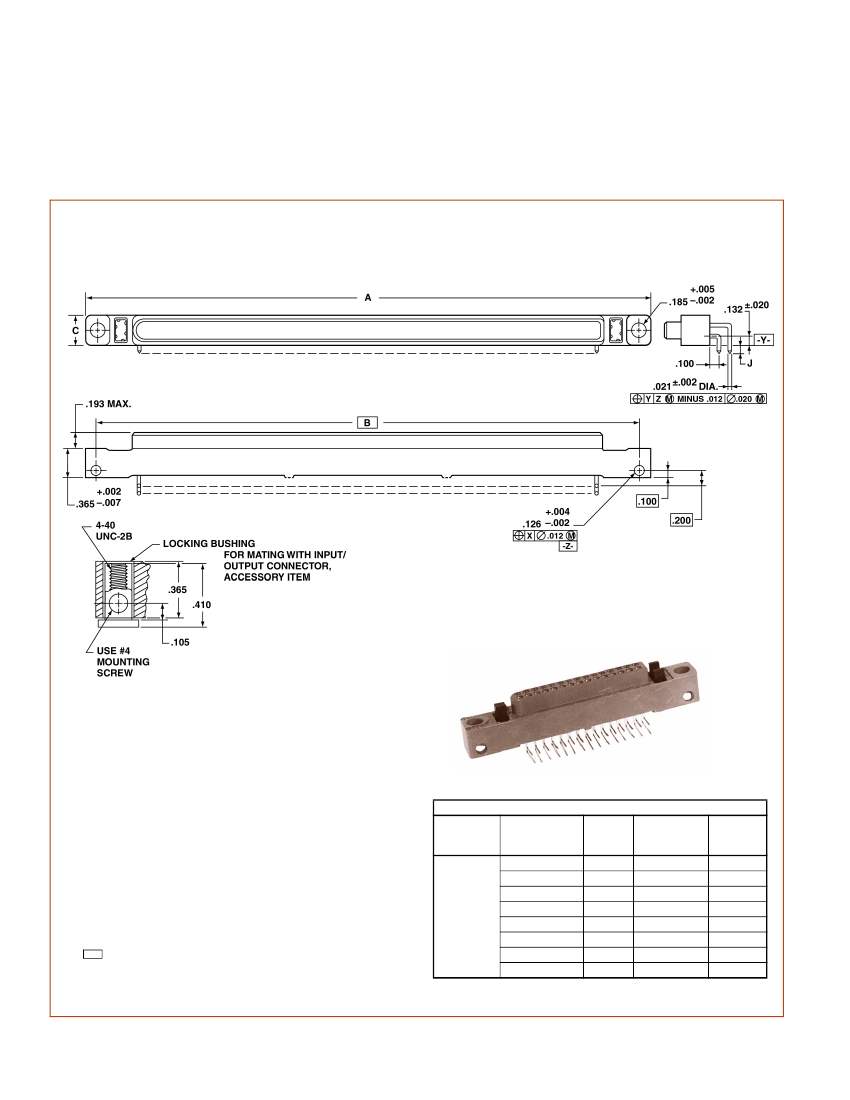

Low Mating .orce

PC connector

MATES WITH DB AND I/O SERIES CONNECTORS

Notes:

When mating with DB connector, a total of .035 inch minimum radial

pilot is available for connector body alignment.

All dimensions for reference only.

Polarization keys are not supplied as part of PC Connector Series

assemblies. See How to Order, page 7 and further description, page

28.

** Not supplied as part of PC Connector Series assembles. See How

to Order, page 7, and further description, page 29.

Designates Basic Dimension

Round PCB

Stud, 90°

Solder

Termination

Description

Contact Data

Termination

Arrange-

Style

ment

Letter

Row

P-(714)

Contact

Part

Number

10-502409-11

10-502409-21

10-502409-41

10-502409-51

10-502409-61

10-502409-71

10-502409-81

10-502409-91

+.035

–.025

.095

.150

NOTE: Other variations available - see pages 7 and 8, or consult Sidney, NY.
