HM1-65788N-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HM1-65788N-8

HM1-65788N-8: DescriptionStandard SRAM, 16KX4, 55ns, CMOS, CDIP22,; Categorystorage storage; File Size377KB，8 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

HM1-65788N-8 Overview

Standard SRAM, 16KX4, 55ns, CMOS, CDIP22,

HM1-65788N-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TEMIC
Reach Compliance Code	unknown
Maximum access time	55 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T22
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of terminals	22
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX4
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Maximum standby current	0.02 A
Minimum standby current	4.5 V
Maximum slew rate	0.07 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

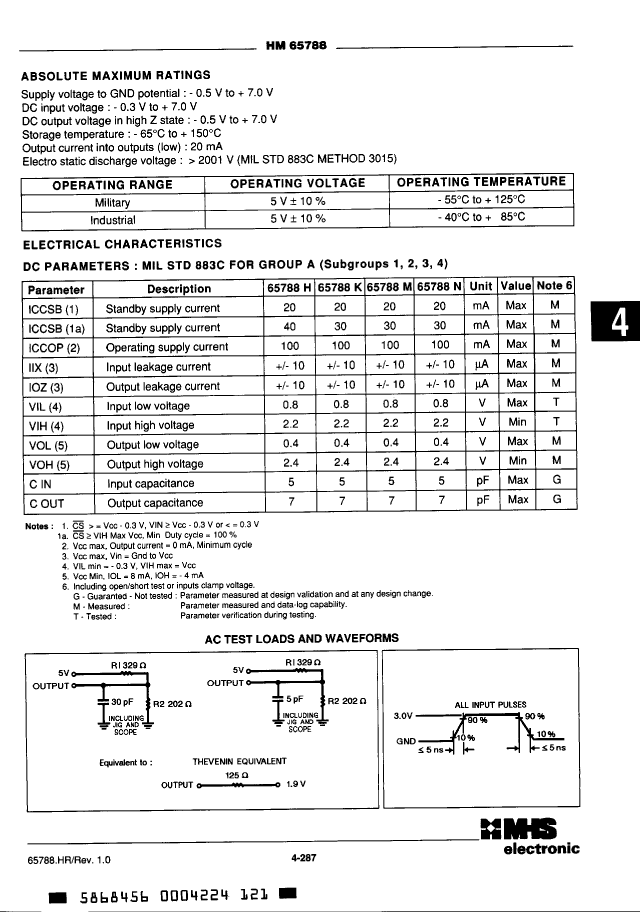

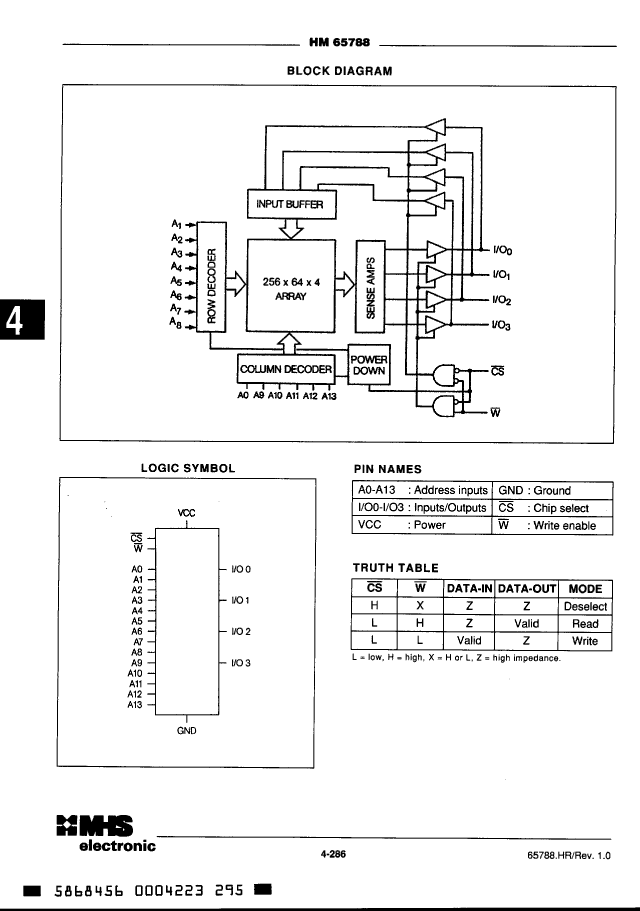

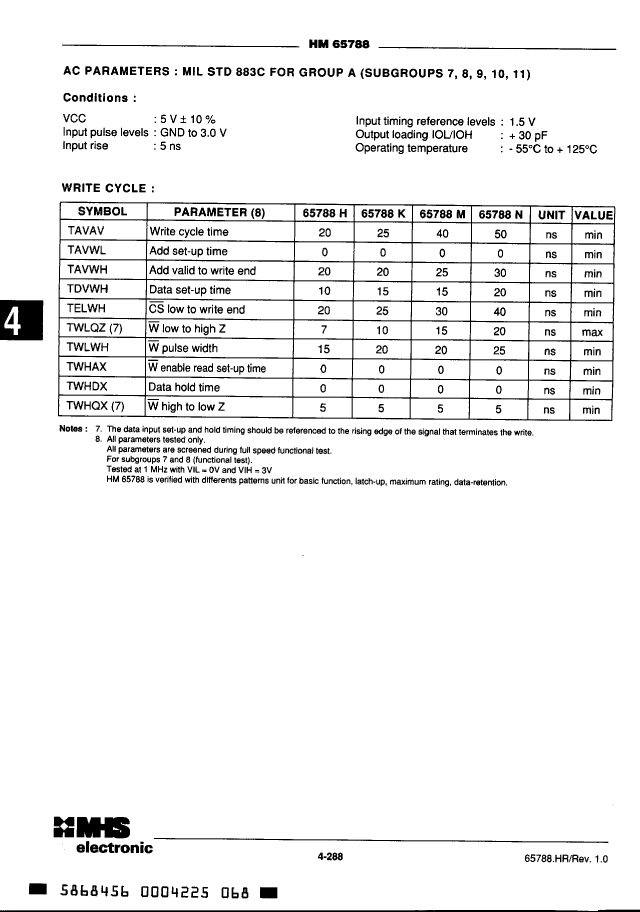

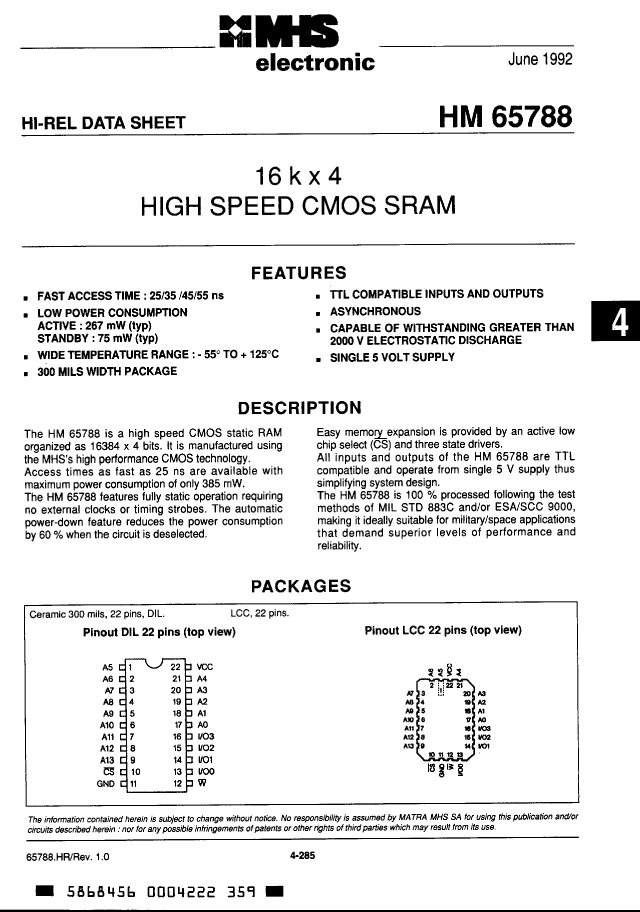

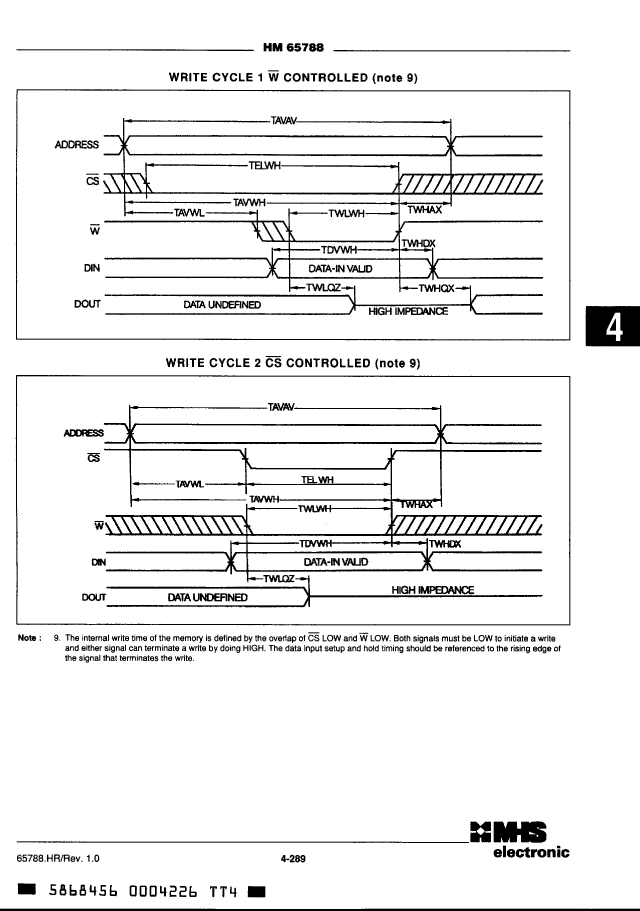

Preview

Download Datasheet

View All

HM1-65788N-8 Related Products

	HM1-65788N-8	HM1-65788K-8	HM4-65788K-8	HM1-65788M-8	HM4-65788M-8	HM4-65788N-8
Description	Standard SRAM, 16KX4, 55ns, CMOS, CDIP22,	Standard SRAM, 16KX4, 35ns, CMOS, CDIP22,	Standard SRAM, 16KX4, 35ns, CMOS, CQCC22,	Standard SRAM, 16KX4, 45ns, CMOS, CDIP22,	Standard SRAM, 16KX4, 45ns, CMOS, CQCC22,	Standard SRAM, 16KX4, 55ns, CMOS, CQCC22,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	55 ns	35 ns	35 ns	45 ns	45 ns	55 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T22	R-XDIP-T22	R-XQCC-N22	R-XDIP-T22	R-XQCC-N22	R-XQCC-N22
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of terminals	22	22	22	22	22	22
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	QCCN	DIP	QCCN	QCCN
Encapsulate equivalent code	DIP22,.3	DIP22,.3	LCC22,.3X.5	DIP22,.3	LCC22,.3X.5	LCC22,.3X.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)
Maximum standby current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	QUAD
