LN80L51FA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LN80L51FA

LN80L51FA: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size564KB，19 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

LN80L51FA Overview

Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44

LN80L51FA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	compliant
Has ADC	NO
Other features	BOOLEAN PROCESSOR; EMULATION HARDWARE
Address bus width	16
bit size	8
boundary scan	NO
CPU series	8051
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	44
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/3.3 V
Certification status	Not Qualified
RAM (bytes)	256
RAM (number of words)	256
rom(word)	0
Maximum seat height	4.57 mm
speed	8 MHz
Maximum slew rate	25 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

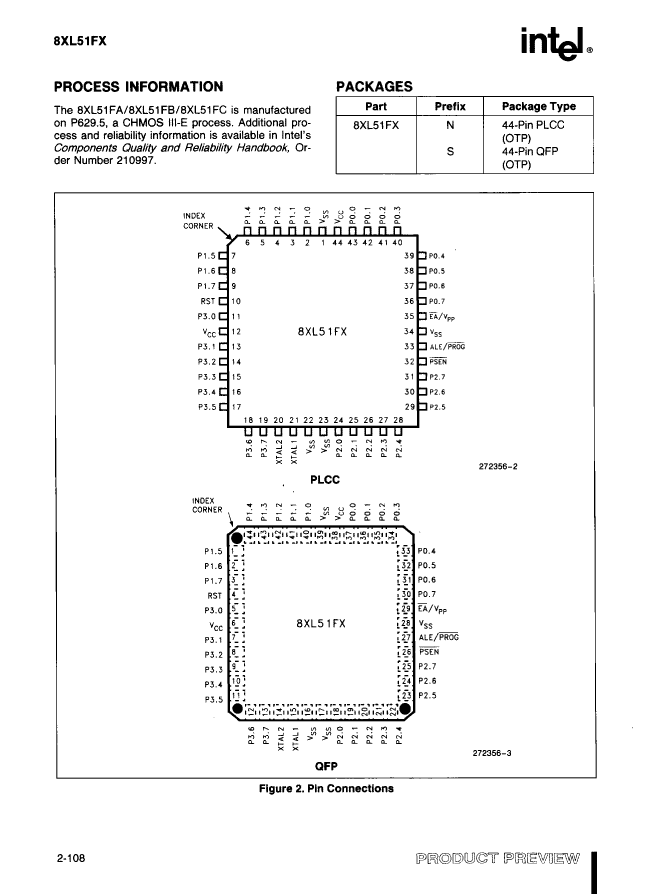

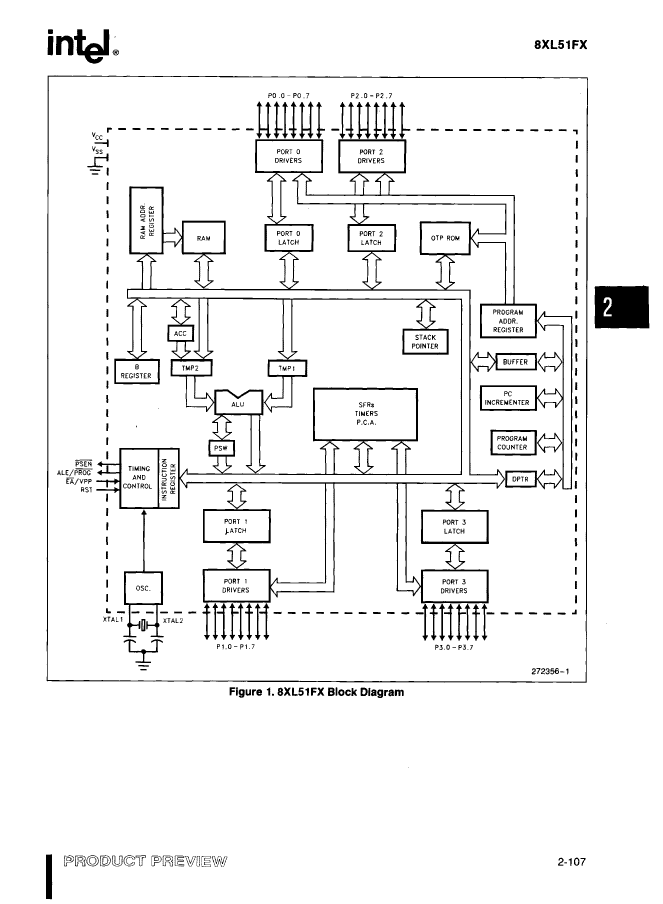

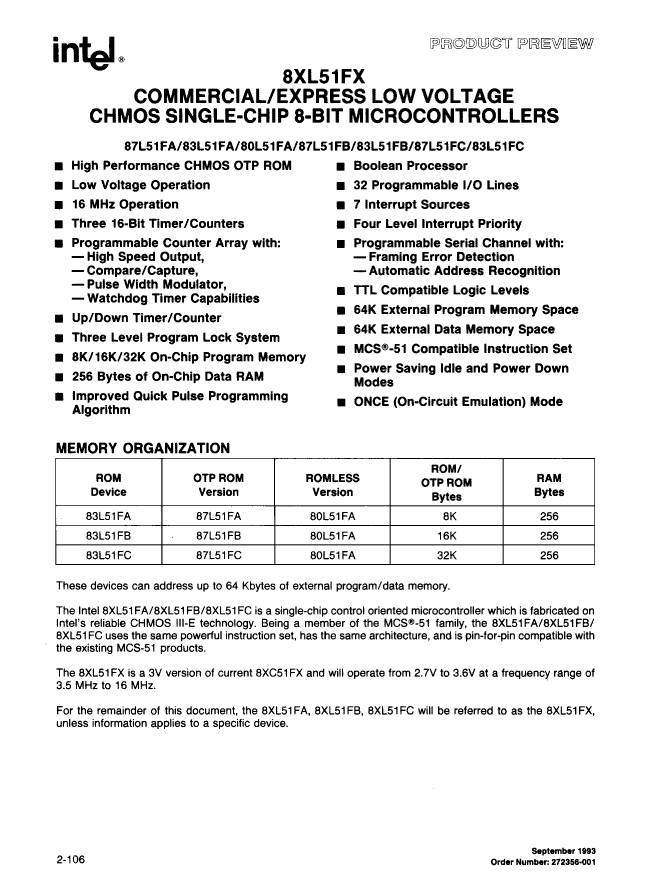

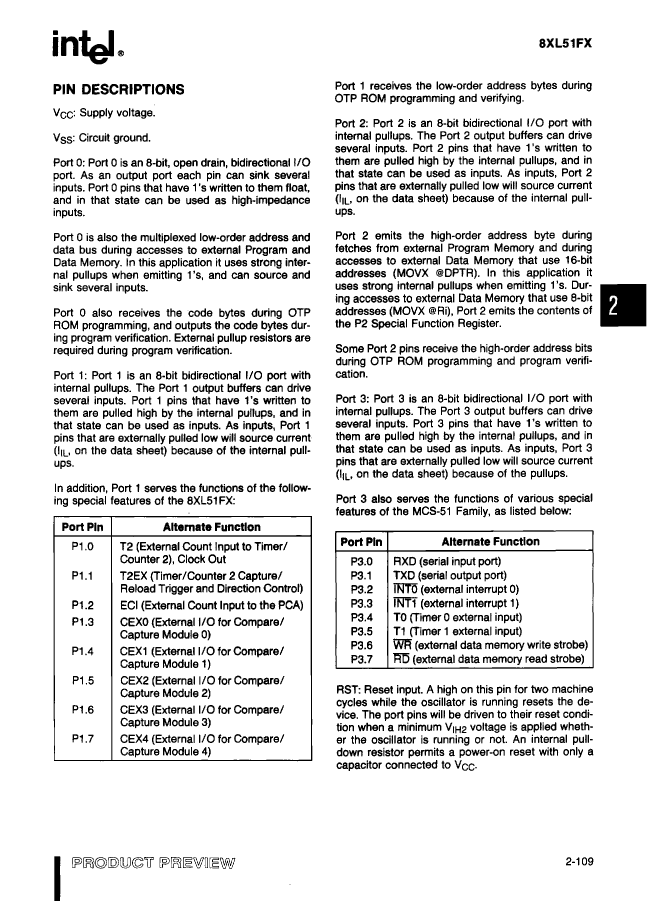

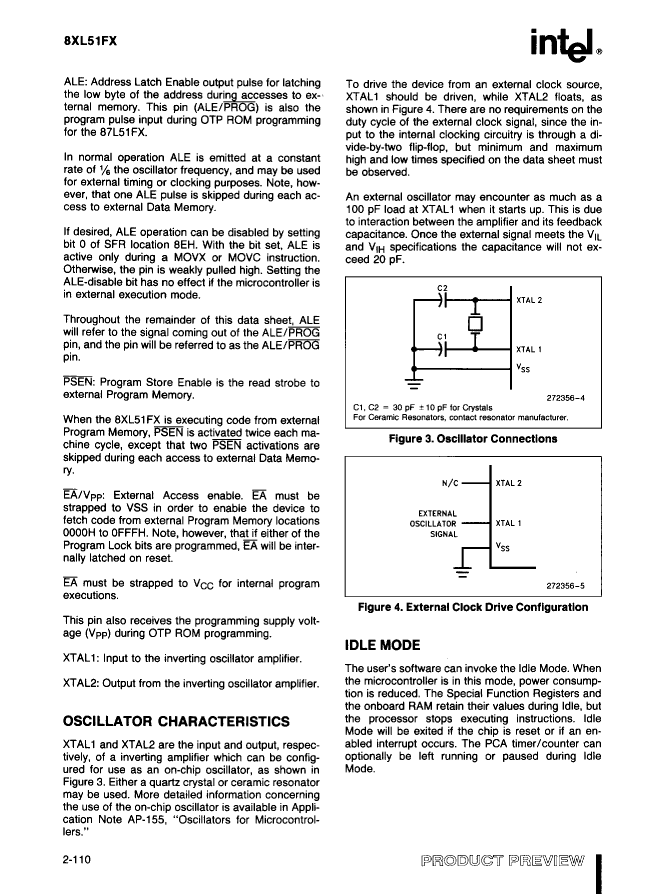

Preview

Download Datasheet

View All

LN80L51FA Related Products

	LN80L51FA	LN87L51FA	LN83L51FB	LN83L51FC	LN83L51FA	LN87L51FC	LN87L51FB
Description	Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, OTPROM, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, OTPROM, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, OTPROM, 8051 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	LCC	LCC	LCC	LCC	LCC	LCC
package instruction	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, LCC-44
Contacts	44	44	44	44	44	44	44
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant
Has ADC	NO	NO	NO	NO	NO	NO	NO
Other features	BOOLEAN PROCESSOR; EMULATION HARDWARE	BOOLEAN PROCESSOR; EMULATION HARDWARE	BOOLEAN PROCESSOR; EMULATION HARDWARE	BOOLEAN PROCESSOR; EMULATION HARDWARE	BOOLEAN PROCESSOR; EMULATION HARDWARE	BOOLEAN PROCESSOR; EMULATION HARDWARE	BOOLEAN PROCESSOR; EMULATION HARDWARE
Address bus width	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO
CPU series	8051	8051	8051	8051	8051	8051	8051
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm
low power mode	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	2	2	2	2	2	2	2
Number of I/O lines	32	32	32	32	32	32	32
Number of serial I/Os	1	1	1	1	1	1	1
Number of terminals	44	44	44	44	44	44	44
Number of timers	3	3	3	3	3	3	3
On-chip data RAM width	8	8	8	8	8	8	8
On-chip program ROM width	-	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256	256	256	256
RAM (number of words)	256	256	256	256	256	256	256
rom(word)	-	8192	16384	32768	8192	32768	16384
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Intel	-	-	Intel	Intel	Intel	Intel
ROM programmability	-	OTPROM	MROM	MROM	MROM	OTPROM	OTPROM
