HM2P71PNE2R4GLLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P71PNE2R4GLLF

HM2P71PNE2R4GLLF: DescriptionBoard Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size244KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P71PNE2R4GLLF Overview

Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P71PNE2R4GLLF Parametric

Parameter Name	Attribute value
Objectid	2142951486
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (40) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	132
UL Flammability Code	94V-0

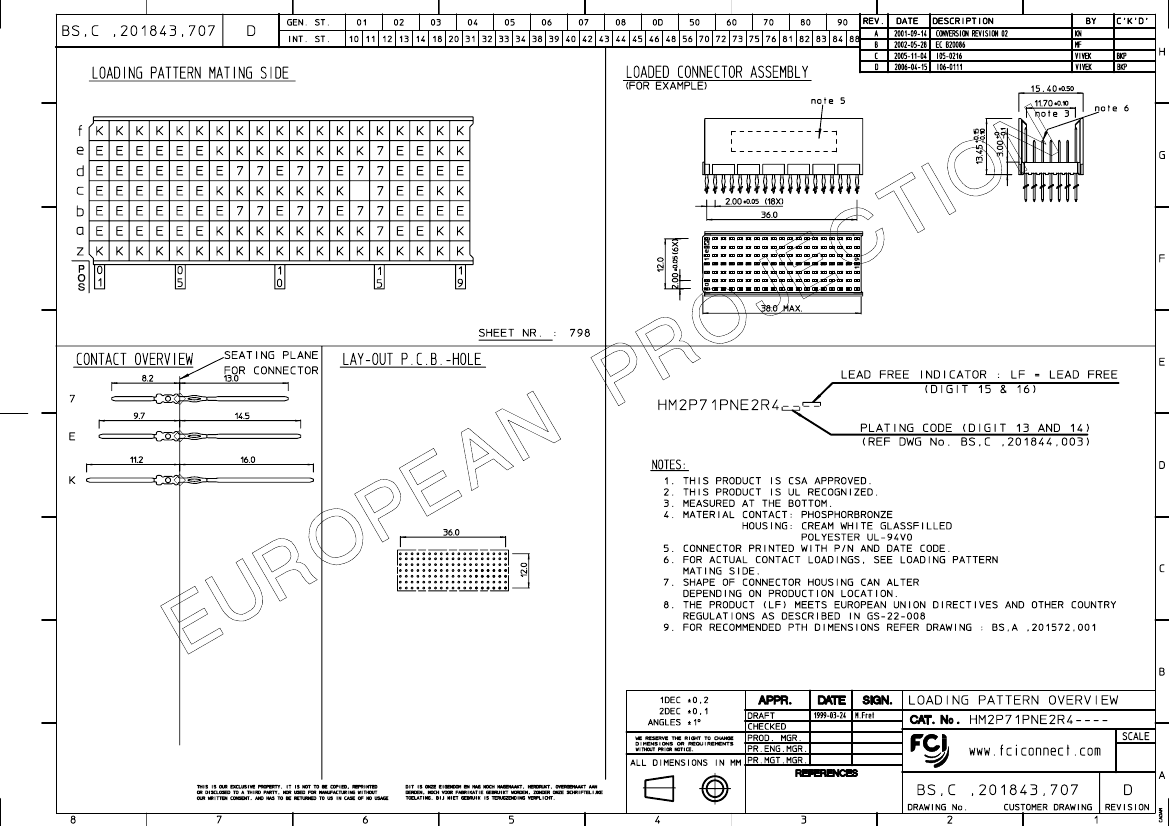

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Apr 15, 2008

HM2P71PNE2R4GLLF Related Products

	HM2P71PNE2R4GLLF	HM2P71PNE2R4GCLF	HM2P71PNE2R4GC	HM2P71PNE2R4GFLF	HM2P71PNE2R4GF	HM2P71PNE2R4GL
Description	Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 132 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (40) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (40) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	132	132	132	132	132	132
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	2142951486	2142951482	2142951483	2142951484	2142951485	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-
