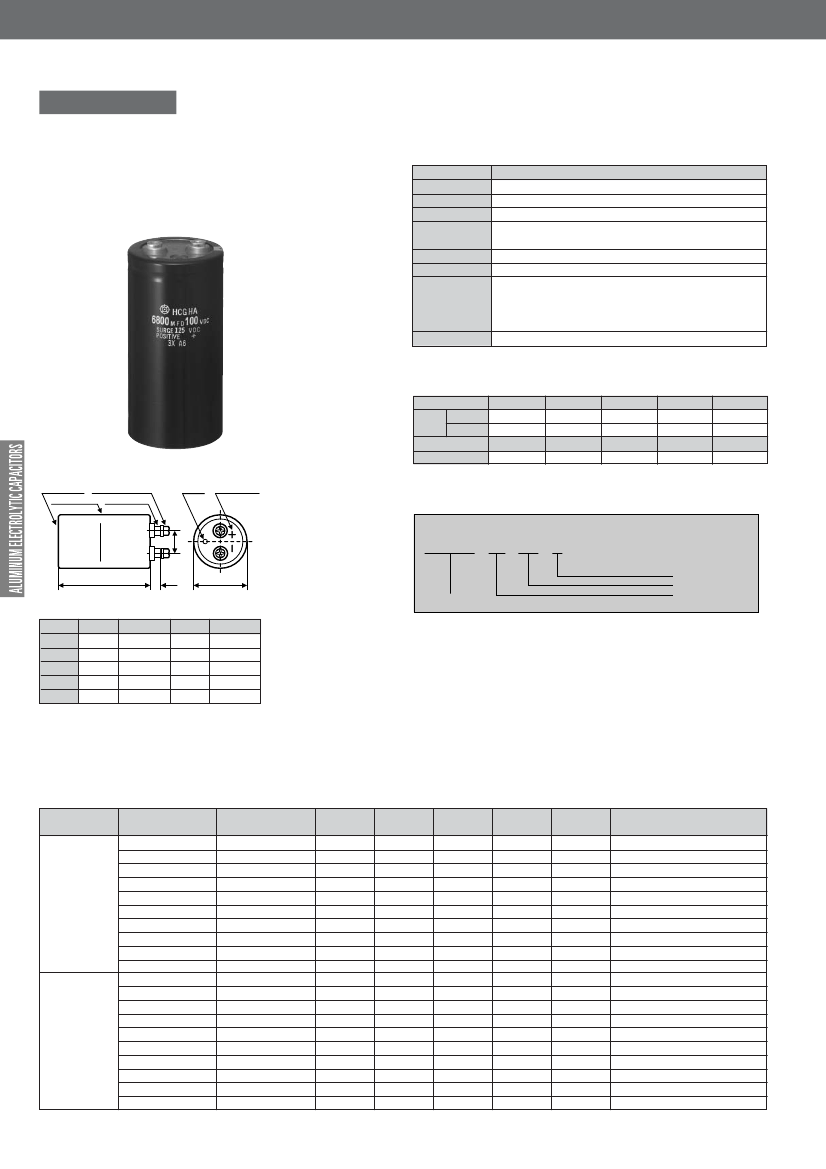

SCREW TERMINAL TYPE ALUMINUM ELECTROLYTIC CAPACITORS
HCGHA Series
• Conform RoHS
Useful of 4,000 hours at 105°C (Warranty of 2,000 hours at 105°C)
Features
• Warranty life of 2000 hours at 105°C through
improvement of electrolyte liquid
Product Specifications
Items
Specifications
Temperature range –40°C ~ +105°C
Rated voltage 25 ~ 400V.DC
Capacitance tolerance ±20% (20°C,120Hz)
0.01CV (µA) or 5mA, whichever is smaller or less
Leakage current
[C = nominal capacitance (µF), V = rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)
Permissible ripple current As specified in the standard products table. (105˚C,120Hz)
After the rated voltage with specified ripple current is applied at 105°C for 2000 hours:
Capacitance tolerance: ±15% or less of the initial value
High-temperature load
Dissipation factor: 175% or less of the specified initial value
Leakage current: Specified initial value or less
Others
JIS C 5101-4.
Ripple current correction coefficient
40
55
70
4.9
3.9
3.0
3.8
2.5
3.3
300
120
50/60
1.1
1.0
0.8
Ripple current should be under 60 Arms at M5 terminal in
accordance with from the permissible current.
Temperature (°C)
Correction 250WV under
coefficient 400WV
Frequency (Hz)
Correction coefficient
85
1.8
2.0
1K
1.3
105
1.0
1.0
≧10K
1.4
Insulation plate
S-Hexagon-head bolt
Screw terminal
Vent
Anode marking
Insulation sleeve
Product code : (Example) HCGHA type 400V 10,000µF±20%
P
±1
L
±2
Marking
HCGHA 2G 103 Y
φD
±1
Ｔ
±1
Type of series
Type of bracket code
Capacitance code
Rated voltage code
(unit：mm)
φD
36
51
64
77
90
P
12.7
22.0
28.6
32.0
32.0
S
M5×10
M5×10
M5×10
M5×10
M5×10
T
7.0
4.5
4.5
4.5
4.0
Cap material
PPS
PPS
PPS
PPS
PPS
Bracket
• See page 51 for shapes and dimensions.
• Product names in the Standard Products Table correspond to the
bracket for Type Y (Type
Ι
for ø36 only), but Type
Ι
bracket may be
used (Type of bracket Code =
Ι
).
• If bracket are not necessary, enter "N" for the type of bracket code.
• Bracket will be delivered separately.
Standard Products Table
Rated Voltage
Code
(Surge Voltage)
(V. DC)
Capacitance
(µF)
10000
15000
22000
33000
47000
68000
100000
150000
220000
330000
6800
10000
15000
22000
33000
47000
68000
100000
150000
220000
Case size
øDXL(mm)
36×53
36×83
36×83
36×100
51×75
51×115
64×96
64×115
77×115
90×131
36×53
36×83
36×83
36×100
51×75
51×96
51×115
64×115
77×115
90×131
Ripple current
tanδ
20°C,120Hz
105°C,120Hz
(Arms)
ESR(typ.)
20°C,100Hz
(m
Ω
)
Z max
20°C,10kHz
(m
Ω
)
ESL(typ.)
(nH)
18
18
18
18
21
21
22
22
24
24
18
18
18
18
21
21
21
22
24
24
Product name
HCGHA1E103Ⅰ
HCGHA1E153Ⅰ
HCGHA1E223Ⅰ
HCGHA1E333Ⅰ
HCGHA1E473Y
HCGHA1E683Y
HCGHA1E104Y
HCGHA1E154Y
HCGHA1E224Y
HCGHA1E334Y
HCGHA1V682Ⅰ
HCGHA1V103Ⅰ
HCGHA1V153Ⅰ
HCGHA1V223Ⅰ
HCGHA1V333Y
HCGHA1V473Y
HCGHA1V683Y
HCGHA1V104Y
HCGHA1V154Y
HCGHA1V224Y
25
1E
(32)
35
1V
(44)
0.35
0.35
0.35
0.40
0.40
0.50
0.60
0.80
1.00
1.00
0.30
0.30
0.30
0.35
0.40
0.45
0.50
0.60
0.70
0.70
2.9
4.2
5.1
6.3
8.0
10.0
11.3
12.9
14.8
19.9
2.6
3.7
4.5
5.5
6.7
8.1
10.0
12.1
13.8
17.6
32
27
22
15
10
7
6
6
4
4
42
29
19
14
12
8
7
6
5
5
30
27
23
16
11
8
7
7
5
5
37
31
20
15
13
9
8
7
7
7
Hitachi AIC Inc.
76
SCREW TERMINAL TYPE ALUMINUM ELECTROLYTIC CAPACITORS
Rated Voltage
Code
(Surge Voltage)
(V. DC)
Capacitance
(µF)
330
470
680
1000
1500
2200
3300
4700
6800
10000
15000
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
Case size
øDXL(mm)
36×53
36×53
36×83
36×100
51×75
51×96
64×96
64×115
77×115
77×155
90×157
51×75
51×96
51×115
51×130
64×96
64×115
64×130
64×155
77×115
64×195
77×130
64×195
77×155
90×157
90×157
90×196
Ripple current
tanδ
20°C,120Hz
105°C,120Hz
(Arms)
ESR(typ.)
20°C,100Hz
(m
Ω
)
Z max
20°C,10kHz
(m
Ω
)
ESL(typ.)
(nH)
18
18
18
18
21
21
22
22
24
24
24
21
21
21
21
22
22
22
22
24
22
24
22
24
24
24
24
Product name
HCGHA2E331Ⅰ
HCGHA2E471Ⅰ
HCGHA2E681Ⅰ
HCGHA2E102Ⅰ
HCGHA2E152Y
HCGHA2E222Y
HCGHA2E332Y
HCGHA2E472Y
HCGHA2E682Y
HCGHA2E103Y
HCGHA2E153Y
HCGHA2G102Y
HCGHA2G122Y
HCGHA2G152Y
HCGHA2G182Y
HCGHA2G222Y
HCGHA2G272Y
HCGHA2G332Y
HCGHA2G392YD
HCGHA2G392YE
HCGHA2G472YD
HCGHA2G472YE
HCGHA2G562YD
HCGHA2G562YE
HCGHA2G682Y
HCGHA2G822Y
HCGHA2G103Y
250
2E
(300)
400
2G
(450)
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.8
1.0
1.4
1.9
2.3
3.1
4.2
5.4
6.9
9.3
12.2
2.5
3.0
3.6
4.1
4.5
5.3
6.2
7.2
6.8
8.7
7.8
9.6
9.2
10.7
11.8
14.1
285
200
138
84
56
50
36
25
18
13
9
102
85
68
57
46
38
30
26
26
21
21
18
18
15
12
10
268
187
131
70
50
45
35
23
18
13
9
105
88
70
58
48
40
32
28
28
22
22
19
19
15
15
15
Life time graph
Useful life depending on ambient temperature Ta and ripple current operating conditions Ir versus rated ripple current at 105℃,120Hz
1,000,000
HCGHA
Series
(≧400WV)
1,000,000
HCGHA
Series
(≦250WV)
Ta=40℃
Ta=40
100,000
Useful life (h)
Ta=40℃
100,000
Useful life (h)
Ta=70℃
Ta=55℃
Ta=55℃
Ta=55
Ta=70℃
Ta=70
10,000
Ta=85℃
10,000
Ta=85℃
Ta=85
Ta=105℃
Ta=105℃
1,000
0
1
2
3
4
5
Ripple Current of Diminishing Ratio(I/Ir,105
Ratio(I/Ir,105℃)
1,000
0
1
2
3
4
5
Ripple Current of Diminishing Ratio(I/Ir,105
Ratio(I/Ir,105℃)
Hitachi AIC Inc.
78
