LN82C54-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LN82C54-2

LN82C54-2: DescriptionProgrammable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，18 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

LN82C54-2 Overview

Programmable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28

LN82C54-2 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCJ,
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	8 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
JESD-30 code	S-PQCC-J28
length	11.5062 mm
Number of digits	16
Number of terminals	28
Number of timers	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5062 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE

Preview

Download Datasheet

View All

REI Datasheet

82C54

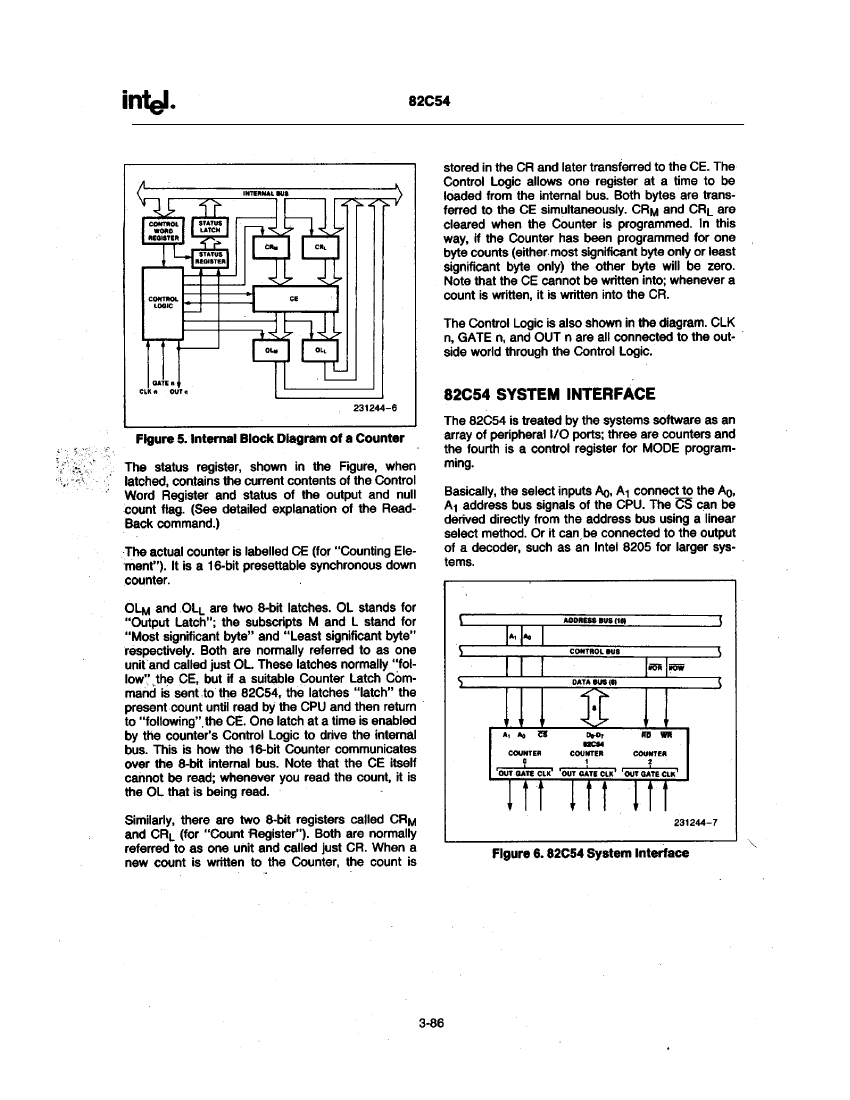

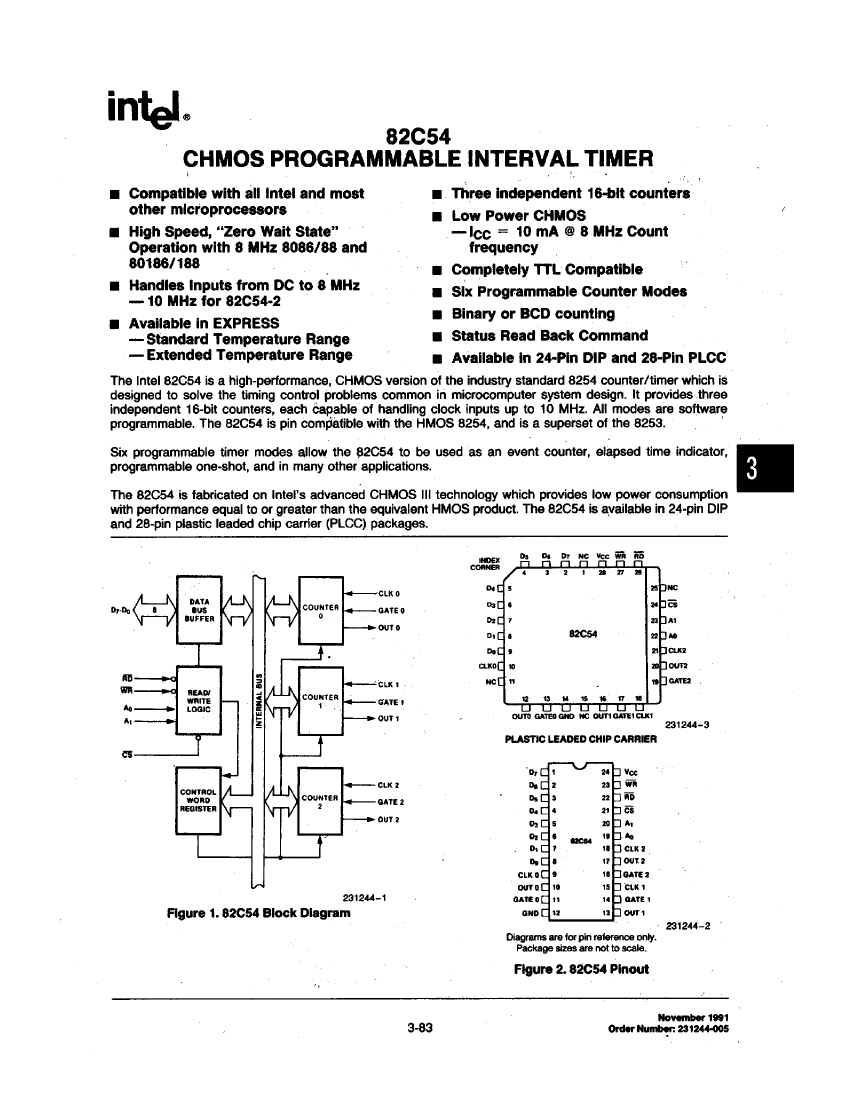

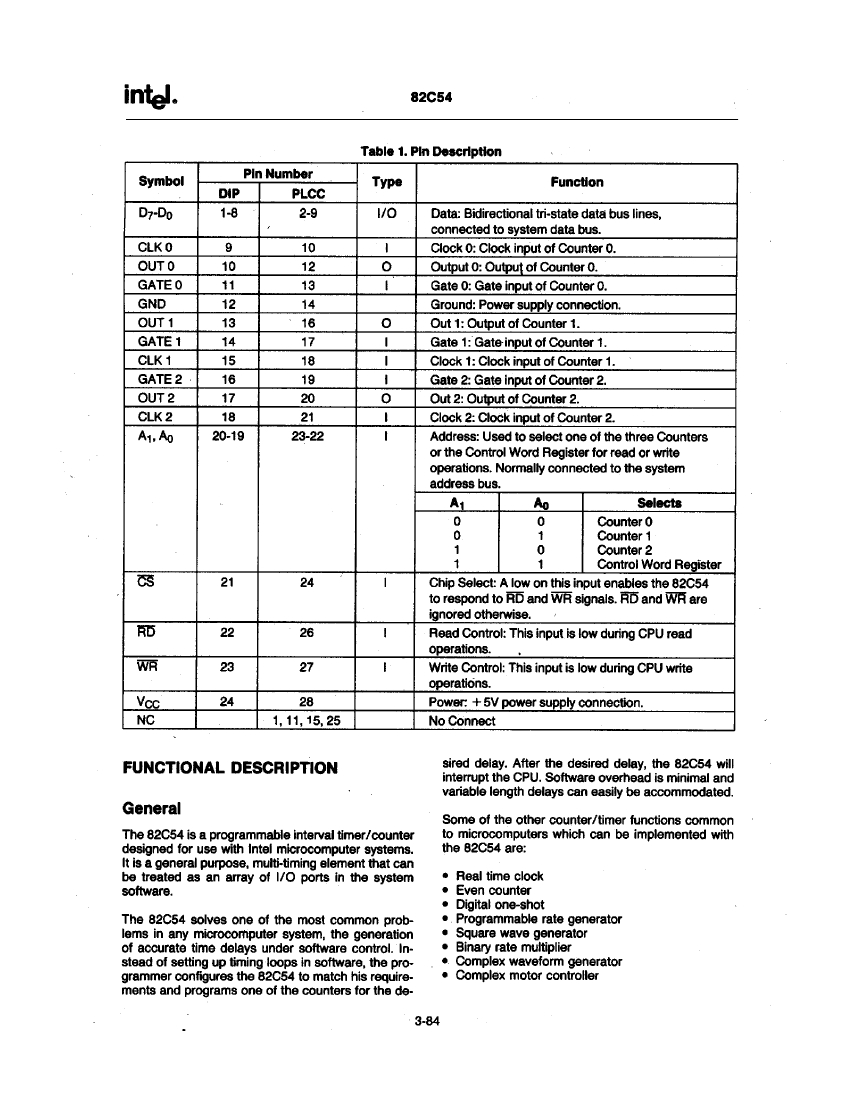

CHMOS Programmable Interval Timer

The Intel 82C54 is a high-performance, CHMOS version of the industry standard 8254 counter/timer

which is designed to solve the timing control problems common in microcomputer system design.

It provides three independent 16-bit counters, each capable of handling clock inputs up to 10 MHz.

All modes are software programmable. The 82C54 is pin compatible with the HMOS 8254, and is a

superset of the 8253.

Six programmable timer modes allow the 82C54 to be used as an event counter, elapsed time

indicator, programmable one-shot, and in many other applications.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

LN82C54-2 Related Products

	LN82C54-2	LP82C54-2	TN82C54-2
Description	Programmable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28	Programmable Timer, 3 Timer(s), CMOS, PDIP24, DIP-24	Programmable Timer, 3 Timer(s), CMOS, PQCC28, PLASTIC, LCC-28
package instruction	QCCJ,	DIP,	QCCJ,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
maximum clock frequency	8 MHz	8 MHz	8 MHz
External data bus width	8	8	8
Information access methods	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS
JESD-30 code	S-PQCC-J28	R-PDIP-T24	S-PQCC-J28
Number of digits	16	16	16
Number of terminals	28	24	28
Number of timers	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ
Package shape	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	THROUGH-HOLE	J BEND
Terminal location	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Maker	Rochester Electronics	-	Rochester Electronics
length	11.5062 mm	-	11.5062 mm
Maximum seat height	4.57 mm	-	4.57 mm
Terminal pitch	1.27 mm	-	1.27 mm
width	11.5062 mm	-	11.5062 mm
