PS2732-E3 datasheet, PDF - EEWORLD Datasheet

PS2732-E3: DescriptionDarlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-4; CategoryLED optoelectronic/LED photoelectric; File Size86KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

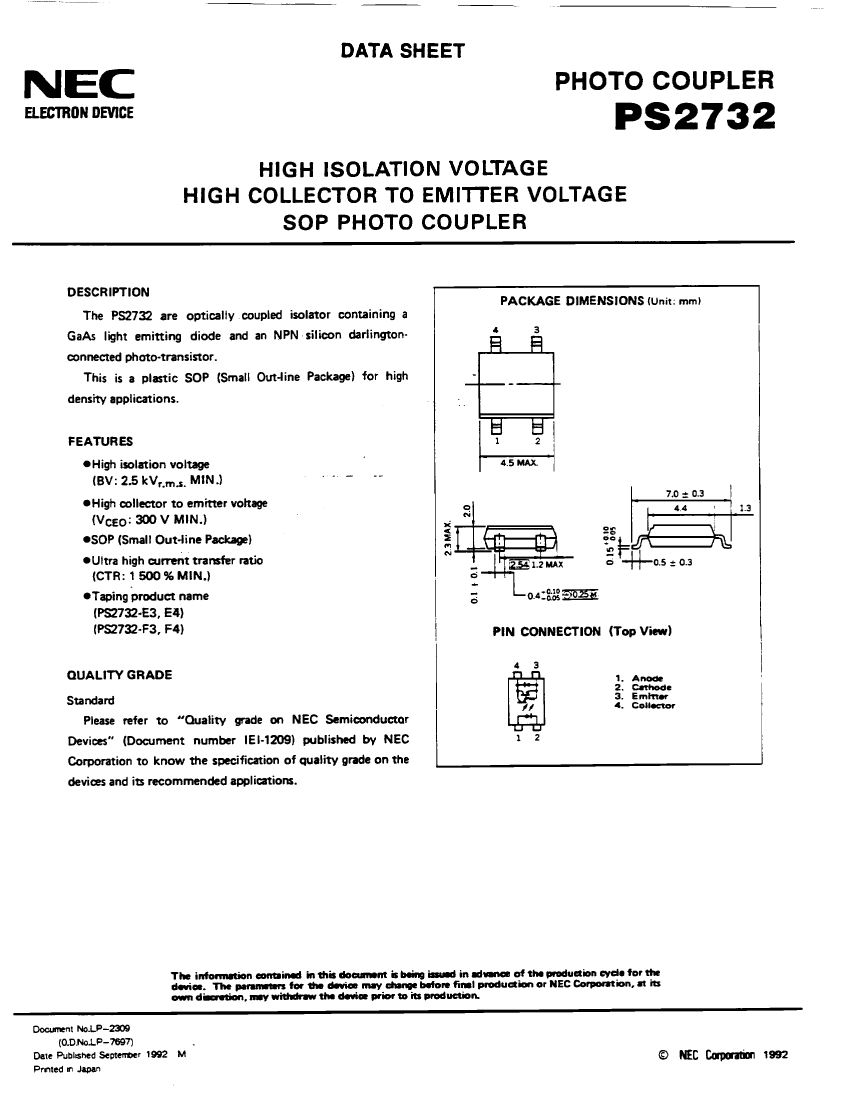

PS2732-E3 Overview

Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-4

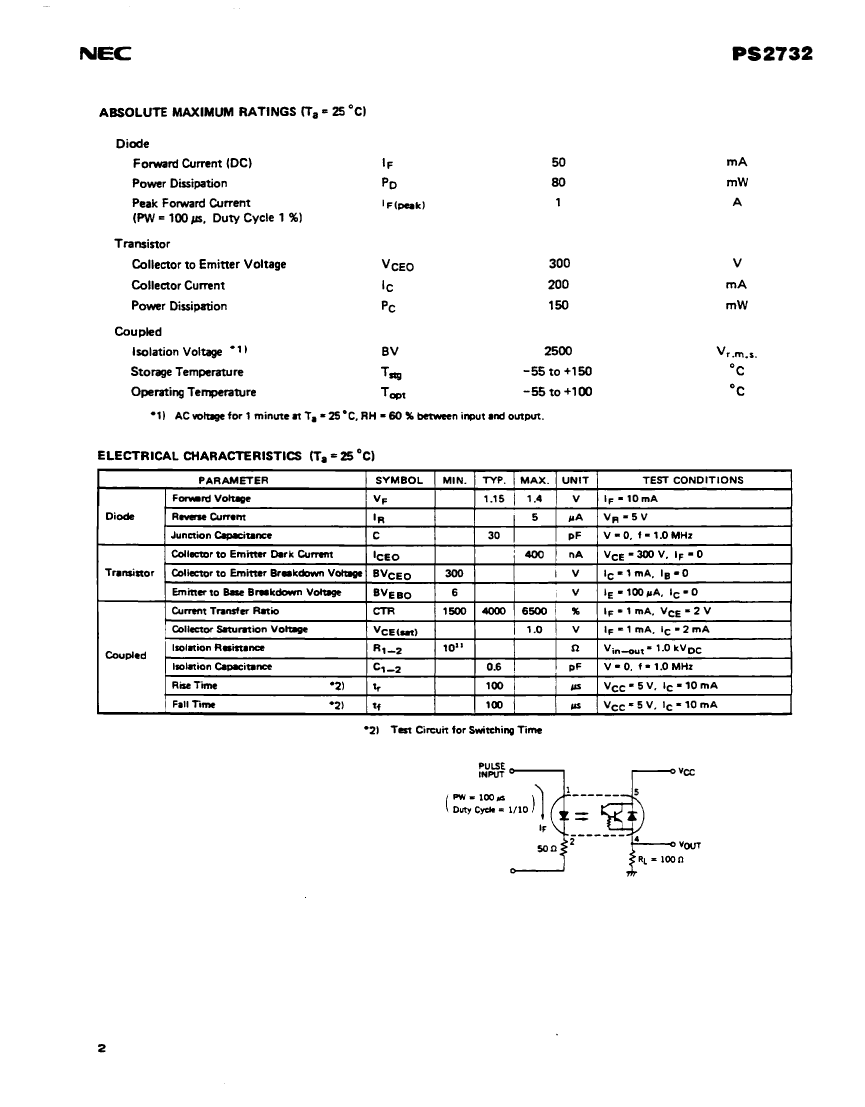

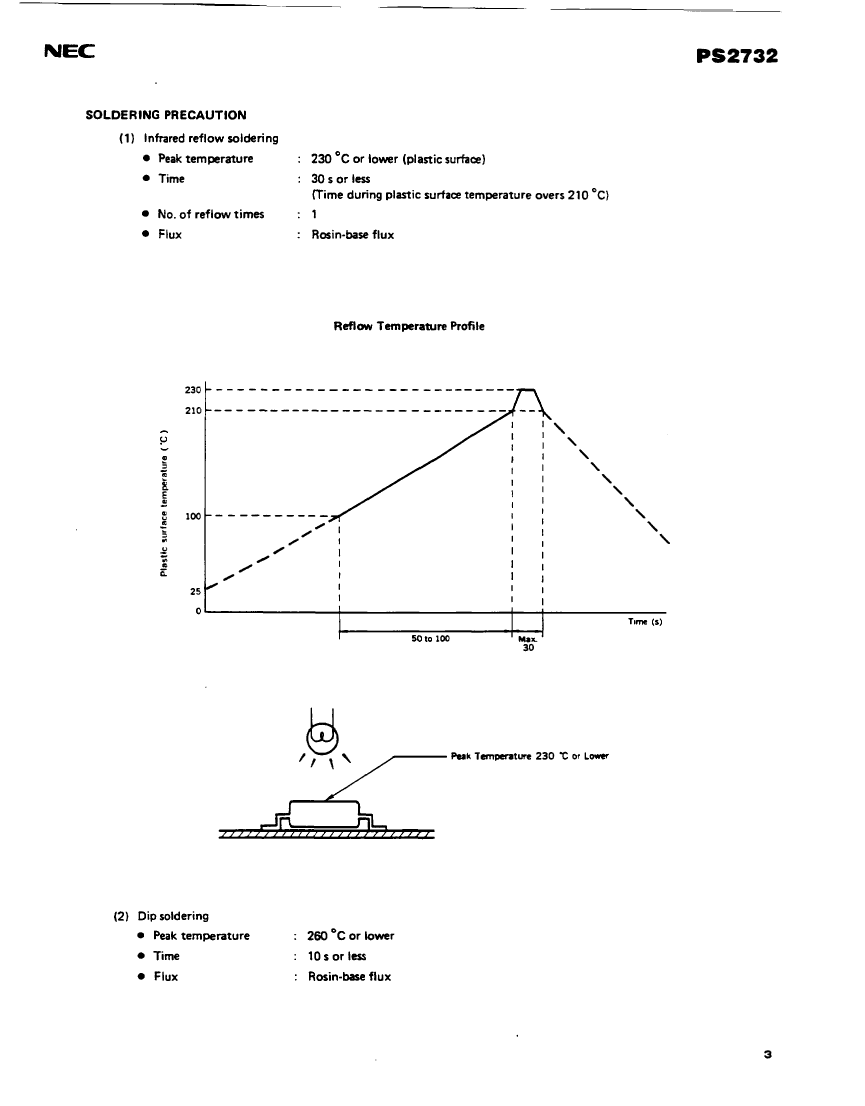

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	PLASTIC, SOP-4
Reach Compliance Code	compliant
Coll-Emtr Bkdn Voltage-Min	300 V
Configuration	SINGLE WITH BUILT-IN DIODE
Nominal current transfer ratio	4000%
Maximum dark power	400 nA
Maximum forward current	0.05 A
Maximum insulation voltage	2500 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

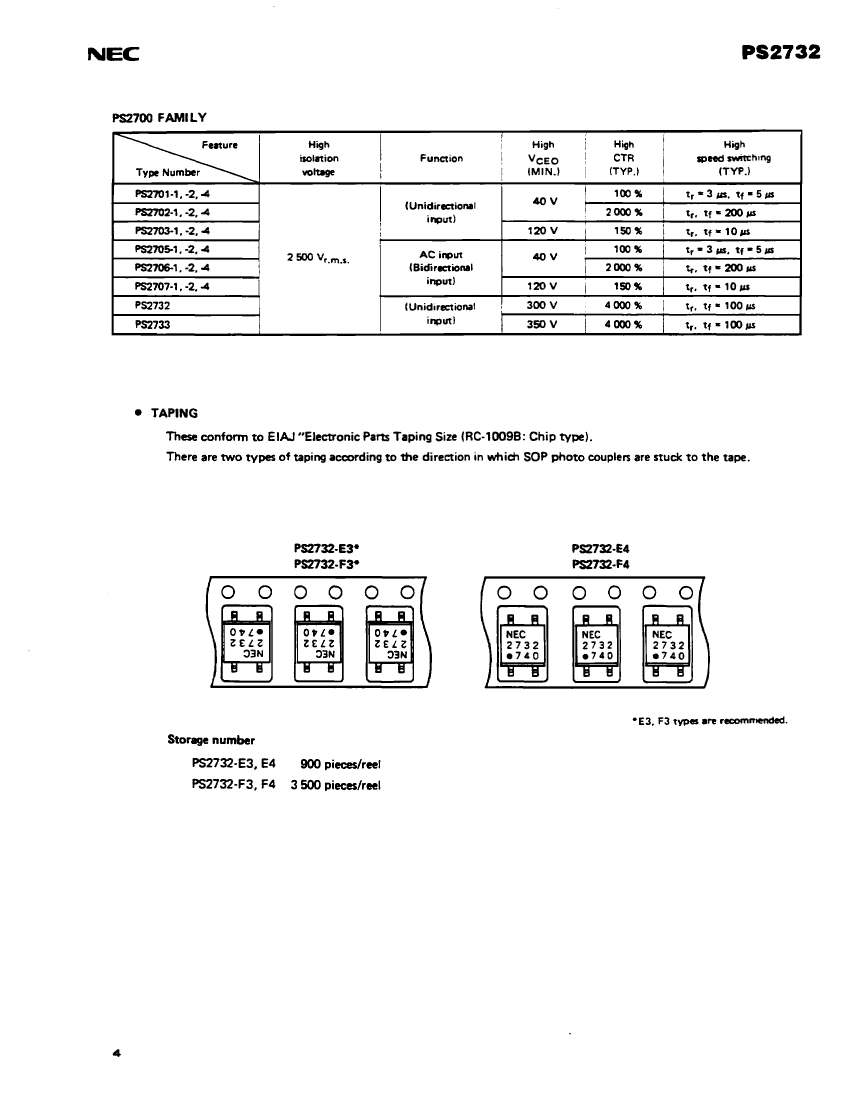

	PS2732-E3	PS2732-F3	PS2732-E4	PS2732-F4
Description	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-4	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-4	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-4	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-4
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, SOP-4	PLASTIC, SOP-4	PLASTIC, SOP-4	PLASTIC, SOP-4
Reach Compliance Code	compliant	compliant	compliant	compliant
Coll-Emtr Bkdn Voltage-Min	300 V	300 V	300 V	300 V
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Nominal current transfer ratio	4000%	4000%	4000%	4000%
Maximum dark power	400 nA	400 nA	400 nA	400 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	2500 V	2500 V	2500 V	2500 V
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	NEC Electronics	-	NEC Electronics	NEC Electronics
