PS2733-E4 datasheet, PDF - EEWORLD Datasheet

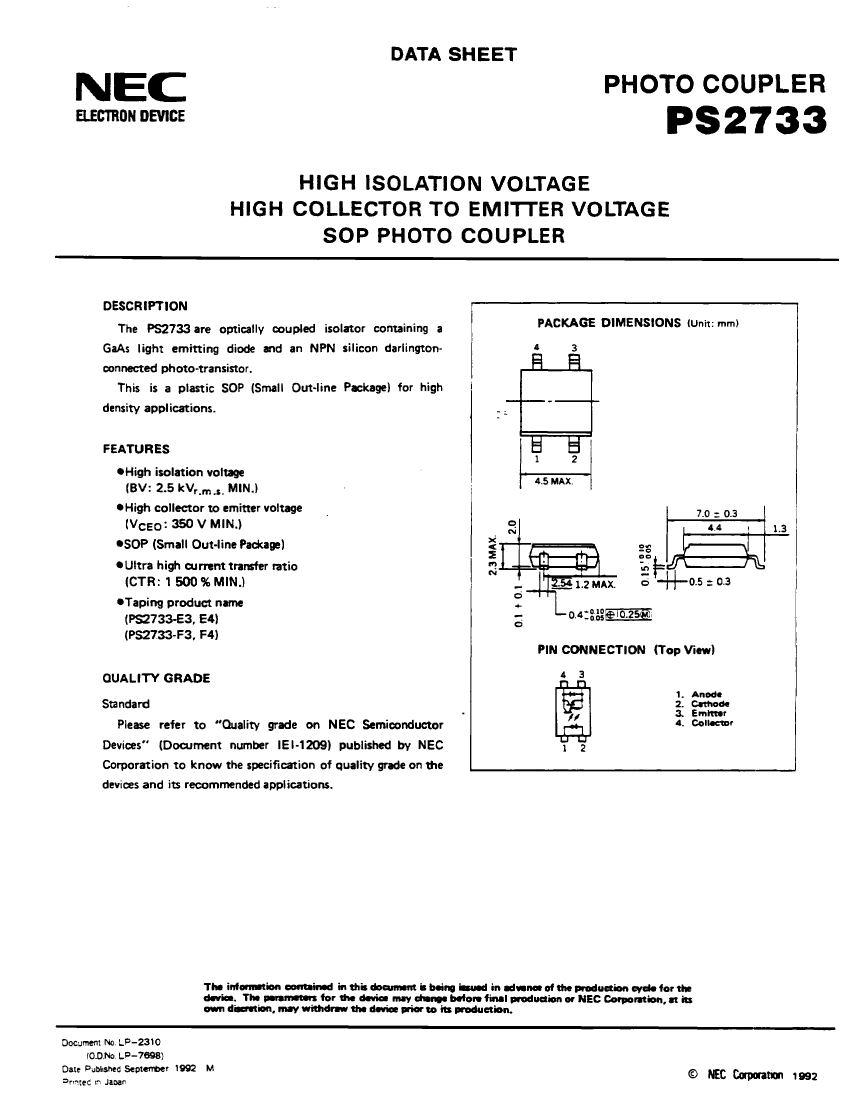

PS2733-E4: DescriptionDarlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-8; CategoryLED optoelectronic/LED photoelectric; File Size86KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

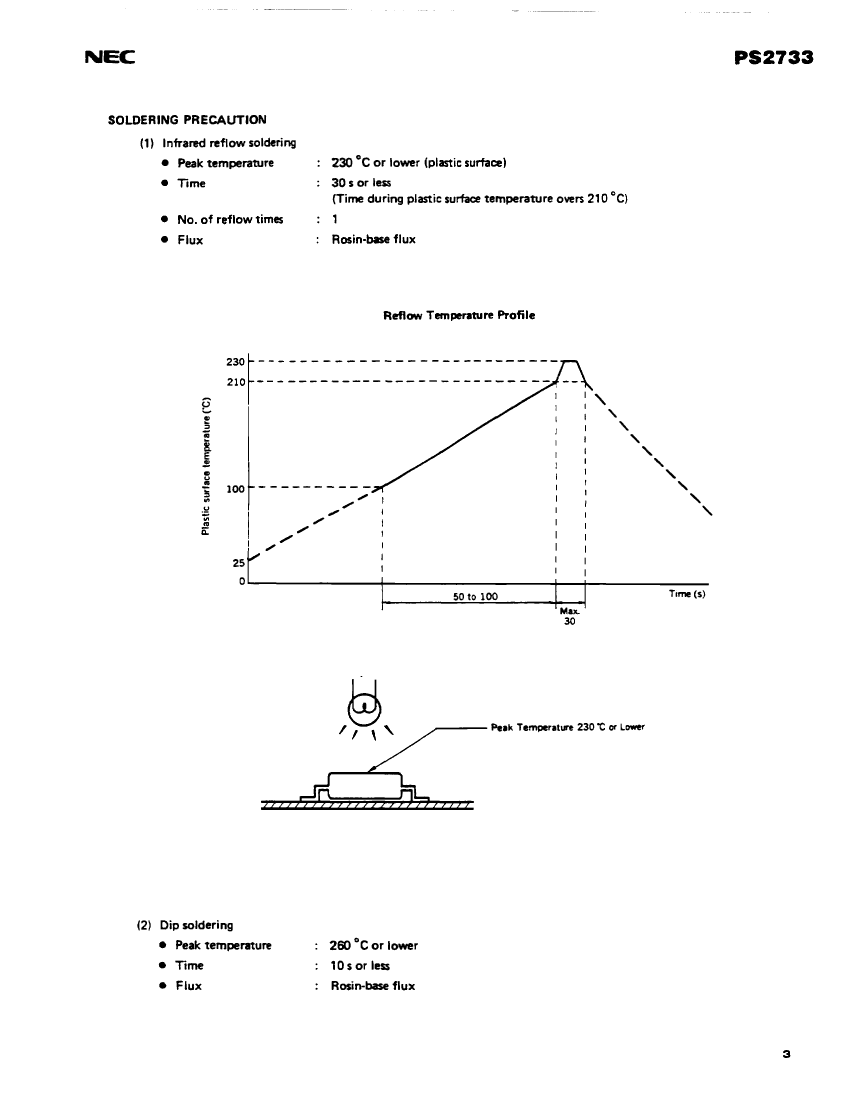

PS2733-E4 Overview

Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-8

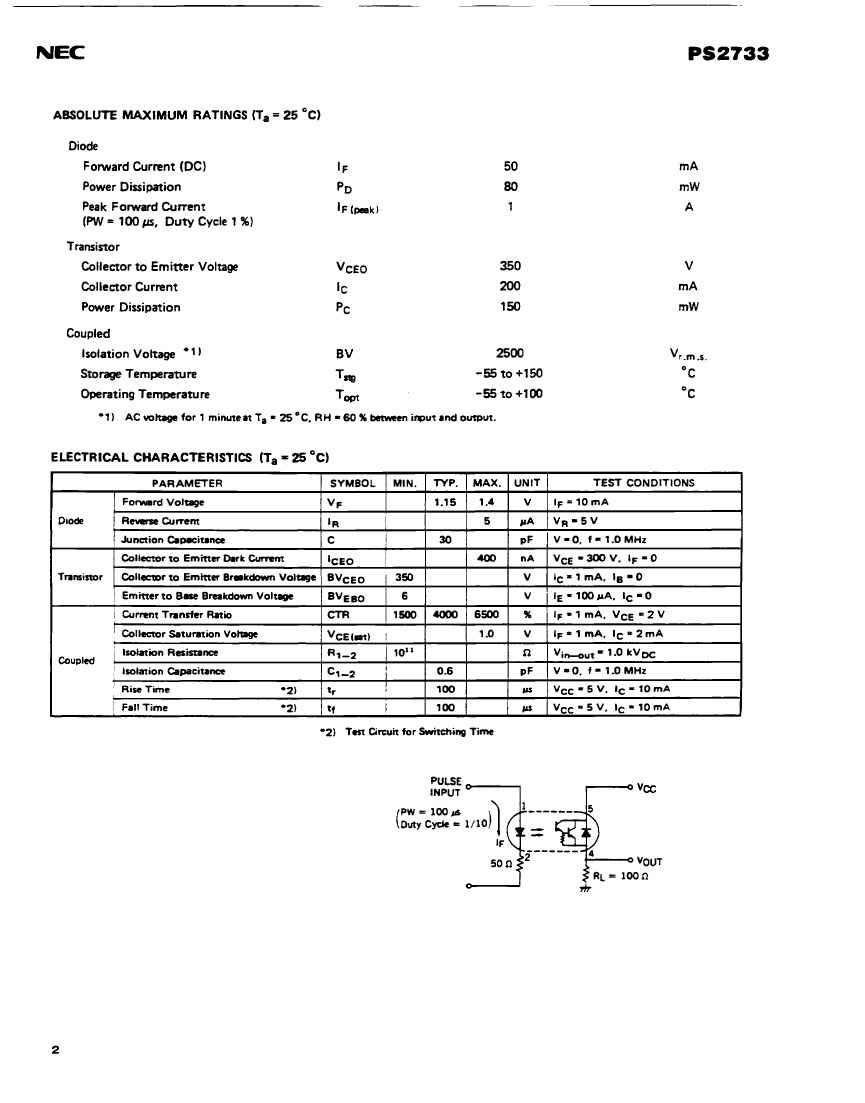

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	PLASTIC, SOP-8
Reach Compliance Code	compliant
Coll-Emtr Bkdn Voltage-Min	350 V
Configuration	SINGLE WITH BUILT-IN DIODE
Nominal current transfer ratio	4000%
Maximum dark power	400 nA
Maximum forward current	0.05 A
Maximum insulation voltage	2500 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

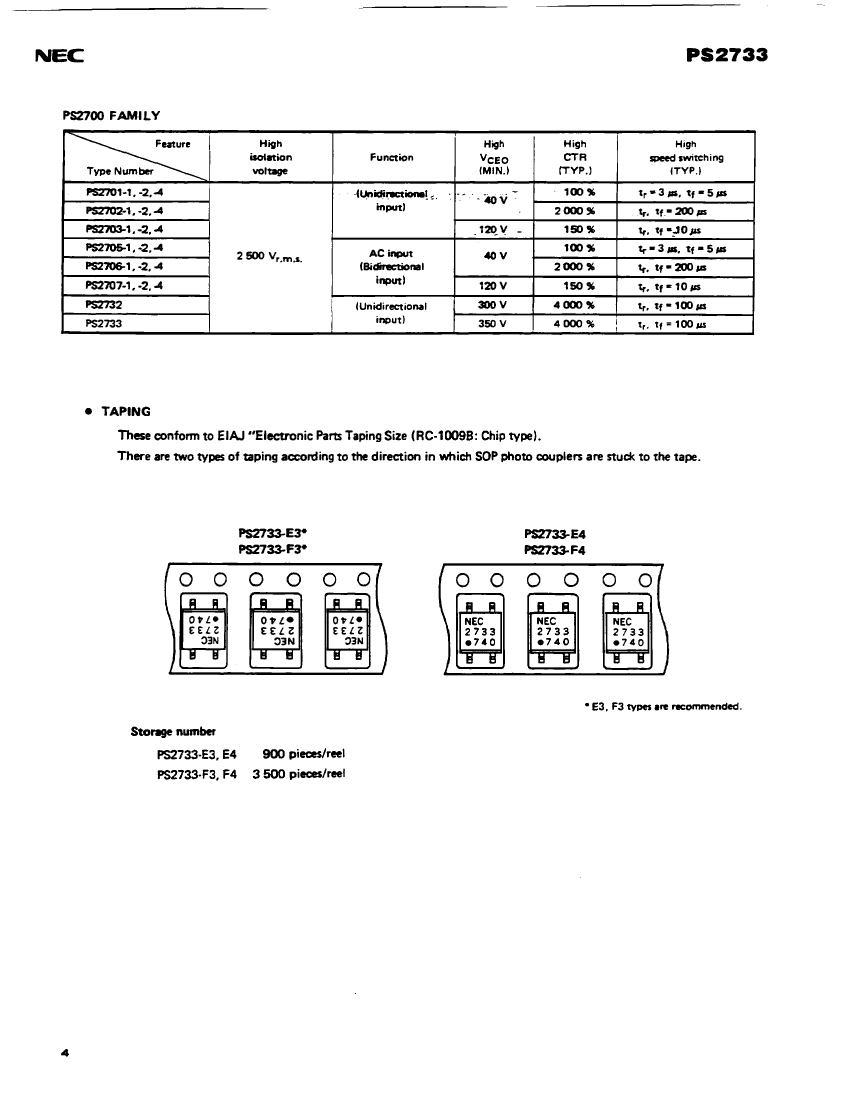

	PS2733-E4	PS2733-E3	PS2733-F4	PS2733-F3
Description	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-8	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-8	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-8	Darlington Output Optocoupler, 1-Element, 2500V Isolation, PLASTIC, SOP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	PLASTIC, SOP-8	PLASTIC, SOP-8	PLASTIC, SOP-8	PLASTIC, SOP-8
Reach Compliance Code	compliant	compliant	compliant	compliant
Coll-Emtr Bkdn Voltage-Min	350 V	350 V	350 V	350 V
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Nominal current transfer ratio	4000%	4000%	4000%	4000%
Maximum dark power	400 nA	400 nA	400 nA	400 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	2500 V	2500 V	2500 V	2500 V
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
