P54FCT3245DDM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> P54FCT3245DDM

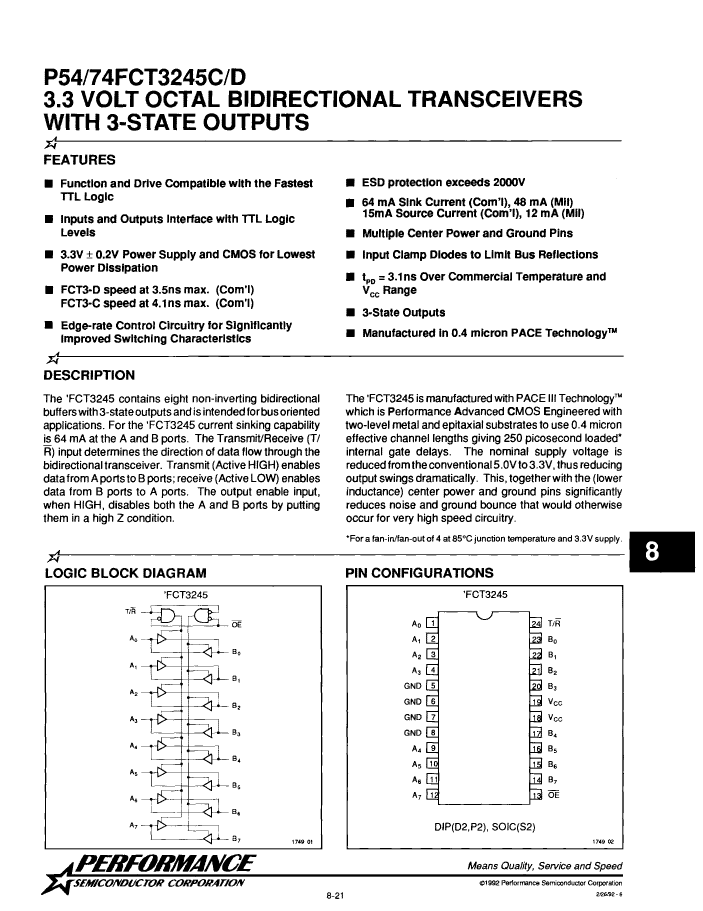

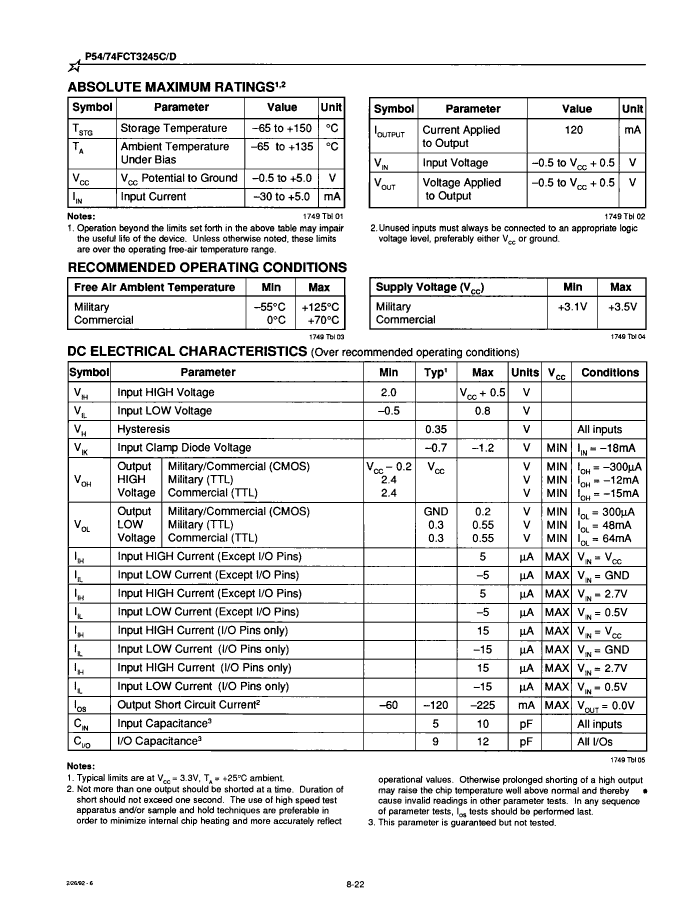

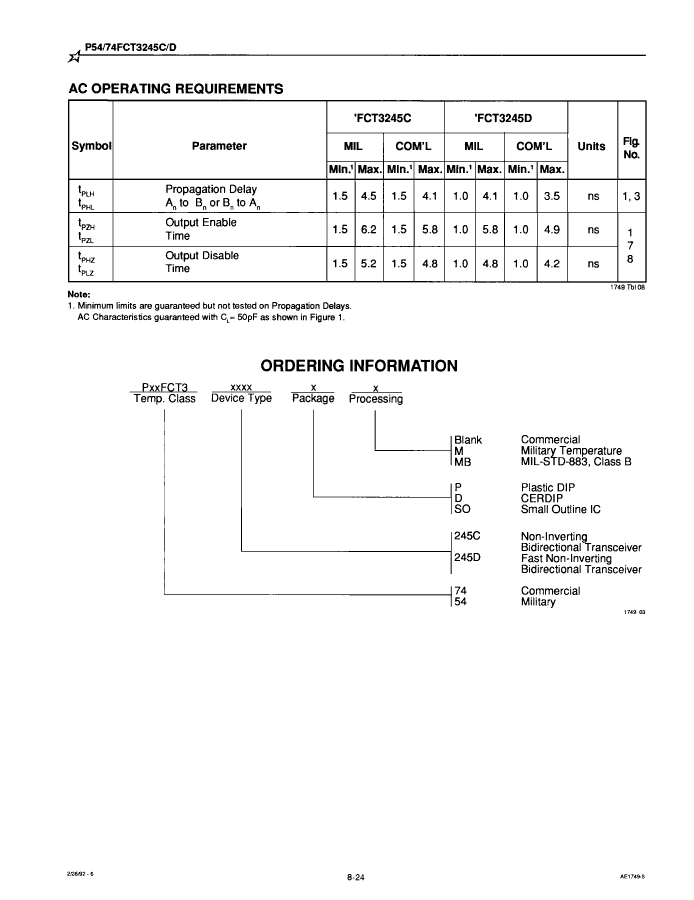

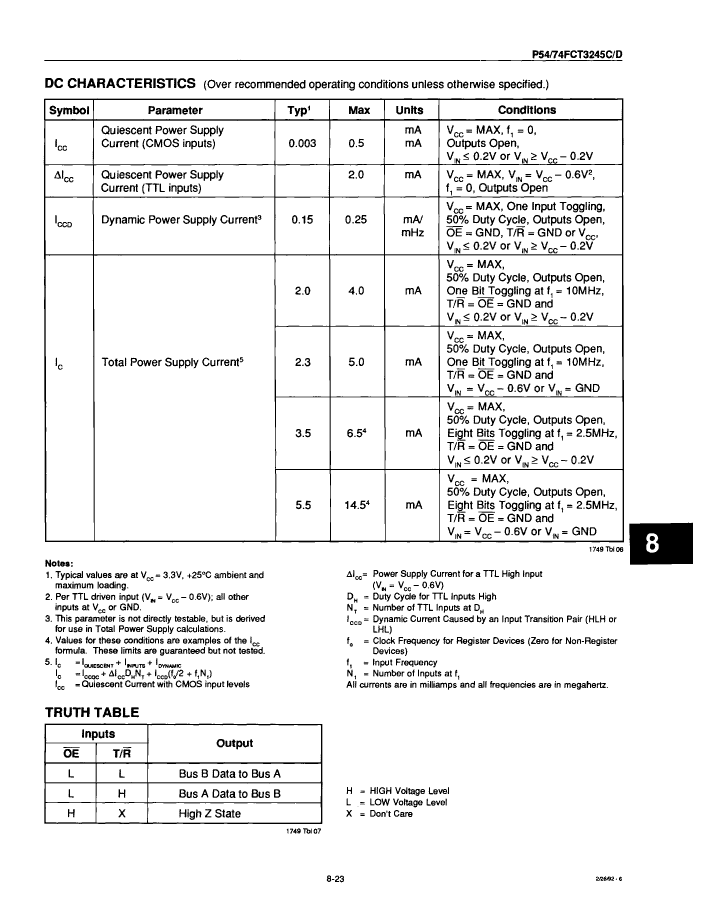

P54FCT3245DDM: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24; Categorylogic logic; File Size151KB，4 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P54FCT3245DDM Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24

P54FCT3245DDM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
Other features	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	31.75 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.1 ns
propagation delay (tpd)	4.1 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	7.62 mm

Preview

Download Datasheet

View All

P54FCT3245DDM Related Products

	P54FCT3245DDM	P74FCT3245CSO	P54FCT3245CDM	P74FCT3245CD	P74FCT3245DSO	P74FCT3245CP	P74FCT3245DD	P74FCT3245DP
Description	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
Parts packaging code	DIP	SOIC	DIP	DIP	SOIC	DIP	DIP	DIP
package instruction	DIP, DIP24,.3	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3
Contacts	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND	DIRECTION CONTROL; MULTIPLE CENTER PIN VCC AND GND
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDIP-T24	R-PDSO-G24	R-GDIP-T24	R-GDIP-T24	R-PDSO-G24	R-PDIP-T24	R-GDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	31.75 mm	15.4 mm	31.75 mm	31.75 mm	15.4 mm	31.9405 mm	31.75 mm	31.9405 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
MaximumI(ol)	0.048 A	0.064 A	0.048 A	0.064 A	0.064 A	0.064 A	0.064 A	0.064 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	DIP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.3	SOP24,.4	DIP24,.3	DIP24,.3	SOP24,.4	DIP24,.3	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	4.1 ns	4.1 ns	4.5 ns	4.1 ns	3.5 ns	4.1 ns	3.5 ns	3.5 ns
propagation delay (tpd)	4.1 ns	4.1 ns	4.5 ns	4.1 ns	3.5 ns	4.1 ns	3.5 ns	3.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.65 mm	5.08 mm	5.08 mm	2.65 mm	4.318 mm	5.08 mm	4.318 mm
Maximum supply voltage (Vsup)	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Minimum supply voltage (Vsup)	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	YES	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
translate	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
width	7.62 mm	7.5 mm	7.62 mm	7.62 mm	7.5 mm	7.62 mm	7.62 mm	7.62 mm
