P54FCT3245DDMB datasheet, PDF - EEWORLD Datasheet

P54FCT3245DDMB: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24; Categorylogic logic; File Size385KB，4 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric View All

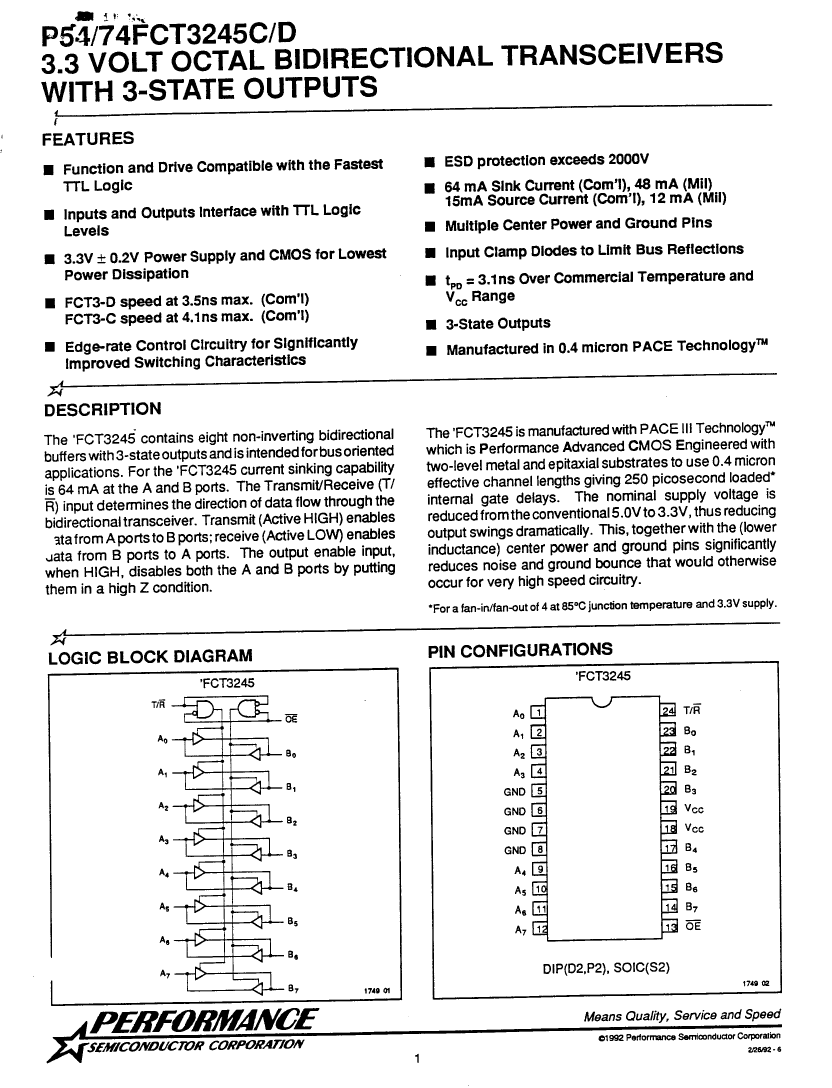

P54FCT3245DDMB Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of terminals	24

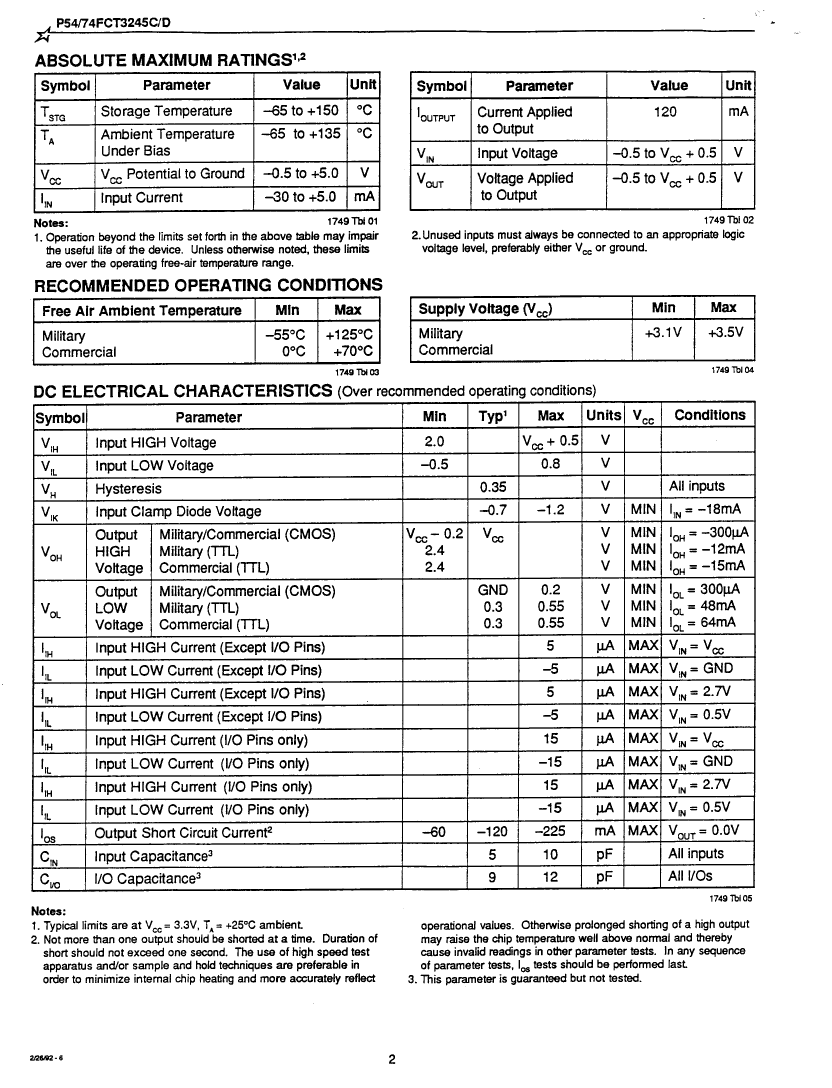

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE

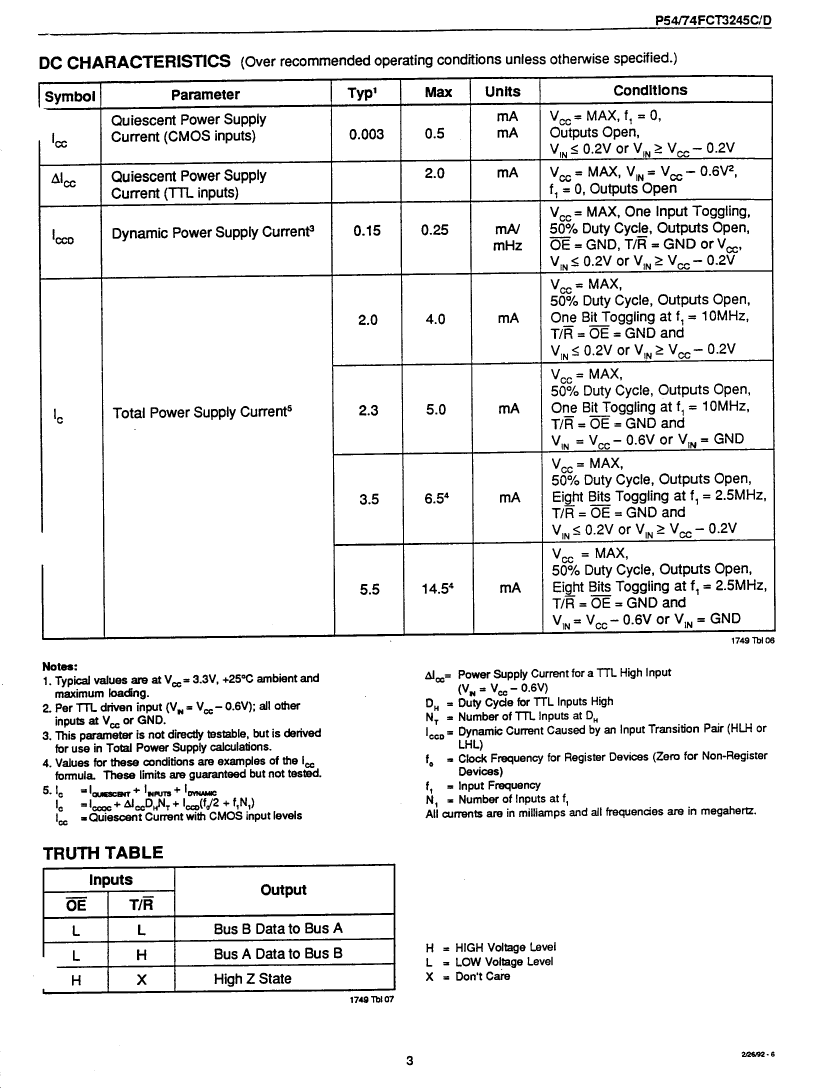

power supply	3.3 V

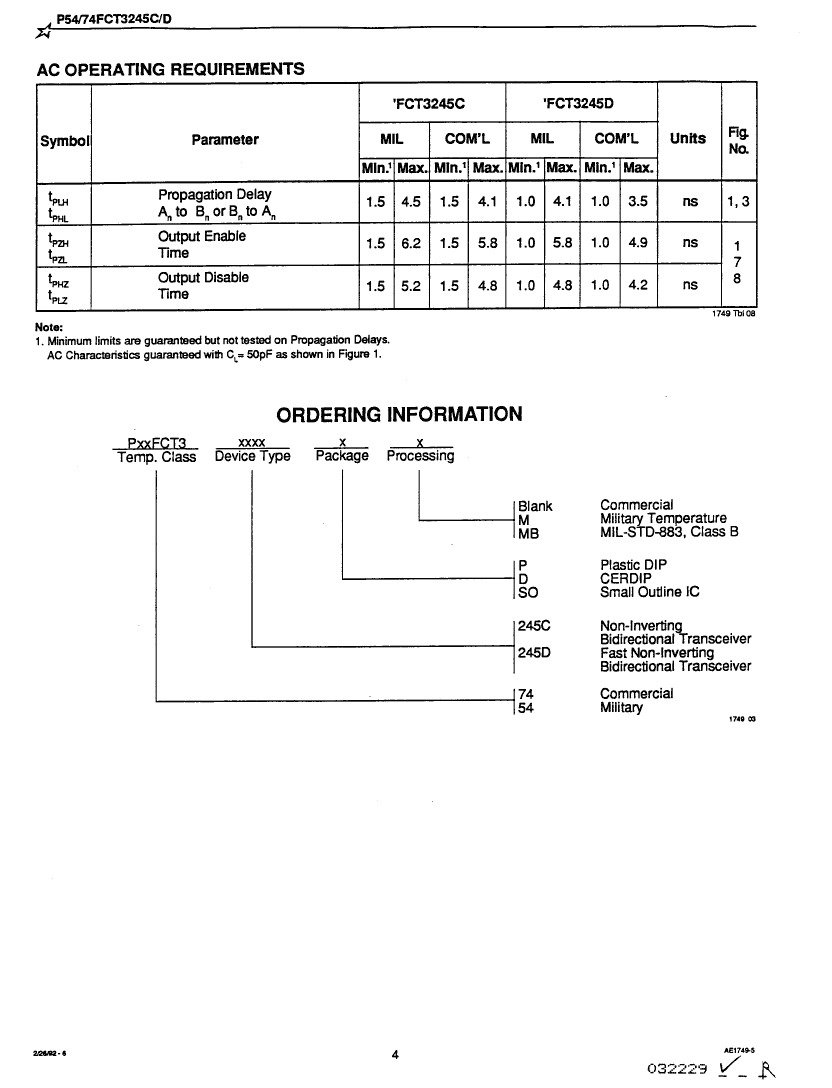

Prop。Delay @ Nom-Sup	4.1 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
