PCB-1201-1RG: DescriptionDual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size58KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

PCB-1201-1RG Overview

Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White, 5mm,

PCB-1201-1RG Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.02 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	4.5/5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	18.92 mm
method of packing	BULK
peak wavelength	635/565 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	125 deg

Preview

Download Datasheet

View All



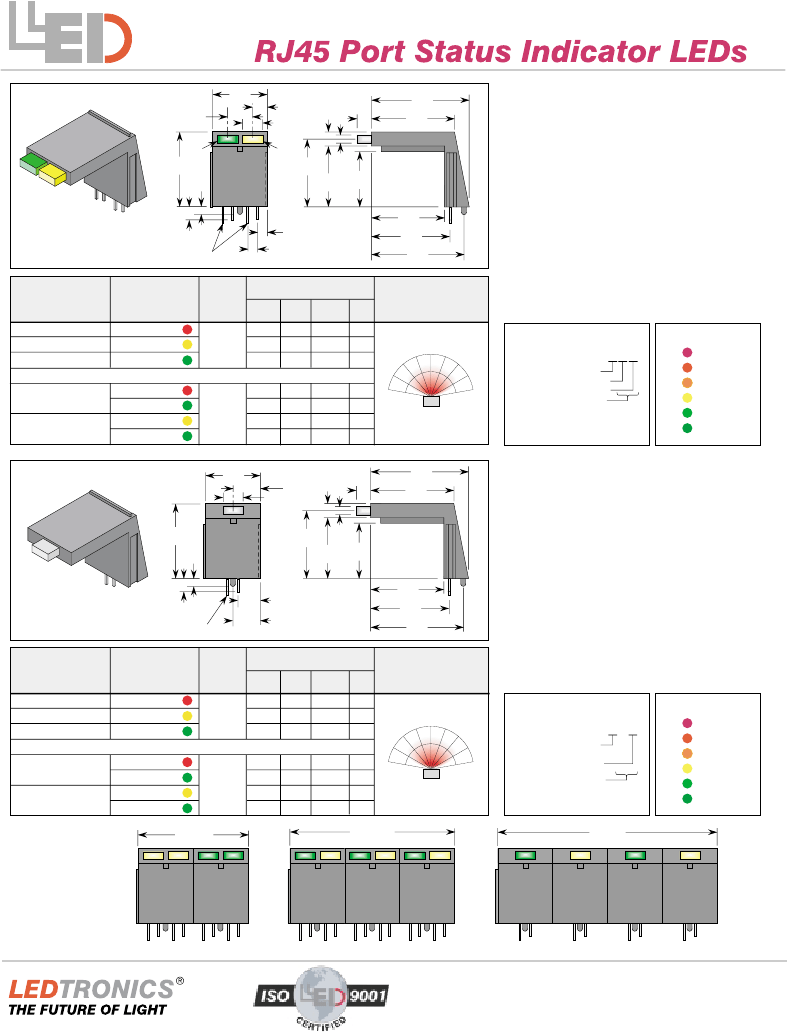

RJ45 Port Status Indicator LEDs

2 x 5mm Rectangular Diffused

PCB-1201-1XX

.250

[6.35]

.550

[13.97]

.150

[3.81]

.200

[5.08]

.140

[3.56]

.140

[3.56]

.972

[24.69]

.832

[21.13]

LED 1

.745

[18.92]

.075

[1.91]

LED 2

.675

[17.15]

.080

[2.03]

.605

[15.37]

.550

[13.97]

.140

[3.56]

ANODE (+)

.100

[2.54]

.100

[2.54]

.730

[18.54]

.780

[19.81]

.922

[23.42]

Part Number

PCB-1201-122

PCB-1201-144

PCB-1201-166

LED Color

HE RED

YELLOW

HE GREEN

HE RED

HE GREEN

YELLOW

HEGREEN

Lens

Type/

Color

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

typ

typ/max

λP

nm

Full Viewing

Angle

Part number code for

additional combinations

For units with two LEDs

Color code

20

DIFFUSED

6.3

4.3

4.5

5.0

4.0

5.0

2.0/2.6 635

2.1/2.6 585

2.2/2.6 568

60

40

20

0

20

40

60

80

20

PCB-1201-XXX

Number of arrayed units

Color of LED 1

Color of LED 2

Bicolor option

1

2

3

4

6

7

UL RED

HE RED

ORANGE

YELLOW

HE GREEN

P GREEN

2 x 5mm Rectangular Bi-Color LED

PCB-1201-1RG

PCB-1201-1YG

2.0/2.6 635

2.2/2.6 565

2.1/2.6 585

2.2/2.6 568

80

DIFFUSED

20

125˚

For units with mixed bicolor

LEDs, consult LEDtronics for a

part number

PCB-1208-10X

.550

[13.97]

.275

.200 [6.99]

[5.08]

.140

[3.56]

.140

[3.56]

.972

[24.69]

.832

[21.13]

.745

[18.92]

.075

[1.91]

.675

[17.15]

.080

[2.03]

.605

[15.37]

.550

[13.97]

.140

[3.56]

ANODE (+)

.225

[5.72]

.275

[6.99]

.730

[18.54]

.780

[19.81]

.922

[23.42]

Part Number

PCB-1208-102

PCB-1208-104

PCB-1208-106

LED Color

HE RED

YELLOW

HE GREEN

HE RED

HE GREEN

YELLOW

HEGREEN

Lens

Type/

Color

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd Vf = V

λP

typ

typ/max nm

typ

Full Viewing

Angle

Part number code for

additional combinations

For units with one LED

Color code

20

DIFFUSED

6.3

4.3

4.5

5.0

4.0

5.0

2.0/2.6 635

2.1/2.6 585

20

0

20

40

60

80

20

2.2/2.6 568

60

40

PCB-1208-XXX

Number of arrayed units

Color of LED

Bicolor option

1

2

3

4

6

7

UL RED

HE RED

ORANGE

YELLOW

HE GREEN

P GREEN

3mm Std Dome Bi-Color LED

PCB-1208-1RG

PCB-1208-1YG

2.0/2.6 635

2.2/2.6 565

2.1/2.6 585

2.2/2.6 568

80

DIFFUSED

20

125˚

Arrayable Design

1.100 MAX

[27.94]

1.650 MAX

[41.91]

2.200 MAX

[55.88]

PCB-1201-2XX

PCB-1201-3XX

PCB-1208-40X

23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log 055B Rev 12-99

PCB-1201-1RG Related Products

	PCB-1201-1RG	PCB-1201-166	PCB-1201-144	PCB-1208-106	PCB-1201-122	PCB-1201-1YG	PCB-1208-1RG
Description	Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White, 5mm,	Single Color LED Array, High Efficiency Green, Diffused Green, 5mm,	Single Color LED Array, Yellow, Diffused, 5mm,	Single Color LED, High Efficiency Green, Diffused Green, 5mm,	Single Color LED Array, High Efficiency Red, Diffused Red, 5mm,	Dual Color LED Array, Yellow/high Efficiency Green, Diffused White, 5mm,	Dual Color LED, High Efficiency Red/high Efficiency Green, Diffused White, 5mm,
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknow
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY GREEN	YELLOW	HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED	YELLOW/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	DIFFUSED WHITE	DIFFUSED GREEN	DIFFUSED	DIFFUSED GREEN	DIFFUSED RED	DIFFUSED WHITE	DIFFUSED WHITE
Nominal luminous intensity	4.5/5.0 mcd	4.3 mcd	4.3 mcd	4.3 mcd	6.3 mcd	4.0/5.0 mcd	4.5/5.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	2	2	2	1	2	2	1
Number of terminals	4	4	4	2	4	4	2
Optoelectronic device types	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED
total height	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm	18.92 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	635/565 nm	568 nm	585 nm	568 nm	635 nm	585/568 nm	635/565 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
perspective	125 deg	125 deg	125 deg	125 deg	125 deg	125 deg	125 deg
Maker	LEDtronics	-	-	-	LEDtronics	LEDtronics	LEDtronics
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	-
