PCLR2003-LRG: DescriptionDual Color LED Array, Red/green, Diffused, T-1 3/4, 5.1mm, 6 PIN; CategoryLED optoelectronic/LED photoelectric; File Size102KB，2 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

PCLR2003-LRG Overview

Dual Color LED Array, Red/green, Diffused, T-1 3/4, 5.1mm, 6 PIN

PCLR2003-LRG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
package instruction	6 PIN
Reach Compliance Code	compliant
color	RED/GREEN
Configuration	3 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Lens type	DIFFUSED
Nominal luminous intensity	90.0/40.0 mcd
Installation features	RADIAL MOUNT
Number of functions	3
Number of terminals	6
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	5.99 mm
method of packing	BULK
peak wavelength	660/565 nm
shape	ROUND
size	5.1 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

T-1

3

/

4

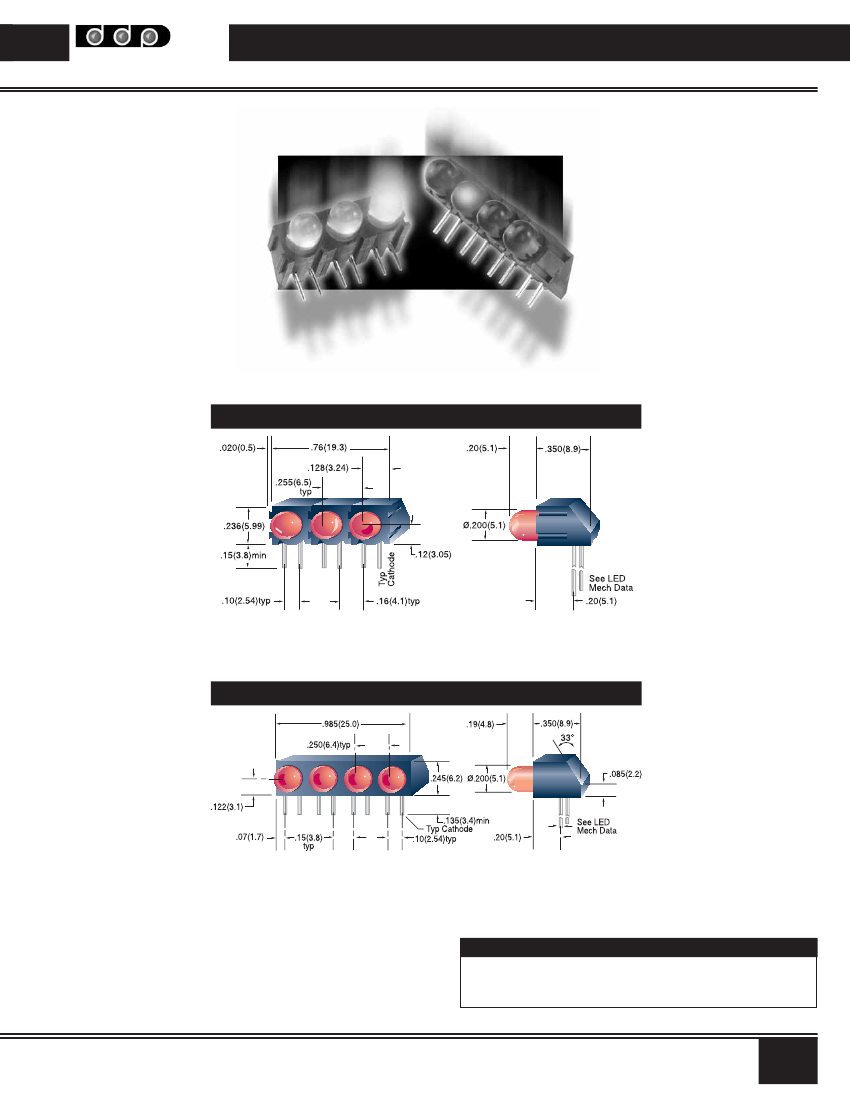

PCB MOUNT LEDs

Arrays

- For Detailed LED Data, See Discrete Section, MODEL 200

Data Display Products

®

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each SHADED column in the tables below.

Model

LED

1

PCLR2003

2

-BCR

➜

Part Number

PCLR2003-BCR

1

Model

PCLR200N

[1]

PCL2004

Right Angle Variable Array

Right Angle Four LED Array

2

LED

-BR

-BA

-BG

STANDARD INTENSITY -

DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

60

635

583

565

14

16

10

MEDIUM INTENSITY -

TINTED ENCAPSULATION

LED

-BCR

-BCA

-BCG

λpk

Color

RED

AMB

GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

35

24

635

583

565

120

100

80

SPECIALTY LEDs

LED

-RLP

-ALP

-GLP

-LRG

[3]

λpk

Color

RED

AMB

GRN

RED/GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

50

60

Description

Low Power

Bi-Color, Red Cathode

635

583

565

660/565

2.3

2.1

2.3

90/40

[1] Replace “N” with number of LEDs in the array, 2 - 4 (e.g. PCLR2003).

[2] Iv = typical luminous intensity @ If = 20mA (Ta=25°C), Low Power LEDs @ If = 2mA.

[3] Left lead = Green cathode.

24

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com
