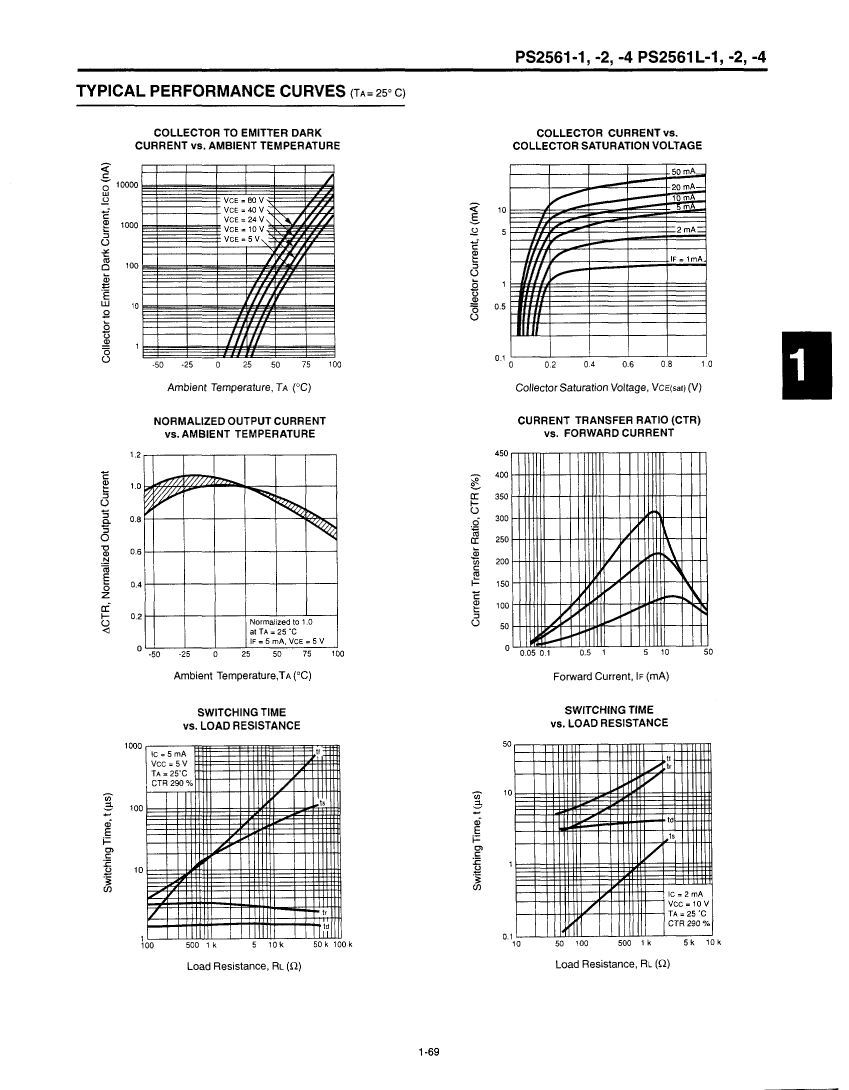

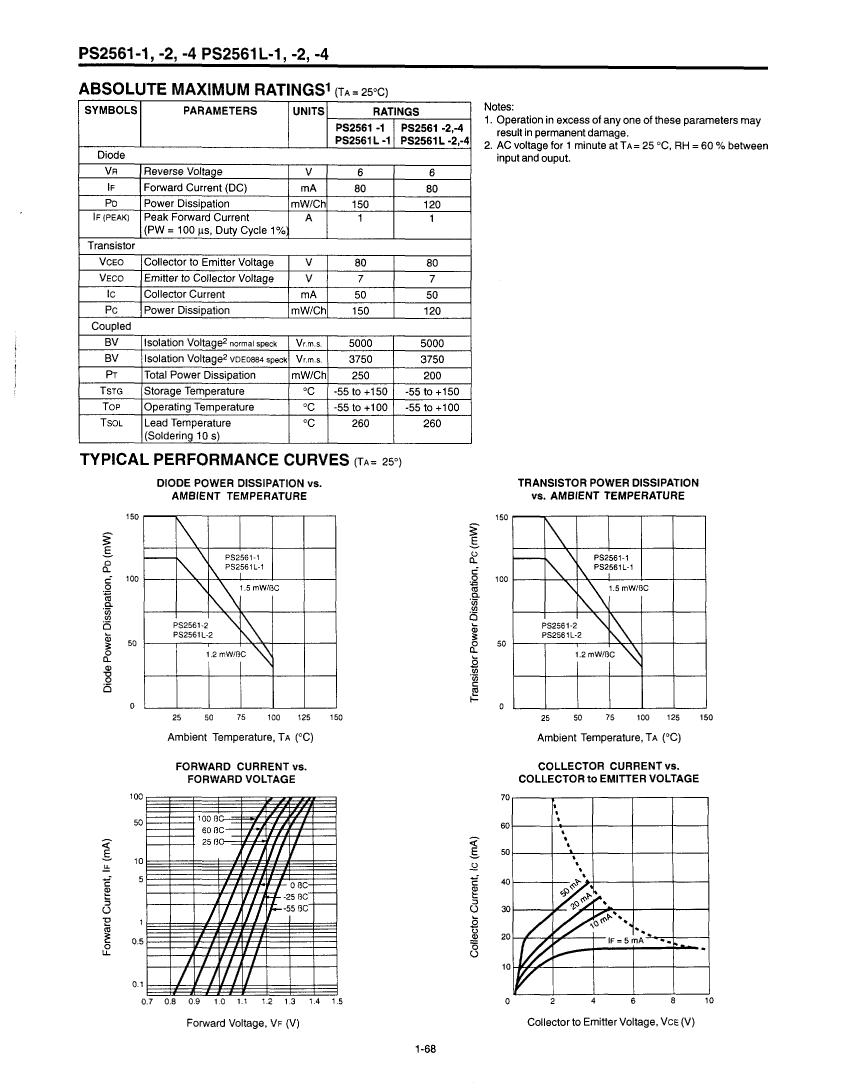

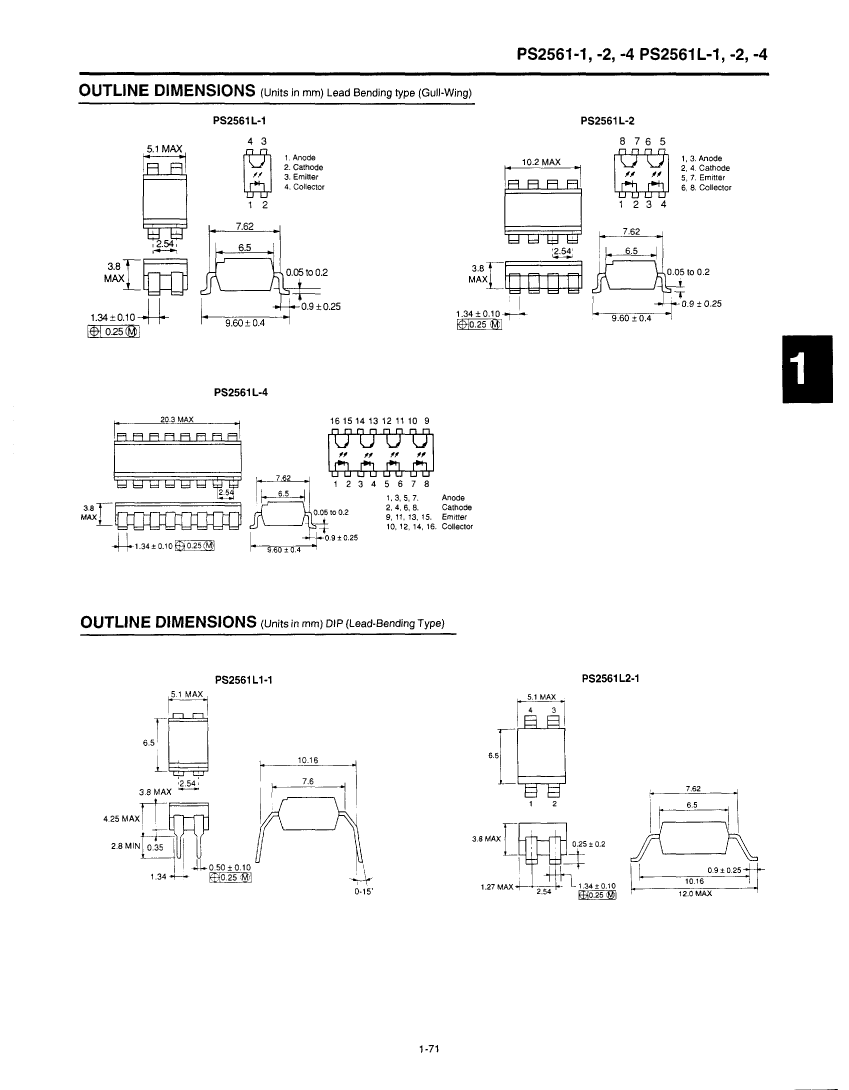

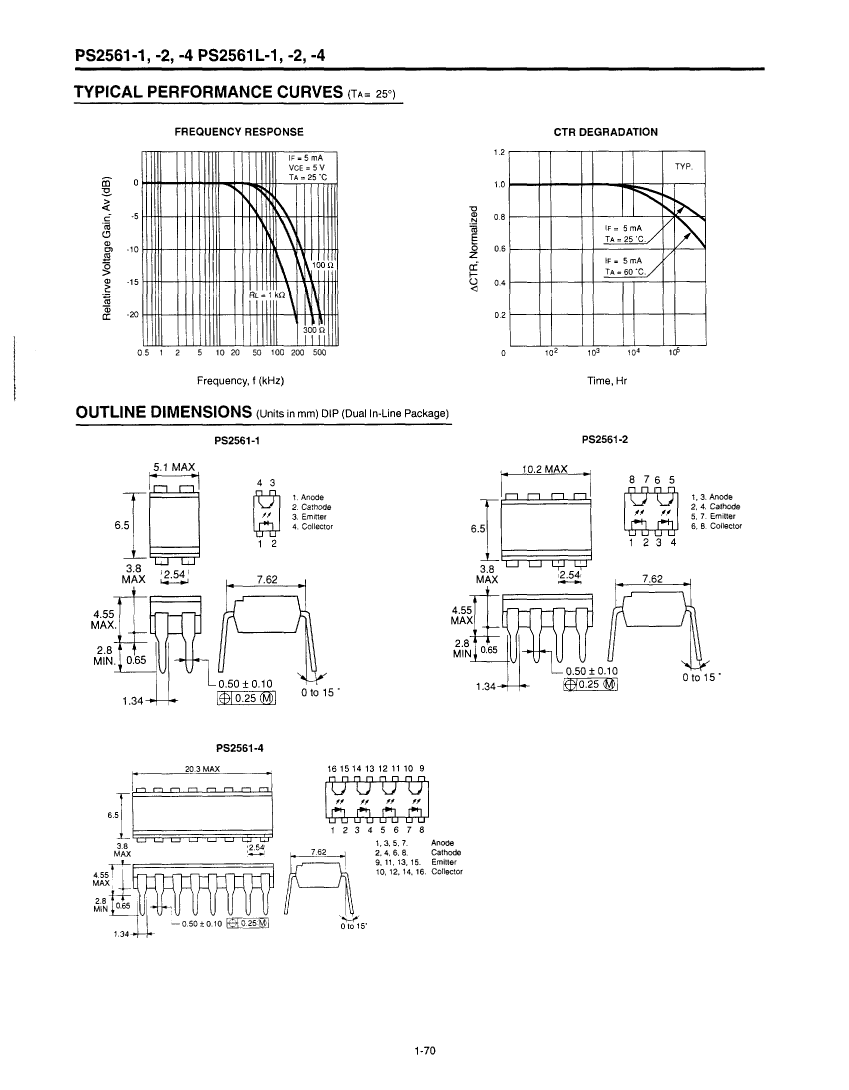

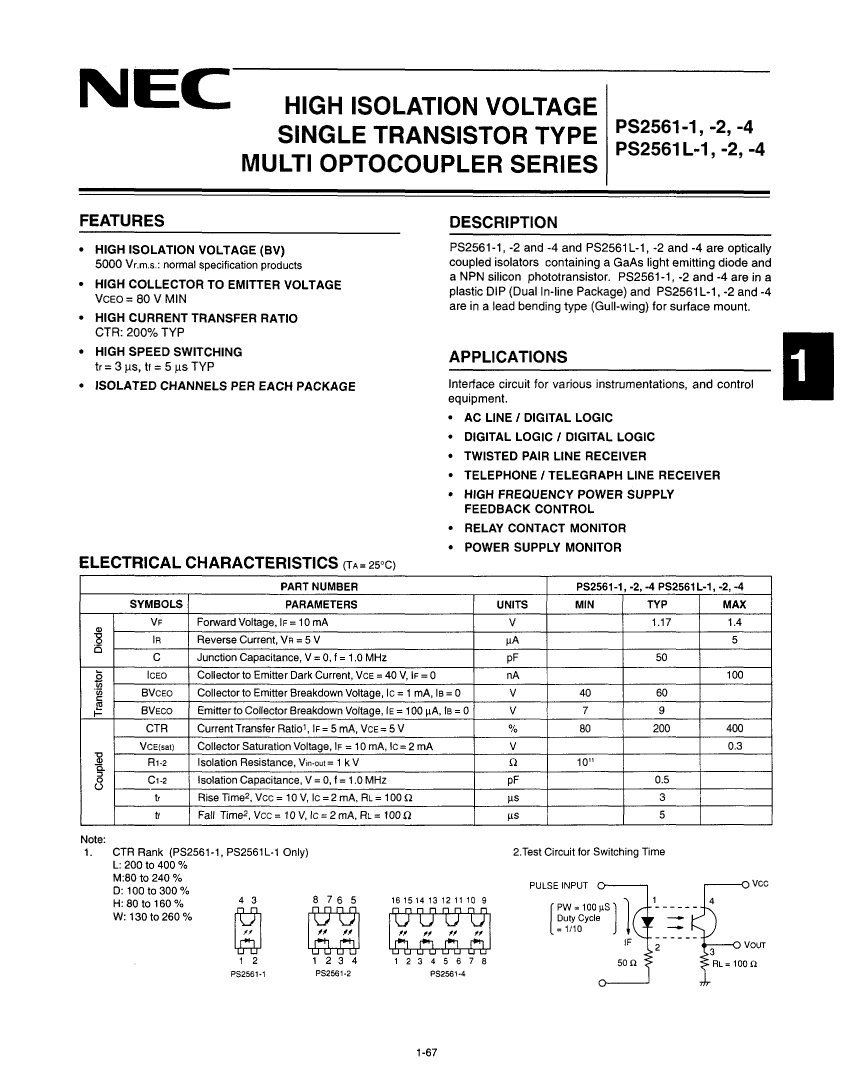

Preview

PS2561L-1-H: DescriptionTransistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4; CategoryLED optoelectronic/LED photoelectric; File Size266KB，5 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

PS2561L-1-H Overview

Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4

PS2561L-1-H Parametric

Parameter Name	Attribute value
Maker	California Eastern Labs
package instruction	GULL-WING, PLASTIC, DIP-4
Reach Compliance Code	compliant
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SINGLE
Nominal current transfer ratio	80%
Maximum dark power	100 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

PS2561L-1-H Related Products

	PS2561L-1-H	PS2561L-1-L	PS2561L-1-M	PS2561-1-W	PS2561-1-L	PS2561-1-M	PS2561L-1-D	PS2561L-4	PS2561-1-D	PS2561-1-H
Description	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4	Transistor Output Optocoupler, 4-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-16	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4
package instruction	GULL-WING, PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-4	GULL-WING, PLASTIC, DIP-16	PLASTIC, DIP-4	PLASTIC, DIP-4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compliant
Coll-Emtr Bkdn Voltage-Min	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SEPARATE, 4 CHANNELS	SINGLE	SINGLE
Nominal current transfer ratio	80%	200%	80%	130%	200%	80%	100%	200%	100%	80%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	1	1	1	1	1	1	1	4	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Maker	California Eastern Labs	-	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs
