PS2561L-1H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2561L-1H

PS2561L-1H: DescriptionNPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,5KV ISOLATION,SO; CategoryLED optoelectronic/LED photoelectric; File Size145KB，18 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

PS2561L-1H Overview

NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,5KV ISOLATION,SO

PS2561L-1H Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Reach Compliance Code	compliant
Current transmission ratio - minimum value	80%
Maximum forward current	0.08 A
Maximum forward voltage	1.4 V
Maximum insulation voltage	5000 V
Installation features	SURFACE MOUNT
Number of components	1
Maximum on-state current	0.05 A
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Maximum power dissipation	0.15 W
surface mount	YES

Preview

Download Datasheet

View All

DATA SHEET

PHOTOCOUPLER

PS2561-1,-2,PS2561L-1,-2

HIGH ISOLATION VOLTAGE

SINGLE TRANSISTOR TYPE

MULTI PHOTOCOUPLER SERIES

DESCRIPTION

The PS2561-1, -2 and PS2561L-1, -2 are optically coupled isolators containing a GaAs light emitting diode and an

NPN silicon phototransistor.

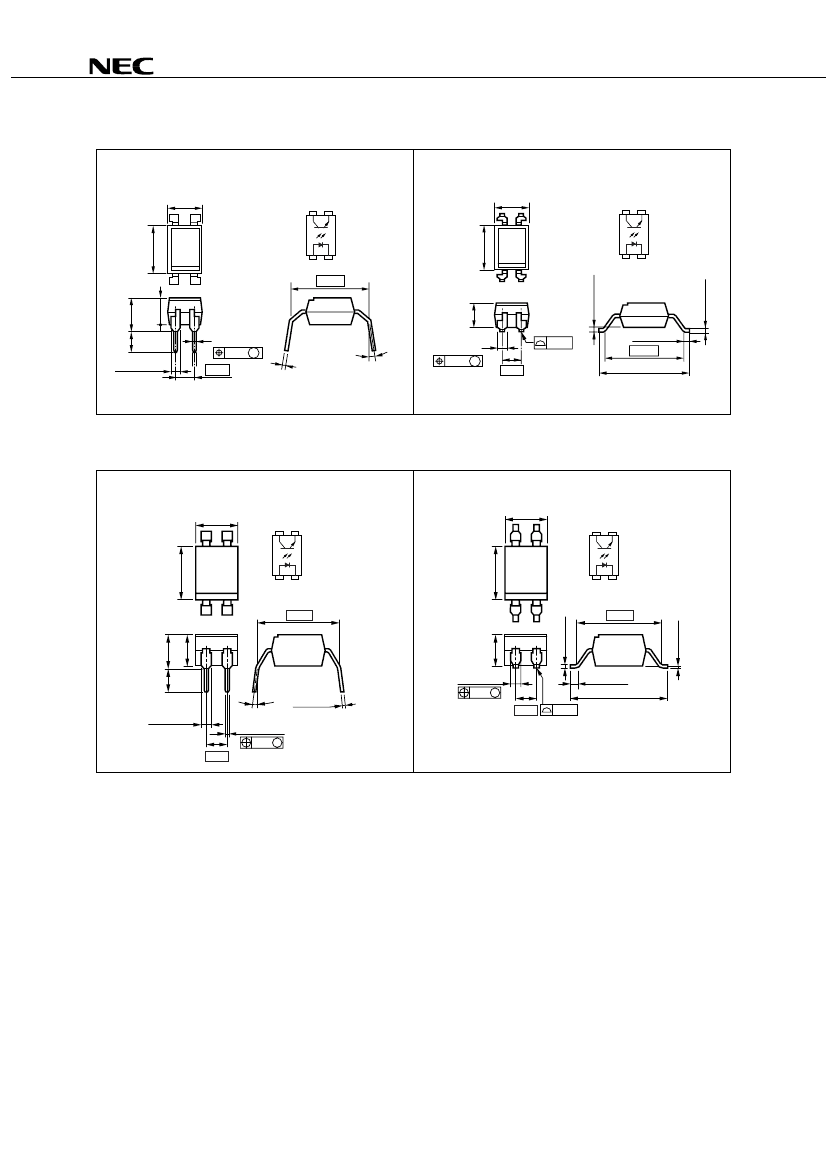

PS2561-1, -2 are in a plastic DIP (Dual In-line Package) and PS2561L-1, -2 are lead bending type (Gull-wing) for

surface mount.

−NEPOC

Series−

FEATURES

• High Isolation voltage (BV = 5 000 Vr.m.s.)

• High collector to emitter voltage (V

CEO

= 80 V)

• High current transfer ratio (CTR = 200 % TYP.)

• High-speed switching (t

= 3

s TYP., t

= 5

s TYP.)

• Ordering number of taping product: PS2561L-1-E3, E4, F3, F4, PS2561L-2-E3, E4

• UL approved: File No. E72422 (S)

• CSA approved: No. CA 101391

• BSI approved: No. 7112

• SEMKO approved: No. 9317144

• NEMKO approved: No. A21409

• DEMKO approved: No. 300535

• FIMKO approved: No. 167265-08

• VDE0884 approved (Option)

APPLICATIONS

• Power supply

• Telephone/FAX.

• FA/OA equipment

• Programmable logic controller

The information in this document is subject to change without notice. Before using this document, please confirm that

this is the latest version.

Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices

representative for availability and additional information.

Document No. PN10234EJ01V0DS (1st edition)

(Previous No. P12989EJ5V0DS00)

Date Published February 2003 CP(K)

Printed in Japan

The mark

•

shows major revised points.

NEC Compound Semiconductor Devices 1992, 2003

PS2561L-1H Related Products

	PS2561L-1H	PS2561-1W	PS2561-1H
Description	NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,5KV ISOLATION,SO	NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,5KV ISOLATION,DIP	NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,5KV ISOLATION,DIP
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	compliant	compliant	compliant
Current transmission ratio - minimum value	80%	130%	80%
Maximum forward current	0.08 A	0.08 A	0.08 A
Maximum forward voltage	1.4 V	1.4 V	1.4 V
Maximum insulation voltage	5000 V	5000 V	5000 V
Installation features	SURFACE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of components	1	1	1
Maximum on-state current	0.05 A	0.05 A	0.05 A
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum power dissipation	0.15 W	0.15 W	0.15 W
surface mount	YES	NO	NO
