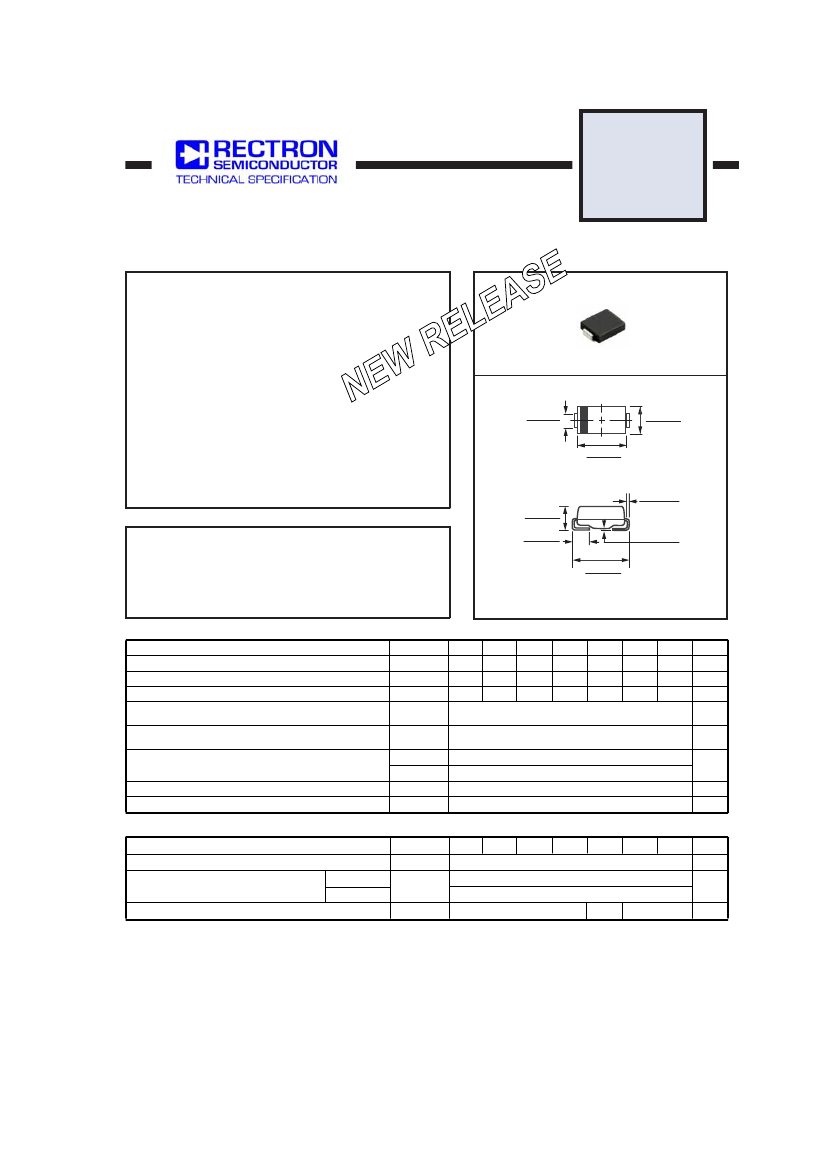

VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere
FEATURES
*
*
*
*
*
*
SURFACE MOUNT GLASS PASSIVATED
FAST RECOVERY SILICON RECTIFIER
FFM301L
THRU
FFM307L
Glass passivated device
Ideal for surface mounted applications
Low leakage current
Metallurgically bonded construction
Mounting position: Any
Weight: 0.24 gram
SMCL
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
0.125 (3.17 )
0.115 (2.92 )
0.245 ( 6.22 )
0.220 ( 5.59 )
0.280 ( 7.11 )
0.260 ( 6.60 )
0.012 ( 0.305 )
0.006 ( 0.152 )
0.085 ( 2.15 )
0.061 ( 1.55 )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
0.060 ( 1.52 )
0.030 ( 0.76 )
0.008 ( 0.203 )
0.004 ( 0.102 )
0.320 ( 8.13 )
0.305 ( 7.75 )
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 55
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 4)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 3.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Maximum Reverse Recovery Time (Note 1)
NOTES :
1. Reverse Re covery Test Conditions: I
F
= 0.5A, I
R
= -1.0A, I
RR
= -0.25A
2. Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
3. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”.
4. Thermal Resistance : Mounted on PCB.
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
qJA
R
qJL
C
J
T
J
, T
STG
FFM301L FFM302L FFM303L FFM304L FFM305L FFM306L FFM307L
UNITS
Volts
Volts
Volts
Amps
Amps
0
50
35
50
100
70
100
200
140
200
400
280
400
3.0
200
50
15
15
-55 to + 150
600
420
600
800
560
800
1000
700
1000
C/W
pF
0
C
SYMBOL
V
F
I
R
trr
FFM301L FFM302L FFM303L FFM304L FFM305L FFM306L FFM307L
UNITS
Volts
mAmps
1.30
2.0
100
150
250
500
nSec
2006-12

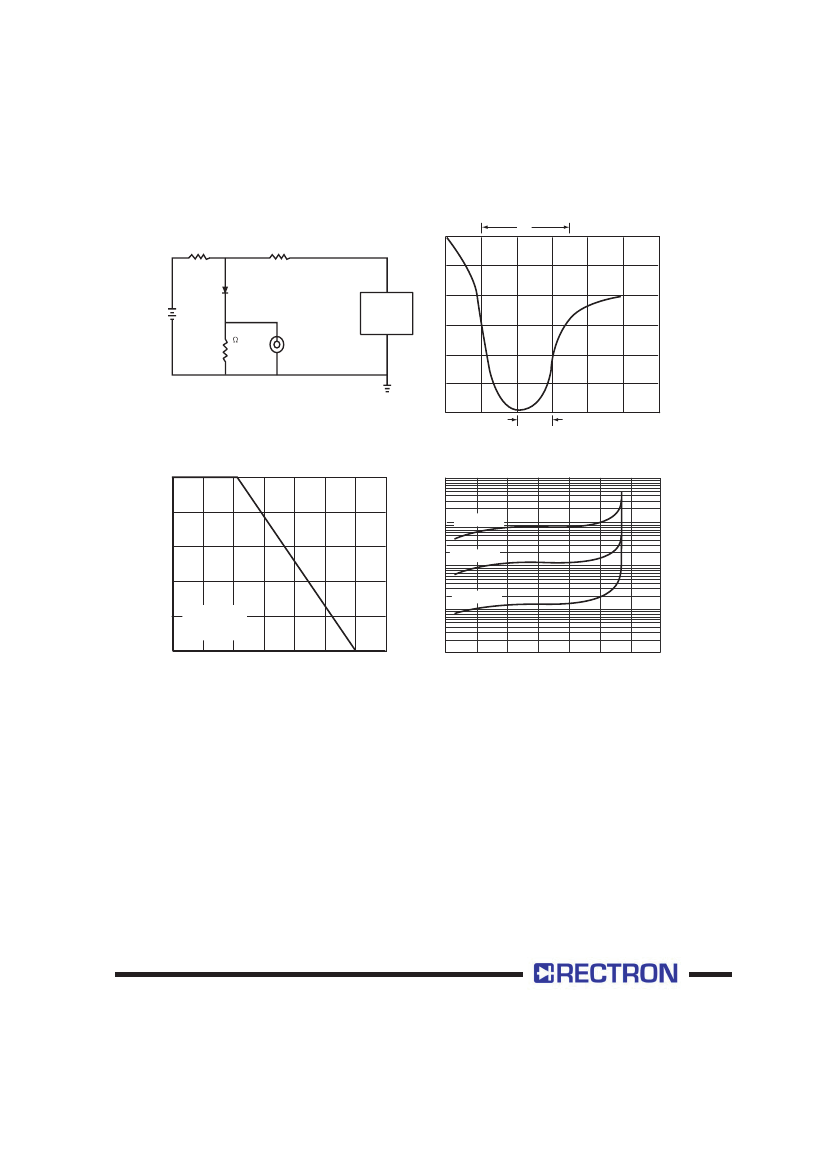

RATING AND CHARACTERISTICS CURVES ( FFFM301L THRU FFM307L )
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
+0.5A
trr
(+)
25 Vdc
(approx)
(-)
D.U.T
(-)
PULSE
GENERATOR
(NOTE 2)
0
-0.25A
1
NON-
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
NOTES: 1 Rise Time = 7ns max. Input Impedance =
1 megohm. 22pF.
2. Rise Time = 10ns max. Source Impedance =
50 ohms.
-1.0A
1cm
SET TIME BASE FOR 50/100 ns/cm
FIG.1 TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
3.0
AVERAGE FORWARD CURRENT, (A)
INSTANTANEOUS REVERSE CURRENT, (mA)
1000
2.5
2.0
1.5
1.0
0.5
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
100
T
A
= 100
O
C
T
A
= 75
O
C
10
1.0
T
A
= 25
O
C
0
25
50
75
100
125
150
175
0.1
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE, (
O
C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG.2 TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.3 TYPICAL REVERSE
CHARACTERISTICS
RATING AND CHARACTERISTICS CURVES ( FFM301L THRU FFM307L )
INSTANTANEOUS FORWARD CURRENT, (A)
PEAK FORWARD SURGE CURRENT, (A)
20
10
3.0
1.0
0.3
0.1
0.03
0.01
0
200
150
125
100
T
J
= 25
O
C
8.3ms Single Half Sine-Wave
(JEDED Method)
50
30
20
10
Pulse Width=300uS
1% Duty Cycle
0.5
1.0
1.5
2.0
2.5
3.0
3.5
1
5
10
50
100
INSTANTANEOUS FORWARD VOLTAGE, (V)
NUMBER OF CYCLES AT 60Hz
FIG.4 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
200
JUNCTION CAPACITANCE, (pF)
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
60
40
20
10
6
4
2
1
0.1 0.2
0.4
1.0
2
4
10
T
J
= 25
O
C
20
40
100
REVERSE VOLTAGE, (V)
FIG.6 TYPICAL JUNCTION CAPACITANCE
