PCA110H datasheet, PDF - EEWORLD Datasheet

PCA110H: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Natural Insulator; CategoryThe connector The connector; File Size134KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

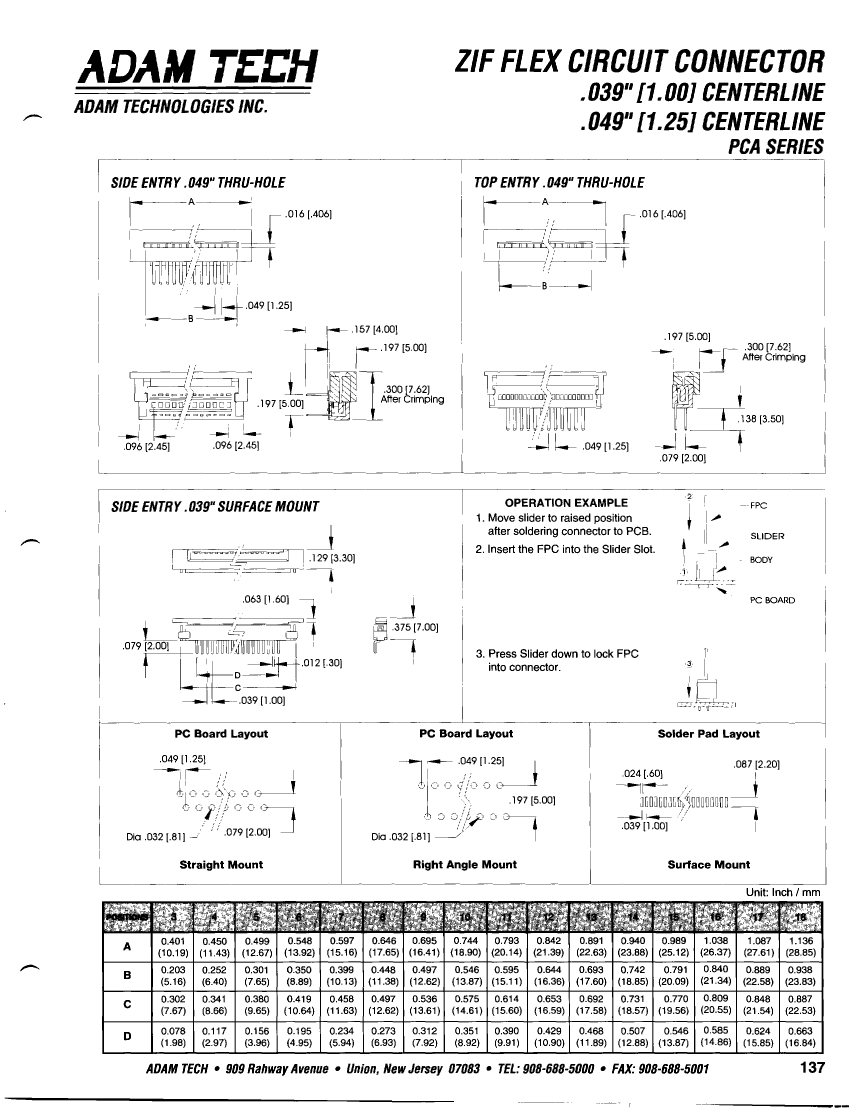

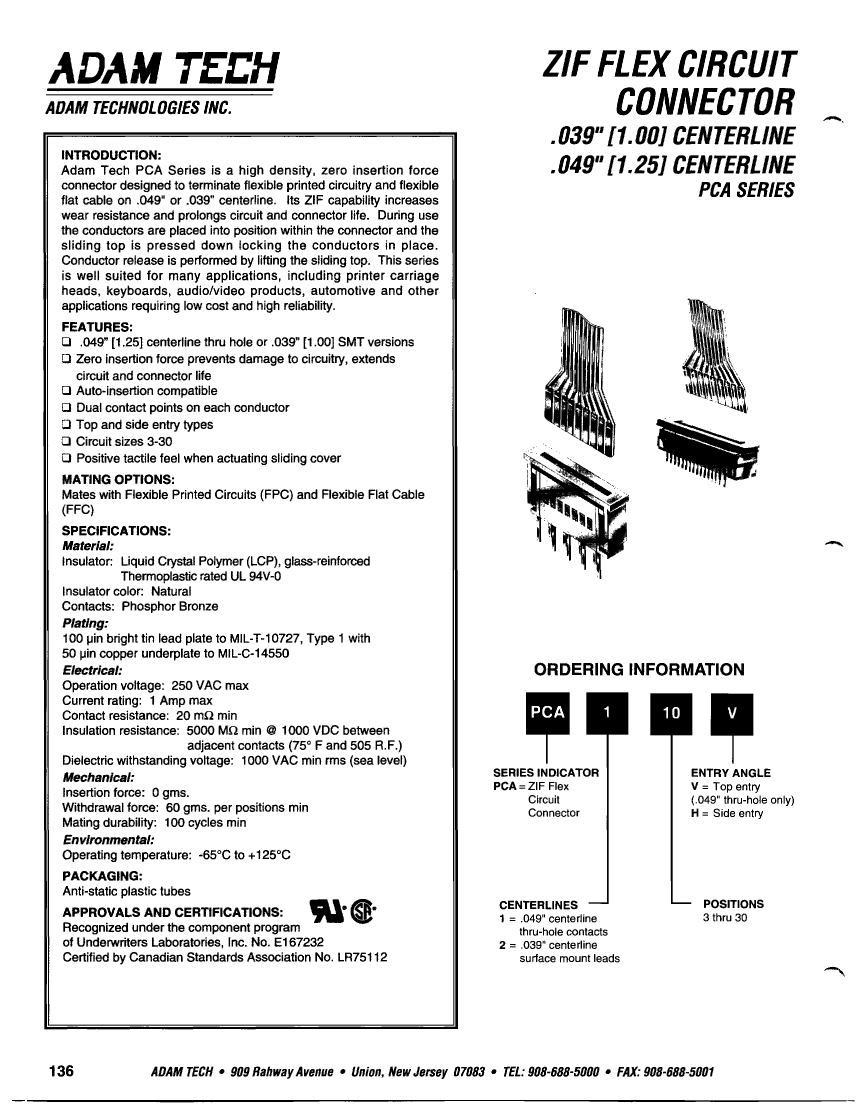

PCA110H Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Natural Insulator

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIDE ENTRY, STAGGERED CONFIGURATION
body width	0.197 inch
subject depth	0.3 inch
body length	0.744 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation option 1	FCC RETNN DVC
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	5.0038 mm
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.5838 N
