FEATURES
!

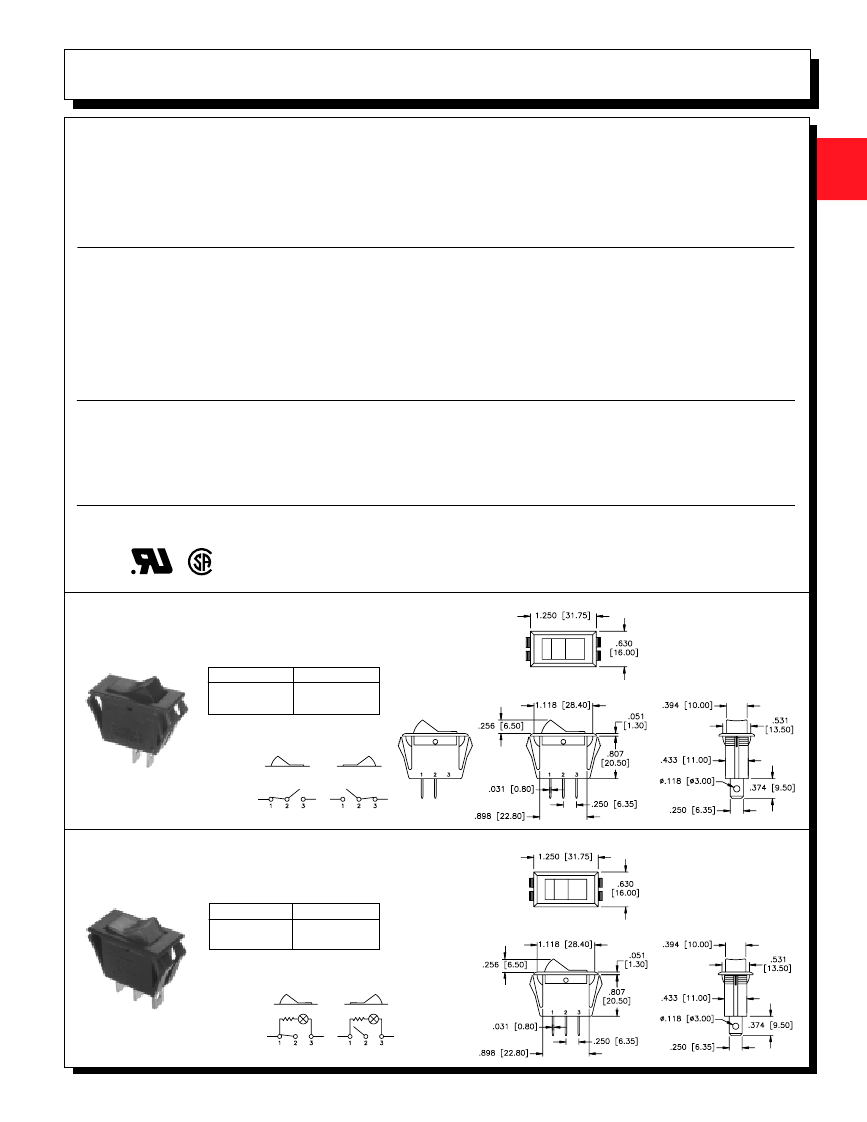

B SERIES SNAP-IN ROCKER SWITCHES
Cost effective illuminated or non-illuminated models.
Single pole and double pole maintained action models.
Actuator and case color selections.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
N
Standard actuator marking options.
SPECIFICATIONS
Contact ratings:
Initial contact resistance:
Insulation resistance:
Dielectric strength:
Electrical life:
Operating temperature range:
10A 250VAC (UL/CSA)
15A 125VAC (UL/CSA)
20 milliohms max.
100 megohms min. at 500 V
1000 VAC for 1 minute
6000 cycles at full load
-20°C to 85°C
MATERIALS
Contacts:
Terminals:
Actuator:
Case:
Copper alloy
Silver or tin plated copper alloy
Nylon (UL94V-2 min.)
Nylon (UL94V-2 min.)
Lamps:
Neon or fluorescent.
AGENCY RECOGNITION
UL & CSA. Models are supplied with agency markings.
Single pole - non-illuminated - quick connect terminals
MODEL NO.
CIRCUIT
NONE ON
NONE OFF
B110R2NBB0NN
ON
B160R2NBB0NN
ON
Above models have black actuator.
Max. panel thickness: .083 [2.10]
Single pole - illuminated - quick connect terminals
MODEL NO.
CIRCUIT
NONE ON
NONE OFF
B110R2LBB1NN
ON
B160R2LBB1NN
ON
Above models have black actuator.
Max. panel thickness: .083 [2.10]
N44
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
e w !
B SERIES SNAP-IN ROCKER SWITCHES
N
N
Additional ordering information:
Commonly ordered models are shown above with complete model numbers and specificat-
ions. Below is an order format that enables you to 'build your own switch' and specify the correct switch model number by
simply selecting from all available options shown and filling in the boxes.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
'BUILD YOUR OWN SWITCH' ORDER FORMAT
Fill in boxes with selections shown for
Model Structure,
then add
Options
selections for complete model number.
Allowable options are shown below each respective box.
Example of completely specified
model number:
B160R2NBB0BN
Series
B
Number
of poles
Electrical
functions
Terminals
0
Actuator
type
R
Rocker
Actuator
marking
1
Single pole
1
ON ON
3
ON
OFF
ON*
6
ON OFF
*-Not available with
double pole
Actuator
color
Quick connect
1
2
3
4
5
HI LO
No marking
ON OFF
O
O
Case
marking
Illumination
Case
color
Lamp
position
Terminal
bending
N
No illum.
L
Illuminated
Note: illumination
available only with
Green, Orange or
Red Actuator
colors.
A
B
C
R
W
Gray
Black
Brown
Red
White
A
B
C
G
O
R
W
Y
Gray
Black
Brown
Green
Orange
Red
White
Yellow
0
No lamp
1
Solder to term. 1
2
Solder to term. 2
Note 1 & 2 have
neon lamp.
N
No bending
B
Bend terms. 1 & 3
N
No marking
M
" " printing
(consult factory)
QUICK-CONNECT TERMINAL TERMINAL BENDING
PANEL CUT-OUTS
SINGLE POLE
pnl. tk'ness.
.029-.049"
.050-.078"
.079-.118"
A +0, -.004
1.126"
1.134"
1.150"
B +0, -.004
.535"
.535"
.535"
0
B
N45
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
