MQF45-0-1500-65 Overview

Nominal centre frequency fo: 45.0 MHz

28 April 2010
Specification for monolithic crystal filter:
M Q F 4 5 . 0 - 1 5 0 0 / 6 5
1. General

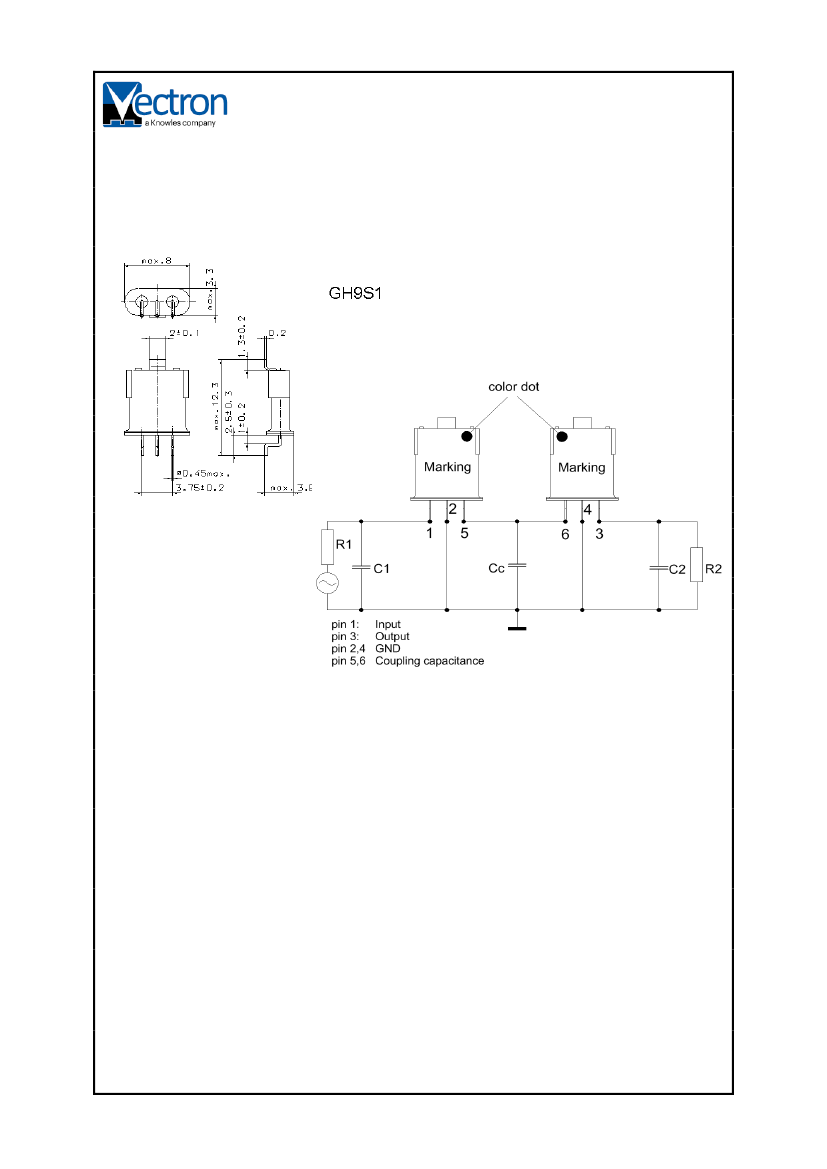

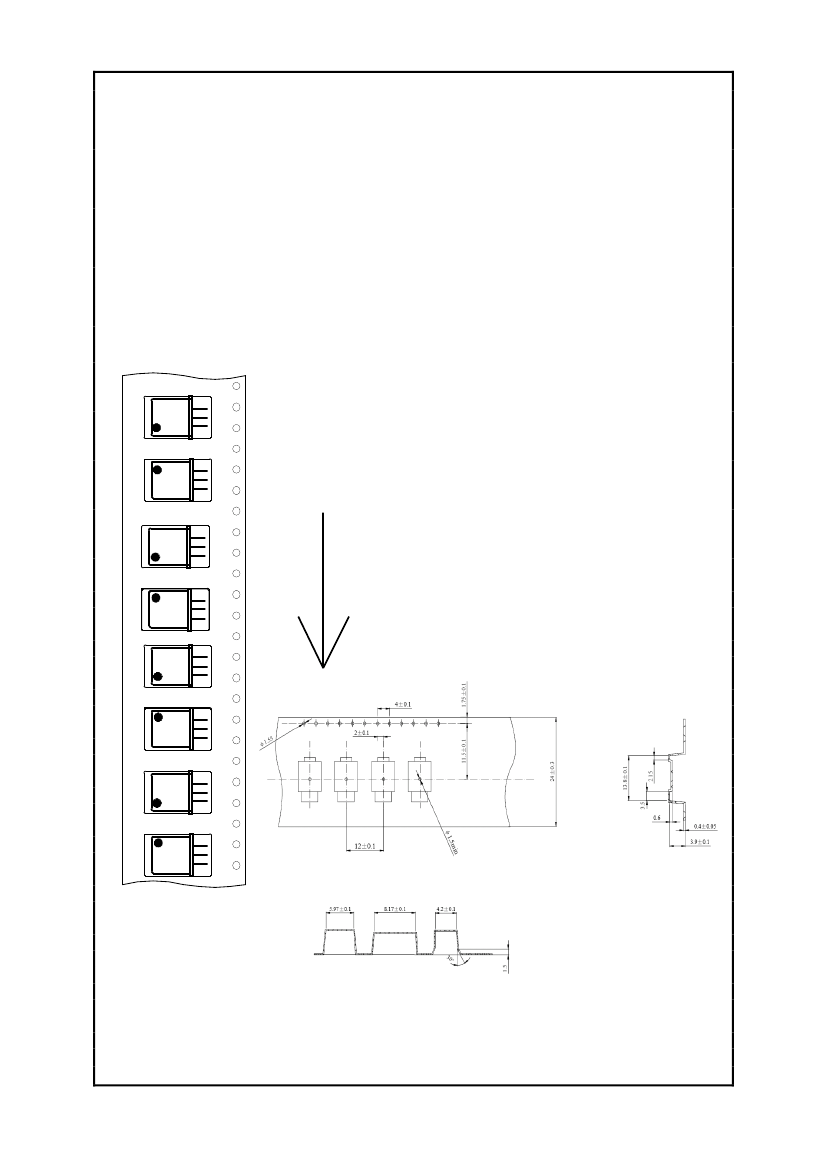

1.1. Package: 2 x GH9S1 ( each filter consist of a matched pair of two GH9S1 duals )
1.2.
1.3.
1.4.
1.5.
Type name:
Number of poles:
Operating temperature range:
Storage temperature range:
MQF 45.0-1500/65
4
-30°C to +90°C
-55°C to +90°C
2.
Electric values
2.1. Nominal centre frequency fo:
2.2.
Pass band
2.2.1. Bandwidth between 3 dB - frequencies:
2.2.2. Ripple:
2.2.3. Insertion loss:
( measured on smallest attenuation in pass band )
2.3.
Stop band
2.3.1. fo
25 kHz
2.3.2. fo - 910 kHz
2.4. Terminating impedance R//C (input and output):
2.4.1. Coupling capacitance ( Cc ):
45.0 MHz
fo
7.5 kHz
1.0 dB at fo
5.0 kHz
3.0 dB
30 dB
90 dB
650
// 3.0 pF
10 pF
10 %
