PHEC80R-R110LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PHEC80R-R110LF

PHEC80R-R110LF: DescriptionTelecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size153KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

PHEC80R-R110LF Overview

Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE

PHEC80R-R110LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0

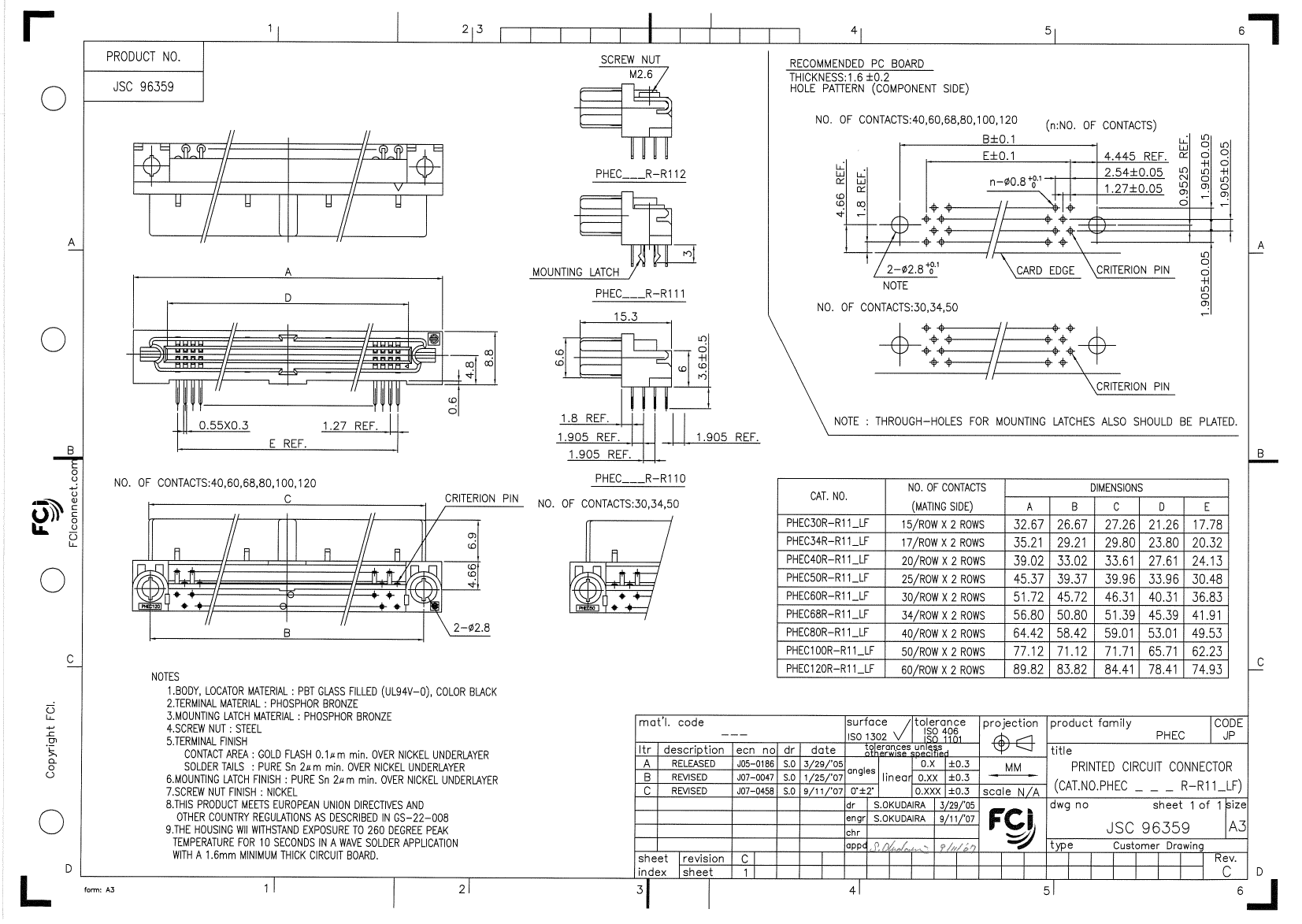

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Sep 13, 2007

PHEC80R-R110LF Related Products

	PHEC80R-R110LF	PHEC100R-R112LF	PHEC120R-R112LF	PHEC30R-R112LF	PHEC34R-R112LF	PHEC40R-R112LF	PHEC50R-R112LF	PHEC60R-R112LF	PHEC68R-R112LF	PHEC80R-R112LF
Description	Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 100 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 120 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 30 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 34 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 40 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 60 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 68 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	100	120	30	34	40	50	60	68	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
