MDA970G6: DescriptionSINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Amperes; CategoryDiscrete semiconductor diode; File Size178KB，3 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MDA970G6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MDA970G6	-	-	View	Buy Now

MDA970G6 Overview

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Amperes

MDA970G6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, RS-4L, 4 PIN
Contacts	4
Reach Compliance Code	_compli
Other features	UL RECOGNIZED
Minimum breakdown voltage	600 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSIP-W4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal surface	TIN
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

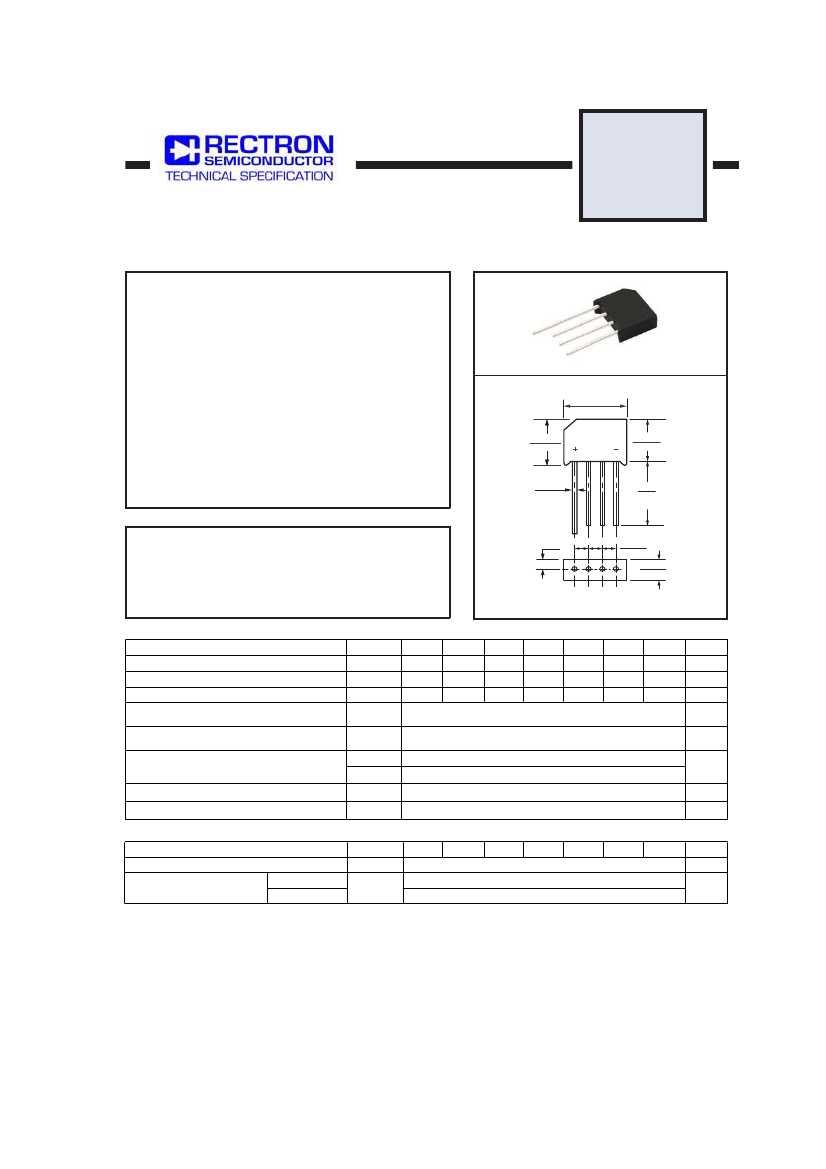

VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Amperes

FEATURES

SINGLE-PHASE GLASS PASSIVATED

SILICON BRIDGE RECTIFIER

MDA970G1

THRU

MDA970G10

Ideal for printed circuit board

Surge overload rating: 150 amperes peak

Mounting position: Any

Weight: 4.8 grams

MECHANICAL DATA

* UL listed the recognized component directory, file #E94233

* Epoxy: Device has UL flammability classification 94V-O

tin

RS-4L

.768 (19.5)

.728 (18.5)

DISCONTINUED-

"This series is replaced by the RS40XL series that meets to the same

fit and function parameters.

The RS40XL series is preferred for PCB assembly.＂

.580 (14.7)

.540 (13.7)

.640 (16.3)

.600 (15.2)

DIA.

.052 (1.3)

.048 (1.2)

.750

(19.0)

MIN.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

.083

(2.1)

.220 (5.6)

.180 (4.6)

.256 (6.5)

.236 (6.0)

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(@ T

=25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at T

= 50

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Typical Thermal Resistance (Note 1)

Typical Junction Capacitance (Note 3)

Operating and Storage Temperature Range

SYMBOL

RRM

RMS

FSM

, T

STG

MDA970G1

MDA970G2 MDA970G3 MDA970G5 MDA970G6 MDA970G8 MDA970G10

UNITS

Volts

Amps

100

200

140

200

400

280

400

4.0

150

-55 to + 150

600

420

600

800

560

800

1000

700

1000

C/ W

ELECTRICAL CHARACTERISTICS

(@T

=25

C unless otherwise noted)

CHARACTERISTICS

Maximum Instantaneous Forward Voltage at 6.28A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

= 25

= 100

SYMBOL

MDA970G1

MDA970G2 MDA970G3 MDA970G5 MDA970G6 MDA970G8 MDA970G10

UNITS

Volts

mAmps

2007-5

1.1

5.0

100

NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.

2. "Fully ROHS compliant", "100% Sn plating (Pb-free)".

3. Measureed at 1MHz and applied reverse voltage of 4.0 volts.
