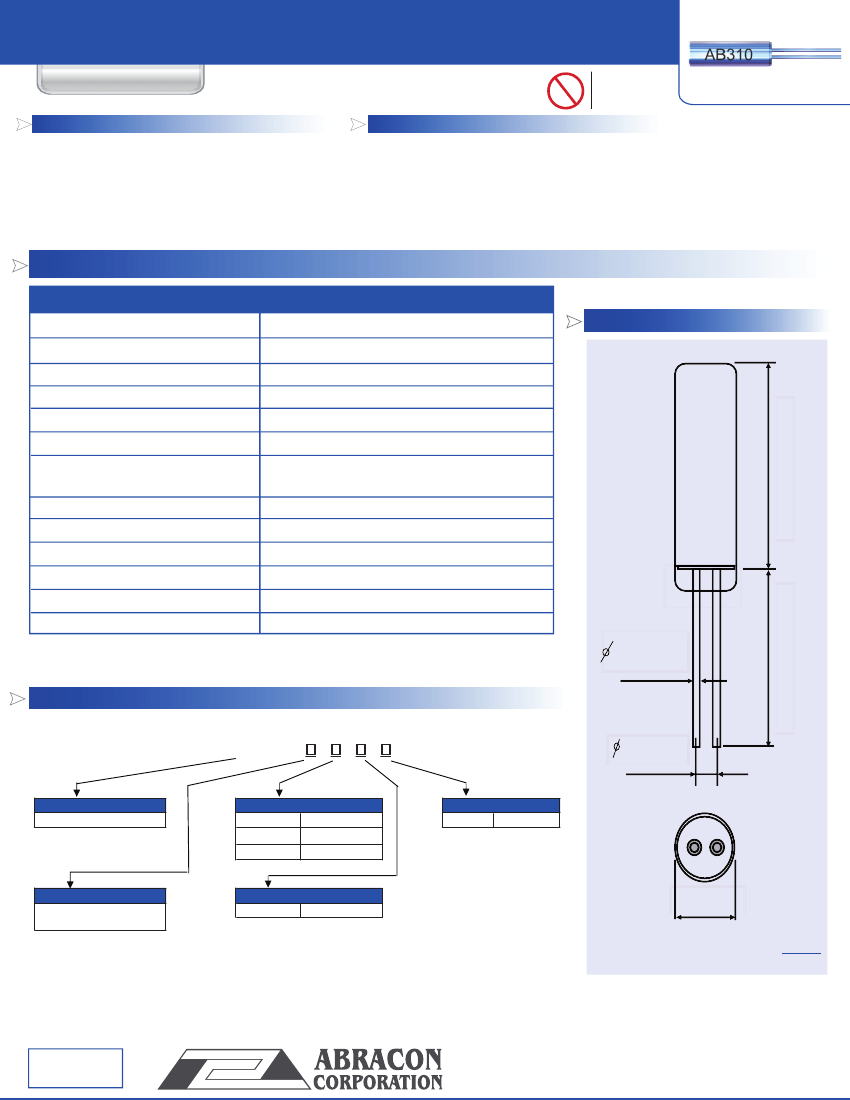

LOW FREQUENCY CYLINDRICAL TYPE
MICROPROCESSOR CRYSTAL
AB310
Pb
RoHS
Compliant
APPLICATIONS:
• Suitable for wide range of application
• Clocks for microprocessor
• Consumer electronics
• Test equipment
• Computer peripherals
9.8 x 3.2 x 0.8 mm
| | | | | | | | | | | | | | |
FEATURES:
• High stability by tight vacuum sealing
• Excellent resistant to vibration and shock
• Miniature high frequency cylinder type crystal
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance
Frequency Stability over the
Operating Temp. (Ref to +25°C)
AB310 Series
3.50 MHz to 3.99 MHz
Fundamental
-10°C to + 60°C (see options)
- 40°C to + 85°C
± 30 ppm max. (see options)
OUTLINE DRAWING:
9.8max.
± 50 ppm max. (see options)
Equivalent Series Resistance (R1)
200
Ω
max.
Shunt Capacitance C
0
5pF max.
Load Capacitance C
L
16pF (see options)
Drive Level
100µW max.
Aging at 25°C Per Year
± 5ppm max.
500 M
Ω
min at 100Vdc ± 15V
Insulation Resistance
0.38±0.05
8.0Min
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
AB310 - Frequency -
Frequency
-
-
-
Freq. Stability
Y
± 30 ppm
0.8±0.2
XX.XXXX MHz
Operating Temp.
E
-0°C to +70°C
B
-20°C to +70°C
D
-40°C to +85°C
Freq. Tolerance
5
± 50 ppm
Load Capacitance
Please specify CL in pF or S
for Series
3.2 max.
Dimensions: Inches
(mm)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 03.12.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
